Product Information :

Name :
จำหน่าย Dial Comparator
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Obishi Keiki Seisakusho
Brand :
Dial Comparator
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Dial Comparator Granite Dial Comparator

Product Detail :

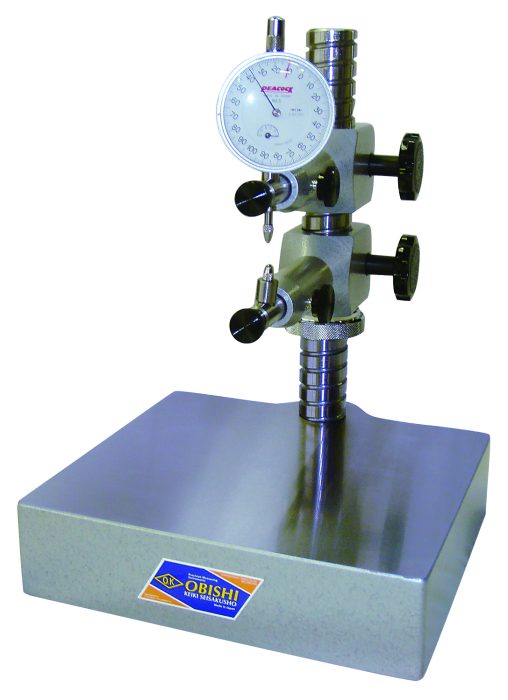

Dial Comparator (PH-2-Type)

[ Stock No：803-1 ]
Dial Comparator (PH-2-Type)

  • Comes with 2 brackets.
  • Suitable for pipes and other wall thickness measurement
  • Base is made of Cast Iron.

*Dial Gauge is not included.

Code No. Model Base Measurement
(L×W×tmm)		 Pillar Measurement
(φ×Lmm)		 Measurement Range
(mm)		 Mass
(kg)
MA101 PH-2 180×200×50 28×220 165 6.5

Other products of Dial Comparator

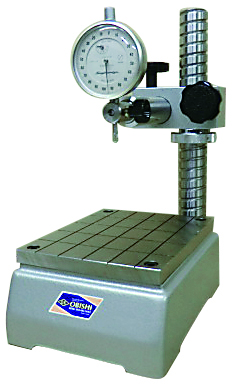

Dial Comparator (PH-3-Type)

[ Stock No：803-2 ]
Dial Comparator (PH-3-Type)

  • On the base Upper surface, an escape grooveed hardened plate is installed.
  • The arm can be detached, making it possible for measurement at any position on the base plate surface.

*Dial Gauge is not included.

Code No. Model Table Surface Measurement
(L×Wmm)		 Pillar Measurement
(φ×Lmm)		 Arm Measurement
(φ×Lmm)		 Measurement Range
(mm)		 Mass
(kg)
MA102 PH-3 150×115 28×220 26×170 120 7.0
MA103 PH-3L 150×115 28×300 26×170 220

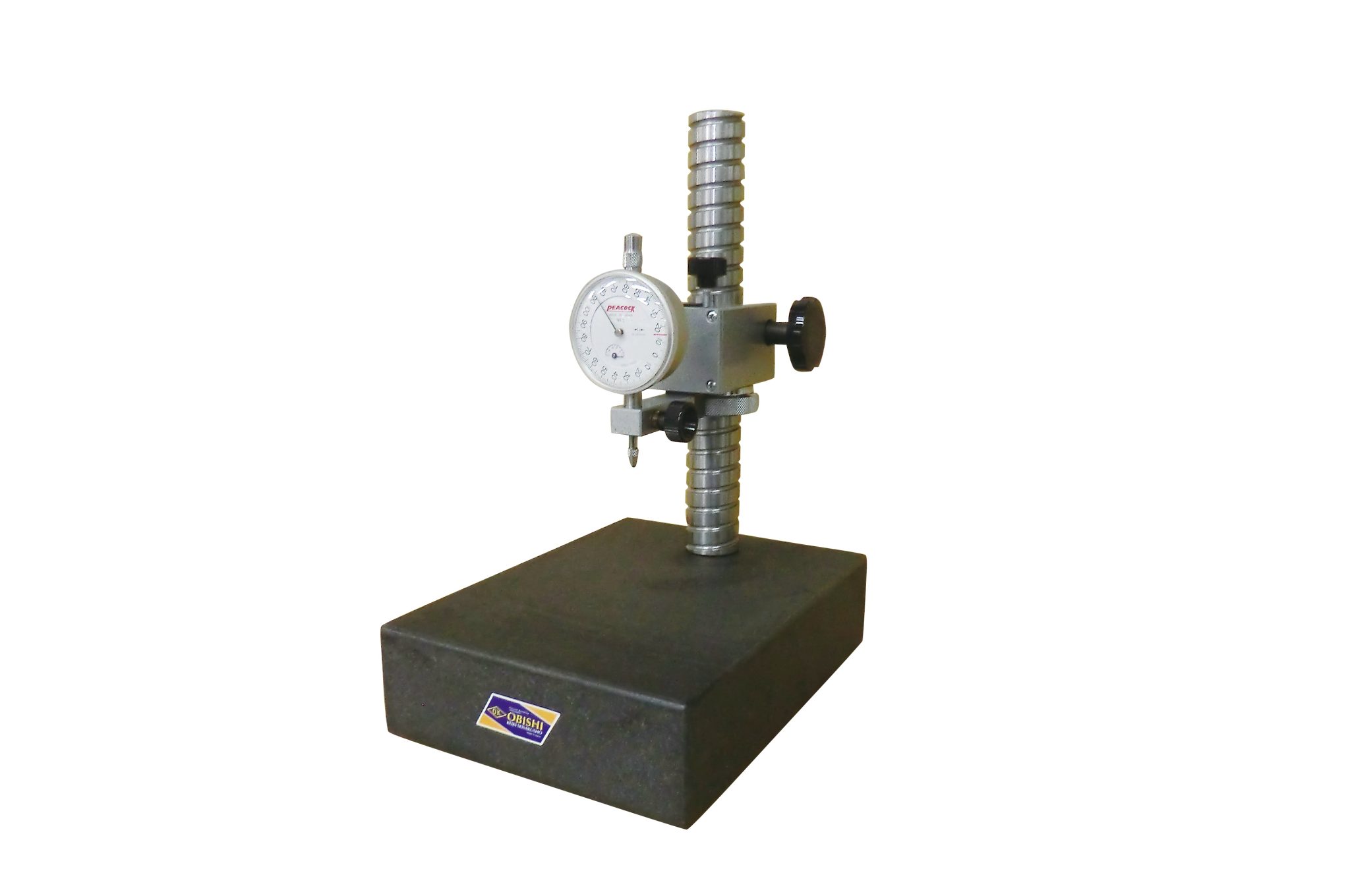

Granite Dial Comparator

[ Stock No：900-13 ]
Granite Dial Comparator

  • Equipped with a micro motion mechanism which makes it easy for very minute dial gauge movement.
  • The Baseis made of high quality black plaque rock.
  • Secular distortion, temperature variation is very small. Hardness is high with superior wear resistance characteristics.

*Dial Gauge is not included.

Code No. Model Base Measurement
(L×W×tmm)		 Pillar Measurement
(φ×Lmm)		 Measurement Range
(mm)		 Mass
(kg)
MB201 I 150×100×50 28×220 135 5.0
MB202 II 200×150×50 28×220 7.5
