E-Catalog > Obishi Keiki Seisakusho > Granite SURFACE PLATE โต๊ะระดับ

PAGE VIEW : 684

Product Information :

Name :
Granite SURFACE PLATE โต๊ะระดับ
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Obishi Keiki Seisakusho
Brand :
OBISHI
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
SURFACE PLATE โต๊ะระดับ Granite , Cast Iron Precision Precision Granite Surface Plate

Product Detail :

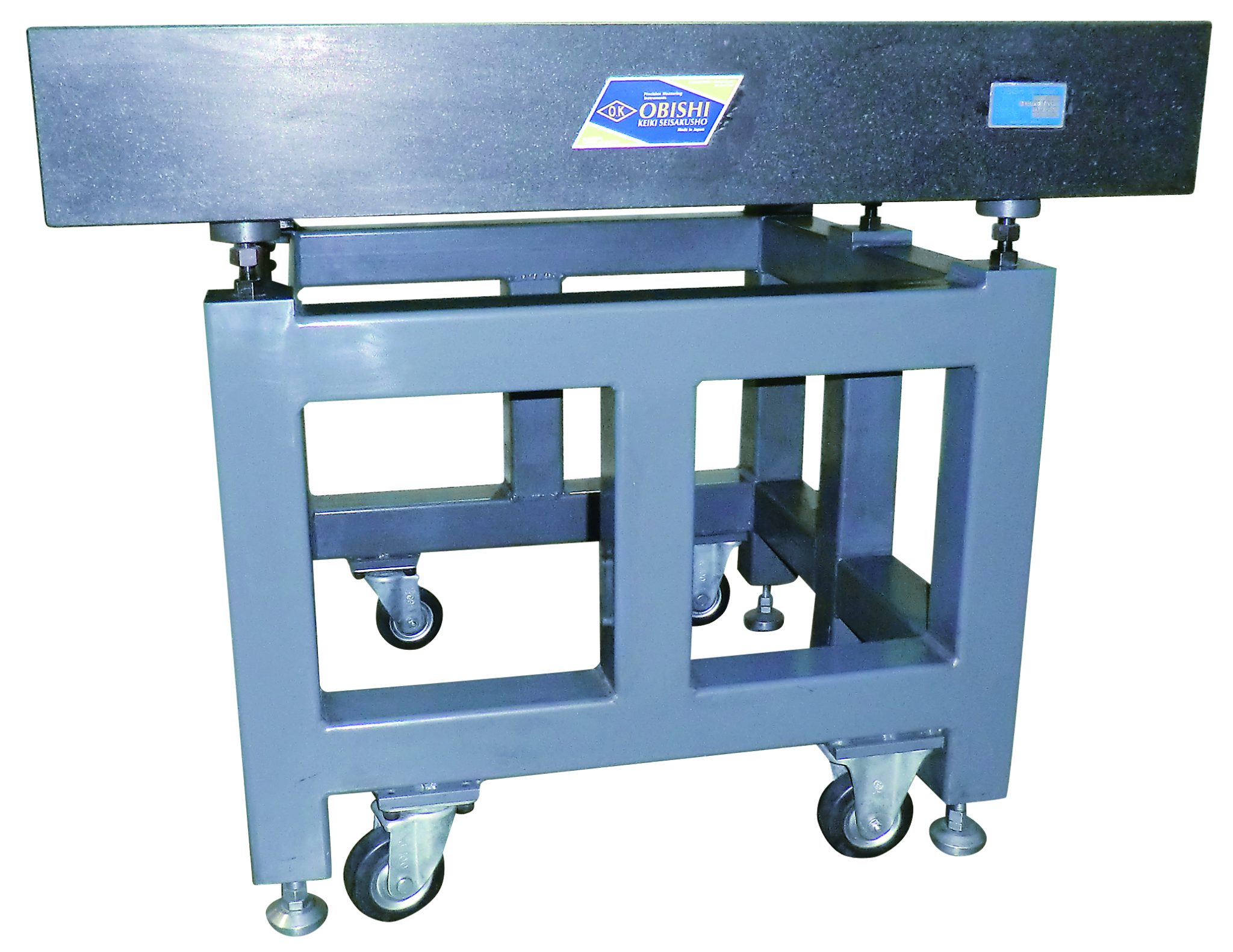

Surface Plate Stand with caster (Granite , Cast Iron Precision For Surface Plate)

[ Stock No：218-1 ]
Surface Plate Stand with caster (Granite , Cast Iron Precision For Surface Plate)

  • With caster for easy movement.
  • Made using Square pipe material with emphasis on stability and eas of use.
  • It is designed so that the Surface Plate high accuracy will be maintained for a long term
  • Height from Surface Plate Upper surface to the floow is 750mm. However, we can make with other measurements according to your requirement.

*We can manufacture special dimension products, products with fall prevention mechanism or with special mounts.

Stand for Granite Surface Plate with Caster

Surface Plate Measurement
(mm)		 Code No. Square Pipe
(mm)		 No. of Support Legs
(pcs)		 Adjustment Screw
(mm)		 Surface Plate Upper Surface
Height (mm)		 Mass
(kg)
750×500 BL203 75×75 5 M16 850 65
1000×750 BL204 80
1000×1000 BL205 95
1500×1000 BL206 80×80 105
2000×1000 BL207 7 M20 125
2000×1500 BL208 145
3000×1500 BL209 9 155

Stand for Cast Iron Precision Surface Plate with Caster

Surface PlateMeasurement
(mm)		 Code No. Square Pipe
(mm)		 No. of Support Legs
(pcs)		 Adjustment Screw
(mm)		 Surface Plate Upper Surface
Height (mm)		 Weight
(kg)
750×500 BL403 75×75 5 M16 850 65
1000×750 BL404 80
1000×1000 BL405 95
1500×1000 BL406 80×80 105
2000×1000 BL407 7 125
2000×1500 BL408 145
3000×1500 BL409 185

Other products of Surface Plates










Surface Plate Stand (Granite , Cast Iron Precision For Surface Plate)

[ Stock No：218 ]

Leveling Block

[ Stock No：328 ]
Leveling Block

  • Use for Surface Plate, machine tool, etc. centering or support.
  • This product is superior in load withstanding.
Code No. Model Measurement (mm) Screw Diameter
(mm)		 Lifting Height
(mm)		 Permissible Load
(kg)		 Mass
(kg)
A B C D E F
BM101 328-1 140 90 70 ~ 80 145 100 26 M16 10 2500 5.5
BM102 328-2 170 100 80 ~ 90 175 110 26 M20 10 4000 7.5
BM103 328-3 170 100 80 ~ 90 175 110 26 M20 10 4000 7.5



Surface Plate Stand (Granite , Cast Iron Precision For Surface Plate)

  • Made using Square pipe material with emphasis on stability and eas of use.
  • It is designed so that the Surface Plate high accuracy will be maintained for a long term
  • Height from Surface Plate Upper surface to the flow is 750mm. However, we can make with other measurements according to your requirement.

*We can manufacture special dimension products, products with fall prevention mechanism or with special mounts.

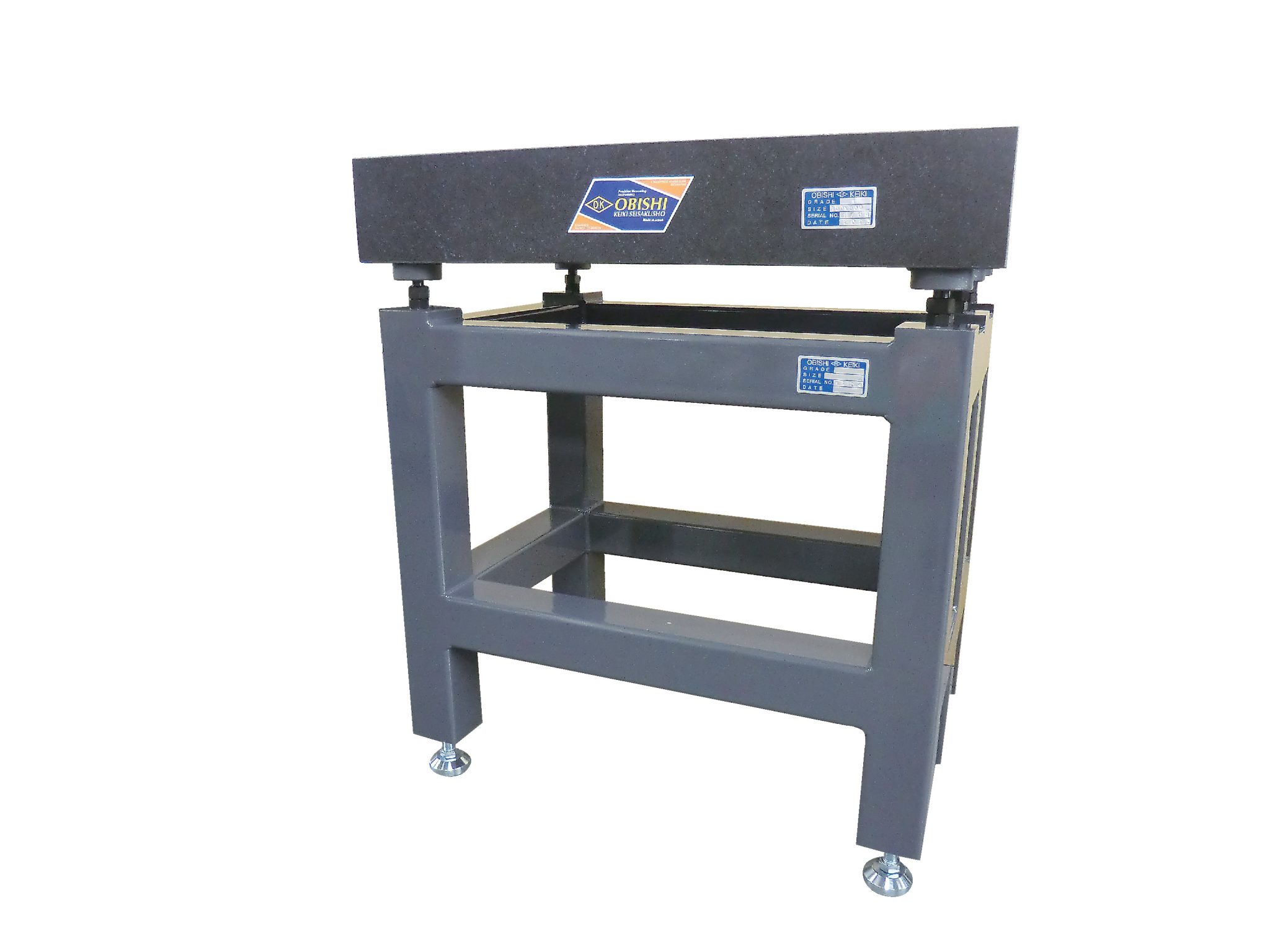

Granite Surface Plate Stand

Surface Plate Measurement
(mm)		 Code No. Square Pipe
(mm)		 No. of Support Legs
(pcs)		 Adjustment Screw
(mm)		 Surface Plate Upper Surface
Height (mm)		 Mass
(kg)
600×450 BL101 60×60 5 M１6 850 40
600×600 BL102 75×75 45
750×500 BL103 55
1000×750 BL104 63
1000×1000 BL105 75
1500×1000 BL106 80×80 90
2000×1000 BL107 7 M20 110
2000×1500 BL108 120
3000×1500 BL109 155

Cast Iron Precision Surface Plate Stand

Surface PlateMeasurement
(mm)		 Code No. Square Pipe
(mm)		 No. of Support Legs
(pcs)		 Adjustment Screw
(mm)		 Surface Plate Upper Surface
Height (mm)		 Weight
(kg)
600×450 BL301 60×60 5 M１6 850 40
600×600 BL302 45
750×500 BL303 75×75 55
1000×750 BL304 63
1000×1000 BL305 75
1500×1000 BL306 80×80 90
2000×1000 BL307 7 110
2000×1500 BL308 120
3000×1500 BL309

Granite Master Surface Plate

[ Stock No：900-10 ]
Granite Master Surface Plate

  • Upper surface and 2 side surfaces are high precision finished.
  • 2 side surfaces perpendicularity and straightness accuracy is guaranteed. There for it is very convenient for inspection of Work Squareness and Straightness etc using dial gauge.

*The special dial gauge stand is not supplied with the product.

Code No. Measurement
(L×W×Hmm)		 Flatness
(μm)		 Parallelism
(μm)		 Mass
(Kg)
BK101 600×600×125 4 2 130
BK102 750×500×125 5 3 138
BK103 1000×750×150 7 4 325
BK104 1000×1000×150 8 5 435

Measurement Method

  • Place a Work on the Surface Plate as in the figure.
  • Usind Dial Gauge Stand, adjust the work so that the Dial Gauge reading value at A point and B point will be zero.
  • Move the Dial Gauge Stand to the other direction. from the dial gauge reading value, measure the work Squareness and Straightness.

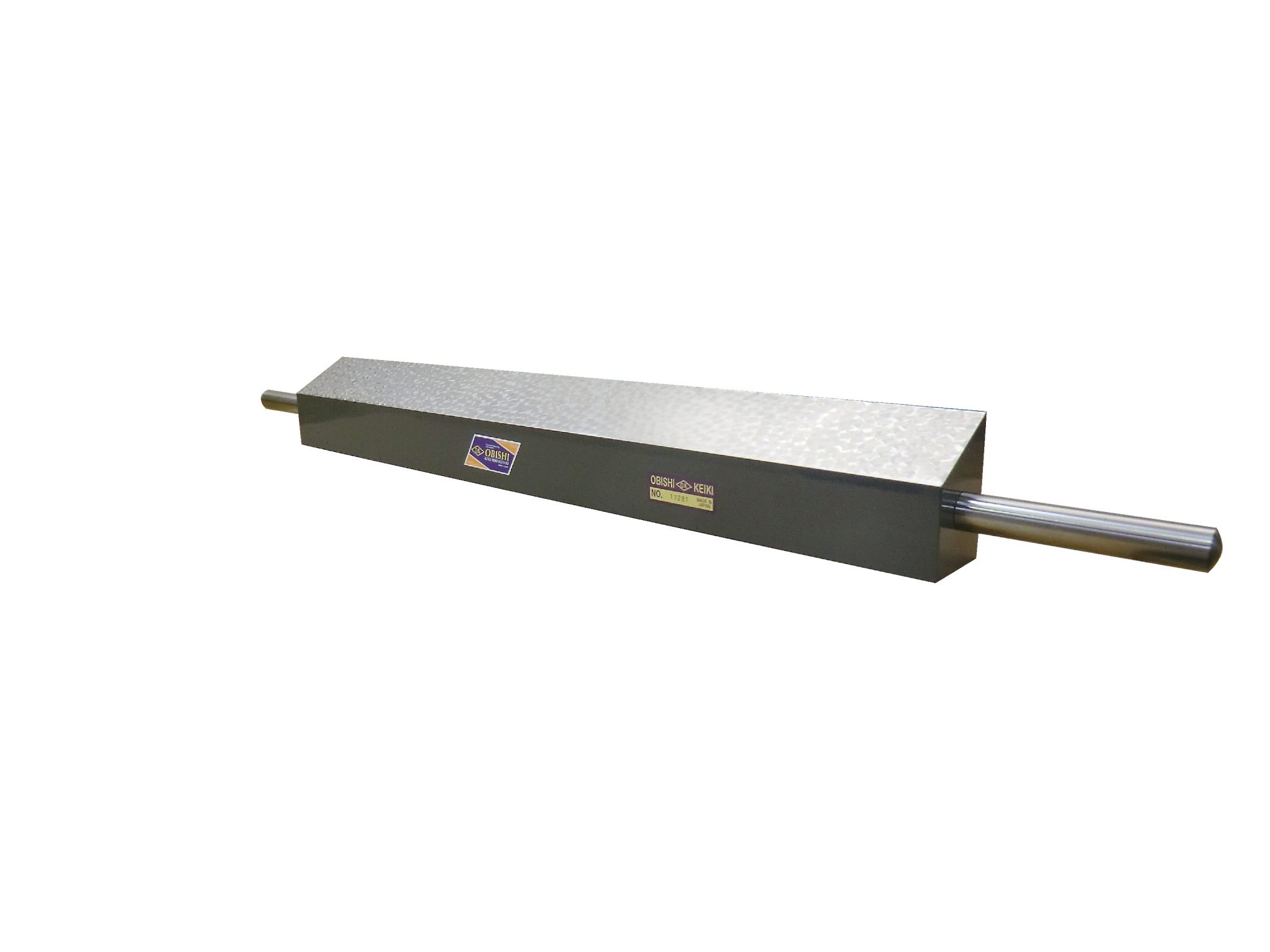

Ant Groove Surface Plate (Triangular Surface Plate)

[ Stock No：221, 222 ]
Ant Groove Surface Plate (Triangular Surface Plate)

  • For lapping of machines etc ant groove (slide groove).
  • The raw material is high quality cast iron.
  • The accuracy surface is precise with scrape finishing.
Code No. Measurement
(L×W×Hmm)		 Angle
(degrees)		 Flatness
(μm)		 Mass
(Kg)
BJ101 600×75×50 60 3 15
BJ102 1000×75×50 60 5 25
BJ201 600×60×70 90 3 16
BJ202 1000×70×80 90 5 36

Other products of Surface Plates

Granite Arm Type Surface Plate (Stationary)

[ Stock No：900-1 ]
Granite Arm Type Surface Plate (Stationary)

  • It does not rust, secular distortion is small, highly water resistant, as well as many other advantages.
  • For inspection of long objects.
  • Accuracy surface is 1 surface with lapping finishing.
Code No. Measurement
(L×W×Hmm)		 Flatness
(μm)		 Mass
(Kg)
BH101 1000×150×200 5 90
BH102 1500×200×250 7 225
BH103 2000×200×300 10 350

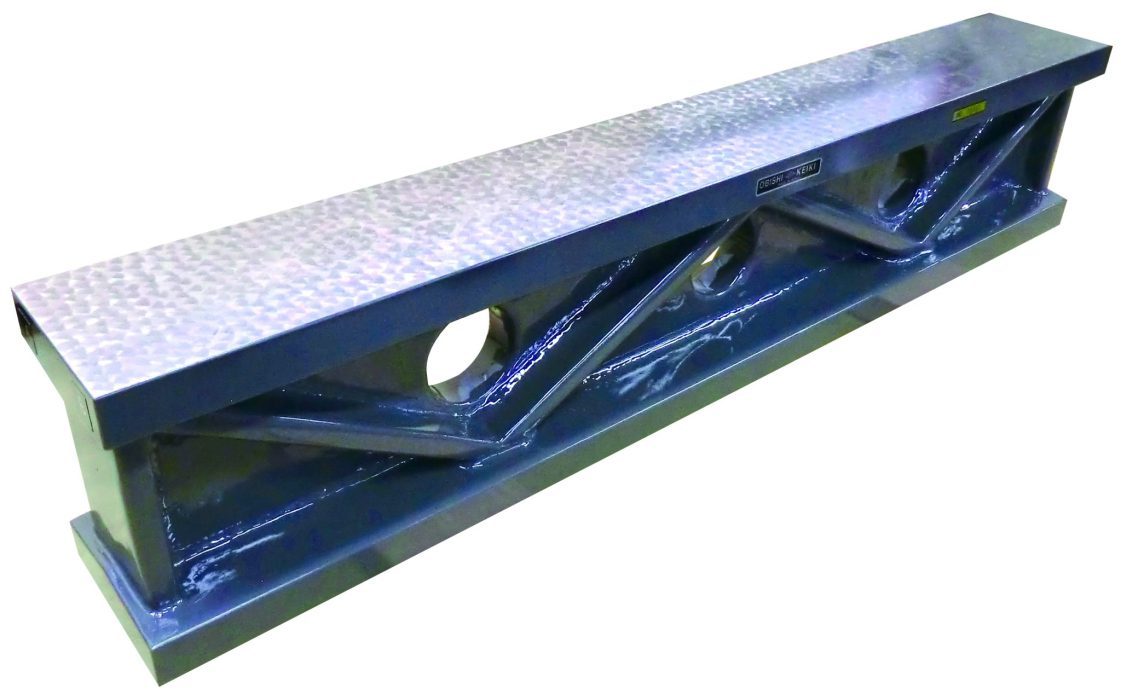

Arm Type Surface Plate (Stationary)

[ Stock No：206 ]
Arm Type Surface Plate (Stationary)

  • Accuracy surface is 1surface and it is stationary.
  • We take straightness accuracy into special consideration in the product design.
  • The accuracy surface has scrape finishing.
Code No. Measurement
(L×W×Hmm)		 Flatness
(μm)		 Mass
(Kg)
BG101 500×100×130 4 25
BG102 750×100×150 5 45
BG103 1000×120×200 6 86
BG104 1500×130×230 8 150
BG105 2000×140×250 10 180

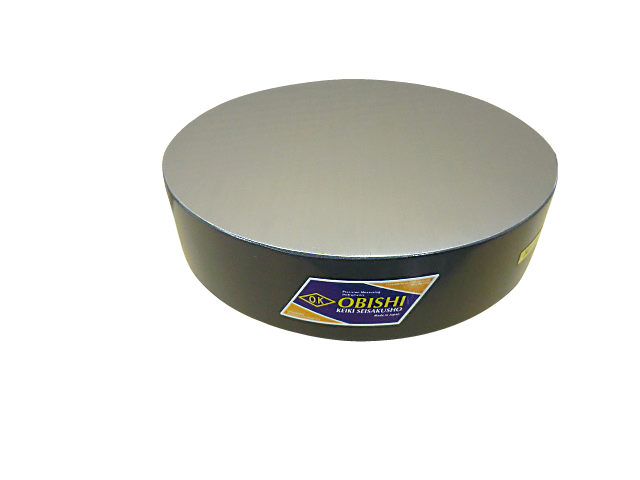

Precision Round Type Surface Plate (for Lapping)

[ Stock No：107, 108 ]
Precision Round Type Surface Plate (for Lapping)

  • The raw material is cast iron with artificial seasoning

No.107

  • Ungrooved 2 types – lapping finishing and scrape finishing
  • The scrape finished product is very convenient for lapping of flange, etc.

No.108

  • Grooved with lapping finishing
  • Accuracy surface has lapping finishing
Measurement
(φ×Hmm)		 Flatness
(μm)		 No.107 Mass
(kg)
Lap Finishing Scrape Finishing
Code No.Code No.
200×45 2.0 BF201BF301 5
250×55 2.0 BF202BF302 8.5
300×65 2.5 BF203BF303 17
500×120 4.0 BF204BF304 71
600×130 5.0 BF205BF305 130
750×150 6.0 BF206BF306 170
1000×210 7.0 BF207BF307 300
Measurement
(φ×Hmm)		 Flatness
(μm)		 No.108 Weight
(kg)
Grooved, Lap Finishing
Code No. Groove Interval (mm)
200×45 2.0 BF101 20×20 5
250×55 2.0 BF102 20×20 8.5
300×65 2.5 BF103 25×25 17
500×120 4.0 BF104 30×30 71
600×130 5.0 BF105 30×30 130
750×150 6.0 BF106 35×35 170
1000×210 7.0 BF107 40×40 300

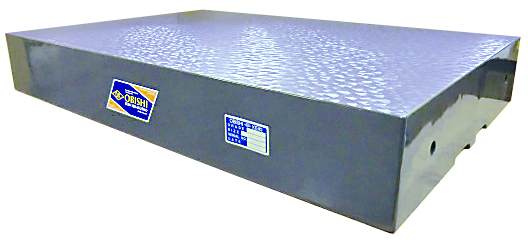

Box Type Surface Plate (For Woodwork)

[ Stock No：203 ]
Box Type Surface Plate (For Woodwork)

  • Use for general wood working, Measurement stand, Marking table, etc
  • The raw material is cast iron with artificial seasoning, and the accuracy surface is scrape finished.
  • We can also make special mount.

Grade

Measurement (mm)

 Grade AGrade B Mass
(kg)
Code No. Flatness
(μm)		 Code No. Flatness
(μm)
250×200×55 BE101 11 BE201 21 8
300×200×55 BE102 12 BE202 24 10
300×300×58 BE103 12 BE203 24 14
400×300×65 BE104 14 BE204 28 20
400×400×75 BE105 14 BE205 28 32
450×300×65 BE106 15 BE206 30 23
500×400×90 BE108 17 BE208 34 42
500×500×100 BE109 18 BE209 36 63
600×450×100 BE110 19 BE210 38 71
600×500×100 BE111 20 BE211 40 74
600×600×100 BE112 20 BE212 40 78
750×500×130 BE113 22 BE213 44 98
900×600×130 BE114 25 BE214 50 142
1000×600×140 BE115 29 BE215 58 160
1000×1000×140 BE116 32 BE216 64 270
1200×900×140 BE117 33 BE217 66 300
1800×900×150 BE118 44 BE218 88 520
2000×1000×200 BE120 47 BE220 94 810
2000×1500×220 BE122 55 BE222 110 1380
2400×1200×250 BE123 56 BE223 112 1300
2400×1500×250 BE124 60 BE224 120 1770
3000×1500×300 BE125 72 BE225 144 2500

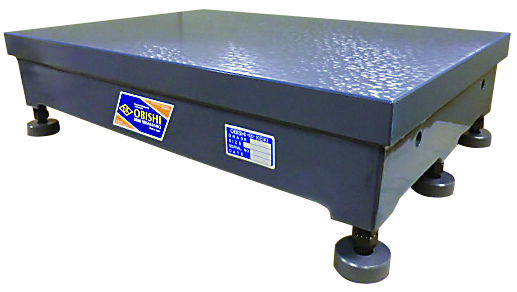

Cast Iron Precision Surface Plate

[ Stock No：202 ]
Cast Iron Precision Surface Plate

  • Surface Plate suitable for stationary inspection.
  • Rib (bone) structure with enough wall thickness. Variations due to strain and temperature are reduced to a minimum.
  • For measurements greater than 500 x 500, it is bag structured with adjustment bolt and saucer.
  • We can also make special mounts using square pipe.

Grade



Measurement (mm)

 Grade 0Grade 1Grade 2Mass
(kg)
Code No. Flatness
(μm)		 Code No. Flatness
(μm)		 Code No. Flatness
(μm)
150×100×45 BC101 3.0 BC201 6 BC301 12 3
200×150×60 BC102 3.5 BC202 7 BC302 14 6
300×200×75 BC103 3.5 BC203 7 BC303 15 16
300×300×85 BC104 4.0 BC204 8 BC304 16 20
400×300×95 BC105 4.0 BC205 8 BC305 16 35
400×400×100 BC106 4.5 BC206 9 BC306 17 40
500×350×110 BC107 4.5 BC207 9 BC307 18 50
500×400×115 BC108 4.5 BC208 9 BC308 18 62
500×500×125 BC109 5.0 BC209 10 BC309 20 100
600×450×130 BC110 5.0 BC210 10 BC310 20 119
600×600×140 BC111 5.0 BC211 10 BC311 21 140
750×500×140 BC112 5.5 BC212 11 BC312 22 155
750×750×160 BC113 6.0 BC213 12 BC313 23 220
1000×750×190 BC114 6.5 BC214 13 BC314 26 380
1000×1000×225 BC115 7.0 BC215 14 BC315 28 590
1500×1000×250 BC116 8.0 BC216 16 BC316 33 870
2000×1000×270 BC117 9.5 BC217 19 BC317 38 1150
2000×1200×290 BC118 9.5 BC218 19 BC318 39 1600
2000×1500×320 BC119 10.0 BC219 20 BC319 40 2300
2400×1200×320 BC120 10.5 BC220 21 BC320 42 2000
3000×1500×350 BC121 12.5 BC221 25 BC321 51 3200

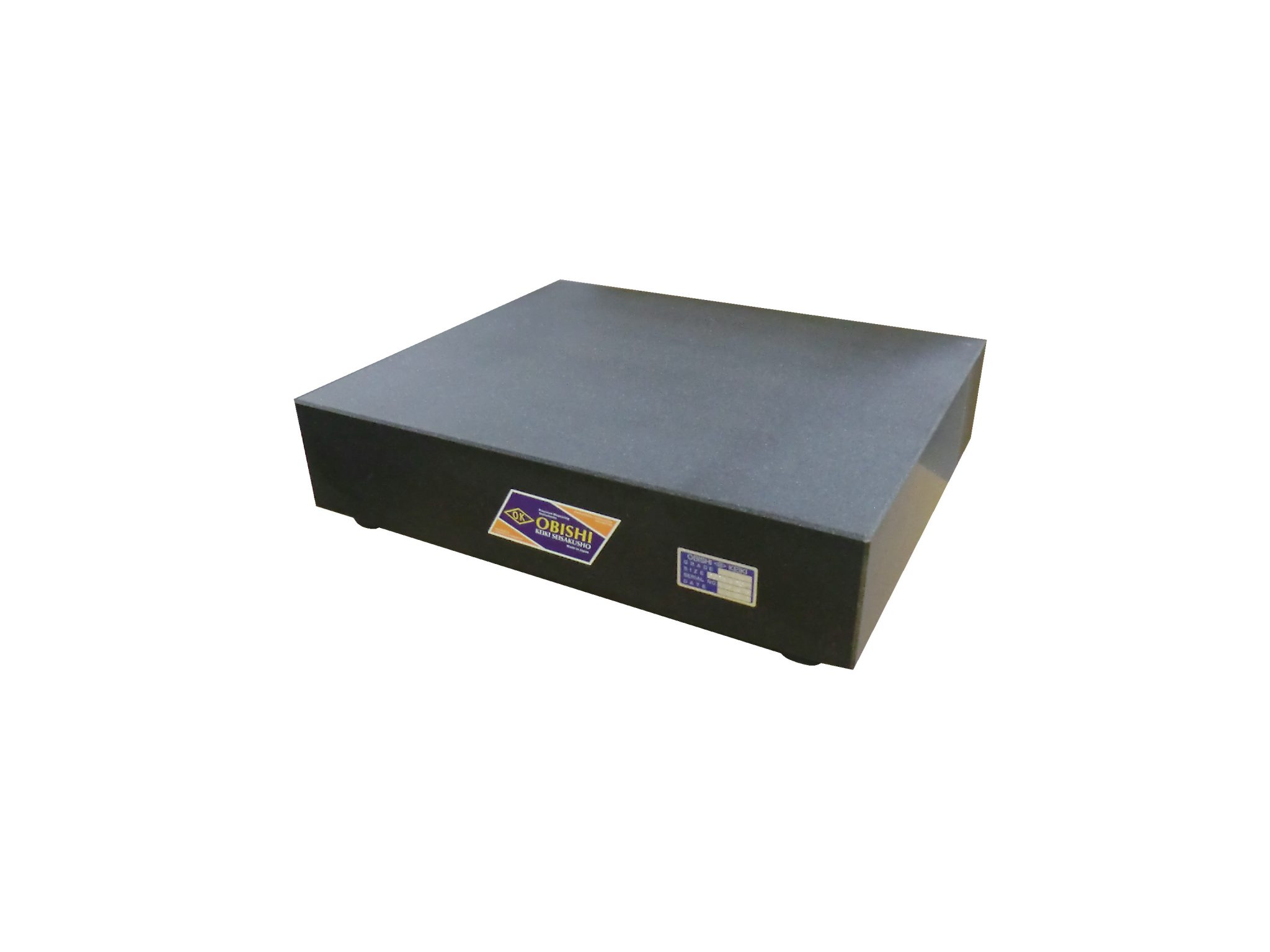

Precision Granite Surface Plate

[ Stock No：900 ]
Precision Granite Surface Plate

  • Precision Surface Plate using granite gabbro
  • It is very hard and superior in wear resistance. secular distortion is minimal, it does not rust, as well as other advantages.
  • In addition to standard products, we also manufacture with special measurements, hole drilling, screw machining, etc.
  • We can also make special mounts using square pipe.

Grade



Measurement (mm)

 Grade 00Grade 0Grade 1 Bearing Mass
(kg)
Code No. Flatness
(μm)		 Code No. Flatness
(μm)		 Code No. Flatness
(μm)		 L1×L2
(mm)
300×300×75 BA101 2.0 BA201 4.0 BA301 8 240×240 21
450×300×100 BA102 2.0 BA202 4.5 BA302 9 390×240 41
500×500×100 BA103 2.5 BA203 5.0 BA303 10 420×420 75
600×450×100 BA104 2.5 BA204 5.0 BA304 10 500×370 81
600×600×125 BA105 2.5 BA205 5.0 BA305 10 500×500 135
750×500×125 BA106 3.0 BA206 5.5 BA306 11 630×420 141
1000×750×150 BA107 3.0 BA207 6.5 BA307 13 700×630 338
1000×1000×150 BA108 3.5 BA208 7.0 BA308 14 700×700 450
1500×1000×200 BA109 4.0 BA209 8.0 BA309 16 1100×700 900
2000×1000×250 BA110 4.5 BA210 9.5 BA310 19 1500×700 1500
2000×1500×300 BA111 5.0 BA211 10.0 BA311 20 1500×1000 2700
3000×1500×300 BA112 6.5 BA212 12.5 BA312 25 2400×1000 4050
