Product Detail :

Levels

Precision Flat Level (JIS B7510 Grade A)
Precision Square Level (JIS B7510 Grade A)
Flat Level
Square Level
Precision Small Level (Grade A)
Precision Fix Level
Petite Level
T-Type Level
Cross Test Level
Pocket Level
Bench Level
Communicating Water Level
Round Type Level
Adjustable Bench Level (Starlet Type)
Precision Level with Micrometer
Inclination Measurement Level 　A100 Type
Inclination Level
Inclination Level 　882A
Digital Inclination Level, PRO-3600 Model
Level Tester

Precision Flat Level (JIS B7510 Grade A)

[ Stock No：506-A ]

For precision inspection, this product is a JIS mark display permitted Grade A product.
The main bubble tube has a bubble chamber in which the lenght of the bubble can be adjusted.
The base has a V groove, making it also possible for the measurement of tubular type shapes.
Nonconducting plate is attached to both side surfaces of the main body.

Code No.	Nominal	Measurement (L×W×H mm）	Sensitivity (mm/m)	Mass (kg)
AC151	150	150×44×42	0.02	1.1
AC152			0.05
AC153			0.1
AC201	200	200×46×42	0.02	1.5
AC202			0.05
AC203			0.1
AC251	250	250×46×42	0.02	1.6
AC252			0.05
AC253			0.1
AC301	300	300×50×42	0.02	2.0
AC302			0.05
AC303			0.1

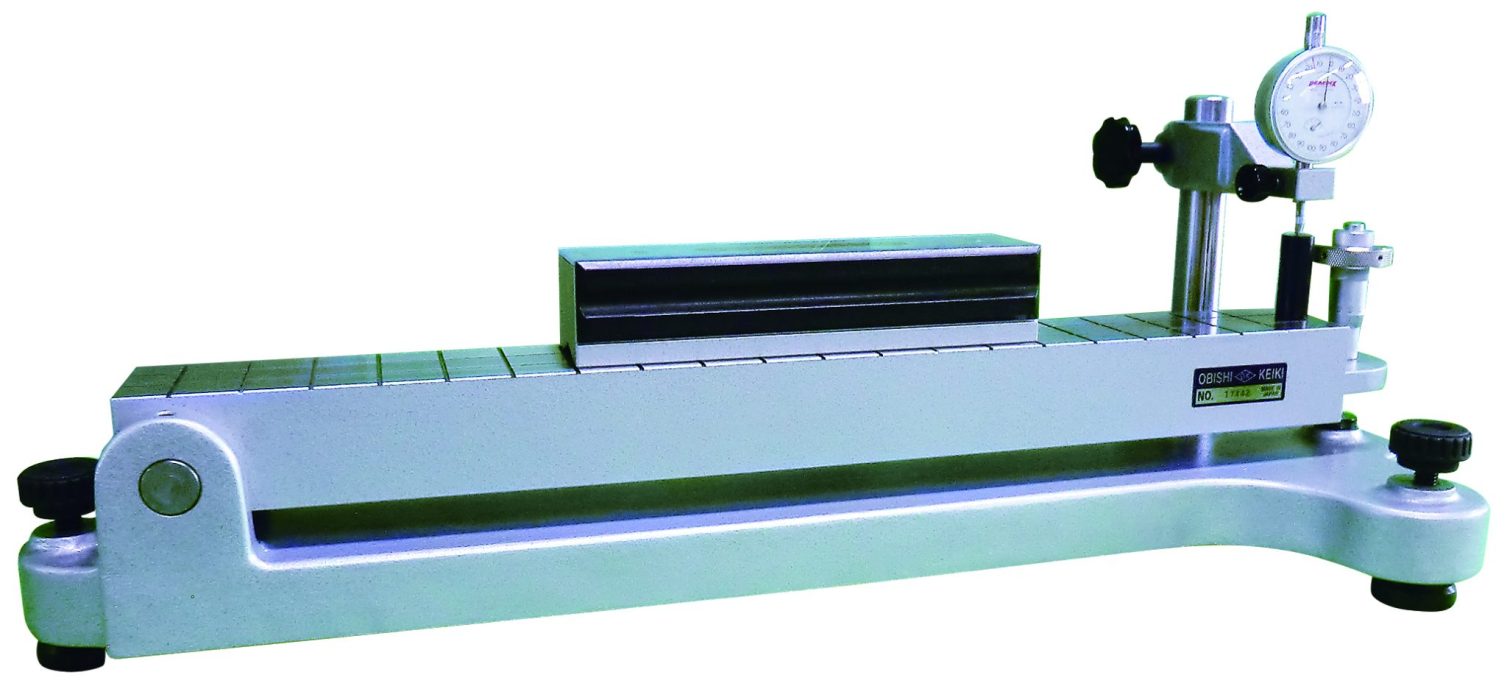

Level Tester

[ Stock No：500 ]

Very convenient for Level Sensitivity, Levelness inspection and Levelness examination.
The core interval for this equipment is 500mm. Normal Level Sensitivity id displayed in 1m. On this equipment the dial gauge reading value multiplied × 2 will be the level sensitivity.

NOTE: Level and Dial Guage are not included. They have to be provided separately.

Code No.	Nominal	floor surface Measurement (L×W mm)	Upper surface Measurement (L×W mm)	Core interval Distance (mm)	Flatness (μm)	Mass (kg)
AZ101	500	623×267	530×60	500	10	20

NOTE

What is Level Sensitivity	The inclination required to change the bubble chamber’s bubble graduation by 1. This means the height (Unit : mm) or Angle (Unit : seconds) in relation to base 1m.Height relations in relation to angle and base is as follows Angle 1 seconds = 4.85μm per 1m ≈5μm per 1m
Types of Levels	Division	Sensitivity (mm/m)
	Type 1	0.02 (≈4″)
	Type 2	0.05 (≈10″)
	Type 3	0.1 (≈20″)

Digital Inclination Level, PRO-3600 Model

Digital display type inclination Level that can measure all 360° angles.
Because zero setting can be performed at any ideal angle, it is convenient for comparative measurement. Also the displayed value can also be locked.
Minimum Reading Unit from 0 ~ 9.99° is 0.01

Code No.	Model	Measurement (L×H×W mm)	Measurement Range (degrees)	Measurement Unit (degrees)	Mass (g)
AY701	PRO-3600	153×51×31	360	0.01 (0 ~ 9.99) 0.1 (10 ~ 90)	295

Specification

External Dimensions	153×51×31mm, 295g
Measurement Range	360°
Accuracy	±0.05° (0 ~ 10°) , ±0.1° (80° ~ 90°) , ±0.2° (10° ~ 80°)
Resolution	0.01° : up to 0 ~ 9.99° , 0.1° : up tp 10° ~ 90°
Repetition Accuracy	±0.05°
Power	9V Alkaline battery ×1. Continous use time : 500 Hours *NOTE
Operating Temperature	-5° ~ 50°

*NOTE: Battery life is not guaranteed as it depends on use environment.

Inclination Level 　882A

[ Stock No：503 ]

Level for Inclination Measurement
When the bubble is matched to the center of the graduation line, the angle is read from between the main body number of degrees graduation and vernier
In order to perform accurate measurement, a wide bubble chamber is provided.

Code No.	Model	Measurement (base ×H mm)	Measurement Range (degrees)	Minimum Reading (Arcmin)	Mass (kg)
AK101	45°	250×44×140	45	12	2.7
AK102	90°	250×44×170	90	12	3.0

Inclination Level

[ Stock No：90 ]

Level for Inclination Measurement. Both Flat and perpendicular directions up to 45°can be measured with precision.
There are 2 bubble chambers on the flat and perpendicular directions.
By pulling the dial knob, the gear mating will release and fast feed can be performed easily.
There is a V groove on the base surface.

Code No.	Nominal	Measurement (base × H mm）	Measurement Range (degrees)	Minimum Reading (Arcmin)	Mass （kg）
AJ101	160	160×20×70	45	1	0.8

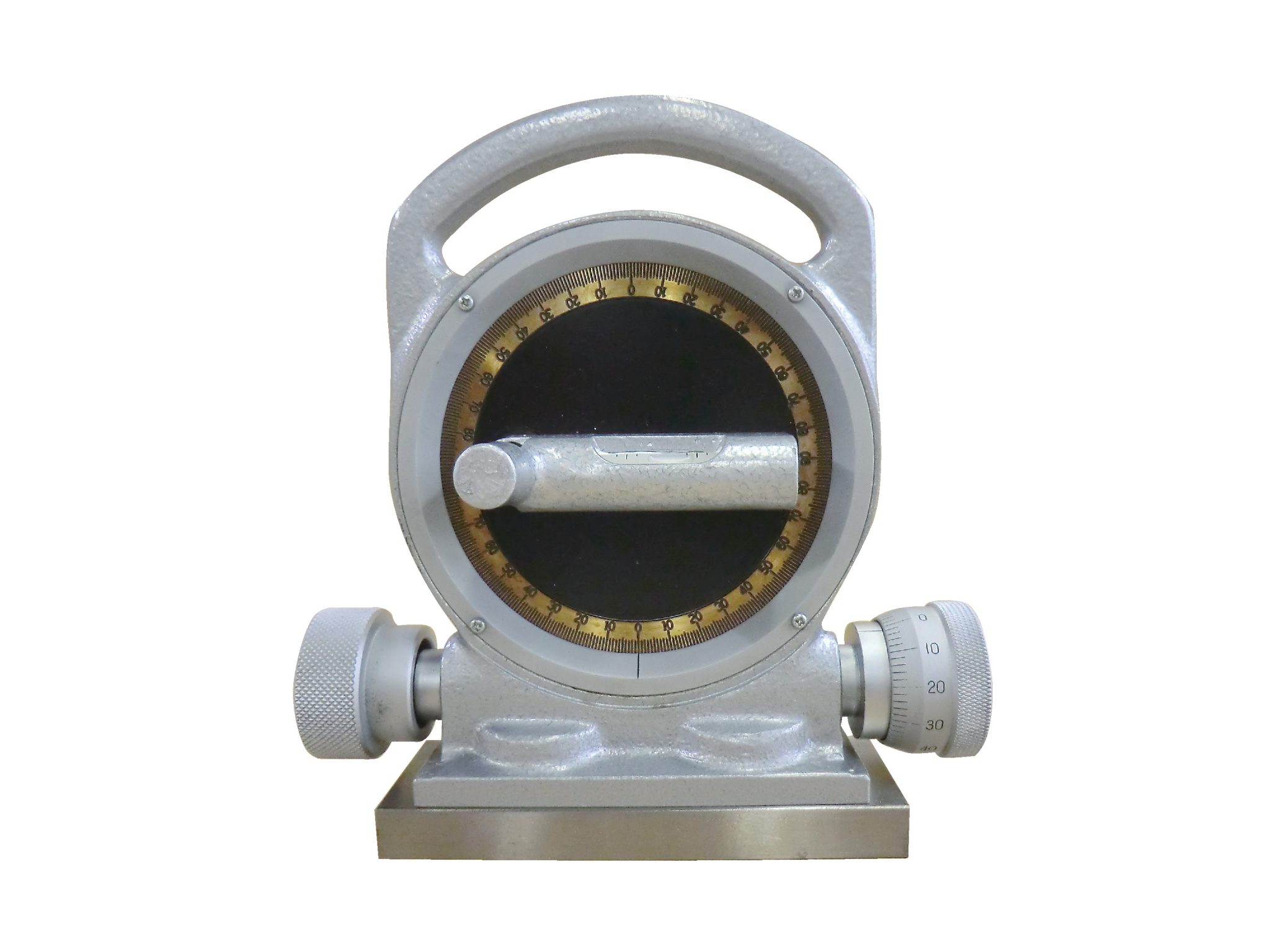

Inclination Measurement Level 　A100 Type

[ Stock No：505 ]

The main scale graduation is 360° (Left/Right 180° each), marked in 1° intervals. The sub scale (Micrometer Head) is 1Rotation 2° and the minimum graduation is 0.2 degrees reading.
The main body is light metal alloy (but the base is hardened) with handle.
After the work is plcased on it, turn the micrometer head, get the bubble to come into the graduation line center position, the main scale number of degrees and the micrometer head Arcmin is read and it is possible to calculate work inclination angle.
Not only for the precision industry, it can also be used for a wide range of applications like construction, civil enginnering, vehicle body industry, etc.
We can also manufacture products with magnet attached to the floor surface.

Code No.	Nominal	Measurement (base ×H mm)	Measurement Range (degrees)	Minimum Reading (Arcmin)	Mass (kg)
AH101	A100	110×40×158	360	2	1.4

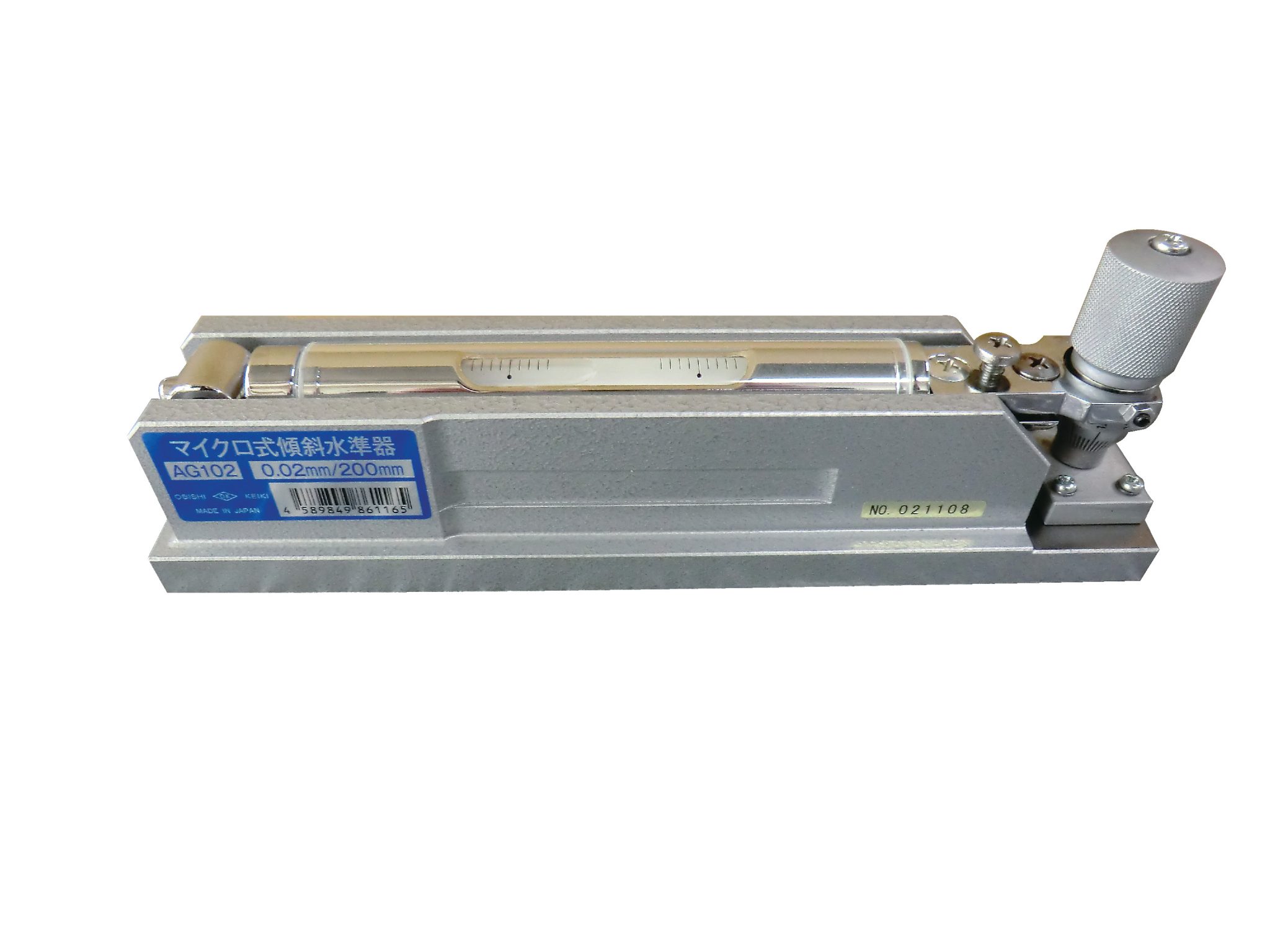

Precision Level with Micrometer

[ Stock No：502 ]

Can be used for measurement in places with high inclination (Gradient) where the normal levels can not be used.
Inclination height is Maximum 20mm for every 200mm
The value read by this product micrometer is not angle (degrees) but Gradient (Tangent).
The bubble sensitivity is displayed in 200mm pitch.

Code No.	Nominal	Measurement (L×W×H mm)	Measurement Range (mm/200mm)	Sensitivity (mm/200mm)	Mass (kg)
AG101	0.01	227×50×75~95	20	0.01	2.2

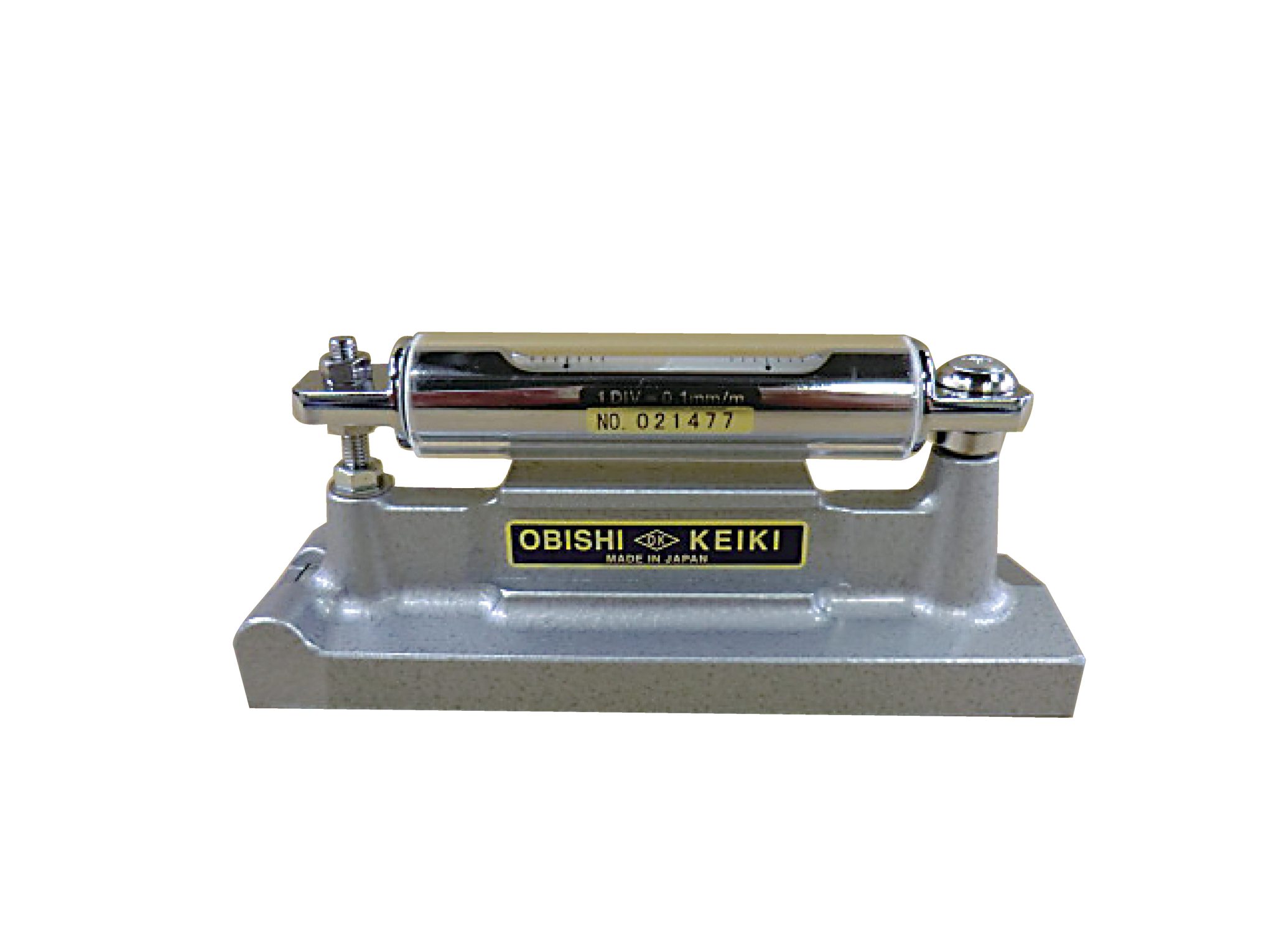

Adjustable Bench Level (Starlet Type)

[ Stock No：501 ]

For general woodworking, machine assembly, support and center centering.
The bubble is clearly visible and the instrument is light weight making it convenient to be carried about.

Code No.	Nominal	Measurement (L×W×H mm)	Sensitivity (mm/m)	Mass (kg)
AF151	150	150×40×64	0.05	1.0
AF152	150	150×40×64	0.1	1.0
AF221	225	225×40×67	0.05	1.4
AF222	225	225×40×67	0.1	1.4
AF301	300	300×41×68	0.05	1.7
AF302	300	300×41×68	0.1	1.7

Round Type Level

[ Stock No：516 ]

It can be installed or embedded into various machines.
Measurement of the flatness of all directions can be performed easily.
516-E Type is for truck crane and so can also be used outside.

*According to the requirement, we can make special measurement products, products with fixing holes, etc.

Code No.	Model	Measurement (A×B×H mm)	Mass (g)	Reference
AR101	516-A	40×26×16	55	With guard
AR102	516-B	30× 16	60	Without guard
AR105	516-E	100×80×24	230	With fixing hole

516-A	516-B	516-E

Pocket Level

[ Stock No：510 ]

It is small sized and conveniently portable
Flatness can be measured easily.

Code No.	Nominal	Measurement (L×H mm)	Mass (g)
AN201	65	65×10	20
AN202	90	90×10	40

Cross Test Level

[ Stock No：509 ]

Vertical, horiizontal and perpendicular direction flatness measurement can be performed easily.
It is small sized and conveniently portable.

Code No.	Nominal	Measurement (L×W×H mm)	Mass (g)
AN101	75	75×50×15	150

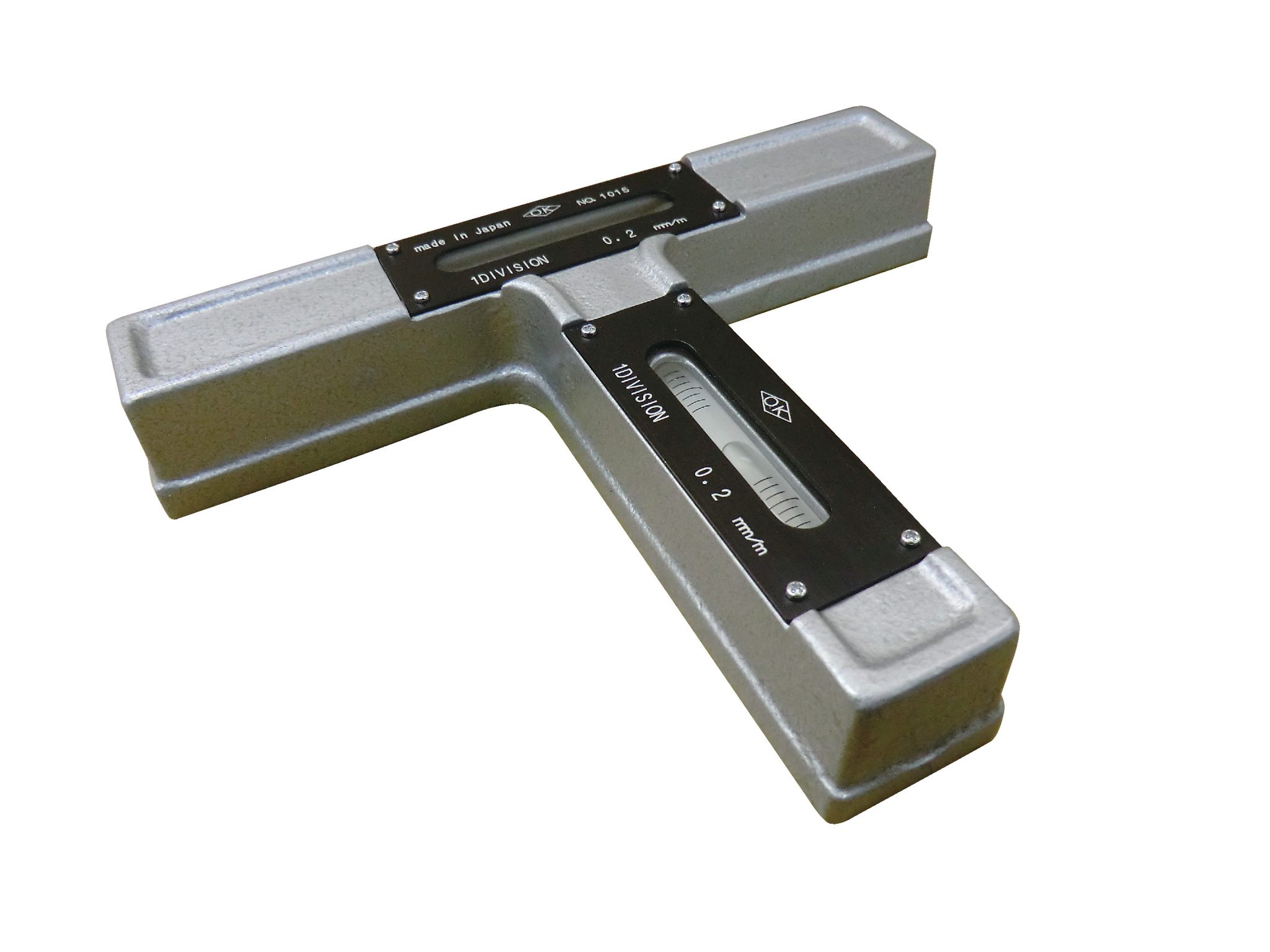

T-Type Level

[ Stock No：507 ]

XY direction flatness can be measured simultaneously.
It comes with an adjustment screw for adjusting flatness.
Convenient for various machine supports and core detemination.

Code No.	Nominal	Measurement (W×L×H mm)	Sensitivity (mm/m)	Mass (kg)
AL101	200	206×156×32	0.05	1.7
AL102			0.1
AL103			0.2

Precision Fix Level

[ Stock No：524 ]

Small sized precision level with high sensitivity.
It is made with similar sensitivity as flat levels for general woodworking.
It can be used for a wide range of applications, like centering on narrow parts position, machine inspection, embedding into assembly machinery etc.
All the instruments are classified according to sensitivity in order to make support a wide range of applications.

Code No.	Model	Measurement (L×W×H mm)	Sensitivity (mm/m)	Mass (g)	Hole Diameter×Hole Pitch(mm)
AS101	524A	100×20×24	0.05	200	4.5×90
AS102	524A	100×20×24	0.1	200	4.5×90
AS201	524B	80×20×20	0.5	150	4.5×70
AS202	524B	80×20×20	2.0	150	4.5×70
AS301	524C	60×16×18	0.5	120	3.5×50
AS302	524C	60×16×18	2.0	120	3.5×50
AS401	524D	100×20×24	0.02	250	–
AS402			0.05
AS403			0.1

Precision Small Level (Grade A)

[ Stock No：521 ]

Grade A finishing. (JIS Standard Equivelent)
The main bubble tube has a bubble chamber in which the lenght of the bubble can be adjusted.
It is a small sized portable precision level.
Widely popular among service engineers, etc for precision measurement.
Nonconducting plate is attached to both side surfaces of the main body.

Code No.	Nominal	Measurement (L×W×H mm)	Sensitivity (mm/m)	Mass (kg)
AE101	125	125×41×42	0.02	0.9
AE102	125	125×41×42	0.05	0.9

Flat Level

[ Stock No：506-B ]

For general woodworking, machine assembly, support and center centering.
It is lightweight, easy and convenient to use.

Code No.	Nominal	Measurement (L×W×H mm)	Sensitivity (mm/m)	Mass (kg)
AD101	100	100×40×37	0.02	0.6
AD102			0.05
AD103			0.1
AD151	150	150×44×41	0.02	1.1
AD152			0.05
AD153			0.1
AD201	200	200×44×41	0.02	1.4
AD202			0.05
AD203			0.1
AD251	250	250×44×43	0.02	1.8
AD252			0.05
AD253			0.1
AD301	300	300×44×43	0.02	2.0
AD302			0.05
AD303			0.1
AD451	450	450×44×50	0.02	5.4
AD452			0.05
AD453			0.1
AD601	600	600×44×50	0.02	6.7
AD602			0.05
AD603			0.1
