Product Information :

Name :
Quick Change Collet Chucks
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. MicroCentric
Brand :
MicroCentric Quick Change Collet Chucks
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
MicroCentric Quick Change Collet Chucks

Product Detail :

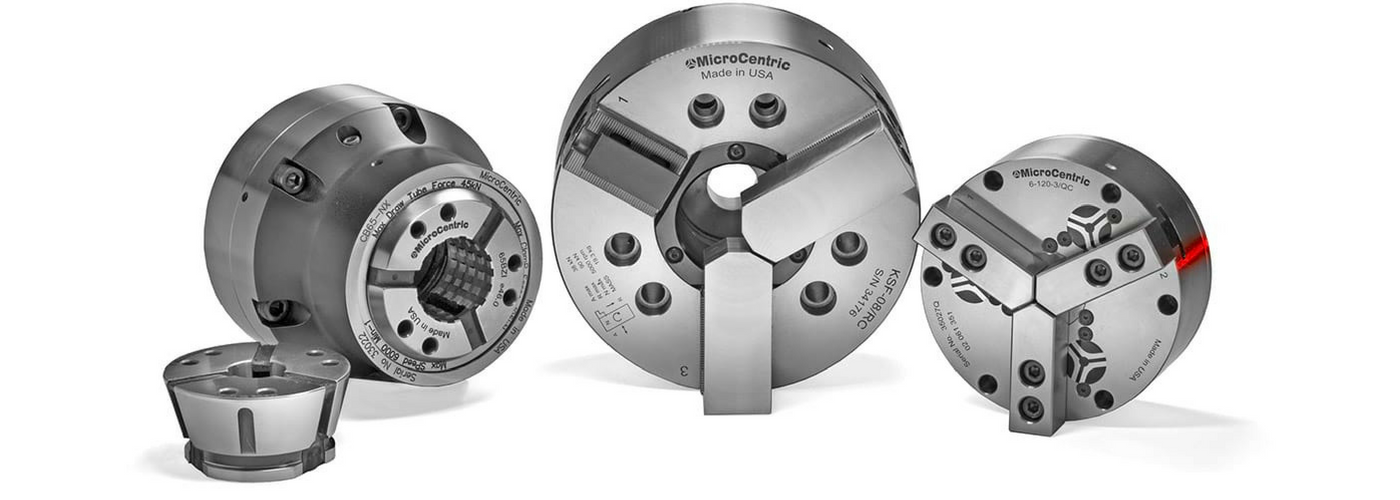

Quick Change Chucks



  • CB-NX picture

    CB-NX Collet Chuck- Dead Length Design



    The CB-NX series is a low profile dead length design with a reduced diameter nose for maximum tool clearance. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. The collet remains fixed in the Z axis during clamping and therefore does not create a pull back effect on the bar stock or workpiece.

    CB-NX Features

    • Low Profile Dead Length design
    • Reduced diameter nose and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up tapered collet seat within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Stop plates, stop housings, and ejectors can be mounted inside the chuck body for chucking applications




  • CB-ND Collet Chucks - Dead Length Design

    CB-ND Collet Chucks - Dead Length Design



    The ND series models are used for collet sizes 120mm and larger. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. Since the collet remains fixed in the Z axis during clamping it does not create a pull back effect on the bar stock or workpiece.

    CB-ND Features

    • Dead Length design
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors




  • CB-NB Collet Chucks - Pull Back Design

    CB-NB Collet Chucks - Pull Back Design



    In the CB-NB series collet chucks, the collet is coupled directly to the draw tube connector. When the draw tube is actuated, the collet is drawn into the tapered seat of the chuck body, efficiently translating draw tube force into maximum clamping force.

    CB-NB Features

    • Pull Back design maximizes the efficiency of the clamping system by concentrating all forces in the direction of the spindle for highest accuracy and greatest overall rigidity
    • Low profile OD and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated for life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life




  • CB-NDR Collet Chucks - Pull to Close Dead Length Design for Servo Stop Bar Loaders

    CB-NDR Collet Chucks - Pull to Close Dead Length Design for Servo Stop Bar Loaders



    The CB-NDR is a patented Dead Length design for use with servo stop bar loaders. Unlike conventional dead length collet chucks, the NDR is actuated as the draw tube is drawn toward the machine spindle to prevent the bar from being pushed off the servo stop.

    CB-NDR Features
    • Pull to Close Dead Length design produces no pull back and will not push the bar off the servo stop
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life




  • CB-NK Collet Chucks - Combination Design

    CB-NK Collet Chucks - Combination Design



    NK series chucks are a pull back design with the added flexibility of being able to mount end stops inside the chuck body for easy conversion from bar to chucking applications. The collet is coupled directly to the draw tube connector. As the draw tube is actuated the collet is drawn into the tapered seat efficiently translating draw tube force into maximum clamping force.

    CB-NK Features

    • Pull Back design maximizes the efficiency of the clamping system by concentrating all forces in the direction of the spindle for highest accuracy and greatest overall rigidity
    • Low profile OD and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Removable stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors




  • CB-NR Collet Chucks - Stationary Design

    CB-NRB Collet Chucks - Stationary Design



    The NRB series is a hydraulically actuated self-contained Pull Back design for non-rotating applications. The collet is coupled to the built-in piston and is drawn into the tapered seat when the chuck is actuated. Part stops can be mounted inside the chuck body.

    CB-NRB Features
    • Self-contained design with built-in cylinder can be hydraulic or pneumatically operated
    • Pull Back design maximizes the efficiency of the clamping system by concentrating the chucking force in the direction of the machine table, in addition to drawing the workpiece against the part stop
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life.
    Non-rotating dead length designs are quoted on request.




  • CB-AG Collet Chuck

    CB-AG Collet Chucks - Compensating Pull Back Design



    The CB-AG series collet chuck is a pull back design with a floating collet seat for machining shafts between centers. Centers or other part locators are mounted in the ID of the chuck. The floating collet seat can also be locked out to clamp parts on-center. Compact OD and short length compared to other compensating chuck designs provides greater rigidity.


    CB-AG Features

    • 1.5mm (.060”) total compensation
    • Mounting in ID of chuck body for mounting locating center
    • Radial adjusting screws to true-up locating center within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • Compact design for greater rigidity
    • Collet seat can be locked out for clamping parts on-center
    • All components hardened and precision ground for highest accuracy and long life




  • WSF Image.png

    WSF Collet Chucks - Retractable Design



    Shafts can be machined complete between centers with MicroCentric's retractable collet chuck. A face driver mounted in the ID of the chuck drives the shaft as it is supported by the tailstock to turn the end of the shaft. When the chuck is actuated the collet moves forward to clamp the turned diameter enabling the OD of the shaft to be machined completed while the end of the shaft is securely clamped.

    WSF Features

    • Mounting for face driver in ID of chuck assembly
    • Radial adjusting screws to true-up chuck assembly within .0002” (0.005mm)
    • All components hardened and precision ground for highest accuracy and long life



CB-NX Collet Chuck- Dead Length Design





  • CB-NX picture


The CB-NX series is a low profile dead length design with a reduced diameter nose for maximum tool clearance. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. The collet remains fixed in the Z axis during clamping and therefore does not create a pull back effect on the bar stock or workpiece.

CB-NX Features

  • Low Profile Dead Length design
  • Reduced diameter nose and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
  • Radial adjusting screws to true-up tapered collet seat within .0002” (0.005mm)
  • Lubricated-for-life design requires minimal maintenance
  • All components hardened and precision ground for highest accuracy and long life
  • Stop plates, stop housings, and ejectors can be mounted inside the chuck body for chucking applications





CB42-NX/A5 42BZI 1.625 in42 mm 0.156 in4 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M60x2 20.32 lb9.22 kg
CB42-NX/140 42BZI 1.625 in42 mm 0.156 in4 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M60x2 19.30 lb8.75 kg
CB42-NX/A6 42BZI 1.625 in42 mm 0.156 in4 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M75x2* 20.33 lb9.22 kg
CB52-NX/A5 52BZI 2.000 in52 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm 160 in4 mm 21,132 lbs94 kN 7,000 rpm M60x2 20.25 lb9.19 kg
CB52-NX/140 52BZI 2.000 in52 mm 0.187 in5 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 21,132 lbs94 kN 7,000 rpm M60x2 19.21 lb8.71 kg
CB52-NX/A6 52BZI 2.000 in52 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 21,132 lbs94 kN 7,000 rpm M75x2* 20.20 lb9.17 kg
CB65-NX/A5 65BZI 2.625 in66 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 25.9 lb11.8 kg
CB65-NX/A8-OS 65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M100x2* 39.05 lb17.71 kg
CB65-NX/140 65BZI 2.625 in66 mm 0.187 in5 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M60x2 25 lb11.3 kg
CB65-NX/A6 65BZI 2.625 in66 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M80x2 27.7 lb12.6 kg
CB65-NX/A8 65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M80x2 34.2 lb15.5 kg
CB80-NX/A8 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M100x2 37.7 lb17.1 kg
CB80-NX/A11 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-11 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M115x2* 59.54 lb27.00 kg
CB80-NX/A6 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-6 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M90x2 35.6 lb16.1 kg
CB100-NX/A8 100BZI 4.000 in102 mm 1.000 in25 mm A2-8 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M115x2 69.2 lb31.4 kg
CB100-NX/A11 100BZI 4.000 in102 mm 1.000 in25 mm A2-11 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M115x2 85.1 lb38.6 kg
CB100-NX/A6 100BZI 4.000 in102 mm 1.000 in25 mm A2-6 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M90x2 74.3 lb33.7 k

CB-ND Collet Chucks - Dead Length Design








  • CB-ND Collet Chucks - Dead Length Design


The ND series models are used for collet sizes 120mm and larger. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. Since the collet remains fixed in the Z axis during clamping it does not create a pull back effect on the bar stock or workpiece.

CB-ND Features

  • Dead Length design
  • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
  • Lubricated-for-life design requires minimal maintenance
  • All components hardened and precision ground for highest accuracy and long life
  • Stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors



CB42-ND/140 SK42BZI 1.625 in42 mm 0.156 in4 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M60x2 24.7 lb11.2 kg
CB42-ND/A5 SK42BZI 1.625 in42 mm 0.156 in4 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M60x2 25.8 lb11.7 kg
CB42-ND/A6 SK42BZI 1.625 in42 mm 0.156 in4 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M75x2* 25.8 lb11.7 kg
CB65-ND/A5 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 33.7 lb15.3 kg
CB65-ND/A6 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 35.5 lb16.1 kg
CB65-ND/A8 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M80x2 42 lb19 kg
CB120-ND/A11 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm .315 in8 mm 35,969 lbs160 kN 4,000 rpm M150x2 125.55 lb56.94 kg
CB140-ND/A11 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm .315 in8 mm 38,218 lbs170 kN 3,500 rpm M150x2 157.53 lb71.44 kg
CB120-ND/A6 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-6 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M90x2 136.93 lb62.1 kg
CB120-ND/A8 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M115x2 128.39 lb58.23 kg
CB140-ND/A8 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,500 rpm M115x2 159.43 lb72.3 kg
CB140-ND/A15 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,500 rpm M150x2 190.45 lb86.37 kg
CB120-ND/A15 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M150x2 171.68 lb77.86 kg
CB160-ND/A8 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M115x2 197.97 lb89.78 kg
CB160-ND/A11 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M150x2 197.65 lb89.64 kg
CB160-ND/A15 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M150x2 211.27 lb95.81 kg

CB-NB Collet Chucks - Pull Back Design









Quick Change Chucks



  • CB-NX picture

    CB-NX Collet Chuck- Dead Length Design



    The CB-NX series is a low profile dead length design with a reduced diameter nose for maximum tool clearance. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. The collet remains fixed in the Z axis during clamping and therefore does not create a pull back effect on the bar stock or workpiece.

    CB-NX Features

    • Low Profile Dead Length design
    • Reduced diameter nose and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up tapered collet seat within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Stop plates, stop housings, and ejectors can be mounted inside the chuck body for chucking applications




  • CB-ND Collet Chucks - Dead Length Design

    CB-ND Collet Chucks - Dead Length Design



    The ND series models are used for collet sizes 120mm and larger. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. Since the collet remains fixed in the Z axis during clamping it does not create a pull back effect on the bar stock or workpiece.

    CB-ND Features

    • Dead Length design
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors




  • CB-NB Collet Chucks - Pull Back Design

    CB-NB Collet Chucks - Pull Back Design



    In the CB-NB series collet chucks, the collet is coupled directly to the draw tube connector. When the draw tube is actuated, the collet is drawn into the tapered seat of the chuck body, efficiently translating draw tube force into maximum clamping force.

    CB-NB Features

    • Pull Back design maximizes the efficiency of the clamping system by concentrating all forces in the direction of the spindle for highest accuracy and greatest overall rigidity
    • Low profile OD and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated for life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life




  • CB-NDR Collet Chucks - Pull to Close Dead Length Design for Servo Stop Bar Loaders

    CB-NDR Collet Chucks - Pull to Close Dead Length Design for Servo Stop Bar Loaders



    The CB-NDR is a patented Dead Length design for use with servo stop bar loaders. Unlike conventional dead length collet chucks, the NDR is actuated as the draw tube is drawn toward the machine spindle to prevent the bar from being pushed off the servo stop.

    CB-NDR Features
    • Pull to Close Dead Length design produces no pull back and will not push the bar off the servo stop
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life




  • CB-NK Collet Chucks - Combination Design

    CB-NK Collet Chucks - Combination Design



    NK series chucks are a pull back design with the added flexibility of being able to mount end stops inside the chuck body for easy conversion from bar to chucking applications. The collet is coupled directly to the draw tube connector. As the draw tube is actuated the collet is drawn into the tapered seat efficiently translating draw tube force into maximum clamping force.

    CB-NK Features

    • Pull Back design maximizes the efficiency of the clamping system by concentrating all forces in the direction of the spindle for highest accuracy and greatest overall rigidity
    • Low profile OD and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Removable stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors




  • CB-NR Collet Chucks - Stationary Design

    CB-NRB Collet Chucks - Stationary Design



    The NRB series is a hydraulically actuated self-contained Pull Back design for non-rotating applications. The collet is coupled to the built-in piston and is drawn into the tapered seat when the chuck is actuated. Part stops can be mounted inside the chuck body.

    CB-NRB Features
    • Self-contained design with built-in cylinder can be hydraulic or pneumatically operated
    • Pull Back design maximizes the efficiency of the clamping system by concentrating the chucking force in the direction of the machine table, in addition to drawing the workpiece against the part stop
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life.
    Non-rotating dead length designs are quoted on request.




  • CB-AG Collet Chuck

    CB-AG Collet Chucks - Compensating Pull Back Design



    The CB-AG series collet chuck is a pull back design with a floating collet seat for machining shafts between centers. Centers or other part locators are mounted in the ID of the chuck. The floating collet seat can also be locked out to clamp parts on-center. Compact OD and short length compared to other compensating chuck designs provides greater rigidity.


    CB-AG Features

    • 1.5mm (.060”) total compensation
    • Mounting in ID of chuck body for mounting locating center
    • Radial adjusting screws to true-up locating center within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • Compact design for greater rigidity
    • Collet seat can be locked out for clamping parts on-center
    • All components hardened and precision ground for highest accuracy and long life




  • WSF Image.png

    WSF Collet Chucks - Retractable Design



    Shafts can be machined complete between centers with MicroCentric's retractable collet chuck. A face driver mounted in the ID of the chuck drives the shaft as it is supported by the tailstock to turn the end of the shaft. When the chuck is actuated the collet moves forward to clamp the turned diameter enabling the OD of the shaft to be machined completed while the end of the shaft is securely clamped.

    WSF Features

    • Mounting for face driver in ID of chuck assembly
    • Radial adjusting screws to true-up chuck assembly within .0002” (0.005mm)
    • All components hardened and precision ground for highest accuracy and long life



CB-NX Collet Chuck- Dead Length Design





  • CB-NX picture


The CB-NX series is a low profile dead length design with a reduced diameter nose for maximum tool clearance. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. The collet remains fixed in the Z axis during clamping and therefore does not create a pull back effect on the bar stock or workpiece.

CB-NX Features

  • Low Profile Dead Length design
  • Reduced diameter nose and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
  • Radial adjusting screws to true-up tapered collet seat within .0002” (0.005mm)
  • Lubricated-for-life design requires minimal maintenance
  • All components hardened and precision ground for highest accuracy and long life
  • Stop plates, stop housings, and ejectors can be mounted inside the chuck body for chucking applications





CB42-NX/A5 42BZI 1.625 in42 mm 0.156 in4 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M60x2 20.32 lb9.22 kg
CB42-NX/140 42BZI 1.625 in42 mm 0.156 in4 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M60x2 19.30 lb8.75 kg
CB42-NX/A6 42BZI 1.625 in42 mm 0.156 in4 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M75x2* 20.33 lb9.22 kg
CB52-NX/A5 52BZI 2.000 in52 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm 160 in4 mm 21,132 lbs94 kN 7,000 rpm M60x2 20.25 lb9.19 kg
CB52-NX/140 52BZI 2.000 in52 mm 0.187 in5 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 21,132 lbs94 kN 7,000 rpm M60x2 19.21 lb8.71 kg
CB52-NX/A6 52BZI 2.000 in52 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 21,132 lbs94 kN 7,000 rpm M75x2* 20.20 lb9.17 kg
CB65-NX/A5 65BZI 2.625 in66 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 25.9 lb11.8 kg
CB65-NX/A8-OS 65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M100x2* 39.05 lb17.71 kg
CB65-NX/140 65BZI 2.625 in66 mm 0.187 in5 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M60x2 25 lb11.3 kg
CB65-NX/A6 65BZI 2.625 in66 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M80x2 27.7 lb12.6 kg
CB65-NX/A8 65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M80x2 34.2 lb15.5 kg
CB80-NX/A8 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M100x2 37.7 lb17.1 kg
CB80-NX/A11 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-11 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M115x2* 59.54 lb27.00 kg
CB80-NX/A6 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-6 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M90x2 35.6 lb16.1 kg
CB100-NX/A8 100BZI 4.000 in102 mm 1.000 in25 mm A2-8 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M115x2 69.2 lb31.4 kg
CB100-NX/A11 100BZI 4.000 in102 mm 1.000 in25 mm A2-11 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M115x2 85.1 lb38.6 kg
CB100-NX/A6 100BZI 4.000 in102 mm 1.000 in25 mm A2-6 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M90x2 74.3 lb33.7 k

CB-ND Collet Chucks - Dead Length Design








  • CB-ND Collet Chucks - Dead Length Design


The ND series models are used for collet sizes 120mm and larger. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. Since the collet remains fixed in the Z axis during clamping it does not create a pull back effect on the bar stock or workpiece.

CB-ND Features

  • Dead Length design
  • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
  • Lubricated-for-life design requires minimal maintenance
  • All components hardened and precision ground for highest accuracy and long life
  • Stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors



CB42-ND/140 SK42BZI 1.625 in42 mm 0.156 in4 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M60x2 24.7 lb11.2 kg
CB42-ND/A5 SK42BZI 1.625 in42 mm 0.156 in4 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M60x2 25.8 lb11.7 kg
CB42-ND/A6 SK42BZI 1.625 in42 mm 0.156 in4 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M75x2* 25.8 lb11.7 kg
CB65-ND/A5 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 33.7 lb15.3 kg
CB65-ND/A6 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 35.5 lb16.1 kg
CB65-ND/A8 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M80x2 42 lb19 kg
CB120-ND/A11 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm .315 in8 mm 35,969 lbs160 kN 4,000 rpm M150x2 125.55 lb56.94 kg
CB140-ND/A11 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm .315 in8 mm 38,218 lbs170 kN 3,500 rpm M150x2 157.53 lb71.44 kg
CB120-ND/A6 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-6 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M90x2 136.93 lb62.1 kg
CB120-ND/A8 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M115x2 128.39 lb58.23 kg
CB140-ND/A8 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,500 rpm M115x2 159.43 lb72.3 kg
CB140-ND/A15 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,500 rpm M150x2 190.45 lb86.37 kg
CB120-ND/A15 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M150x2 171.68 lb77.86 kg
CB160-ND/A8 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M115x2 197.97 lb89.78 kg
CB160-ND/A11 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M150x2 197.65 lb89.64 kg
CB160-ND/A15 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M150x2 211.27 lb95.81 kg

CB-NB Collet Chucks - Pull Back Design








  • CB-NB Collet Chucks - Pull Back Design

Quick Change Chucks



  • CB-NX picture

    CB-NX Collet Chuck- Dead Length Design



    The CB-NX series is a low profile dead length design with a reduced diameter nose for maximum tool clearance. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. The collet remains fixed in the Z axis during clamping and therefore does not create a pull back effect on the bar stock or workpiece.

    CB-NX Features

    • Low Profile Dead Length design
    • Reduced diameter nose and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up tapered collet seat within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Stop plates, stop housings, and ejectors can be mounted inside the chuck body for chucking applications




  • CB-ND Collet Chucks - Dead Length Design

    CB-ND Collet Chucks - Dead Length Design



    The ND series models are used for collet sizes 120mm and larger. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. Since the collet remains fixed in the Z axis during clamping it does not create a pull back effect on the bar stock or workpiece.

    CB-ND Features

    • Dead Length design
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors




  • CB-NB Collet Chucks - Pull Back Design

    CB-NB Collet Chucks - Pull Back Design



    In the CB-NB series collet chucks, the collet is coupled directly to the draw tube connector. When the draw tube is actuated, the collet is drawn into the tapered seat of the chuck body, efficiently translating draw tube force into maximum clamping force.

    CB-NB Features

    • Pull Back design maximizes the efficiency of the clamping system by concentrating all forces in the direction of the spindle for highest accuracy and greatest overall rigidity
    • Low profile OD and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated for life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life




  • CB-NDR Collet Chucks - Pull to Close Dead Length Design for Servo Stop Bar Loaders

    CB-NDR Collet Chucks - Pull to Close Dead Length Design for Servo Stop Bar Loaders



    The CB-NDR is a patented Dead Length design for use with servo stop bar loaders. Unlike conventional dead length collet chucks, the NDR is actuated as the draw tube is drawn toward the machine spindle to prevent the bar from being pushed off the servo stop.

    CB-NDR Features
    • Pull to Close Dead Length design produces no pull back and will not push the bar off the servo stop
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life




  • CB-NK Collet Chucks - Combination Design

    CB-NK Collet Chucks - Combination Design



    NK series chucks are a pull back design with the added flexibility of being able to mount end stops inside the chuck body for easy conversion from bar to chucking applications. The collet is coupled directly to the draw tube connector. As the draw tube is actuated the collet is drawn into the tapered seat efficiently translating draw tube force into maximum clamping force.

    CB-NK Features

    • Pull Back design maximizes the efficiency of the clamping system by concentrating all forces in the direction of the spindle for highest accuracy and greatest overall rigidity
    • Low profile OD and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Removable stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors




  • CB-NR Collet Chucks - Stationary Design

    CB-NRB Collet Chucks - Stationary Design



    The NRB series is a hydraulically actuated self-contained Pull Back design for non-rotating applications. The collet is coupled to the built-in piston and is drawn into the tapered seat when the chuck is actuated. Part stops can be mounted inside the chuck body.

    CB-NRB Features
    • Self-contained design with built-in cylinder can be hydraulic or pneumatically operated
    • Pull Back design maximizes the efficiency of the clamping system by concentrating the chucking force in the direction of the machine table, in addition to drawing the workpiece against the part stop
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life.
    Non-rotating dead length designs are quoted on request.




  • CB-AG Collet Chuck

    CB-AG Collet Chucks - Compensating Pull Back Design



    The CB-AG series collet chuck is a pull back design with a floating collet seat for machining shafts between centers. Centers or other part locators are mounted in the ID of the chuck. The floating collet seat can also be locked out to clamp parts on-center. Compact OD and short length compared to other compensating chuck designs provides greater rigidity.


    CB-AG Features

    • 1.5mm (.060”) total compensation
    • Mounting in ID of chuck body for mounting locating center
    • Radial adjusting screws to true-up locating center within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • Compact design for greater rigidity
    • Collet seat can be locked out for clamping parts on-center
    • All components hardened and precision ground for highest accuracy and long life




  • WSF Image.png

    WSF Collet Chucks - Retractable Design



    Shafts can be machined complete between centers with MicroCentric's retractable collet chuck. A face driver mounted in the ID of the chuck drives the shaft as it is supported by the tailstock to turn the end of the shaft. When the chuck is actuated the collet moves forward to clamp the turned diameter enabling the OD of the shaft to be machined completed while the end of the shaft is securely clamped.

    WSF Features

    • Mounting for face driver in ID of chuck assembly
    • Radial adjusting screws to true-up chuck assembly within .0002” (0.005mm)
    • All components hardened and precision ground for highest accuracy and long life



CB-NX Collet Chuck- Dead Length Design





  • CB-NX picture


The CB-NX series is a low profile dead length design with a reduced diameter nose for maximum tool clearance. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. The collet remains fixed in the Z axis during clamping and therefore does not create a pull back effect on the bar stock or workpiece.

CB-NX Features

  • Low Profile Dead Length design
  • Reduced diameter nose and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
  • Radial adjusting screws to true-up tapered collet seat within .0002” (0.005mm)
  • Lubricated-for-life design requires minimal maintenance
  • All components hardened and precision ground for highest accuracy and long life
  • Stop plates, stop housings, and ejectors can be mounted inside the chuck body for chucking applications





CB42-NX/A5 42BZI 1.625 in42 mm 0.156 in4 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M60x2 20.32 lb9.22 kg
CB42-NX/140 42BZI 1.625 in42 mm 0.156 in4 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M60x2 19.30 lb8.75 kg
CB42-NX/A6 42BZI 1.625 in42 mm 0.156 in4 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M75x2* 20.33 lb9.22 kg
CB52-NX/A5 52BZI 2.000 in52 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm 160 in4 mm 21,132 lbs94 kN 7,000 rpm M60x2 20.25 lb9.19 kg
CB52-NX/140 52BZI 2.000 in52 mm 0.187 in5 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 21,132 lbs94 kN 7,000 rpm M60x2 19.21 lb8.71 kg
CB52-NX/A6 52BZI 2.000 in52 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 21,132 lbs94 kN 7,000 rpm M75x2* 20.20 lb9.17 kg
CB65-NX/A5 65BZI 2.625 in66 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 25.9 lb11.8 kg
CB65-NX/A8-OS 65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M100x2* 39.05 lb17.71 kg
CB65-NX/140 65BZI 2.625 in66 mm 0.187 in5 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M60x2 25 lb11.3 kg
CB65-NX/A6 65BZI 2.625 in66 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M80x2 27.7 lb12.6 kg
CB65-NX/A8 65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M80x2 34.2 lb15.5 kg
CB80-NX/A8 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M100x2 37.7 lb17.1 kg
CB80-NX/A11 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-11 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M115x2* 59.54 lb27.00 kg
CB80-NX/A6 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-6 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M90x2 35.6 lb16.1 kg
CB100-NX/A8 100BZI 4.000 in102 mm 1.000 in25 mm A2-8 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M115x2 69.2 lb31.4 kg
CB100-NX/A11 100BZI 4.000 in102 mm 1.000 in25 mm A2-11 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M115x2 85.1 lb38.6 kg
CB100-NX/A6 100BZI 4.000 in102 mm 1.000 in25 mm A2-6 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M90x2 74.3 lb33.7 k

CB-ND Collet Chucks - Dead Length Design








  • CB-ND Collet Chucks - Dead Length Design


The ND series models are used for collet sizes 120mm and larger. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. Since the collet remains fixed in the Z axis during clamping it does not create a pull back effect on the bar stock or workpiece.

CB-ND Features

  • Dead Length design
  • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
  • Lubricated-for-life design requires minimal maintenance
  • All components hardened and precision ground for highest accuracy and long life
  • Stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors



CB42-ND/140 SK42BZI 1.625 in42 mm 0.156 in4 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M60x2 24.7 lb11.2 kg
CB42-ND/A5 SK42BZI 1.625 in42 mm 0.156 in4 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M60x2 25.8 lb11.7 kg
CB42-ND/A6 SK42BZI 1.625 in42 mm 0.156 in4 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M75x2* 25.8 lb11.7 kg
CB65-ND/A5 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 33.7 lb15.3 kg
CB65-ND/A6 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 35.5 lb16.1 kg
CB65-ND/A8 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M80x2 42 lb19 kg
CB120-ND/A11 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm .315 in8 mm 35,969 lbs160 kN 4,000 rpm M150x2 125.55 lb56.94 kg
CB140-ND/A11 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm .315 in8 mm 38,218 lbs170 kN 3,500 rpm M150x2 157.53 lb71.44 kg
CB120-ND/A6 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-6 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M90x2 136.93 lb62.1 kg
CB120-ND/A8 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M115x2 128.39 lb58.23 kg
CB140-ND/A8 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,500 rpm M115x2 159.43 lb72.3 kg
CB140-ND/A15 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,500 rpm M150x2 190.45 lb86.37 kg
CB120-ND/A15 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M150x2 171.68 lb77.86 kg
CB160-ND/A8 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M115x2 197.97 lb89.78 kg
CB160-ND/A11 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M150x2 197.65 lb89.64 kg
CB160-ND/A15 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M150x2 211.27 lb95.81 kg

CB-NB Collet Chucks - Pull Back Design








  • CB-NB Collet Chucks - Pull Back Design

Quick Change Chucks



  • CB-NX picture

    CB-NX Collet Chuck- Dead Length Design



    The CB-NX series is a low profile dead length design with a reduced diameter nose for maximum tool clearance. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. The collet remains fixed in the Z axis during clamping and therefore does not create a pull back effect on the bar stock or workpiece.

    CB-NX Features

    • Low Profile Dead Length design
    • Reduced diameter nose and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up tapered collet seat within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Stop plates, stop housings, and ejectors can be mounted inside the chuck body for chucking applications




  • CB-ND Collet Chucks - Dead Length Design

    CB-ND Collet Chucks - Dead Length Design



    The ND series models are used for collet sizes 120mm and larger. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. Since the collet remains fixed in the Z axis during clamping it does not create a pull back effect on the bar stock or workpiece.

    CB-ND Features

    • Dead Length design
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors




  • CB-NB Collet Chucks - Pull Back Design

    CB-NB Collet Chucks - Pull Back Design



    In the CB-NB series collet chucks, the collet is coupled directly to the draw tube connector. When the draw tube is actuated, the collet is drawn into the tapered seat of the chuck body, efficiently translating draw tube force into maximum clamping force.

    CB-NB Features

    • Pull Back design maximizes the efficiency of the clamping system by concentrating all forces in the direction of the spindle for highest accuracy and greatest overall rigidity
    • Low profile OD and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated for life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life




  • CB-NDR Collet Chucks - Pull to Close Dead Length Design for Servo Stop Bar Loaders

    CB-NDR Collet Chucks - Pull to Close Dead Length Design for Servo Stop Bar Loaders



    The CB-NDR is a patented Dead Length design for use with servo stop bar loaders. Unlike conventional dead length collet chucks, the NDR is actuated as the draw tube is drawn toward the machine spindle to prevent the bar from being pushed off the servo stop.

    CB-NDR Features
    • Pull to Close Dead Length design produces no pull back and will not push the bar off the servo stop
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life




  • CB-NK Collet Chucks - Combination Design

    CB-NK Collet Chucks - Combination Design



    NK series chucks are a pull back design with the added flexibility of being able to mount end stops inside the chuck body for easy conversion from bar to chucking applications. The collet is coupled directly to the draw tube connector. As the draw tube is actuated the collet is drawn into the tapered seat efficiently translating draw tube force into maximum clamping force.

    CB-NK Features

    • Pull Back design maximizes the efficiency of the clamping system by concentrating all forces in the direction of the spindle for highest accuracy and greatest overall rigidity
    • Low profile OD and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Removable stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors




  • CB-NR Collet Chucks - Stationary Design

    CB-NRB Collet Chucks - Stationary Design



    The NRB series is a hydraulically actuated self-contained Pull Back design for non-rotating applications. The collet is coupled to the built-in piston and is drawn into the tapered seat when the chuck is actuated. Part stops can be mounted inside the chuck body.

    CB-NRB Features
    • Self-contained design with built-in cylinder can be hydraulic or pneumatically operated
    • Pull Back design maximizes the efficiency of the clamping system by concentrating the chucking force in the direction of the machine table, in addition to drawing the workpiece against the part stop
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life.
    Non-rotating dead length designs are quoted on request.




  • CB-AG Collet Chuck

    CB-AG Collet Chucks - Compensating Pull Back Design



    The CB-AG series collet chuck is a pull back design with a floating collet seat for machining shafts between centers. Centers or other part locators are mounted in the ID of the chuck. The floating collet seat can also be locked out to clamp parts on-center. Compact OD and short length compared to other compensating chuck designs provides greater rigidity.


    CB-AG Features

    • 1.5mm (.060”) total compensation
    • Mounting in ID of chuck body for mounting locating center
    • Radial adjusting screws to true-up locating center within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • Compact design for greater rigidity
    • Collet seat can be locked out for clamping parts on-center
    • All components hardened and precision ground for highest accuracy and long life




  • WSF Image.png

    WSF Collet Chucks - Retractable Design



    Shafts can be machined complete between centers with MicroCentric's retractable collet chuck. A face driver mounted in the ID of the chuck drives the shaft as it is supported by the tailstock to turn the end of the shaft. When the chuck is actuated the collet moves forward to clamp the turned diameter enabling the OD of the shaft to be machined completed while the end of the shaft is securely clamped.

    WSF Features

    • Mounting for face driver in ID of chuck assembly
    • Radial adjusting screws to true-up chuck assembly within .0002” (0.005mm)
    • All components hardened and precision ground for highest accuracy and long life



CB-NX Collet Chuck- Dead Length Design





  • CB-NX picture


The CB-NX series is a low profile dead length design with a reduced diameter nose for maximum tool clearance. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. The collet remains fixed in the Z axis during clamping and therefore does not create a pull back effect on the bar stock or workpiece.

CB-NX Features

  • Low Profile Dead Length design
  • Reduced diameter nose and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
  • Radial adjusting screws to true-up tapered collet seat within .0002” (0.005mm)
  • Lubricated-for-life design requires minimal maintenance
  • All components hardened and precision ground for highest accuracy and long life
  • Stop plates, stop housings, and ejectors can be mounted inside the chuck body for chucking applications





CB42-NX/A5 42BZI 1.625 in42 mm 0.156 in4 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M60x2 20.32 lb9.22 kg
CB42-NX/140 42BZI 1.625 in42 mm 0.156 in4 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M60x2 19.30 lb8.75 kg
CB42-NX/A6 42BZI 1.625 in42 mm 0.156 in4 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M75x2* 20.33 lb9.22 kg
CB52-NX/A5 52BZI 2.000 in52 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm 160 in4 mm 21,132 lbs94 kN 7,000 rpm M60x2 20.25 lb9.19 kg
CB52-NX/140 52BZI 2.000 in52 mm 0.187 in5 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 21,132 lbs94 kN 7,000 rpm M60x2 19.21 lb8.71 kg
CB52-NX/A6 52BZI 2.000 in52 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 21,132 lbs94 kN 7,000 rpm M75x2* 20.20 lb9.17 kg
CB65-NX/A5 65BZI 2.625 in66 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 25.9 lb11.8 kg
CB65-NX/A8-OS 65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M100x2* 39.05 lb17.71 kg
CB65-NX/140 65BZI 2.625 in66 mm 0.187 in5 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M60x2 25 lb11.3 kg
CB65-NX/A6 65BZI 2.625 in66 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M80x2 27.7 lb12.6 kg
CB65-NX/A8 65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M80x2 34.2 lb15.5 kg
CB80-NX/A8 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M100x2 37.7 lb17.1 kg
CB80-NX/A11 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-11 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M115x2* 59.54 lb27.00 kg
CB80-NX/A6 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-6 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M90x2 35.6 lb16.1 kg
CB100-NX/A8 100BZI 4.000 in102 mm 1.000 in25 mm A2-8 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M115x2 69.2 lb31.4 kg
CB100-NX/A11 100BZI 4.000 in102 mm 1.000 in25 mm A2-11 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M115x2 85.1 lb38.6 kg
CB100-NX/A6 100BZI 4.000 in102 mm 1.000 in25 mm A2-6 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M90x2 74.3 lb33.7 k

CB-ND Collet Chucks - Dead Length Design








  • CB-ND Collet Chucks - Dead Length Design


The ND series models are used for collet sizes 120mm and larger. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. Since the collet remains fixed in the Z axis during clamping it does not create a pull back effect on the bar stock or workpiece.

CB-ND Features

  • Dead Length design
  • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
  • Lubricated-for-life design requires minimal maintenance
  • All components hardened and precision ground for highest accuracy and long life
  • Stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors



CB42-ND/140 SK42BZI 1.625 in42 mm 0.156 in4 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M60x2 24.7 lb11.2 kg
CB42-ND/A5 SK42BZI 1.625 in42 mm 0.156 in4 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M60x2 25.8 lb11.7 kg
CB42-ND/A6 SK42BZI 1.625 in42 mm 0.156 in4 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M75x2* 25.8 lb11.7 kg
CB65-ND/A5 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 33.7 lb15.3 kg
CB65-ND/A6 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 35.5 lb16.1 kg
CB65-ND/A8 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M80x2 42 lb19 kg
CB120-ND/A11 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm .315 in8 mm 35,969 lbs160 kN 4,000 rpm M150x2 125.55 lb56.94 kg
CB140-ND/A11 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm .315 in8 mm 38,218 lbs170 kN 3,500 rpm M150x2 157.53 lb71.44 kg
CB120-ND/A6 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-6 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M90x2 136.93 lb62.1 kg
CB120-ND/A8 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M115x2 128.39 lb58.23 kg
CB140-ND/A8 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,500 rpm M115x2 159.43 lb72.3 kg
CB140-ND/A15 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,500 rpm M150x2 190.45 lb86.37 kg
CB120-ND/A15 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M150x2 171.68 lb77.86 kg
CB160-ND/A8 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M115x2 197.97 lb89.78 kg
CB160-ND/A11 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M150x2 197.65 lb89.64 kg
CB160-ND/A15 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M150x2 211.27 lb95.81 kg

CB-NB Collet Chucks - Pull Back Design








  • CB-NB Collet Chucks - Pull Back Design

Quick Change Chucks



  • CB-NX picture

    CB-NX Collet Chuck- Dead Length Design



    The CB-NX series is a low profile dead length design with a reduced diameter nose for maximum tool clearance. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. The collet remains fixed in the Z axis during clamping and therefore does not create a pull back effect on the bar stock or workpiece.

    CB-NX Features

    • Low Profile Dead Length design
    • Reduced diameter nose and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up tapered collet seat within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Stop plates, stop housings, and ejectors can be mounted inside the chuck body for chucking applications




  • CB-ND Collet Chucks - Dead Length Design

    CB-ND Collet Chucks - Dead Length Design



    The ND series models are used for collet sizes 120mm and larger. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. Since the collet remains fixed in the Z axis during clamping it does not create a pull back effect on the bar stock or workpiece.

    CB-ND Features

    • Dead Length design
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors




  • CB-NB Collet Chucks - Pull Back Design

    CB-NB Collet Chucks - Pull Back Design



    In the CB-NB series collet chucks, the collet is coupled directly to the draw tube connector. When the draw tube is actuated, the collet is drawn into the tapered seat of the chuck body, efficiently translating draw tube force into maximum clamping force.

    CB-NB Features

    • Pull Back design maximizes the efficiency of the clamping system by concentrating all forces in the direction of the spindle for highest accuracy and greatest overall rigidity
    • Low profile OD and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated for life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life




  • CB-NDR Collet Chucks - Pull to Close Dead Length Design for Servo Stop Bar Loaders

    CB-NDR Collet Chucks - Pull to Close Dead Length Design for Servo Stop Bar Loaders



    The CB-NDR is a patented Dead Length design for use with servo stop bar loaders. Unlike conventional dead length collet chucks, the NDR is actuated as the draw tube is drawn toward the machine spindle to prevent the bar from being pushed off the servo stop.

    CB-NDR Features
    • Pull to Close Dead Length design produces no pull back and will not push the bar off the servo stop
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life




  • CB-NK Collet Chucks - Combination Design

    CB-NK Collet Chucks - Combination Design



    NK series chucks are a pull back design with the added flexibility of being able to mount end stops inside the chuck body for easy conversion from bar to chucking applications. The collet is coupled directly to the draw tube connector. As the draw tube is actuated the collet is drawn into the tapered seat efficiently translating draw tube force into maximum clamping force.

    CB-NK Features

    • Pull Back design maximizes the efficiency of the clamping system by concentrating all forces in the direction of the spindle for highest accuracy and greatest overall rigidity
    • Low profile OD and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
    • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life
    • Removable stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors




  • CB-NR Collet Chucks - Stationary Design

    CB-NRB Collet Chucks - Stationary Design



    The NRB series is a hydraulically actuated self-contained Pull Back design for non-rotating applications. The collet is coupled to the built-in piston and is drawn into the tapered seat when the chuck is actuated. Part stops can be mounted inside the chuck body.

    CB-NRB Features
    • Self-contained design with built-in cylinder can be hydraulic or pneumatically operated
    • Pull Back design maximizes the efficiency of the clamping system by concentrating the chucking force in the direction of the machine table, in addition to drawing the workpiece against the part stop
    • Lubricated-for-life design requires minimal maintenance
    • All components hardened and precision ground for highest accuracy and long life.
    Non-rotating dead length designs are quoted on request.




  • CB-AG Collet Chuck

    CB-AG Collet Chucks - Compensating Pull Back Design



    The CB-AG series collet chuck is a pull back design with a floating collet seat for machining shafts between centers. Centers or other part locators are mounted in the ID of the chuck. The floating collet seat can also be locked out to clamp parts on-center. Compact OD and short length compared to other compensating chuck designs provides greater rigidity.


    CB-AG Features

    • 1.5mm (.060”) total compensation
    • Mounting in ID of chuck body for mounting locating center
    • Radial adjusting screws to true-up locating center within .0002” (0.005mm)
    • Lubricated-for-life design requires minimal maintenance
    • Compact design for greater rigidity
    • Collet seat can be locked out for clamping parts on-center
    • All components hardened and precision ground for highest accuracy and long life




  • WSF Image.png

    WSF Collet Chucks - Retractable Design



    Shafts can be machined complete between centers with MicroCentric's retractable collet chuck. A face driver mounted in the ID of the chuck drives the shaft as it is supported by the tailstock to turn the end of the shaft. When the chuck is actuated the collet moves forward to clamp the turned diameter enabling the OD of the shaft to be machined completed while the end of the shaft is securely clamped.

    WSF Features

    • Mounting for face driver in ID of chuck assembly
    • Radial adjusting screws to true-up chuck assembly within .0002” (0.005mm)
    • All components hardened and precision ground for highest accuracy and long life



CB-NX Collet Chuck- Dead Length Design





  • CB-NX picture


The CB-NX series is a low profile dead length design with a reduced diameter nose for maximum tool clearance. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. The collet remains fixed in the Z axis during clamping and therefore does not create a pull back effect on the bar stock or workpiece.

CB-NX Features

  • Low Profile Dead Length design
  • Reduced diameter nose and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis
  • Radial adjusting screws to true-up tapered collet seat within .0002” (0.005mm)
  • Lubricated-for-life design requires minimal maintenance
  • All components hardened and precision ground for highest accuracy and long life
  • Stop plates, stop housings, and ejectors can be mounted inside the chuck body for chucking applications





CB42-NX/A5 42BZI 1.625 in42 mm 0.156 in4 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M60x2 20.32 lb9.22 kg
CB42-NX/140 42BZI 1.625 in42 mm 0.156 in4 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M60x2 19.30 lb8.75 kg
CB42-NX/A6 42BZI 1.625 in42 mm 0.156 in4 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 7,000 rpm M75x2* 20.33 lb9.22 kg
CB52-NX/A5 52BZI 2.000 in52 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm 160 in4 mm 21,132 lbs94 kN 7,000 rpm M60x2 20.25 lb9.19 kg
CB52-NX/140 52BZI 2.000 in52 mm 0.187 in5 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 21,132 lbs94 kN 7,000 rpm M60x2 19.21 lb8.71 kg
CB52-NX/A6 52BZI 2.000 in52 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 21,132 lbs94 kN 7,000 rpm M75x2* 20.20 lb9.17 kg
CB65-NX/A5 65BZI 2.625 in66 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 25.9 lb11.8 kg
CB65-NX/A8-OS 65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M100x2* 39.05 lb17.71 kg
CB65-NX/140 65BZI 2.625 in66 mm 0.187 in5 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M60x2 25 lb11.3 kg
CB65-NX/A6 65BZI 2.625 in66 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M80x2 27.7 lb12.6 kg
CB65-NX/A8 65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 23,606 lbs105 kN 6,000 rpm M80x2 34.2 lb15.5 kg
CB80-NX/A8 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-8 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M100x2 37.7 lb17.1 kg
CB80-NX/A11 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-11 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M115x2* 59.54 lb27.00 kg
CB80-NX/A6 80BZI 3.250 in82.5 mm 0.500 in12 mm A2-6 .0008 in.020 mm +/- .020 in0.5 mm .160 in4 mm 25,853 lbs115 kN 5,500 rpm M90x2 35.6 lb16.1 kg
CB100-NX/A8 100BZI 4.000 in102 mm 1.000 in25 mm A2-8 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M115x2 69.2 lb31.4 kg
CB100-NX/A11 100BZI 4.000 in102 mm 1.000 in25 mm A2-11 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M115x2 85.1 lb38.6 kg
CB100-NX/A6 100BZI 4.000 in102 mm 1.000 in25 mm A2-6 .001 in0.025 mm +/- .040 in+/- 1 mm .160 in4 mm 33,721 lbs150 kN 5,000 rpm M90x2 74.3 lb33.7 k

CB-ND Collet Chucks - Dead Length Design








  • CB-ND Collet Chucks - Dead Length Design


The ND series models are used for collet sizes 120mm and larger. The collet is coupled directly to the chuck body and remains fixed as the tapered seat moves forward when the chuck is actuated. Since the collet remains fixed in the Z axis during clamping it does not create a pull back effect on the bar stock or workpiece.

CB-ND Features

  • Dead Length design
  • Radial adjusting screws to true-up the chuck assembly within .0002” (0.005mm)
  • Lubricated-for-life design requires minimal maintenance
  • All components hardened and precision ground for highest accuracy and long life
  • Stop plates and stop housings can be mounted inside the chuck body for chucking applications requiring end stops or part ejectors



CB42-ND/140 SK42BZI 1.625 in42 mm 0.156 in4 mm 140mm .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M60x2 24.7 lb11.2 kg
CB42-ND/A5 SK42BZI 1.625 in42 mm 0.156 in4 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M60x2 25.8 lb11.7 kg
CB42-ND/A6 SK42BZI 1.625 in42 mm 0.156 in4 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 17,985 lbs80 kN 6,000 rpm M75x2* 25.8 lb11.7 kg
CB65-ND/A5 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-5 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 33.7 lb15.3 kg
CB65-ND/A6 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-6 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M60x2 35.5 lb16.1 kg
CB65-ND/A8 SK65BZI 2.625 in66 mm 0.187 in5 mm A2-8 .0008 in.020 mm +/- .020 in+/- 0.5 mm .160 in4 mm 23,605 lbs105 kN 6,000 rpm M80x2 42 lb19 kg
CB120-ND/A11 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm .315 in8 mm 35,969 lbs160 kN 4,000 rpm M150x2 125.55 lb56.94 kg
CB140-ND/A11 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm .315 in8 mm 38,218 lbs170 kN 3,500 rpm M150x2 157.53 lb71.44 kg
CB120-ND/A6 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-6 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M90x2 136.93 lb62.1 kg
CB120-ND/A8 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M115x2 128.39 lb58.23 kg
CB140-ND/A8 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,500 rpm M115x2 159.43 lb72.3 kg
CB140-ND/A15 SK140BZI 5.591 in142 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,500 rpm M150x2 190.45 lb86.37 kg
CB120-ND/A15 SK120BZI 4.725 in120 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 35,969 lbs160 kN 4,000 rpm M150x2 171.68 lb77.86 kg
CB160-ND/A8 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-8 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M115x2 197.97 lb89.78 kg
CB160-ND/A11 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-11 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M150x2 197.65 lb89.64 kg
CB160-ND/A15 SK160BZI 6.300 in160 mm 1.000 in25 mm A2-15 0.002 in0.050 mm +/- .040 in+/- 1 mm 0.315 in8 mm 38,218 lbs170 kN 3,000 rpm M150x2 211.27 lb95.81 kg

CB-NB Collet Chucks - Pull Back Design
