Graphic touch indicator - DN-GI200, GI100

. Grapic Indicator-Color Graphic LCD Touch Screen.
. Diverse of Load Control Mode.
DN-GI100: 1ch indicator (load cell)
                -High sampling speed , 4,000/1sec

DN-GI200: 2ch indicator (CH1 :load cell,CH2:Distance Sensor)
               - High Sampling Speed: 2,000/1sec.(per 1ch )







Specifications	DN-GI200,  GI100
Sensor EXC	A-CH (load cell):DC 10/5V,120mA,                         B-CH : B-CH(Distance Sensor)
Input Signal Range	A-CH ;0~±40mA,                                                  B-CH :0 ~±10V,4~20mA,0~20mA
Conversion Speed	A-CH : 4,000times/sec.                                          B-CH : 2000/sec
Non-linearity	A-CH : ±0.02% F.S +1digit,                                    B-CH : ±0.02% F.S+1digit
Input Sensitivity	A-CH :1.0㎶/Digit,                                                   B-CH :1.0mV/Digit (0~10V)
Input Impedance	A-CH 10Mohm                                                       B-CH :1 Mohm / 50ohm
Temperature Factor.	±0.005% of rdg +0.5 digit/℃
Analogue Filter	10,30,300,600 Hz
Digit	0~±99999
Circumstance	0~40℃
Power	AC 100~240V, 50/60Hz
Consumed Power	Around 32VA
Output	Standard : Relay Output (HH,HI,GO,LO,LL)                                                                             OPTION:1.RS-232C serial output                                       2.RS-485 serial output                                       3.±0~10V or 4~20mA Analogue output                                       4.BCD parallel output                                       5.SD memory card
Display Window	STN color LCD, 74(W)×55(H)mm



Pocket indicator - DN120

• The DN-120 has designed specifically to operate with strain gauge sensors such as Fast-measurement of Load cell, Pressure Transducer,LVDT, etc.
• The setup sequence is simple and quick using four push buttons only. Quick sampling speed (100 times/sec).



Feature

• Simple outdoor using in use of battery.
• Using rechargeable battery.
• High resolving power(16bit A/D)
• High precision(more than 0.012% F.S) and stability.
• Quick sampling speed (100 times/sec)
• Peak hold function
• Comparison function ; open collector output
• Calibration of actual load and sensor output value
• Auto zero function
• Cutting size:92×92mm - Weight:about 500g

Others

• Option : RS232C(OP-01), RS485(OP-02), Comparison output (hi, Low)(Op-03), Peak/Sample Hold(OP-04), Back light(OP-05).

SPECIFICATIONS

Specifications	Accuracy
Application sensor	Strain guage sensor
Sensor adjustment range	DC 5V
Zero adjustment range	100% F.S (auto zero)
Input signal	1.0, 1.5, 2, 3mV/V (Dip switch)
Display	0000~±19999
Display speed	Approx 30times/sec (Adjustment available by buff setting)
Character height	7Segment 15mm
Decimal point	Random setting available
Sampling speed	Max 100times/sec
Zero variation	within 0.01%/℃ (1mV/V)
Sensitivity variation	within 0.01%/℃
Usage temperature range	-10~60℃
Humidity	less than 80% RH (no des condensation)
Power source used	DC 7.2V Recharging battery DC 12V Adapter

DIMENSIONS



Pocket indicator - PDN20

 The PDN-20 has been designed specifically to operate with strain gauge sensors such as Load cell, Pressure Transducer. LVDT. etc.

Pocket indicator with rechargeable battery.
PEAK HOLD FUNCTION
NG, OK judgments with LED display(with open collector output)
Connectable to computer through USB output cable
Display reverse function.
Ergonomic, heavy-duty metal construction
UNIT CONVERSION : N, kgf, lbf ,ozf



Dimensions

Specification



Specifications	Accuracy
Usable Sensor	Strain gauge type sensor (Bridge  350Ω, 700Ω)
Range of Indication	-99999 ~ +99999
A/D Transducer	16bit , 100times/sec
D/A Transducer	12bit
Indication of Measuring Value	5 Digit LCD ( Right/reverse display available)
Measuring Unit	kgf , N , lbf , ozf
Condition indicating LED	Indication of charge and compare output condition
Compare Output	High, Low, Good
Analog Output	DC ± 1V
Communication Output	USB RS232
Range of using temperature	-10℃ ~ 40℃, less than 80% RH (no dew condensation)
Weight	Approximately 800g
Power	Nickel hydrogen (NimH), Chargeable Adapter (DC 9V)
Continuous Use Life	Approximately 40 hours
Charging Time	Approximately 8 hours
Standard components	AC Chargeable Adapter , Handy case
Option	1. USB cable    2. Connector for analog output and relay output



Pocket indicator - PDN10

• Pocket indicator with battery.
• The PDN-10 has been designed specifically to operate with strain gauge sensors such as Load cell, Pressure Transducer. LVDT. etc.
• Peak hold
• Auto Zero
• Measuring Data Saving (Max 500pcs.)
• Hi, Low Display LED





SPECIFICATIONS

Specifications	Accuracy
Power Source	DC 9V battery
Electric current Consumption	15mA
LOAD CELL input range	1.0mV/V ~ 3.0mV/V, Potenticmeter : 100~10KΩ
Display	4 1/2 Digit LCD
Characters displayed	+19999
Display Speed	Approx. 10 times/sec
Decunak point Position	0, 0.0, 0.00, 0.000
A/D Sampling speed	100 times/sec
A/D Resolution	16 bit
Zero Adjust Range	100% F.S(AUTO ZERO)
Data stonage	500 data can be memorised
Data output	RS232C Serial Interface

DIMENSIONS



Digital indicator - DN-130T

These indicators can use Torque and RPM measurement at the same time. Digital display and analog output, comparison output are available.



Feature

• Torque, RPM simultaneous measurement
• High resolution (24bit ADC, 16bit DAC)
• High precision (more than 0.012% F.S) and stability
• Upper and lower limit comparison output (Torque, RPM)
• analog output (Torque, RPM)
• UNIT CONVERSION : kg, N, ℓb, kg/㎠, bar, MPa
• Quick sampling speed (1000times/sec)
• Watch dog
• Calibration of actual load and sensor output value
• Display part and analogue zero by auto zero (DAC)
• Analog out (DAC)

Option

• OP-02 : RS232C serial interface
• OP-03 : RS485 Multi drop interface

SPECIFICATIONS

Specifications	Accuracy
	DN130T	DN230A
Application sensor	Torque : Brush type torquemeter RPM : Proximity sensor (MP981)	Torque : Brushless type torquemeter (trC) RPM : Proximity sensor (MP981)
Sensor authorized voltage	Torque : DC 5V RPM : DC 12V	Torque : DC 2Vrms, 5kHz RPM : DC 12V
Zero adjustment range	Torque : 100% F.S (Auto Zero)
Input signal	Torque : 0.5 ~ 3mV/V RPM : DC 12V	Torque : 0.5 ~ 2mV/V RPM : 1 ~ 350 pulse/circle
Display	Torque : -19999 ~ +99999 RPM : 0 ~ 60000
Character height	7 segment LED 14mm
A/D converter	Torque 24bit 1000 times/sec
D/A converter	Torque 16bit
Zero variation	Torque Witdin 0.5㎶/℃
Sensitivity	Torque Witdin 0.01%/℃
Voltage output	DC 0 ~ 10V (4~20mA : in accordance witd customer request)
Contact capacity	AC 250V 5A
Relay life time	More tdan 5,000,000 times
Usage temperature range	-10℃ ~ 60℃
Humidit	Less tdan 80% RH (No dew condensation)
Power source used	AC85 ~ 265V 50/60Hz
Dimensions	97 X 97 X 141mm
Cutting size	92.5 X 92.5mm
Weight	About 1000g

DIMENSIONS

Digital indicator - DN150,250

The DN-100 and DN200 have designed specifically to operate with strain gauge sensors such as Fast - measurement of Loadcell, Torquemeters, Pressure Transducer, LVDT, etc,.

ㆍDN150 : sampling speed : Appr. 5000Times Per Second
ㆍDN250 : sampling speed : Appr. 1000Times Per Second





Feature

• High resolution
• High precision (more than 0.01% F.S) and stability
• Relay output : Hi, Low, NG, OK.
• UNIT CONVERSION : kg, N, ℓb, kg/㎠, bar, MPa
• Display part and analogue zero by auto zero
• Calibration of actual load and sensor output value
• Peak & sample hold
• Watch dog

OPTION

• OP-01 : BCD paralle out
• OP-02 : RS232C serial interface
• OP-03 : RS485 Multi drop interface



Specifications

Specification	Accuracy
Application sensor	Strain guage sensors
Sensor authorized voltage (the number of Loadcell connection)	DC 5V, Loadcell(350?) available 4
Zero adjustment range	100%F·S (Auto Zero)
Input signal	0.5~3mV/V
Display	-19999~+99999
Character height	7 Segment 14mm
Decimal point	Random setting available
A/D converter	DN150 : 16bit 5000 times/sec
	DN250 : 24bit 1000 times/sec
D/A converter	16bit 1000 times/sec
Relay output	Contact capacity : AC 250V 5A, Relay life time : more than 5,000,000 times
Zero variation	Within 0.5μV/℃
Sensitivity variation	Within 0.01%/℃
Voltage output	DC 0 ~ 10V (4~20mA : in accordance with customer request)
Usage temperature range	-10℃ ~ 60℃
Humidity	Less than 80% RH (no dew condensation)
Power source used	AC 85 ~ 265V 50/60Hz
Weight	1000g
Option	OP-01 : BCD output OP-02 : RS232C serial interface OP-03 : RS485 Multi drop interface OP-04 : RS422A serial interface OP-06:  Power 24VDC

제품치수 (unit:mm)



Digital indicator - DN40W

The DN-40W has designed specifically to operate with strain gauge sensors such as Fast - measurement of Loadcell, Pressure Transducer, LVDT, etc.

Option: Power Input 24V in accordance with customer request



Feature

• High resolution (24bit ADC)
• High precision (more than 0.01% F.S) and stability
• Quick sampling speed (1000times/sec)
• Relay output : Hi, Low, NG, OK.
• UNIT CONVERSION : kg, N, ℓb, kg/㎠, bar, MPa
• Display part and analogue zero by auto zero
• Dynamic analog out
• Built-in Shunt calibration switch
• Peak & sample hold

OPTION

• OP-01 : BCD paralle out
• OP-02 : RS232C serial interface

• OP-03 : RS485 Multi drop interface

Specifications



Specifications	Accuracy
Application sensor	Strain guage sensor (350Ω or 700Ω)
Sensor authorized voltage (the number of Loadcell connection)	DC 5V, Loadcell(350Ω) available 4
Zero adjustment range	100% F·S (Auto Zero)
Input signal	0.5 ~ 3.0mV/V
AD converter	24bit 1000times/sec
Answering frequency	DC ~ 10kHz (-3dB)
Display	-19999 ~ +99999
Display speed	Appox. 32times/sec
Character height	7Segment 14mm
Decimal point	Random setting available
Sampling speed	Max 1000 times/sec
Zero variation	within 0.5μV/℃
Sensitivity variation	50ppm/℃
Voltage output	0 ~ 10V (4~20mA : in accordance with customer request)
Usage temperature range	-10℃ ~ 60℃
Humidity	less than 80% RH (no dew condensation)
Power source used	AC 220V 50/60Hz
Relay output	Contact capacity : AC 250V 5A
	Relay life time : more than 5,000,000 times





Digital indicator - DN50W

• The DN-50W has designed specifically to operate with strain gauge sensors such as Fast - measurement of Loadcell, Pressure Transducer, LVDT, etc. The setup sequence is simple and quick using four push buttons only.
• And comparison output are available.
• Sampling speed : Appir. 1000Times Per Second
• Option: Power Input 24V in accordance with customer request



Feature

• High resolution (24bit ADC, 16bit DAC)
• High precision (more than 0.01% F.S) and stability
• Quick sampling speed (1000times/sec)
• Relay output : Hi, Low, NG, OK.
• UNIT CONVERSION : kg, N, ℓb, kg/㎠, bar, MPa
• Display part and analogue zero by auto zero
• Analog Peak Hold
• Small Size (96×48×128mm)
• Built-in Shunt calibration switch
• Peak & sample hold
• Watch dog

OPTION

• OP-01 : BCD paralle out
• OP-02 : RS232C serial interface
• OP-03 : RS485 Multi drop interface

SPECIFICATIONS

Specifications	Accuracy
Application sensor	Strain guage sensor (350Ω or 700Ω)
Sensor authorized voltage (the number of Loadcell connection)	DC 5V, Loadcell(350Ω) available 4
Zero adjustment range	100% F·S (Auto Zero)
Input signal	0.5 ~ 3.0mV/V
AD converter	24bit 1000times/sec
DA converter	16bit 1000 times/sec
Display	-19999 ~ +99999
Display speed	Appox. 32times/sec
Character height	7Segment 14mm
Decimal point	Random setting available
Sampling speed	Max 1000 times/sec
Zero variation	within 0.5μV/℃
Sensitivity variation	50ppm/℃
Voltage output	0 ~ 10V (4~20mA : in accordance with customer request)
Usage temperature range	-10℃ ~ 60℃
Humidity	less than 80% RH (no dew condensation)
Power source used	AC 85 ~ 265V 50/60Hz
Relay output	Contact capacity : AC 250V 5A
	Relay life time : more than 5,000,000 times

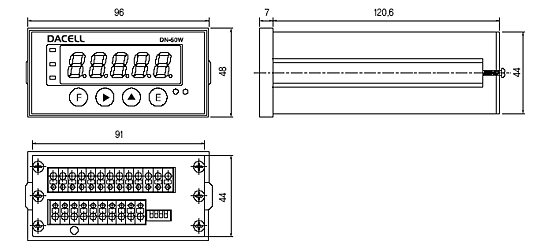

DIMENSIONS

Digital indicator - DN10W, DN15W



























































DN550N

DN501A

DN511A

DN5200N

DN830

DN850

DN711P





 SD memory Card built in / Compact size
Industrial Control Application with Printing
   - Limit / Packer / Checker / Hopper / Testing
  6pcs Control Relay built in
  A/D Sampling : 200times/sec
  Peak / Sample / Average Hold Function
  Display Resolution : 1/30,000
  Various Options











DN5600 Application	Relay Mode



General Specification
Input Sensitivity	0.2㎶ / Digit
Load Cell Excitation	DC 10V ( - 5V ~ + 5V )
Max. Signal Input Voltage	Max.32mV
Temperature Coefficient	[Zero] ±20PPM/℃ / [Span] ±20PPM/℃
Input Noise	±0.6㎶ P.P
Input Impedance	Over 10㏁
A/D Conversion Method	Sigma-Delta
A/D Resolution(Internal)	520,000 Count(19bit)
A/D Sampling Rate	Max. 200times / Sec
Non-Linearity	0.01% FS
Display Resolution(External)	1/30,000



Display Part
Display	Parts	Specification
Display	Main Display	7Segments, 6 Digit RED FND Display
		Size :20.0mm(H)×13 mm(W)
	Min. Division	×1, ×2, ×5, ×10, ×20, ×50
	Max. display value	999,950
	Under Zero value	"-" (Minus display)
Status lamp	Steady, Zero, Tare, SP1. SP2, SP3, SP4, RTxD	Green color Condition display Lamp (8pcs)
K e y	Number, Function Key	Number Key, Function (16pcs)



- Option
Option No.1	0~10V (Analogue Output)
Option No.2	4~20mA (Analogue Output)
Option No.3	RS422/485(Serial interface)
Option No.4	BCD Input
Option No.5	BCD Output





Digital weighing indicator - DN550N

• Application of Packer MULTIPLE Ingredient BATCHING SCALE, etc.
• 2 Step Control (DRIB, FINAL)
• 6 Control RELAY (FINAL, DRIB, FINISH, BATCH FINISH, ZERO)
• RELAY output mode
• 7PIN TERMINAL : FINAL, DRIB, FINISH, BATCH FINISH, ZERO
• 25PIN CONNECTOR : 8PIN CONTROL
• BCD INPUT : 25PIN CONNECTOR





SPECIFICATIONS

Specifications		Accuracy
Load cell excitation		10VDC±5%, 320mA
Input Sensitivity		0.45㎶/D
Zero adjustment range		-0.6mV~42mV : combinations of 6bit dip switch
Input	voltage	Max. 32mV
	impedance	10㏁ (Min.)
	noise	0.6㎶p.p or Less
A/D converter		type : dual slope type resolution : 1/65,000 counts(16bits) converting speed : 20times/sec
Non-linearity		0.01% of full scale
Temperature-drift		zero ±20PPM/℃ span ±20PPM/℃
Overload tolerance		10% of full capacity
Display update rate		20 times/sec

DIGITAL SECTION

Specifications	Accuracy
Display unit	12.7mm(1/2"), 7digits highly bright fluorescent tube sub display : 7segment 12digit Red-FND size : 9.2(H)x4.8(W)mmx1line
Annunciators	steady, zero, tare, gross, auto, print, hold
Decimal point position	0, 0.0, 0.00, 0.000
Keyboard	ten key, zero, tare, tare reset, print, gross/net, grand total, sub total, parts, number, hold, reset, auto, code, s/n&enter DN510A : run, standby, sp1, sp2, sp3, sp4
External input signal	opical-isolator
min. Division	x1, x2, x5, x10, x20, x50
max. Display	+550,000
Rear panel	Loadcell input : 5pin connector Remote control : 5pin input terminal (start, stop, tare, tare reset, zero) BCD input : 37pin connector C ontrol relay : 7pin terminal (final, drib, finish, batch finish, zero) 25pin : connector : 8pin control

GENERAL

Specifications	Accuracy
Data memory back-up	appr. 10year
Power	100/117/120/220/240V AC, ±10%, 50/60㎐ (factory preset)
Power consumption	appr. 30VA
Operating condition	temperature : -10~40℃ (14~104℉) humidity : 85% Rh Max. (non-condensing)
Net weight	2.4kg
Gross weight	3.1kg
Physical dimensions	(WxDxH) 200x175x105mm / (WxDxH) 7.87x6.89x4.33inch
Fuse	250V/1A



Option

• Printer I/F : Centronics Parallel
• Analod Out : V - out(0~10V)
• Analod Out : I - out(4~20mA)
• Serial I/F : RS 422, RS485
• BCD Out-put



DIMENSIONS

Applications



Digital weighing indicator - DN500N

• Platform scale, Truck scale,
• Tension/compression tester, Horse weigher,etc.
• 50 kind of parts number can be memorized
• Watch-dog function installed for diagnostics
• Data back up against power stoppage.
• Front display window covered by lexan film for the protecting of dust
• Weighing judgment by over & under setting when printer is connected
• Three kinds of hold function (peak-hold and averagehold, auto-hold)
• Can drive up to 8pcs of load cell (350.)
• RS-232C and CURRENT LOOP standard installed



SPECIFICATIONS

Specifications	Accuracy
Load cell excitation	10VDC±5%, 320mA
Input Signal	0.5 ~ 3.0mV/V
A/D converting speed	200times/sec
A/D converter resolution	1/520,000 counts(19bits), Δ∑
Non-linearity	0.01% of full scale
Zero adjustment range	-0.6mV~42mV
Display Unit	7 segment, 20.0mm(H)×13.0(W)mm
Annunciator	steady, zero, tare, gross, auto, print, hold,Interface
Decimal point position	0, 0.0, 0.00, 0.000
Keyboard	Number key and function key 16 PCS.
Temperature-drift	zero ±20PPM/℃, span ±20PPM/℃
Non-linearity	0.01% of full scale
Rear panel	Loadcell input : 5pin connector External control : 12pin input terminal (zero, tare,tare reset/hold/print, gross/hold reset/subprint,Current loop, RS232C)
Power	SMPS Free Voltage (85V~265V)



Option

• Analog Out-put (V-out) : 0~10V
• Analog Out-put (I-out) : 4~20mA
• Serial I / F : RS-422, RS-485
• BCD In-put
• BCD In-out
• RS3232C and Current loop : Standard Installed



DIMENSIONS



Digital weighing indicator - DN510N

• Control for PACKER, FILLER, HOPPER
• CHECKER, LIMIT SCALE etc.
• Totaling function by Parts.(50 parts)
• 4 Step control (SP1, SP2, SP3, SP4)
• 6 control relay built-in (SP1, SP2, SP3, SP4, FINISH, NEAR ZERO)
• Various Relay output mode (LIMIT, PACKER, 　CHECKER1, CHECKER2)
• Improved A/D Conversion speed and resolution(Max. 200times, 1/520,000)



SPECIFICATIONS

Specifications	Accuracy
Load cell excitation	10VDC±5%, 320mA
Input Signal	0.5 ~ 3.0mV/V
A/D converting speed	200times/sec
A/D converter resolution	1/520,000 counts(19bits), Δ∑
Non-linearity	0.01% of full scale
Zero adjustment range	-0.6mV~42mV
Display Unit	7 segment, 20.0mm(H)×13.0(W)mm
Annunciator	steady, zero, tare, gross, auto, print, hold,Interface
Decimal point position	0, 0.0, 0.00, 0.000
Keyboard	Number key and function key 12 PCS.
Temperature-drift	zero ±20PPM/℃, span ±20PPM/℃
Non-linearity	0.01% of full scale
Rear panel	Loadcell input : 5pin connector External control : 12pin input terminal (zero, tare,tare reset/hold/print, gross/hold reset/subprint,Current loop, RS232C) control relay output : 7pin terminal
Power	SMPS Free Voltage (85V~265V)

DIMENSIONS



Digital weighing indicator - DN530N

• Application of Packer, Filler, Hopper, Checker, Limit Scale, etc.
• Totaling function by Parts.(50 parts)
• 2 Step Control (SP1, SP2)
• 6 Control RELAY according to MODE
• LIMIT, PACKER MODE: (SP1, SP2, FINISH, UNDER NG, OVER NG, ZERO)
• CHECKER MODE 1, 2, 3 : (SP1[LOW], SP2[HIGH], OK, NG, ZERO)
• RELAY OUTPUT MODE: LIMIT, PACKER, CHECKER
• Improved A/D Conversion speed and resolution(Max. 200times, 1/520,000)



SPECIFICATIONS

Specifications	Accuracy
Load cell excitation	10VDC±5%, 320mA
Input Signal	0.5 ~ 3.0mV/V
A/D converting speed	200times/sec
A/D converter resolution	1/520,000 counts(19bits), Δ∑
Non-linearity	0.01% of full scale
Zero adjustment range	-0.6mV~42mV
Display Unit	7 segment, 20.0mm(H)×13.0(W)mm
Annunciator	steady, zero, tare, Run, SP1, SP2, hold, Interface
Decimal point position	0, 0.0, 0.00, 0.000
Keyboard	Number key and function key 12 PCS.
Temperature-drift	zero ±20PPM/℃, span ±20PPM/℃
Non-linearity	0.01% of full scale
Rear panel	Loadcell input : 5pin connector External control : 12pin input terminal (zero, tare, tare reset/hold/print, gross/hold reset/subprint, Current loop,RS232C) control relay output : 7pin terminal
Power	SMPS Free Voltage (85V~265V)



Option

• Analog Out-put (V-out) : 0~10V
• Analog Out-put (I-out) : 4~20mA
• Serial I / F : RS-422, RS-485
• BCD In-put
• BCD In-out
• RS3232C and Current loop : Standard Installed



DIMENSIONS





Pocket indicator

PDN10

PDN20

DN120



Explosion proof indicator

EXP520

EXP830

EXP900

EXP-SB4P



Pocket indicator - PDN10

• Pocket indicator with battery.
• The PDN-10 has been designed specifically to operate with strain gauge sensors such as Load cell, Pressure Transducer. LVDT. etc.
• Peak hold
• Auto Zero
• Measuring Data Saving (Max 500pcs.)
• Hi, Low Display LED





SPECIFICATIONS

Specifications	Accuracy
Power Source	DC 9V battery
Electric current Consumption	15mA
LOAD CELL input range	1.0mV/V ~ 3.0mV/V, Potenticmeter : 100~10KΩ
Display	4 1/2 Digit LCD
Characters displayed	+19999
Display Speed	Approx. 10 times/sec
Decunak point Position	0, 0.0, 0.00, 0.000
A/D Sampling speed	100 times/sec
A/D Resolution	16 bit
Zero Adjust Range	100% F.S(AUTO ZERO)
Data stonage	500 data can be memorised
Data output	RS232C Serial Interface

DIMENSIONS



Pocket indicator - PDN20

 The PDN-20 has been designed specifically to operate with strain gauge sensors such as Load cell, Pressure Transducer. LVDT. etc.

Pocket indicator with rechargeable battery.
PEAK HOLD FUNCTION
NG, OK judgments with LED display(with open collector output)
Connectable to computer through USB output cable
Display reverse function.
Ergonomic, heavy-duty metal construction
UNIT CONVERSION : N, kgf, lbf ,ozf



Dimensions

Specification



Specifications	Accuracy
Usable Sensor	Strain gauge type sensor (Bridge  350Ω, 700Ω)
Range of Indication	-99999 ~ +99999
A/D Transducer	16bit , 100times/sec
D/A Transducer	12bit
Indication of Measuring Value	5 Digit LCD ( Right/reverse display available)
Measuring Unit	kgf , N , lbf , ozf
Condition indicating LED	Indication of charge and compare output condition
Compare Output	High, Low, Good
Analog Output	DC ± 1V
Communication Output	USB RS232
Range of using temperature	-10℃ ~ 40℃, less than 80% RH (no dew condensation)
Weight	Approximately 800g
Power	Nickel hydrogen (NimH), Chargeable Adapter (DC 9V)
Continuous Use Life	Approximately 40 hours
Charging Time	Approximately 8 hours
Standard components	AC Chargeable Adapter , Handy case
Option	1. USB cable    2. Connector for analog output and relay output



Pocket indicator - DN120

• The DN-120 has designed specifically to operate with strain gauge sensors such as Fast-measurement of Load cell, Pressure Transducer,LVDT, etc.
• The setup sequence is simple and quick using four push buttons only. Quick sampling speed (100 times/sec).



Feature

• Simple outdoor using in use of battery.
• Using rechargeable battery.
• High resolving power(16bit A/D)
• High precision(more than 0.012% F.S) and stability.
• Quick sampling speed (100 times/sec)
• Peak hold function
• Comparison function ; open collector output
• Calibration of actual load and sensor output value
• Auto zero function
• Cutting size:92×92mm - Weight:about 500g

Others

• Option : RS232C(OP-01), RS485(OP-02), Comparison output (hi, Low)(Op-03), Peak/Sample Hold(OP-04), Back light(OP-05).

SPECIFICATIONS

Specifications	Accuracy
Application sensor	Strain guage sensor
Sensor adjustment range	DC 5V
Zero adjustment range	100% F.S (auto zero)
Input signal	1.0, 1.5, 2, 3mV/V (Dip switch)
Display	0000~±19999
Display speed	Approx 30times/sec (Adjustment available by buff setting)
Character height	7Segment 15mm
Decimal point	Random setting available
Sampling speed	Max 100times/sec
Zero variation	within 0.01%/℃ (1mV/V)
Sensitivity variation	within 0.01%/℃
Usage temperature range	-10~60℃
Humidity	less than 80% RH (no des condensation)
Power source used	DC 7.2V Recharging battery DC 12V Adapter

DIMENSIONS



Graphic touch indicator

DN-GI200, GI10



Overload limiter

DN9000



Digital tachometer/rpm sensor maget type

DN30W

MP-981



LVDT indicator

DN25W

DN-SP

DN-CP-S1~S4

DN-LP-S1~S16



PC Program

Indicators program

PDN20,DN-FGA Program

Truck scale Program

TMS14 Program





Mini Printer

PT100

YJ350

YJ320T



















※ Serial Interface (RS-232C) or Current Loop is Standard installed with 1 port.

DN550N

DN501A

DN511A

DN5200N

DN830

DN850

DN711P





 SD memory Card built in / Compact size
Industrial Control Application with Printing
   - Limit / Packer / Checker / Hopper / Testing
  6pcs Control Relay built in
  A/D Sampling : 200times/sec
  Peak / Sample / Average Hold Function
  Display Resolution : 1/30,000
  Various Options











DN5600 Application	Relay Mode



General Specification
Input Sensitivity	0.2㎶ / Digit
Load Cell Excitation	DC 10V ( - 5V ~ + 5V )
Max. Signal Input Voltage	Max.32mV
Temperature Coefficient	[Zero] ±20PPM/℃ / [Span] ±20PPM/℃
Input Noise	±0.6㎶ P.P
Input Impedance	Over 10㏁
A/D Conversion Method	Sigma-Delta
A/D Resolution(Internal)	520,000 Count(19bit)
A/D Sampling Rate	Max. 200times / Sec
Non-Linearity	0.01% FS
Display Resolution(External)	1/30,000



Display Part
Display	Parts	Specification
Display	Main Display	7Segments, 6 Digit RED FND Display
		Size :20.0mm(H)×13 mm(W)
	Min. Division	×1, ×2, ×5, ×10, ×20, ×50
	Max. display value	999,950
	Under Zero value	"-" (Minus display)
Status lamp	Steady, Zero, Tare, SP1. SP2, SP3, SP4, RTxD	Green color Condition display Lamp (8pcs)
K e y	Number, Function Key	Number Key, Function (16pcs)



- Option
Option No.1	0~10V (Analogue Output)
Option No.2	4~20mA (Analogue Output)
Option No.3	RS422/485(Serial interface)
Option No.4	BCD Input
Option No.5	BCD Output





Digital weighing indicator - DN550N

• Application of Packer MULTIPLE Ingredient BATCHING SCALE, etc.
• 2 Step Control (DRIB, FINAL)
• 6 Control RELAY (FINAL, DRIB, FINISH, BATCH FINISH, ZERO)
• RELAY output mode
• 7PIN TERMINAL : FINAL, DRIB, FINISH, BATCH FINISH, ZERO
• 25PIN CONNECTOR : 8PIN CONTROL
• BCD INPUT : 25PIN CONNECTOR





SPECIFICATIONS

Specifications		Accuracy
Load cell excitation		10VDC±5%, 320mA
Input Sensitivity		0.45㎶/D
Zero adjustment range		-0.6mV~42mV : combinations of 6bit dip switch
Input	voltage	Max. 32mV
	impedance	10㏁ (Min.)
	noise	0.6㎶p.p or Less
A/D converter		type : dual slope type resolution : 1/65,000 counts(16bits) converting speed : 20times/sec
Non-linearity		0.01% of full scale
Temperature-drift		zero ±20PPM/℃ span ±20PPM/℃
Overload tolerance		10% of full capacity
Display update rate		20 times/sec

DIGITAL SECTION

Specifications	Accuracy
Display unit	12.7mm(1/2"), 7digits highly bright fluorescent tube sub display : 7segment 12digit Red-FND size : 9.2(H)x4.8(W)mmx1line
Annunciators	steady, zero, tare, gross, auto, print, hold
Decimal point position	0, 0.0, 0.00, 0.000
Keyboard	ten key, zero, tare, tare reset, print, gross/net, grand total, sub total, parts, number, hold, reset, auto, code, s/n&enter DN510A : run, standby, sp1, sp2, sp3, sp4
External input signal	opical-isolator
min. Division	x1, x2, x5, x10, x20, x50
max. Display	+550,000
Rear panel	Loadcell input : 5pin connector Remote control : 5pin input terminal (start, stop, tare, tare reset, zero) BCD input : 37pin connector C ontrol relay : 7pin terminal (final, drib, finish, batch finish, zero) 25pin : connector : 8pin control

GENERAL

Specifications	Accuracy
Data memory back-up	appr. 10year
Power	100/117/120/220/240V AC, ±10%, 50/60㎐ (factory preset)
Power consumption	appr. 30VA
Operating condition	temperature : -10~40℃ (14~104℉) humidity : 85% Rh Max. (non-condensing)
Net weight	2.4kg
Gross weight	3.1kg
Physical dimensions	(WxDxH) 200x175x105mm / (WxDxH) 7.87x6.89x4.33inch
Fuse	250V/1A



Option

• Printer I/F : Centronics Parallel
• Analod Out : V - out(0~10V)
• Analod Out : I - out(4~20mA)
• Serial I/F : RS 422, RS485
• BCD Out-put



DIMENSIONS

Applications



Digital weighing indicator - DN500N

• Platform scale, Truck scale,
• Tension/compression tester, Horse weigher,etc.
• 50 kind of parts number can be memorized
• Watch-dog function installed for diagnostics
• Data back up against power stoppage.
• Front display window covered by lexan film for the protecting of dust
• Weighing judgment by over & under setting when printer is connected
• Three kinds of hold function (peak-hold and averagehold, auto-hold)
• Can drive up to 8pcs of load cell (350.)
• RS-232C and CURRENT LOOP standard installed



SPECIFICATIONS

Specifications	Accuracy
Load cell excitation	10VDC±5%, 320mA
Input Signal	0.5 ~ 3.0mV/V
A/D converting speed	200times/sec
A/D converter resolution	1/520,000 counts(19bits), Δ∑
Non-linearity	0.01% of full scale
Zero adjustment range	-0.6mV~42mV
Display Unit	7 segment, 20.0mm(H)×13.0(W)mm
Annunciator	steady, zero, tare, gross, auto, print, hold,Interface
Decimal point position	0, 0.0, 0.00, 0.000
Keyboard	Number key and function key 16 PCS.
Temperature-drift	zero ±20PPM/℃, span ±20PPM/℃
Non-linearity	0.01% of full scale
Rear panel	Loadcell input : 5pin connector External control : 12pin input terminal (zero, tare,tare reset/hold/print, gross/hold reset/subprint,Current loop, RS232C)
Power	SMPS Free Voltage (85V~265V)



Option

• Analog Out-put (V-out) : 0~10V
• Analog Out-put (I-out) : 4~20mA
• Serial I / F : RS-422, RS-485
• BCD In-put
• BCD In-out
• RS3232C and Current loop : Standard Installed



DIMENSIONS



Digital weighing indicator - DN510N

• Control for PACKER, FILLER, HOPPER
• CHECKER, LIMIT SCALE etc.
• Totaling function by Parts.(50 parts)
• 4 Step control (SP1, SP2, SP3, SP4)
• 6 control relay built-in (SP1, SP2, SP3, SP4, FINISH, NEAR ZERO)
• Various Relay output mode (LIMIT, PACKER, 　CHECKER1, CHECKER2)
• Improved A/D Conversion speed and resolution(Max. 200times, 1/520,000)



SPECIFICATIONS

Specifications	Accuracy
Load cell excitation	10VDC±5%, 320mA
Input Signal	0.5 ~ 3.0mV/V
A/D converting speed	200times/sec
A/D converter resolution	1/520,000 counts(19bits), Δ∑
Non-linearity	0.01% of full scale
Zero adjustment range	-0.6mV~42mV
Display Unit	7 segment, 20.0mm(H)×13.0(W)mm
Annunciator	steady, zero, tare, gross, auto, print, hold,Interface
Decimal point position	0, 0.0, 0.00, 0.000
Keyboard	Number key and function key 12 PCS.
Temperature-drift	zero ±20PPM/℃, span ±20PPM/℃
Non-linearity	0.01% of full scale
Rear panel	Loadcell input : 5pin connector External control : 12pin input terminal (zero, tare,tare reset/hold/print, gross/hold reset/subprint,Current loop, RS232C) control relay output : 7pin terminal
Power	SMPS Free Voltage (85V~265V)

DIMENSIONS



Digital weighing indicator - DN530N

• Application of Packer, Filler, Hopper, Checker, Limit Scale, etc.
• Totaling function by Parts.(50 parts)
• 2 Step Control (SP1, SP2)
• 6 Control RELAY according to MODE
• LIMIT, PACKER MODE: (SP1, SP2, FINISH, UNDER NG, OVER NG, ZERO)
• CHECKER MODE 1, 2, 3 : (SP1[LOW], SP2[HIGH], OK, NG, ZERO)
• RELAY OUTPUT MODE: LIMIT, PACKER, CHECKER
• Improved A/D Conversion speed and resolution(Max. 200times, 1/520,000)



SPECIFICATIONS

Specifications	Accuracy
Load cell excitation	10VDC±5%, 320mA
Input Signal	0.5 ~ 3.0mV/V
A/D converting speed	200times/sec
A/D converter resolution	1/520,000 counts(19bits), Δ∑
Non-linearity	0.01% of full scale
Zero adjustment range	-0.6mV~42mV
Display Unit	7 segment, 20.0mm(H)×13.0(W)mm
Annunciator	steady, zero, tare, Run, SP1, SP2, hold, Interface
Decimal point position	0, 0.0, 0.00, 0.000
Keyboard	Number key and function key 12 PCS.
Temperature-drift	zero ±20PPM/℃, span ±20PPM/℃
Non-linearity	0.01% of full scale
Rear panel	Loadcell input : 5pin connector External control : 12pin input terminal (zero, tare, tare reset/hold/print, gross/hold reset/subprint, Current loop,RS232C) control relay output : 7pin terminal
Power	SMPS Free Voltage (85V~265V)



Option

• Analog Out-put (V-out) : 0~10V
• Analog Out-put (I-out) : 4~20mA
• Serial I / F : RS-422, RS-485
• BCD In-put
• BCD In-out
• RS3232C and Current loop : Standard Installed



DIMENSIONS





Pocket indicator

PDN10

PDN20

DN120



Explosion proof indicator

EXP520

EXP830

EXP900

EXP-SB4P



Pocket indicator - PDN10

• Pocket indicator with battery.
• The PDN-10 has been designed specifically to operate with strain gauge sensors such as Load cell, Pressure Transducer. LVDT. etc.
• Peak hold
• Auto Zero
• Measuring Data Saving (Max 500pcs.)
• Hi, Low Display LED





SPECIFICATIONS

Specifications	Accuracy
Power Source	DC 9V battery
Electric current Consumption	15mA
LOAD CELL input range	1.0mV/V ~ 3.0mV/V, Potenticmeter : 100~10KΩ
Display	4 1/2 Digit LCD
Characters displayed	+19999
Display Speed	Approx. 10 times/sec
Decunak point Position	0, 0.0, 0.00, 0.000
A/D Sampling speed	100 times/sec
A/D Resolution	16 bit
Zero Adjust Range	100% F.S(AUTO ZERO)
Data stonage	500 data can be memorised
Data output	RS232C Serial Interface

DIMENSIONS



Pocket indicator - PDN20

 The PDN-20 has been designed specifically to operate with strain gauge sensors such as Load cell, Pressure Transducer. LVDT. etc.

Pocket indicator with rechargeable battery.
PEAK HOLD FUNCTION
NG, OK judgments with LED display(with open collector output)
Connectable to computer through USB output cable
Display reverse function.
Ergonomic, heavy-duty metal construction
UNIT CONVERSION : N, kgf, lbf ,ozf



Dimensions

Specification



Specifications	Accuracy
Usable Sensor	Strain gauge type sensor (Bridge  350Ω, 700Ω)
Range of Indication	-99999 ~ +99999
A/D Transducer	16bit , 100times/sec
D/A Transducer	12bit
Indication of Measuring Value	5 Digit LCD ( Right/reverse display available)
Measuring Unit	kgf , N , lbf , ozf
Condition indicating LED	Indication of charge and compare output condition
Compare Output	High, Low, Good
Analog Output	DC ± 1V
Communication Output	USB RS232
Range of using temperature	-10℃ ~ 40℃, less than 80% RH (no dew condensation)
Weight	Approximately 800g
Power	Nickel hydrogen (NimH), Chargeable Adapter (DC 9V)
Continuous Use Life	Approximately 40 hours
Charging Time	Approximately 8 hours
Standard components	AC Chargeable Adapter , Handy case
Option	1. USB cable    2. Connector for analog output and relay output



Pocket indicator - DN120

• The DN-120 has designed specifically to operate with strain gauge sensors such as Fast-measurement of Load cell, Pressure Transducer,LVDT, etc.
• The setup sequence is simple and quick using four push buttons only. Quick sampling speed (100 times/sec).



Feature

• Simple outdoor using in use of battery.
• Using rechargeable battery.
• High resolving power(16bit A/D)
• High precision(more than 0.012% F.S) and stability.
• Quick sampling speed (100 times/sec)
• Peak hold function
• Comparison function ; open collector output
• Calibration of actual load and sensor output value
• Auto zero function
• Cutting size:92×92mm - Weight:about 500g

Others

• Option : RS232C(OP-01), RS485(OP-02), Comparison output (hi, Low)(Op-03), Peak/Sample Hold(OP-04), Back light(OP-05).

SPECIFICATIONS

Specifications	Accuracy
Application sensor	Strain guage sensor
Sensor adjustment range	DC 5V
Zero adjustment range	100% F.S (auto zero)
Input signal	1.0, 1.5, 2, 3mV/V (Dip switch)
Display	0000~±19999
Display speed	Approx 30times/sec (Adjustment available by buff setting)
Character height	7Segment 15mm
Decimal point	Random setting available
Sampling speed	Max 100times/sec
Zero variation	within 0.01%/℃ (1mV/V)
Sensitivity variation	within 0.01%/℃
Usage temperature range	-10~60℃
Humidity	less than 80% RH (no des condensation)
Power source used	DC 7.2V Recharging battery DC 12V Adapter

DIMENSIONS



Graphic touch indicator

DN-GI200, GI10



Overload limiter

DN9000



Digital tachometer/rpm sensor maget type

DN30W

MP-981



LVDT indicator

DN25W

DN-SP

DN-CP-S1~S4

DN-LP-S1~S16



PC Program

Indicators program

PDN20,DN-FGA Program

Truck scale Program

TMS14 Program





Mini Printer

PT100

YJ350

YJ320T



















※ Serial Interface (RS-232C) or Current Loop is Standard installed with 1 port.

DN150,250

DN-130L

DN-130T

DN1000A

DN10

PDN10

DN120

DN-GI200, GI100

SM110, SM150

TMS14 Program

PT100

YJ350

YJ320T



Indicator

EXP-5410

EXP520

EXP830

EXP900

EXP-SB4P

Explosion application

DN30W

MP-981

MR900

DN25W

DN-SP

DN-CP-S1~S4

DN-LP-S1~S16

Indicators program

PDN20,DN-FGA Program

Truck scale Program



Indicator

DN9000

DN500N

DN510N

DN520N

DN530N

DN540N

DN550N

DN501A

DN511A

DN5600

DN5200N

DN830

DN850

DN711A

DN711B

DN711P



Graphic touch indicator - DN-GI200, GI100

. Grapic Indicator-Color Graphic LCD Touch Screen.
. Diverse of Load Control Mode.
DN-GI100: 1ch indicator (load cell)
                -High sampling speed , 4,000/1sec

DN-GI200: 2ch indicator (CH1 :load cell,CH2:Distance Sensor)
               - High Sampling Speed: 2,000/1sec.(per 1ch )







Specifications	DN-GI200,  GI100
Sensor EXC	A-CH (load cell):DC 10/5V,120mA,                         B-CH : B-CH(Distance Sensor)
Input Signal Range	A-CH ;0~±40mA,                                                  B-CH :0 ~±10V,4~20mA,0~20mA
Conversion Speed	A-CH : 4,000times/sec.                                          B-CH : 2000/sec
Non-linearity	A-CH : ±0.02% F.S +1digit,                                    B-CH : ±0.02% F.S+1digit
Input Sensitivity	A-CH :1.0㎶/Digit,                                                   B-CH :1.0mV/Digit (0~10V)
Input Impedance	A-CH 10Mohm                                                       B-CH :1 Mohm / 50ohm
Temperature Factor.	±0.005% of rdg +0.5 digit/℃
Analogue Filter	10,30,300,600 Hz
Digit	0~±99999
Circumstance	0~40℃
Power	AC 100~240V, 50/60Hz
Consumed Power	Around 32VA
Output	Standard : Relay Output (HH,HI,GO,LO,LL)                                                                             OPTION:1.RS-232C serial output                                       2.RS-485 serial output                                       3.±0~10V or 4~20mA Analogue output                                       4.BCD parallel output                                       5.SD memory card
Display Window	STN color LCD, 74(W)×55(H)mm



Pocket indicator - DN120

• The DN-120 has designed specifically to operate with strain gauge sensors such as Fast-measurement of Load cell, Pressure Transducer,LVDT, etc.
• The setup sequence is simple and quick using four push buttons only. Quick sampling speed (100 times/sec).



Feature

• Simple outdoor using in use of battery.
• Using rechargeable battery.
• High resolving power(16bit A/D)
• High precision(more than 0.012% F.S) and stability.
• Quick sampling speed (100 times/sec)
• Peak hold function
• Comparison function ; open collector output
• Calibration of actual load and sensor output value
• Auto zero function
• Cutting size:92×92mm - Weight:about 500g

Others

• Option : RS232C(OP-01), RS485(OP-02), Comparison output (hi, Low)(Op-03), Peak/Sample Hold(OP-04), Back light(OP-05).

SPECIFICATIONS

Specifications	Accuracy
Application sensor	Strain guage sensor
Sensor adjustment range	DC 5V
Zero adjustment range	100% F.S (auto zero)
Input signal	1.0, 1.5, 2, 3mV/V (Dip switch)
Display	0000~±19999
Display speed	Approx 30times/sec (Adjustment available by buff setting)
Character height	7Segment 15mm
Decimal point	Random setting available
Sampling speed	Max 100times/sec
Zero variation	within 0.01%/℃ (1mV/V)
Sensitivity variation	within 0.01%/℃
Usage temperature range	-10~60℃
Humidity	less than 80% RH (no des condensation)
Power source used	DC 7.2V Recharging battery DC 12V Adapter

DIMENSIONS



Pocket indicator - PDN20

 The PDN-20 has been designed specifically to operate with strain gauge sensors such as Load cell, Pressure Transducer. LVDT. etc.

Pocket indicator with rechargeable battery.
PEAK HOLD FUNCTION
NG, OK judgments with LED display(with open collector output)
Connectable to computer through USB output cable
Display reverse function.
Ergonomic, heavy-duty metal construction
UNIT CONVERSION : N, kgf, lbf ,ozf



Dimensions

Specification



Specifications	Accuracy
Usable Sensor	Strain gauge type sensor (Bridge  350Ω, 700Ω)
Range of Indication	-99999 ~ +99999
A/D Transducer	16bit , 100times/sec
D/A Transducer	12bit
Indication of Measuring Value	5 Digit LCD ( Right/reverse display available)
Measuring Unit	kgf , N , lbf , ozf
Condition indicating LED	Indication of charge and compare output condition
Compare Output	High, Low, Good
Analog Output	DC ± 1V
Communication Output	USB RS232
Range of using temperature	-10℃ ~ 40℃, less than 80% RH (no dew condensation)
Weight	Approximately 800g
Power	Nickel hydrogen (NimH), Chargeable Adapter (DC 9V)
Continuous Use Life	Approximately 40 hours
Charging Time	Approximately 8 hours
Standard components	AC Chargeable Adapter , Handy case
Option	1. USB cable    2. Connector for analog output and relay output



Pocket indicator - PDN10

• Pocket indicator with battery.
• The PDN-10 has been designed specifically to operate with strain gauge sensors such as Load cell, Pressure Transducer. LVDT. etc.
• Peak hold
• Auto Zero
• Measuring Data Saving (Max 500pcs.)
• Hi, Low Display LED





SPECIFICATIONS

Specifications	Accuracy
Power Source	DC 9V battery
Electric current Consumption	15mA
LOAD CELL input range	1.0mV/V ~ 3.0mV/V, Potenticmeter : 100~10KΩ
Display	4 1/2 Digit LCD
Characters displayed	+19999
Display Speed	Approx. 10 times/sec
Decunak point Position	0, 0.0, 0.00, 0.000
A/D Sampling speed	100 times/sec
A/D Resolution	16 bit
Zero Adjust Range	100% F.S(AUTO ZERO)
Data stonage	500 data can be memorised
Data output	RS232C Serial Interface

DIMENSIONS



Digital indicator - DN-130T

These indicators can use Torque and RPM measurement at the same time. Digital display and analog output, comparison output are available.



Feature

• Torque, RPM simultaneous measurement
• High resolution (24bit ADC, 16bit DAC)
• High precision (more than 0.012% F.S) and stability
• Upper and lower limit comparison output (Torque, RPM)
• analog output (Torque, RPM)
• UNIT CONVERSION : kg, N, ℓb, kg/㎠, bar, MPa
• Quick sampling speed (1000times/sec)
• Watch dog
• Calibration of actual load and sensor output value
• Display part and analogue zero by auto zero (DAC)
• Analog out (DAC)

Option

• OP-02 : RS232C serial interface
• OP-03 : RS485 Multi drop interface

SPECIFICATIONS

Specifications	Accuracy
	DN130T	DN230A
Application sensor	Torque : Brush type torquemeter RPM : Proximity sensor (MP981)	Torque : Brushless type torquemeter (trC) RPM : Proximity sensor (MP981)
Sensor authorized voltage	Torque : DC 5V RPM : DC 12V	Torque : DC 2Vrms, 5kHz RPM : DC 12V
Zero adjustment range	Torque : 100% F.S (Auto Zero)
Input signal	Torque : 0.5 ~ 3mV/V RPM : DC 12V	Torque : 0.5 ~ 2mV/V RPM : 1 ~ 350 pulse/circle
Display	Torque : -19999 ~ +99999 RPM : 0 ~ 60000
Character height	7 segment LED 14mm
A/D converter	Torque 24bit 1000 times/sec
D/A converter	Torque 16bit
Zero variation	Torque Witdin 0.5㎶/℃
Sensitivity	Torque Witdin 0.01%/℃
Voltage output	DC 0 ~ 10V (4~20mA : in accordance witd customer request)
Contact capacity	AC 250V 5A
Relay life time	More tdan 5,000,000 times
Usage temperature range	-10℃ ~ 60℃
Humidit	Less tdan 80% RH (No dew condensation)
Power source used	AC85 ~ 265V 50/60Hz
Dimensions	97 X 97 X 141mm
Cutting size	92.5 X 92.5mm
Weight	About 1000g

DIMENSIONS

Digital indicator - DN150,250

The DN-100 and DN200 have designed specifically to operate with strain gauge sensors such as Fast - measurement of Loadcell, Torquemeters, Pressure Transducer, LVDT, etc,.

ㆍDN150 : sampling speed : Appr. 5000Times Per Second
ㆍDN250 : sampling speed : Appr. 1000Times Per Second





Feature

• High resolution
• High precision (more than 0.01% F.S) and stability
• Relay output : Hi, Low, NG, OK.
• UNIT CONVERSION : kg, N, ℓb, kg/㎠, bar, MPa
• Display part and analogue zero by auto zero
• Calibration of actual load and sensor output value
• Peak & sample hold
• Watch dog

OPTION

• OP-01 : BCD paralle out
• OP-02 : RS232C serial interface
• OP-03 : RS485 Multi drop interface



Specifications

Specification	Accuracy
Application sensor	Strain guage sensors
Sensor authorized voltage (the number of Loadcell connection)	DC 5V, Loadcell(350?) available 4
Zero adjustment range	100%F·S (Auto Zero)
Input signal	0.5~3mV/V
Display	-19999~+99999
Character height	7 Segment 14mm
Decimal point	Random setting available
A/D converter	DN150 : 16bit 5000 times/sec
	DN250 : 24bit 1000 times/sec
D/A converter	16bit 1000 times/sec
Relay output	Contact capacity : AC 250V 5A, Relay life time : more than 5,000,000 times
Zero variation	Within 0.5μV/℃
Sensitivity variation	Within 0.01%/℃
Voltage output	DC 0 ~ 10V (4~20mA : in accordance with customer request)
Usage temperature range	-10℃ ~ 60℃
Humidity	Less than 80% RH (no dew condensation)
Power source used	AC 85 ~ 265V 50/60Hz
Weight	1000g
Option	OP-01 : BCD output OP-02 : RS232C serial interface OP-03 : RS485 Multi drop interface OP-04 : RS422A serial interface OP-06:  Power 24VDC

제품치수 (unit:mm)



Digital indicator - DN40W

The DN-40W has designed specifically to operate with strain gauge sensors such as Fast - measurement of Loadcell, Pressure Transducer, LVDT, etc.

Option: Power Input 24V in accordance with customer request



Feature

• High resolution (24bit ADC)
• High precision (more than 0.01% F.S) and stability
• Quick sampling speed (1000times/sec)
• Relay output : Hi, Low, NG, OK.
• UNIT CONVERSION : kg, N, ℓb, kg/㎠, bar, MPa
• Display part and analogue zero by auto zero
• Dynamic analog out
• Built-in Shunt calibration switch
• Peak & sample hold

OPTION

• OP-01 : BCD paralle out
• OP-02 : RS232C serial interface

• OP-03 : RS485 Multi drop interface

Specifications



Specifications	Accuracy
Application sensor	Strain guage sensor (350Ω or 700Ω)
Sensor authorized voltage (the number of Loadcell connection)	DC 5V, Loadcell(350Ω) available 4
Zero adjustment range	100% F·S (Auto Zero)
Input signal	0.5 ~ 3.0mV/V
AD converter	24bit 1000times/sec
Answering frequency	DC ~ 10kHz (-3dB)
Display	-19999 ~ +99999
Display speed	Appox. 32times/sec
Character height	7Segment 14mm
Decimal point	Random setting available
Sampling speed	Max 1000 times/sec
Zero variation	within 0.5μV/℃
Sensitivity variation	50ppm/℃
Voltage output	0 ~ 10V (4~20mA : in accordance with customer request)
Usage temperature range	-10℃ ~ 60℃
Humidity	less than 80% RH (no dew condensation)
Power source used	AC 220V 50/60Hz
Relay output	Contact capacity : AC 250V 5A
	Relay life time : more than 5,000,000 times





Digital indicator - DN50W

• The DN-50W has designed specifically to operate with strain gauge sensors such as Fast - measurement of Loadcell, Pressure Transducer, LVDT, etc. The setup sequence is simple and quick using four push buttons only.
• And comparison output are available.
• Sampling speed : Appir. 1000Times Per Second
• Option: Power Input 24V in accordance with customer request



Feature

• High resolution (24bit ADC, 16bit DAC)
• High precision (more than 0.01% F.S) and stability
• Quick sampling speed (1000times/sec)
• Relay output : Hi, Low, NG, OK.
• UNIT CONVERSION : kg, N, ℓb, kg/㎠, bar, MPa
• Display part and analogue zero by auto zero
• Analog Peak Hold
• Small Size (96×48×128mm)
• Built-in Shunt calibration switch
• Peak & sample hold
• Watch dog

OPTION

• OP-01 : BCD paralle out
• OP-02 : RS232C serial interface
• OP-03 : RS485 Multi drop interface

SPECIFICATIONS

Specifications	Accuracy
Application sensor	Strain guage sensor (350Ω or 700Ω)
Sensor authorized voltage (the number of Loadcell connection)	DC 5V, Loadcell(350Ω) available 4
Zero adjustment range	100% F·S (Auto Zero)
Input signal	0.5 ~ 3.0mV/V
AD converter	24bit 1000times/sec
DA converter	16bit 1000 times/sec
Display	-19999 ~ +99999
Display speed	Appox. 32times/sec
Character height	7Segment 14mm
Decimal point	Random setting available
Sampling speed	Max 1000 times/sec
Zero variation	within 0.5μV/℃
Sensitivity variation	50ppm/℃
Voltage output	0 ~ 10V (4~20mA : in accordance with customer request)
Usage temperature range	-10℃ ~ 60℃
Humidity	less than 80% RH (no dew condensation)
Power source used	AC 85 ~ 265V 50/60Hz
Relay output	Contact capacity : AC 250V 5A
	Relay life time : more than 5,000,000 times

DIMENSIONS

Digital indicator - DN10W, DN15W



























































DN27W

DN30W

DN50W

DN150,250

DN-130L

DN-130T

DN1000A

DN-300

DN-340

ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells ตัวแทนจำหน่าย DACELL Indicator DACELL Loadcell Torque sensor Load Cells
