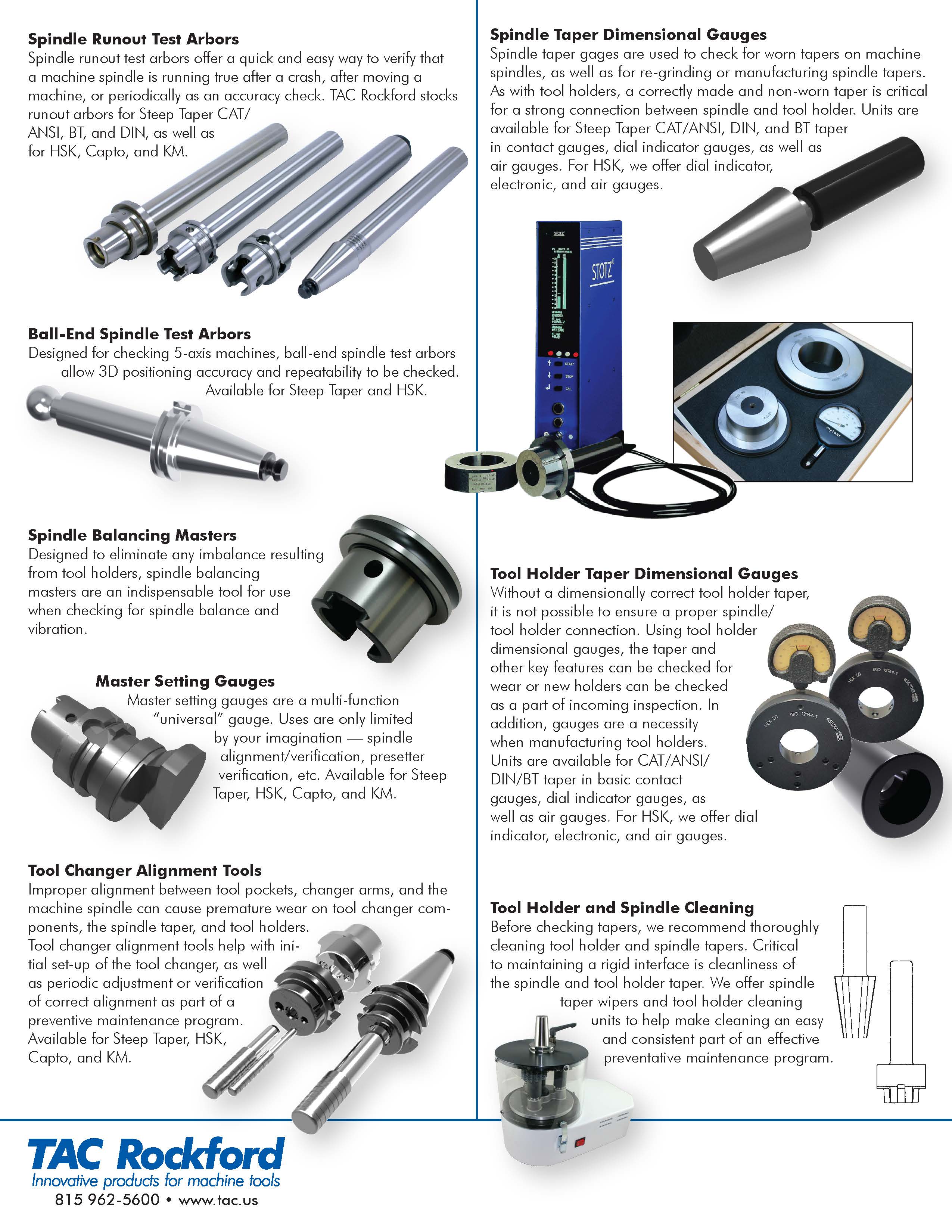

Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check. Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, Capto, Morse, and others.
Runout Test Arbors
1. HSK Spindle Runout Test Arbors
Available for HSK-A/C/E 32, 40, 50, 65, 80, 100, 125, 160
2. Steep Taper Spindle Runout Test Arbors
Available for BT30 BT40 BT50
3. Steep Taper Dual-Contact Runout Test Arbors
Steep taper runout test bars for Big Plus spindles
4. Capto Spindle Runout Test Arbors
Available for Polygonal-Shank Taper (Coromant Capto) sizes C3, C4, C5, C6, C8, and C10
5. KM Spindle Runout Test Arbors
Available for KM40, KM50, KM63, and KM100
6. Morse Taper Spindle Runout Arbors
Available MT2 MT3 MT4 MT5 MT6
Maximum runout error 0.003mm / 3 micron
Runout Test Arbors
Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check. Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, Capto, Morse, and others.
HSK Spindle Runout Test Arbors
Available for HSK-A/C/E 32, 40, 50, 65, 80, 100, 125, 160 and HSK-F 40, 50, 63, 80, 100, 125, 160
Details
PDF (465.100)
| HSK | l1 (mm) | d1 (mm) | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| HSK-A 25 | 140 | 20 | 465.125.000.000
|
|||||
| HSK-A 32 | 180 | 24 | 465.132.000.000
|
|||||
| HSK-A/C/E 40 | 200 | 25 | 465.140.000.000
|
|||||
| HSK-A/C/E 50 and HSK-F 63 | 346 | 32 | 465.150.000.000
|
|||||
| HSK-A/C/E 63 | 346 | 40 | 465.163.000.000
|
|||||
| HSK-A 80 | 346 | 40 | 465.180.000.000
|
|||||
| HSK-A 100 | 300 | 50 | 465.190.000.000
|
|||||
| HSK-A 125 | 349 | 40 | 465.192.000.000
|
|||||
| HSK-A 160 | 400 | 40 | 465.196.000.000
|
|||||
| HSK-F 63 | 346 | 40 | 465.663.000.000
|
|||||
| HSK-F 80 | 346 | 50 | 465.680.000.000
|
Steep Taper Spindle Runout Test Arbors
Maximum runout error 0.003mm / 3 micron / 0.0001 inch. Contact us for availability on ultra-precision 0.001mm runout arbors. Details PDF (465.800)
| Item / Taper | L (mm) | D (mm) | Retention Knob Thread | Order Number | ||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper (BT) 30 | 300 | 40 | M12 | 465.730.000.000
|
||||
| Steep Taper (BT) 40 | 300 | 40 | M16 | 465.740.000.000
|
||||
| Steep Taper (BT) 50 | 300 | 40 | 465.750.000.000
|
|||||
| Steep Taper (DIN) 30 | 300 | 32 | M12 | 465.830.000.000
|
||||
| Steep Taper (DIN) 40 | 300 | 40 | M16 | 465.840.000.000
|
||||
| Steep Taper (DIN) 45 | 300 | 50 | M20 | 465.845.000.000
|
||||
| Steep Taper (DIN) 50 | 300 | 50 | M24 | 465.850.000.000
|
||||
| Steep Taper (DIN) 60 | 400 | 50 | M30 | 465.860.000.000
|
||||
| Steep Taper (CAT/ANSI) 40 | 300 | 40 | 5/8"-11 | 465.940.000.000
|
||||
| Steep Taper (CAT/ANSI) 50 | 300 | 50 | 1"-8 | 465.950.000.000
|
||||
| Steep Taper (CAT/ANSI) 60 | Contact us | Contact us | Contact us | 465.960.000.000
|
||||
| Steep Taper (ISO) 10 | Contact us | Contact us | Contact us | 465.A10.000.000
|
||||
| Steep Taper (ISO) 15 | Contact us | Contact us | Contact us | 465.A15.000.000
|
||||
| Steep Taper (ISO) 20 | Contact us | Contact us | Contact us | 465.A20.000.000
|
||||
| Steep Taper (ISO) 25 | Contact us | Contact us | Contact us | 465.A25.000.000
|
Steep Taper Dual-Contact Runout Test Arbors
Steep taper runout test bars for Big Plus spindles. Details PDF (465.F00)
| Spindle Taper | L | D | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper (BT) 30 | 235mm | 32mm | 465.F30.000.000
|
|||||
| Steep Taper (BT) 40 | 350mm | 50mm | 465.F40.000.000
|
|||||
| Steep Taper (BT) 50 | 360mm | 50mm | 465.F50.000.000
|
|||||
| Steep Taper (CAT/ANSI) 40 | 13.5" | 2" | 465.G40.000.000
|
|||||
| Steep Taper (CAT/ANSI) 50 | 13.5" | 2" | 465.G50.000.000
|
Capto Spindle Runout Test Arbors
Available for Polygonal-Shank Taper (Coromant Capto) sizes C3, C4, C5, C6, C8, and C10 Details PDF (465.C00)
| Taper | L (mm) | D (mm) | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| Capto C3 | 160 | 25 | 465.C03.000.000
|
|||||
| Capto C4 | 160 | 25 | 465.C04.000.000
|
|||||
| Capto C5 | 215 | 32 | 465.C05.000.000
|
|||||
| Capto C6 | 320 | 40 | 465.C06.000.000
|
|||||
| Capto C8 | 320 | 40 | 465.C08.000.000
|
|||||
| Capto C10 | Contact us | Contact us | 465.C10.000.000
|
KM Spindle Runout Test Arbors
Available for KM40, KM50, KM63, and KM100. Contact us for custom arbors. Details PDF (465.K00)
| Taper | Length | Diameter | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| KM32 Runout Arbor | Contact us | 465.K32.000.000
|
||||||
| KM40 Runout Arbor | Contact us | 465.K40.000.001
|
||||||
| KM50 Runout Arbor | Contact us | 465.K50.000.001
|
||||||
| KM63 Runout Arbor | 340 | 50 | 465.K63.000.000
|
|||||
| KM63 Runout Arbor | 120 | 63 | 465.K63.000.001
|
|||||
| KM80 Runout Arbor | Contact us | 465.K80.000.000
|
||||||
| KM100 Runout Arbor | 340 | 50 | 465.K90.000.000
|
|||||
| KM100 Runout Arbor | 120 | 100 | 465.K90.000.001
|
Morse Taper Spindle Runout Arbors
Morse taper runout arbors offer a quick and easy way to verify correct spindle runout for machines with Morse tapers. Details PDF (465.M00)
| Description | Morse Taper | Order Number | ||||||
|---|---|---|---|---|---|---|---|---|
| Morse Taper (DIN 229) 0 | MT | 465.M00.000.000
|
||||||
| Morse Taper (DIN 229) 1 | MT1 | 465.M01.000.000
|
||||||
| Morse Taper (DIN 229) 2 | MT2 | 465.M02.000.000
|
||||||
| Morse Taper (DIN 229) 3 | MT3 | 465.M03.000.000
|
||||||
| Morse Taper (DIN 229) 4 | MT4 | 465.M04.000.000
|
||||||
| Morse Taper (DIN 229) 5 | MT5 | 465.M05.000.000
|
||||||
| Morse Taper (DIN 229) 6 | MT6 | 465.M06.000.000
|
Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check. Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, Capto, Morse, and others.
Runout Test Arbors
1. HSK Spindle Runout Test Arbors
Available for HSK-A/C/E 32, 40, 50, 65, 80, 100, 125, 160
2. Steep Taper Spindle Runout Test Arbors
Available for BT30 BT40 BT50
3. Steep Taper Dual-Contact Runout Test Arbors
Steep taper runout test bars for Big Plus spindles
4. Capto Spindle Runout Test Arbors
Available for Polygonal-Shank Taper (Coromant Capto) sizes C3, C4, C5, C6, C8, and C10
5. KM Spindle Runout Test Arbors
Available for KM40, KM50, KM63, and KM100
6. Morse Taper Spindle Runout Arbors
Available MT2 MT3 MT4 MT5 MT6
Maximum runout error 0.003mm / 3 micron
Runout Test Arbors
Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check. Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, Capto, Morse, and others.
HSK Spindle Runout Test Arbors
Available for HSK-A/C/E 32, 40, 50, 65, 80, 100, 125, 160 and HSK-F 40, 50, 63, 80, 100, 125, 160 Details PDF (465.100)
| HSK | l1 (mm) | d1 (mm) | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| HSK-A 25 | 140 | 20 | 465.125.000.000
|
|||||
| HSK-A 32 | 180 | 24 | 465.132.000.000
|
|||||
| HSK-A/C/E 40 | 200 | 25 | 465.140.000.000
|
|||||
| HSK-A/C/E 50 and HSK-F 63 | 346 | 32 | 465.150.000.000
|
|||||
| HSK-A/C/E 63 | 346 | 40 | 465.163.000.000
|
|||||
| HSK-A 80 | 346 | 40 | 465.180.000.000
|
|||||
| HSK-A 100 | 300 | 50 | 465.190.000.000
|
|||||
| HSK-A 125 | 349 | 40 | 465.192.000.000
|
|||||
| HSK-A 160 | 400 | 40 | 465.196.000.000
|
|||||
| HSK-F 63 | 346 | 40 | 465.663.000.000
|
|||||
| HSK-F 80 | 346 | 50 | 465.680.000.000
|
Steep Taper Spindle Runout Test Arbors
Maximum runout error 0.003mm / 3 micron / 0.0001 inch. Contact us for availability on ultra-precision 0.001mm runout arbors. Details PDF (465.800)
| Item / Taper | L (mm) | D (mm) | Retention Knob Thread | Order Number | ||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper (BT) 30 | 300 | 40 | M12 | 465.730.000.000
|
||||
| Steep Taper (BT) 40 | 300 | 40 | M16 | 465.740.000.000
|
||||
| Steep Taper (BT) 50 | 300 | 40 | 465.750.000.000
|
|||||
| Steep Taper (DIN) 30 | 300 | 32 | M12 | 465.830.000.000
|
||||
| Steep Taper (DIN) 40 | 300 | 40 | M16 | 465.840.000.000
|
||||
| Steep Taper (DIN) 45 | 300 | 50 | M20 | 465.845.000.000
|
||||
| Steep Taper (DIN) 50 | 300 | 50 | M24 | 465.850.000.000
|
||||
| Steep Taper (DIN) 60 | 400 | 50 | M30 | 465.860.000.000
|
||||
| Steep Taper (CAT/ANSI) 40 | 300 | 40 | 5/8"-11 | 465.940.000.000
|
||||
| Steep Taper (CAT/ANSI) 50 | 300 | 50 | 1"-8 | 465.950.000.000
|
||||
| Steep Taper (CAT/ANSI) 60 | Contact us | Contact us | Contact us | 465.960.000.000
|
||||
| Steep Taper (ISO) 10 | Contact us | Contact us | Contact us | 465.A10.000.000
|
||||
| Steep Taper (ISO) 15 | Contact us | Contact us | Contact us | 465.A15.000.000
|
||||
| Steep Taper (ISO) 20 | Contact us | Contact us | Contact us | 465.A20.000.000
|
||||
| Steep Taper (ISO) 25 | Contact us | Contact us | Contact us | 465.A25.000.000
|
Steep Taper Dual-Contact Runout Test Arbors
Steep taper runout test bars for Big Plus spindles. Details PDF (465.F00)
| Spindle Taper | L | D | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper (BT) 30 | 235mm | 32mm | 465.F30.000.000
|
|||||
| Steep Taper (BT) 40 | 350mm | 50mm | 465.F40.000.000
|
|||||
| Steep Taper (BT) 50 | 360mm | 50mm | 465.F50.000.000
|
|||||
| Steep Taper (CAT/ANSI) 40 | 13.5" | 2" | 465.G40.000.000
|
|||||
| Steep Taper (CAT/ANSI) 50 | 13.5" | 2" | 465.G50.000.000
|
Capto Spindle Runout Test Arbors
Available for Polygonal-Shank Taper (Coromant Capto) sizes C3, C4, C5, C6, C8, and C10 Details PDF (465.C00)
| Taper | L (mm) | D (mm) | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| Capto C3 | 160 | 25 | 465.C03.000.000
|
|||||
| Capto C4 | 160 | 25 | 465.C04.000.000
|
|||||
| Capto C5 | 215 | 32 | 465.C05.000.000
|
|||||
| Capto C6 | 320 | 40 | 465.C06.000.000
|
|||||
| Capto C8 | 320 | 40 | 465.C08.000.000
|
|||||
| Capto C10 | Contact us | Contact us | 465.C10.000.000
|
KM Spindle Runout Test Arbors
Available for KM40, KM50, KM63, and KM100. Contact us for custom arbors. Details PDF (465.K00)
| Taper | Length | Diameter | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| KM32 Runout Arbor | Contact us | 465.K32.000.000
|
||||||
| KM40 Runout Arbor | Contact us | 465.K40.000.001
|
||||||
| KM50 Runout Arbor | Contact us | 465.K50.000.001
|
||||||
| KM63 Runout Arbor | 340 | 50 | 465.K63.000.000
|
|||||
| KM63 Runout Arbor | 120 | 63 | 465.K63.000.001
|
|||||
| KM80 Runout Arbor | Contact us | 465.K80.000.000
|
||||||
| KM100 Runout Arbor | 340 | 50 | 465.K90.000.000
|
|||||
| KM100 Runout Arbor | 120 | 100 | 465.K90.000.001
|
Morse Taper Spindle Runout Arbors
Morse taper runout arbors offer a quick and easy way to verify correct spindle runout for machines with Morse tapers. Details PDF (465.M00)
| Description | Morse Taper | Order Number | ||||||
|---|---|---|---|---|---|---|---|---|
| Morse Taper (DIN 229) 0 | MT | 465.M00.000.000
|
||||||
| Morse Taper (DIN 229) 1 | MT1 | 465.M01.000.000
|
||||||
| Morse Taper (DIN 229) 2 | MT2 | 465.M02.000.000
|
||||||
| Morse Taper (DIN 229) 3 | MT3 | 465.M03.000.000
|
||||||
| Morse Taper (DIN 229) 4 | MT4 | 465.M04.000.000
|
||||||
| Morse Taper (DIN 229) 5 | MT5 | 465.M05.000.000
|
||||||
| Morse Taper (DIN 229) 6 | MT6 | 465.M06.000.000
|
Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check. Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, Capto, Morse, and others.
Runout Test Arbors
1. HSK Spindle Runout Test Arbors
Available for HSK-A/C/E 32, 40, 50, 65, 80, 100, 125, 160
2. Steep Taper Spindle Runout Test Arbors
Available for BT30 BT40 BT50
3. Steep Taper Dual-Contact Runout Test Arbors
Steep taper runout test bars for Big Plus spindles
4. Capto Spindle Runout Test Arbors
Available for Polygonal-Shank Taper (Coromant Capto) sizes C3, C4, C5, C6, C8, and C10
5. KM Spindle Runout Test Arbors
Available for KM40, KM50, KM63, and KM100
6. Morse Taper Spindle Runout Arbors
Available MT2 MT3 MT4 MT5 MT6
Maximum runout error 0.003mm / 3 micron
Runout Test Arbors
Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check. Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, Capto, Morse, and others.
HSK Spindle Runout Test Arbors
Available for HSK-A/C/E 32, 40, 50, 65, 80, 100, 125, 160 and HSK-F 40, 50, 63, 80, 100, 125, 160 Details PDF (465.100)
| HSK | l1 (mm) | d1 (mm) | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| HSK-A 25 | 140 | 20 | 465.125.000.000
|
|||||
| HSK-A 32 | 180 | 24 | 465.132.000.000
|
|||||
| HSK-A/C/E 40 | 200 | 25 | 465.140.000.000
|
|||||
| HSK-A/C/E 50 and HSK-F 63 | 346 | 32 | 465.150.000.000
|
|||||
| HSK-A/C/E 63 | 346 | 40 | 465.163.000.000
|
|||||
| HSK-A 80 | 346 | 40 | 465.180.000.000
|
|||||
| HSK-A 100 | 300 | 50 | 465.190.000.000
|
|||||
| HSK-A 125 | 349 | 40 | 465.192.000.000
|
|||||
| HSK-A 160 | 400 | 40 | 465.196.000.000
|
|||||
| HSK-F 63 | 346 | 40 | 465.663.000.000
|
|||||
| HSK-F 80 | 346 | 50 | 465.680.000.000
|
Steep Taper Spindle Runout Test Arbors
Maximum runout error 0.003mm / 3 micron / 0.0001 inch. Contact us for availability on ultra-precision 0.001mm runout arbors. Details PDF (465.800)
| Item / Taper | L (mm) | D (mm) | Retention Knob Thread | Order Number | ||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper (BT) 30 | 300 | 40 | M12 | 465.730.000.000
|
||||
| Steep Taper (BT) 40 | 300 | 40 | M16 | 465.740.000.000
|
||||
| Steep Taper (BT) 50 | 300 | 40 | 465.750.000.000
|
|||||
| Steep Taper (DIN) 30 | 300 | 32 | M12 | 465.830.000.000
|
||||
| Steep Taper (DIN) 40 | 300 | 40 | M16 | 465.840.000.000
|
||||
| Steep Taper (DIN) 45 | 300 | 50 | M20 | 465.845.000.000
|
||||
| Steep Taper (DIN) 50 | 300 | 50 | M24 | 465.850.000.000
|
||||
| Steep Taper (DIN) 60 | 400 | 50 | M30 | 465.860.000.000
|
||||
| Steep Taper (CAT/ANSI) 40 | 300 | 40 | 5/8"-11 | 465.940.000.000
|
||||
| Steep Taper (CAT/ANSI) 50 | 300 | 50 | 1"-8 | 465.950.000.000
|
||||
| Steep Taper (CAT/ANSI) 60 | Contact us | Contact us | Contact us | 465.960.000.000
|
||||
| Steep Taper (ISO) 10 | Contact us | Contact us | Contact us | 465.A10.000.000
|
||||
| Steep Taper (ISO) 15 | Contact us | Contact us | Contact us | 465.A15.000.000
|
||||
| Steep Taper (ISO) 20 | Contact us | Contact us | Contact us | 465.A20.000.000
|
||||
| Steep Taper (ISO) 25 | Contact us | Contact us | Contact us | 465.A25.000.000
|
Steep Taper Dual-Contact Runout Test Arbors
Steep taper runout test bars for Big Plus spindles. Details PDF (465.F00)
| Spindle Taper | L | D | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper (BT) 30 | 235mm | 32mm | 465.F30.000.000
|
|||||
| Steep Taper (BT) 40 | 350mm | 50mm | 465.F40.000.000
|
|||||
| Steep Taper (BT) 50 | 360mm | 50mm | 465.F50.000.000
|
|||||
| Steep Taper (CAT/ANSI) 40 | 13.5" | 2" | 465.G40.000.000
|
|||||
| Steep Taper (CAT/ANSI) 50 | 13.5" | 2" | 465.G50.000.000
|
Capto Spindle Runout Test Arbors
Available for Polygonal-Shank Taper (Coromant Capto) sizes C3, C4, C5, C6, C8, and C10 Details PDF (465.C00)
| Taper | L (mm) | D (mm) | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| Capto C3 | 160 | 25 | 465.C03.000.000
|
|||||
| Capto C4 | 160 | 25 | 465.C04.000.000
|
|||||
| Capto C5 | 215 | 32 | 465.C05.000.000
|
|||||
| Capto C6 | 320 | 40 | 465.C06.000.000
|
|||||
| Capto C8 | 320 | 40 | 465.C08.000.000
|
|||||
| Capto C10 | Contact us | Contact us | 465.C10.000.000
|
KM Spindle Runout Test Arbors
Available for KM40, KM50, KM63, and KM100. Contact us for custom arbors. Details PDF (465.K00)
| Taper | Length | Diameter | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| KM32 Runout Arbor | Contact us | 465.K32.000.000
|
||||||
| KM40 Runout Arbor | Contact us | 465.K40.000.001
|
||||||
| KM50 Runout Arbor | Contact us | 465.K50.000.001
|
||||||
| KM63 Runout Arbor | 340 | 50 | 465.K63.000.000
|
|||||
| KM63 Runout Arbor | 120 | 63 | 465.K63.000.001
|
|||||
| KM80 Runout Arbor | Contact us | 465.K80.000.000
|
||||||
| KM100 Runout Arbor | 340 | 50 | 465.K90.000.000
|
|||||
| KM100 Runout Arbor | 120 | 100 | 465.K90.000.001
|
Morse Taper Spindle Runout Arbors
Morse taper runout arbors offer a quick and easy way to verify correct spindle runout for machines with Morse tapers. Details PDF (465.M00)
| Description | Morse Taper | Order Number | ||||||
|---|---|---|---|---|---|---|---|---|
| Morse Taper (DIN 229) 0 | MT | 465.M00.000.000
|
||||||
| Morse Taper (DIN 229) 1 | MT1 | 465.M01.000.000
|
||||||
| Morse Taper (DIN 229) 2 | MT2 | 465.M02.000.000
|
||||||
| Morse Taper (DIN 229) 3 | MT3 | 465.M03.000.000
|
||||||
| Morse Taper (DIN 229) 4 | MT4 | 465.M04.000.000
|
||||||
| Morse Taper (DIN 229) 5 | MT5 | 465.M05.000.000
|
||||||
| Morse Taper (DIN 229) 6 | MT6 | 465.M06.000.000
|
Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check. Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, Capto, Morse, and others.
Runout Test Arbors
1. HSK Spindle Runout Test Arbors
Available for HSK-A/C/E 32, 40, 50, 65, 80, 100, 125, 160
2. Steep Taper Spindle Runout Test Arbors
Available for BT30 BT40 BT50
3. Steep Taper Dual-Contact Runout Test Arbors
Steep taper runout test bars for Big Plus spindles
4. Capto Spindle Runout Test Arbors
Available for Polygonal-Shank Taper (Coromant Capto) sizes C3, C4, C5, C6, C8, and C10
5. KM Spindle Runout Test Arbors
Available for KM40, KM50, KM63, and KM100
6. Morse Taper Spindle Runout Arbors
Available MT2 MT3 MT4 MT5 MT6
Maximum runout error 0.003mm / 3 micron
Runout Test Arbors
Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check. Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, Capto, Morse, and others.
HSK Spindle Runout Test Arbors
Available for HSK-A/C/E 32, 40, 50, 65, 80, 100, 125, 160 and HSK-F 40, 50, 63, 80, 100, 125, 160 Details PDF (465.100)
| HSK | l1 (mm) | d1 (mm) | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| HSK-A 25 | 140 | 20 | 465.125.000.000
|
|||||
| HSK-A 32 | 180 | 24 | 465.132.000.000
|
|||||
| HSK-A/C/E 40 | 200 | 25 | 465.140.000.000
|
|||||
| HSK-A/C/E 50 and HSK-F 63 | 346 | 32 | 465.150.000.000
|
|||||
| HSK-A/C/E 63 | 346 | 40 | 465.163.000.000
|
|||||
| HSK-A 80 | 346 | 40 | 465.180.000.000
|
|||||
| HSK-A 100 | 300 | 50 | 465.190.000.000
|
|||||
| HSK-A 125 | 349 | 40 | 465.192.000.000
|
|||||
| HSK-A 160 | 400 | 40 | 465.196.000.000
|
|||||
| HSK-F 63 | 346 | 40 | 465.663.000.000
|
|||||
| HSK-F 80 | 346 | 50 | 465.680.000.000
|
Steep Taper Spindle Runout Test Arbors
Maximum runout error 0.003mm / 3 micron / 0.0001 inch. Contact us for availability on ultra-precision 0.001mm runout arbors. Details PDF (465.800)
| Item / Taper | L (mm) | D (mm) | Retention Knob Thread | Order Number | ||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper (BT) 30 | 300 | 40 | M12 | 465.730.000.000
|
||||
| Steep Taper (BT) 40 | 300 | 40 | M16 | 465.740.000.000
|
||||
| Steep Taper (BT) 50 | 300 | 40 | 465.750.000.000
|
|||||
| Steep Taper (DIN) 30 | 300 | 32 | M12 | 465.830.000.000
|
||||
| Steep Taper (DIN) 40 | 300 | 40 | M16 | 465.840.000.000
|
||||
| Steep Taper (DIN) 45 | 300 | 50 | M20 | 465.845.000.000
|
||||
| Steep Taper (DIN) 50 | 300 | 50 | M24 | 465.850.000.000
|
||||
| Steep Taper (DIN) 60 | 400 | 50 | M30 | 465.860.000.000
|
||||
| Steep Taper (CAT/ANSI) 40 | 300 | 40 | 5/8"-11 | 465.940.000.000
|
||||
| Steep Taper (CAT/ANSI) 50 | 300 | 50 | 1"-8 | 465.950.000.000
|
||||
| Steep Taper (CAT/ANSI) 60 | Contact us | Contact us | Contact us | 465.960.000.000
|
||||
| Steep Taper (ISO) 10 | Contact us | Contact us | Contact us | 465.A10.000.000
|
||||
| Steep Taper (ISO) 15 | Contact us | Contact us | Contact us | 465.A15.000.000
|
||||
| Steep Taper (ISO) 20 | Contact us | Contact us | Contact us | 465.A20.000.000
|
||||
| Steep Taper (ISO) 25 | Contact us | Contact us | Contact us | 465.A25.000.000
|
Steep Taper Dual-Contact Runout Test Arbors
Steep taper runout test bars for Big Plus spindles. Details PDF (465.F00)
| Spindle Taper | L | D | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper (BT) 30 | 235mm | 32mm | 465.F30.000.000
|
|||||
| Steep Taper (BT) 40 | 350mm | 50mm | 465.F40.000.000
|
|||||
| Steep Taper (BT) 50 | 360mm | 50mm | 465.F50.000.000
|
|||||
| Steep Taper (CAT/ANSI) 40 | 13.5" | 2" | 465.G40.000.000
|
|||||
| Steep Taper (CAT/ANSI) 50 | 13.5" | 2" | 465.G50.000.000
|
Capto Spindle Runout Test Arbors
Available for Polygonal-Shank Taper (Coromant Capto) sizes C3, C4, C5, C6, C8, and C10 Details PDF (465.C00)
| Taper | L (mm) | D (mm) | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| Capto C3 | 160 | 25 | 465.C03.000.000
|
|||||
| Capto C4 | 160 | 25 | 465.C04.000.000
|
|||||
| Capto C5 | 215 | 32 | 465.C05.000.000
|
|||||
| Capto C6 | 320 | 40 | 465.C06.000.000
|
|||||
| Capto C8 | 320 | 40 | 465.C08.000.000
|
|||||
| Capto C10 | Contact us | Contact us | 465.C10.000.000
|
KM Spindle Runout Test Arbors
Available for KM40, KM50, KM63, and KM100. Contact us for custom arbors. Details PDF (465.K00)
| Taper | Length | Diameter | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| KM32 Runout Arbor | Contact us | 465.K32.000.000
|
||||||
| KM40 Runout Arbor | Contact us | 465.K40.000.001
|
||||||
| KM50 Runout Arbor | Contact us | 465.K50.000.001
|
||||||
| KM63 Runout Arbor | 340 | 50 | 465.K63.000.000
|
|||||
| KM63 Runout Arbor | 120 | 63 | 465.K63.000.001
|
|||||
| KM80 Runout Arbor | Contact us | 465.K80.000.000
|
||||||
| KM100 Runout Arbor | 340 | 50 | 465.K90.000.000
|
|||||
| KM100 Runout Arbor | 120 | 100 | 465.K90.000.001
|
Morse Taper Spindle Runout Arbors
Morse taper runout arbors offer a quick and easy way to verify correct spindle runout for machines with Morse tapers. Details PDF (465.M00)
| Description | Morse Taper | Order Number | ||||||
|---|---|---|---|---|---|---|---|---|
| Morse Taper (DIN 229) 0 | MT | 465.M00.000.000
|
||||||
| Morse Taper (DIN 229) 1 | MT1 | 465.M01.000.000
|
||||||
| Morse Taper (DIN 229) 2 | MT2 | 465.M02.000.000
|
||||||
| Morse Taper (DIN 229) 3 | MT3 | 465.M03.000.000
|
||||||
| Morse Taper (DIN 229) 4 | MT4 | 465.M04.000.000
|
||||||
| Morse Taper (DIN 229) 5 | MT5 | 465.M05.000.000
|
||||||
| Morse Taper (DIN 229) 6 | MT6 | 465.M06.000.000
|
Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check. Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, Capto, Morse, and others.
Runout Test Arbors
1. HSK Spindle Runout Test Arbors
Available for HSK-A/C/E 32, 40, 50, 65, 80, 100, 125, 160
2. Steep Taper Spindle Runout Test Arbors
Available for BT30 BT40 BT50
3. Steep Taper Dual-Contact Runout Test Arbors
Steep taper runout test bars for Big Plus spindles
4. Capto Spindle Runout Test Arbors
Available for Polygonal-Shank Taper (Coromant Capto) sizes C3, C4, C5, C6, C8, and C10
5. KM Spindle Runout Test Arbors
Available for KM40, KM50, KM63, and KM100
6. Morse Taper Spindle Runout Arbors
Available MT2 MT3 MT4 MT5 MT6
Maximum runout error 0.003mm / 3 micron
Runout Test Arbors
Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check. Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, Capto, Morse, and others.
HSK Spindle Runout Test Arbors
Available for HSK-A/C/E 32, 40, 50, 65, 80, 100, 125, 160 and HSK-F 40, 50, 63, 80, 100, 125, 160 Details PDF (465.100)
| HSK | l1 (mm) | d1 (mm) | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| HSK-A 25 | 140 | 20 | 465.125.000.000
|
|||||
| HSK-A 32 | 180 | 24 | 465.132.000.000
|
|||||
| HSK-A/C/E 40 | 200 | 25 | 465.140.000.000
|
|||||
| HSK-A/C/E 50 and HSK-F 63 | 346 | 32 | 465.150.000.000
|
|||||
| HSK-A/C/E 63 | 346 | 40 | 465.163.000.000
|
|||||
| HSK-A 80 | 346 | 40 | 465.180.000.000
|
|||||
| HSK-A 100 | 300 | 50 | 465.190.000.000
|
|||||
| HSK-A 125 | 349 | 40 | 465.192.000.000
|
|||||
| HSK-A 160 | 400 | 40 | 465.196.000.000
|
|||||
| HSK-F 63 | 346 | 40 | 465.663.000.000
|
|||||
| HSK-F 80 | 346 | 50 | 465.680.000.000
|
Steep Taper Spindle Runout Test Arbors
Maximum runout error 0.003mm / 3 micron / 0.0001 inch. Contact us for availability on ultra-precision 0.001mm runout arbors. Details PDF (465.800)
| Item / Taper | L (mm) | D (mm) | Retention Knob Thread | Order Number | ||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper (BT) 30 | 300 | 40 | M12 | 465.730.000.000
|
||||
| Steep Taper (BT) 40 | 300 | 40 | M16 | 465.740.000.000
|
||||
| Steep Taper (BT) 50 | 300 | 40 | 465.750.000.000
|
|||||
| Steep Taper (DIN) 30 | 300 | 32 | M12 | 465.830.000.000
|
||||
| Steep Taper (DIN) 40 | 300 | 40 | M16 | 465.840.000.000
|
||||
| Steep Taper (DIN) 45 | 300 | 50 | M20 | 465.845.000.000
|
||||
| Steep Taper (DIN) 50 | 300 | 50 | M24 | 465.850.000.000
|
||||
| Steep Taper (DIN) 60 | 400 | 50 | M30 | 465.860.000.000
|
||||
| Steep Taper (CAT/ANSI) 40 | 300 | 40 | 5/8"-11 | 465.940.000.000
|
||||
| Steep Taper (CAT/ANSI) 50 | 300 | 50 | 1"-8 | 465.950.000.000
|
||||
| Steep Taper (CAT/ANSI) 60 | Contact us | Contact us | Contact us | 465.960.000.000
|
||||
| Steep Taper (ISO) 10 | Contact us | Contact us | Contact us | 465.A10.000.000
|
||||
| Steep Taper (ISO) 15 | Contact us | Contact us | Contact us | 465.A15.000.000
|
||||
| Steep Taper (ISO) 20 | Contact us | Contact us | Contact us | 465.A20.000.000
|
||||
| Steep Taper (ISO) 25 | Contact us | Contact us | Contact us | 465.A25.000.000
|
Steep Taper Dual-Contact Runout Test Arbors
Steep taper runout test bars for Big Plus spindles. Details PDF (465.F00)
| Spindle Taper | L | D | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper (BT) 30 | 235mm | 32mm | 465.F30.000.000
|
|||||
| Steep Taper (BT) 40 | 350mm | 50mm | 465.F40.000.000
|
|||||
| Steep Taper (BT) 50 | 360mm | 50mm | 465.F50.000.000
|
|||||
| Steep Taper (CAT/ANSI) 40 | 13.5" | 2" | 465.G40.000.000
|
|||||
| Steep Taper (CAT/ANSI) 50 | 13.5" | 2" | 465.G50.000.000
|
Capto Spindle Runout Test Arbors
Available for Polygonal-Shank Taper (Coromant Capto) sizes C3, C4, C5, C6, C8, and C10 Details PDF (465.C00)
| Taper | L (mm) | D (mm) | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| Capto C3 | 160 | 25 | 465.C03.000.000
|
|||||
| Capto C4 | 160 | 25 | 465.C04.000.000
|
|||||
| Capto C5 | 215 | 32 | 465.C05.000.000
|
|||||
| Capto C6 | 320 | 40 | 465.C06.000.000
|
|||||
| Capto C8 | 320 | 40 | 465.C08.000.000
|
|||||
| Capto C10 | Contact us | Contact us | 465.C10.000.000
|
KM Spindle Runout Test Arbors
Available for KM40, KM50, KM63, and KM100. Contact us for custom arbors. Details PDF (465.K00)
| Taper | Length | Diameter | Order Number | |||||
|---|---|---|---|---|---|---|---|---|
| KM32 Runout Arbor | Contact us | 465.K32.000.000
|
||||||
| KM40 Runout Arbor | Contact us | 465.K40.000.001
|
||||||
| KM50 Runout Arbor | Contact us | 465.K50.000.001
|
||||||
| KM63 Runout Arbor | 340 | 50 | 465.K63.000.000
|
|||||
| KM63 Runout Arbor | 120 | 63 | 465.K63.000.001
|
|||||
| KM80 Runout Arbor | Contact us | 465.K80.000.000
|
||||||
| KM100 Runout Arbor | 340 | 50 | 465.K90.000.000
|
|||||
| KM100 Runout Arbor | 120 | 100 | 465.K90.000.001
|
Morse Taper Spindle Runout Arbors
Morse taper runout arbors offer a quick and easy way to verify correct spindle runout for machines with Morse tapers. Details PDF (465.M00)
| Description | Morse Taper | Order Number | ||||||
|---|---|---|---|---|---|---|---|---|
| Morse Taper (DIN 229) 0 | MT | 465.M00.000.000
|
||||||
| Morse Taper (DIN 229) 1 | MT1 | 465.M01.000.000
|
||||||
| Morse Taper (DIN 229) 2 | MT2 | 465.M02.000.000
|
||||||
| Morse Taper (DIN 229) 3 | MT3 | 465.M03.000.000
|
||||||
| Morse Taper (DIN 229) 4 | MT4 | 465.M04.000.000
|
||||||
| Morse Taper (DIN 229) 5 | MT5 | 465.M05.000.000
|
||||||
| Morse Taper (DIN 229) 6 | MT6 | 465.M06.000.000
|
