Metric Link Clamps

Standard Features

Provides reach-over clamping for hard-to-hit points in a very rigid beam design Available for 350 bar (35MPa) Double and Single Acting models Standard fluorocarbon seals Ideal for vertical "drop-in" loading

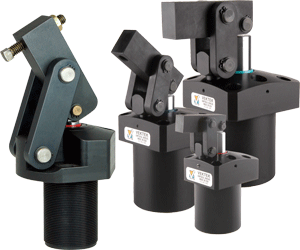

Metric High Pressure Link Clamp

Specifications

Specifications Model No. Cylinder Capacity** (kN) Vertical  Clamping Stroke**** (mm) Body  Thread Standard Lever  Length (mm) Effective Piston  Area  (cm2) Oil  Capacity  (cm3) Maximum Flow Rate***  (l/min) Optional Flow Control Model No. Extend Extend Retract Single Acting (S/A) Cylinders, actuated hydraulically one direction, spring returned. 41-6610-40 1,5 2,3 M28 x 1,5 - 6G 22,4 0,49 1,69 N/A 0,20 47-0203-70 41-6610-60 3 3,1 M38 x 1,5 - 6G 28,7 0,97 4,70 N/A 0,56 47-0203-71 41-6610-90 6 3,6 M48 x 1,5 - 6G 35,1 1,98 13,45 N/A 1,61 47-0203-73 41-6611-40 13 4,6 M65 x 1,5 - 6G 44,5 5,06 35,20 N/A 4,23 47-0203-74 Double Acting (D/A) Cylinders, actuated hydraulically both directions. 41-6620-40 2 2,3 M28 x 1,5 - 6G 22,4 0,71 1,69 0,52 0,20 47-0203-70 41-6620-60 5 3,1 M38 x 1,5 - 6G 28,7 1,60 4,70 1,85 0,56 47-0203-71 41-6620-90 11 3,6 M48 x 1,5 - 6G 35,1 3,88 13,45 6,64 1,61 47-0203-73 41-6621-40 22 4,6 M65 x 1,5 - 6G 44,5 7,92 35,20 12,67 4,23 47-0203-74

** Clamp capacities are listed at 350 bar (35 MPa) maximum operating pressure with a standard length link clamp lever installed. See Link Clamp Lever Output Curves graph for clamping force with various lever lengths. Minimum operating pressure is 50 bar (5MPa) for single acting and 35 bar (3,5 MPa) for double acting devices. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, divide the clamp capacity shown above by 350 (35 MPa) and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to mechanical inefficiencies and friction.)

*** To insure maximum service life and trouble-free operation , restrict fluid flow to the above flow ratings when clamping. If you are unable to measure flow rates, the devices should be positioned in no less than ½ second. These recommendations apply when using the standard lever.

**** Equal to ± 3° with standard lever

Levers sold separately

Metric Link Clamp Levers

High Pressure Link Clamp Lever Dimensions

All dimensions are in mm.

Link Clamp Levers Offset

Home > Products > Metric > Link Clamps > Link Clamp Levers Offset
Offset Levers (PDF 238.00 KB)



H. P. Offset LeversH.P. Offset Output Curves

Dimensions Model No. Cylinder Capacity S/A (kN) Cylinder Capacity D/A (kN) A B C ØD E F ØG Left Offset Lever 1:1 Ratio 91-6004-04 1,5 2,0 50,8 16,0 12,7 4,788 4,8 4,8 6,363 91-6006-04 3,0 5,0 63,5 22,4 16,0 6.388 6,4 6,4 9,538 91-6009-04 6,0 11,0 79,5 31,8 25,4 9,563 9,5 9,7 12,713 91-6014-04 13,0 22,0 101,6 44,5  31,8  12,738  12,7  12,7  15,888 Right Offset Lever 1:1 Ratio 91-6004-05 1,5 2,0 50,8 16,0 12,7 4,788 4,8 4,8 6,363 91-6006-05 3,0 5,0 63,5 22,4 16,0 6.388 6,4 6,4 9,538 91-6009-05 6,0 11,0  79,5 31,8 25,4 9,563 9,5 9,7 12,713 91-6014-05 13,0 22,0 101,6 44,5 31,8 12,738 12,7 12,7 15,888 Model No. Cylinder Capacity S/A (kN) Cylinder Capacity D/A (kN) H J K L M N P Left Offset Lever 1:1 Ratio 91-6004-04 1,5 2,0 22,2 3,2 11,2 11,2 6,6  25,4 44,5 91-6006-04 3,0 5,0 28,6 3,2 14,2 14,2 8,1  31,8 57,2 91-6009-04 6,0 11,0 34,9 4,7 20,6 20,6 13,0  50,8 69,9 91-6014-04 13,0 22,0 44,5  6,4 30,2 30,2  16,0  63,5 88,9 Right Offset Lever 1:1 Ratio 91-6004-05 1,5 2,0 22,2 3,2 11,2 11,2 6,6 25,4  44,5 91-6006-05 3,0 5,0 28,6 3,2 14,2 14,2 8,1  31,8 57,2 91-6009-05 6,0 11,0 34,9 4,7 20,6 20,6 13,0  50,8 69,9 91-6014-05 13,0 22,0 44,5 6,4 30,2 30,2 16,0  63,5 88,9
