Product Information :
Name :
ปากกา Pneumatic vise Hydraulic vise Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- OMIL
Brand :
OMIL Srl Product Type :
- สินค้า, ผลิตภัณฑ์
Short Description :

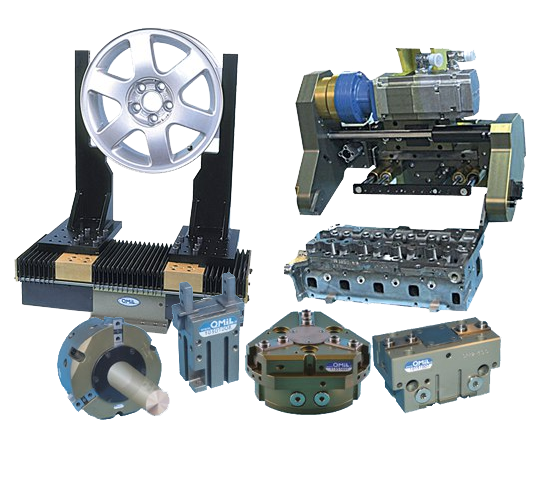

ปากกาจับยึดชิ้นงานระบบลม ปากกาจับยึดชิ้นงานระบบลม (Pneumatic) ที่ สามารถทำงานร่วมกับหุ่นยนต์ได้ ปากกา Pneumatic vise Hydraulic vise Product Detail :
CFB
Self-centering
Compact from 66x66 mm
Force up to 55,000 N
Stroke up to 30 mm
Stroke control
Rating IP 40 .... 65
...
PRODUCT DETAILS
CONFIGURE 3D DRAWING
CFB-OJ
One fixed jaw
Force up to 55,000 N
Stroke up to 15 mm
Stroke control
Rating IP 40
Centralized lubrication
Pressuri...
PRODUCT DETAILS
CONFIGURE 3D DRAWING
CFB-MC
CFB -MC Force maintenance in closing
Self centering
Force up to 38.530 N
Stroke up to 16 mm
Stroke control
Rating IP 40 ...
PRODUCT DETAILS
CONFIGURE 3D DRAWING
CFB-MA
CFB -MA Force maintenance in opening
Self centering
Force up to 41.000 N
Stroke up to 16 mm
Stroke control
Rating IP 40 ...
PRODUCT DETAILS
CONFIGURE 3D DRAWING

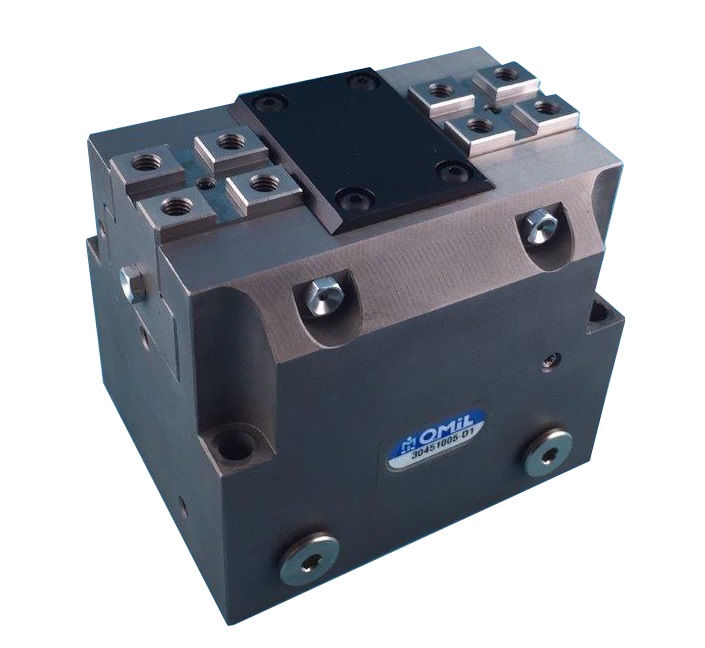

MAP
Clamping force blocks, pneumatic, centric clamping
Cost Effective
Self centering
Pneumatic/Hydraulic
Force up to 17.300 N
Stroke up to 12 mm
Rating IP 40
Pressurization
All hardened components
DOWNLOAD PDF CATALOGUE
CONFIGURE 3D DRAWING
Click on the 'ID' to view the product sheet
| Code | ID | COMPARE (max. 4) | All | Version | Total closing force | Closing force for jaw | Stroke for jaw | Max. permissible finger length | Rating IP | Min. spring force | Max. force axial CA | Moment Mt max. | Moment Mr max. | Moment Mf max. | Stroke control | Weight | Min. operating pressure | Max. operating pressure | Nominal operating pressure | Min. air purge pressure | Max. air purge pressure | Closing time | Opening time | Closing/opening time with spring | Min. ambient temperature | Max. ambient temperature | Repeat accuracy | Length | Width | Height | Fluid consumption double stroke |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MAP 60 | 30451004 | Design 3D | standard | 2580 | 1290 | 4 | 60 | 40 | 0 | 1200 | 50 | 50 | 40 | No | 1.6 | 2 | 9 | 6 | 0.5 | 1 | 0.2 | 0.2 | 0 | 5 | 60 | 0.02 | 78 | 60 | 75 | 42 | |
| MAP 80 | 30451005 | Design 3D | standard | 4965 | 2482 | 5 | 70 | 40 | 0 | 2300 | 120 | 70 | 110 | No | 3.3 | 2 | 9 | 6 | 0.5 | 1 | 0.35 | 0.35 | 0 | 5 | 60 | 0.02 | 99 | 80 | 87.5 | 97 | |
| MAP 100 | 30451006 | Design 3D | standard | 7785 |
CFB-MA
Clamping force blocks, pneumatic, centric clamping with spring MA
CFB -MA Force maintenance in opening
Self centering
Force up to 41.000 N
Stroke up to 16 mm
Stroke control
Rating IP 40
Centralized lubrication
Pressurization
DOWNLOAD PDF CATALOGUE
CONFIGURE 3D DRAWING
Click on the 'ID' to view the product sheet
| Code | ID | COMPARE (max. 4) | All | Version | Total closing force | Closing force for jaw | Stroke for jaw | Max. permissible finger length | Rating IP | Min. spring force | Max. force axial CA | Moment Mt max. | Moment Mr max. | Moment Mf max. | Stroke control | Weight | Min. operating pressure | Max. operating pressure | Nominal operating pressure | Min. air purge pressure | Max. air purge pressure | Closing time | Opening time | Closing/opening time with spring | Min. ambient temperature | Max. ambient temperature | Repeat accuracy | Length | Width | Height | Fluid consumption double stroke |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CFB 100-MA-C1 | 30361005 | Design 3D | spring open/standard | 6200 | 3100 | 6 | 150 | 40 | 800 | 5000 | 250 | 250 | 250 | Si | 5 | 4.5 | 9 | 6 | 0.5 | 1 | 0.2 | 0.2 | 0 | 5 | 60 | 0.01 | 102 | 102 | 71.5 | 135 | |
| CFB 160-MA-C1 | 30361006 | Design 3D | spring open/standard | 15860 | 7930 | 8 | 200 | 40 | 2320 | 10000 | 500 | 500 | 500 | Si | 16 | 4.5 | 9 | 6 | 0.5 | 1 | 0.4 | 0.4 | 0 | 5 | 60 | 0.02 | 160 | 160 | 88.5 | 500 | |
| CFB 100-MA-C1-D | 30361105 | Design 3D | spring open/serrated jaws | 6200 | 3100 | 6 | 150 | 40 | 800 | 5000 | 250 | 250 | 250 | Si | 5 | 4.5 | 9 | 6 | 0.5 | 1 | 0.2 | 0.2 | 0 | 5 | 60 | 0.01 | 102 | 102 | 71.5 | 135 | |
| CFB 160-MA-C1-D | 30361106 | Design 3D | spring open/serrated jaws | 15860 | 7930 | 8 | 200 | 40 | 2320 | 10000 | 500 | 500 | 500 | Si | 16 | 4.5 | 9 | 6 | 0.5 | 1 | 0.4 | 0.4 | 0 | 5 | 60 | 0.02 | 160 | 160 | 88.5 | 500 | |
| CFB 100-MA-C2 | 30363005 | Design 3D | spring open/standard | 15300 | 7650 | 2 | 60 | 40 | 2040 | 5000 | 250 | 250 | 250 | Si | 5 | 4.5 | 9 | 6 | 0.5 | 1 | 0.2 | 0.2 | 0 | 5 | 60 | 0.01 | 102 | 102 | 71.5 | 135 | |
| CFB 160-MA-C2 | 30363006 | Design 3D | spring open/standard | 37100 | 18550 | 3 | 60 | 40 | 5000 | 10000 | 500 | 500 | 500 | Si | 16 | 4.5 | 9 | 6 | 0.5 | 1 | 0.4 | 0.4 | 0 | 5 | 60 | 0.02 | 160 | 160 | 88.5 | 500 | |
| CFB 100-MA-C2-D | 30363105 | Design 3D | spring open/serrated jaws | 15300 | 7650 | 2 | 60 | 40 | 2040 | 5000 | 250 | 250 | 250 | Si | 5 | 4.5 | 9 | 6 | 0.5 | 1 | 0.2 | 0.2 | 0 | 5 | 60 | 0.01 | 102 | 102 | 71.5 | 135 | |
| CFB 160-MA-C2-D | 30363106 | Design 3D | spring open/serrated jaws | 37100 | 18550 | 3 | 60 | 40 | 5000 | 10000 | 500 | 500 | 500 | Si | 16 | 4.5 | 9 | 6 | 0.5 | 1 | 0.4 | 0.4 | 0 | 5 | 60 | 0.02 | 160 | 160 | 88.5 | 500 | |
| CFB 100-MA-C1-BC | 30365005 | Design 3D | spring open/pre-centering | 6200 | 3100 | 6 | 150 | 40 | 800 | 5000 | 250 | 250 | 250 | Si | 5 | 4.5 | 9 | 6 | 0.5 | 1 | 0.2 | 0.2 | 0 | 5 | 60 | 0.01 | 102 | 102 | 71.5 | 135 | |
| CFB 160-MA-C1-BC | 30365006 | Design 3D | spring open/pre-centering | 15860 |
KSB 380-160
Clamping force 200.000N
Self-centering
Stroke for jaw 5 mm
Pressurization
Central lubrication
Rating IP 40
PRODUCT DETAILS
CFB
Self-centering
Compact from 66x66 mm
Force up to 62.000 N
Stroke up to 30 mm
Control stroke
Rating IP 40
Central ...
PRODUCT DETAILS
CONFIGURE 3D DRAWING
MIA1-G2
Self-centering large stroke
Force up to 43.140 N
Stroke up to 60 mm
Control stroke
Rating IP 40
PRODUCT DETAILS
CONFIGURE 3D DRAWING
KSB
Robust
Force up to 80.500 N
Stroke up to 80 mm
Rating IP 40...65
Central lubrication
Pressurization
PRODUCT DETAILS
CONFIGURE 3D DRAWING
KSB 480-75 FMS
Stroke 150 mm
Self-centering
Force up to 48.000 N
Central lubrication
Pressurization
Rating IP 40...65
PRODUCT DETAILS
MAP
Cost Effective
Self-centering
Pneumatic/Hydraulic
Force up to 17.300 N
Stroke up to 12 mm
Rating IP 40
Pressurization
PRODUCT DETAILS
CONFIGURE 3D DRAWING
CFB-OJ
One fixed jaw
Force up to 55.000 N
Stroke up to 15 mm
stroke control
Rating IP 40
Central lubrication
Pressurization
...
PRODUCT DETAILS
CONFIGURE 3D DRAWING
CFB-OJ
Clamping force blocks, hydraulic, with fixed jaw
One fixed jaw
Force up to 55.000 N
Stroke up to 15 mm
stroke control
Rating IP 40
Central lubrication
Pressurization
DOWNLOAD PDF CATALOGUE
CONFIGURE 3D DRAWING
Click on the 'ID' to view the product sheet
| Code | ID | COMPARE (max. 4) | All | Version | Total closing force | Closing force for jaw | Stroke for jaw | Max. permissible finger length | Rating IP | Max. force axial CA | Moment Mt max. | Moment Mr max. | Moment Mf max. | Stroke control | Weight | Min. operating pressure | Max. operating pressure | Nominal operating pressure | Min. air purge pressure | Max. air purge pressure | Closing time | Opening time | Min. ambient temperature | Max. ambient temperature | Repeat accuracy | Length | Width | Height | Fluid consumption double stroke |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CFB OJ 100-C1-ID | 30312005 | Design 3D | one fixed jaw/standard | 16000 | 16000 | 6 | 60 | 40 | 5000 | 250 | 250 | 250 | Si | 4.9 | 10 | 120 | 120 | 0.5 | 1 | 1 | 1 | 5 | 60 | 0.01 | 102 | 102 | 71.5 | 33 | |
| CFB OJ 160-C1-ID | 30312006 | Design 3D | one fixed jaw/standard | 20000 | 20000 | 8 | 60 | 40 | 10000 | 500 | 500 | 500 | Si | 14.5 | 10 | 120 | 120 | 0.5 | 1 | 1.5 | 1.5 | 5 | 60 | 0.02 | 160 | 160 | 88.5 | 105 | |
| CFB OJ 100-C1-ID-D | 30312105 | Design 3D | one fixed jaw/serrated jaws | 16000 | 16000 | 6 | 60 | 40 | 5000 | 250 | 250 | 250 | Si | 4.9 | 10 | 120 | 120 | 0.5 | 1 | 1 | 1 | 5 | 60 | 0.01 | 102 | 102 | 71.5 | 33 | |
| CFB OJ 160-C1-ID-D | 30312106 | Design 3D | one fixed jaw/serrated jaws | 20000 | 20000 | 8 | 60 | 40 | 10000 | 500 | 500 | 500 | Si | 14.5 | 10 | 120 | 120 | 0.5 | 1 | 1.5 | 1.5 | 5 | 60 | 0.02 | 160 | 160 | 88.5 | 105 | |
| CFB OJ 100-C2-ID | 30314005 | Design 3D | one fixed jaw/standard | 44000 | 44000 | 2 | 60 | 40 | 5000 | 250 | 250 | 250 | Si | 4.9 | 10 | 60 | 60 | 0.5 | 1 | 1 | 1 | 5 | 60 | 0.01 | 102 | 102 | 71.5 | 33 | |
| CFB OJ 160-C2-ID | 30314006 | Design 3D | one fixed jaw/standard | 54000 | 54000 | 3 | 60 | 40 | 10000 | 500 | 500 | 500 | Si | 14.5 | 10 | 60 | 60 | 0.5 | 1 | 1.5 | 1.5 | 5 | 60 | 0.02 | 160 | 160 | 88.5 | 105 | |
| CFB OJ 100-C2-ID-D | 30314105 | Design 3D | one fixed jaw/serrated jaws | 44000 | 44000 | 2 | 60 | 40 | 5000 | 250 | 250 | 250 | Si | 4.9 | 10 | 60 | 60 | 0.5 | 1 | 1 | 1 | 5 | 60 | 0.01 | 102 | 102 | 71.5 | 33 | |
| CFB OJ 160-C2-ID-D | 30314106 | Design 3D | one fixed jaw/serrated jaws | 54000 | 54000 | 3 | 60 | 40 | 10000 | 500 | 500 | 500 | Si | 14.5 | 10 | 60 | 60 | 0.5 | 1 | 1.5 | 1.5 | 5 | 60 | 0.02 | 160 | 160 | 88.5 | 105 | |
| CFB OJ 100-C1-ID-BC | 30316005 | Design 3D | one fixed jaw/pre-centering | 16000 | 16000 | 6 | 60 | 40 | 5000 | 250 | 250 | 250 | Si | 4.9 | 10 | 120 | 120 | 0.5 | 1 | 1 | 1 | 5 | 60 | 0.01 | 102 | 102 | 71.5 | 33 | |
| CFB OJ 160-C1-ID-BC | 30316006 | Design 3D | one fixed jaw/pre-centering | 20000 |
KSB 480-75 FMS
Clamping force blocks, hydraulic, centric clamping
Stroke 150 mm
Self-centering
Force up to 48.000 N
Central lubrication
Pressurization
Rating IP 40...65
Click on the 'ID' to view the product sheet
| Code | ID | COMPARE (max. 4) | All | Version | Total closing force | Closing force for jaw | Stroke for jaw | Max. permissible finger length | Rating IP | Max. force axial CA | Moment Mt max. | Moment Mr max. | Moment Mf max. | Stroke control | Weight | Min. operating pressure | Max. operating pressure | Nominal operating pressure | Min. air purge pressure | Max. air purge pressure | Closing time | Opening time | Min. ambient temperature | Max. ambient temperature | Repeat accuracy | Length | Width | Height | Fluid consumption double stroke |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KSB 480-75 FMS | R01417 | Design 3D | standard | 48000 |
KSB
Clamping force blocks, hydraulic, centric clamping
Robust
Force up to 80.500 N
Stroke up to 80 mm
Rating IP 40...65
Central lubrication
Pressurization
Click on the 'ID' to view the product sheet
| Code | ID | COMPARE (max. 4) | All | Version | Total closing force | Closing force for jaw | Stroke for jaw | Max. permissible finger length | Rating IP | Max. force axial CA | Moment Mt max. | Moment Mr max. | Moment Mf max. | Stroke control | Weight | Min. operating pressure | Max. operating pressure | Nominal operating pressure | Min. air purge pressure | Max. air purge pressure | Closing time | Opening time | Min. ambient temperature | Max. ambient temperature | Repeat accuracy | Length | Width | Height | Fluid consumption double stroke | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KSB 210 | 30601006 | Design 3D | standard | 35500 | 17750 | 15 | 85 | 40 | 10000 | 500 | 600 | 500 | No | 16 | 10 | 120 | 120 | 0.5 | 1 | 1.5 | 1.5 | 5 | 60 | 0.03 | 210 | 96 | 91 | 135 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| KSB 250 | 30601007 |
 ARPEP
|
| Code | ID | COMPARE (max. 4) | All | Version | Closing Force | Openinig force | Stroke for jaw | Weight | Recommended workpiece weight | Max. permissible finger length | Nominal Torque | Device to maintenance the gripping force | Damping for swiveling | End position adjustability | Min. spring force | Max. force axial CA | Moment Mt max. | Moment Mr max. | Max. mass moment of inertia | Nominal operating pressure | Max. operating pressure for gripping | Max. operating pressure for swivelling | Min. operating pressure for gripping | Min. operating pressure for swiveling | Closing time | Opening time | Swiveling time with medium-sized attached load | Max. permissible mass per finger | Min. ambient temperature | Max. ambient temperature | Repeat accuracy for gripping | Repeat accuracy for swiveling | Length | Width | Height | Angle of rotation | Air consumption for gripping | Air consumption for swiveling | IP protection class gripper | IP protection class swivel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ARPEP 16-CA-RO-C1 | 15142005 | Design 3D | clockwise/sensor T-Slot | 94 | 125 | 3 | 0.6 | 0.45 | 32 | 0.7 | nothing | 2 | 0 | 180 | 2 | 2.5 | 0.013 | 6 | 8 | 6.5 | 3 | 3.5 | 0.04 | 0.04 | 0.22 | 0.04 | -5 | 60 | 0.02 | 0.09 | 50 | 50 | 128.5 | 0-180 | 1.85 | 46 | 40 | 52 | ||
| ARPEP 16-CA-RO-C2 | 15142006 | Design 3D | clockwise/sensor T-Slot | 54 | 72 | 5.5 | 0.6 | 0.27 | 32 | 0.7 | nothing | 2 | 0 | 180 | 2 | 2.5 | 0.013 | 6 | 8 | 6.5 | 3 | 3.5 | 0.04 | 0.04 | 0.22 | 0.04 | -5 | 60 | 0.02 | 0.09 | 50 | 50 | 128.5 | 0-180 | 1.85 | 46 | 40 | 52 | ||
| ARPEP 16-CA-RO-C1-MC | 15142007 | Design 3D | clockwise/sensor T-Slot | 121 | 0 | 3 | 0.6 | 0.45 | 32 | 0.7 | MC | nothing | 2 | 27 | 180 | 2 | 2.5 | 0.013 | 6 | 8 | 6.5 | 3 | 3.5 | 0.03 | 0.04 | 0.22 | 0.04 | -5 | 60 | 0.02 | 0.09 | 50 | 50 | 128.5 | 0-180 | 1.85 | 46 | 40 | 52 | |
| ARPEP 16-CA-RO-C2-MC | 15142008 | Design 3D | clockwise/sensor T-Slot | 69 | 0 | 5.5 | 0.6 | 0.27 | 32 | 0.7 | MC | nothing | 2 | 15 | 180 | 2 | 2.5 | 0.013 | 6 | 8 | 6.5 | 3 | 3.5 | 0.03 | 0.04 | 0.22 | 0.04 | -5 | 60 | 0.02 | 0.09 | 50 | 50 | 128.5 | 0-180 | 1.85 | 46 | 40 | 52 | |
| ARPEP 16-CA-RO-C1-MA | 15142009 | Design 3D | clockwise/sensor T-Slot | 0 | 129 | 3 | 0.6 | 0.45 | 32 | 0.7 | MA | nothing | 2 | 4 | 180 | 2 | 2.5 | 0.013 | 6 | 8 | 6.5 | 3 | 3.5 | 0.04 | 0.03 | 0.22 | 0.04 | -5 | 60 | 0.02 | 0.09 | 50 | 50 | 128.5 | 0-180 | 1.85 | 46 | 40 | 52 | |
| ARPEP 16-CA-RO-C2-MA | 15142010 | Design 3D | clockwise/sensor T-Slot | 0 | 74.3 | 5.5 | 0.6 | 0.27 | 32 | 0.7 | MA | nothing | 2 | 2.3 | 180 | 2 | 2.5 | 0.013 | 6 | 8 | 6.5 | 3 | 3.5 | 0.04 | 0.03 | 0.22 | 0.04 | -5 | 60 | 0.02 | 0.09 | 50 | 50 | 128.5 | 0-180 | 1.85 | 46 | 40 | 52 | |
| ARPEP 16-CB-RO-C1 | 15142505 | Design 3D | clockwise/sensor T-Slot | 94 | 125 | 3 | 0.6 | 0.45 | 32 | 0.7 | nothing | 2 | 0 | 180 | 2 | 2.5 | 0.013 | 6 | 8 | 6.5 | 3 | 3.5 | 0.04 | 0.04 | 0.2 | 0.04 | -5 | 60 | 0.02 | 0.09 | 50 | 50 | 128.5 | 0-90 | 1.85 | 46 | 40 | 52 | ||
| ARPEP 16-CB-RO-C2 | 15142506 | Design 3D | clockwise/sensor T-Slot | 54 | 72 | 5.5 | 0.6 | 0.27 | 32 | 0.7 | nothing | 2 | 0 | 180 | 2 | 2.5 | 0.013 | 6 | 8 | 6.5 | 3 | 3.5 | 0.04 | 0.04 | 0.2 | 0.04 | -5 | 60 | 0.02 | 0.09 | 50 | 50 | 128.5 | 0-90 | 1.85 | 46 | 40 | 52 | ||
| ARPEP 16-CB-RO-C1-MC | 15142507 | Design 3D | clockwise/sensor T-Slot | 121 | 0 | 3 | 0.6 | 0.45 | 32 | 0.7 | MC | nothing | 2 | 27 | 180 | 2 | 2.5 | 0.013 | 6 | 8 | 6.5 | 3 | 3.5 | 0.03 | 0.04 | 0.2 | 0.04 | -5 | 60 | 0.02 | 0.09 | 50 | 50 | 128.5 | 0-90 | 1.85 | 46 | 40 | 52 | |
| ARPEP 16-CB-RO-C2-MC | 15142508 | Design 3D | clockwise/sensor T-Slot | 69 |
PZP -
Robust / 10 sizes
Max force 37.300N
Accuracy +/- 0.025mm
Spring-loaded pressure plate
IP rating 40 .... 64
Device to maintenance grippin...
PRODUCT DETAILS
CONFIGURE 3D DRAWING
GZO
Protected
Max gripping force 3.600N
Spring-loaded pressure plate
Rating IP 67
Device to maintenance gripping force
Versions up to 130 ° ...
PRODUCT DETAILS
CONFIGURE 3D DRAWING
GPS 3
Small / Compact
Gripper from 70gr
Stroke from 4 to 6 mm
Rating IP 40
Version up to 130°C
PRODUCT DETAILS
CONFIGURE 3D DRAWING
FBM
Through central hole up to 60.5 mm
Device to maintenance gripping force
Spring-loaded pressure plate
Rating IP 40
Versions up to 130 ° C
PRODUCT DETAILS
CONFIGURE 3D DRAWING
MCL
Robust large stroke
Stroke up to 320mm
Force up to 5.160N
Spring-loaded pressure plate
Rating IP 40
Total stroke control
PRODUCT DETAILS
CONFIGURE 3D DRAWING
MAC 3
PHASE OUT
Max gripping force 18.600 N
Rating IP 40
Device to maintenance gripping force
Pressurization
Versions up to 130 ° C
PRODUCT DETAILS
CONFIGURE 3D DRAWING
MFB
PHASE OUT
Device to maintenance gripping force
Spring-loaded pressure plate
Rating IP 40
Versions up to 130 ° C
PRODUCT DETAILS
CONFIGURE 3D DRAWING
PFP
Robust
Max gripping force 7.500 N
Rating IP 40
Spring-loaded pressure plate
Device to maintenance gripping force
Pressuriz...
PRODUCT DETAILS
CONFIGURE 3D DRAWING
FRM
Through central hole up to 30.5 mm
Spring-loaded pressure plate
Rating IP 40
Versions up to 130 ° C
PRODUCT DETAILS
CONFIGURE 3D DRAWING
GPS 4
Small / Compact
Gripper from 80gr
Stroke from 4 to 6 mm
Rating IP 40
Version up to 130°C
PRODUCT DETAILS
CONFIGURE 3D DRAWING
MCX 400-DPB
Large stroke
Stroke 60 mm for finger
Through central hole 50 mm
Rating IP 55
PRODUCT DETAILS
MFB/4
PHASE OUT
Through central hole up to 60.5 mm
Spring-loaded pressure plate
Rating IP 40
Versions up to 130 ° C
PRODUCT DETAILS
CONFIGURE 3D DRAWING
MA4
PHASE OUT
Max gripping force 25.380 N
Rating IP 40
Spring-loaded pressure plate
Device to maintenance gripping force
Press...
PRODUCT DETAILS
CONFIGURE 3D DRAWING
PEP
2-finger parallel gripper
Small / Compact
Gripper from 55gr
Stroke from 7 to 63 mm
Rating IP 40
Device to maintenance gripping force
Pressurization
Versions up to 130 ° C
DOWNLOAD PDF CATALOGUE
CONFIGURE 3D DRAWING
Click on the 'ID' to view the product sheet
| Code | ID | COMPARE (max. 4) | All | Version | Closing Force | Openinig force | Stroke for jaw | Weight | Recommended workpiece weight | Max. permissible finger length | Device to maintenance the gripping force | Rating IP | Min. spring force | Max. force axial CA | Moment Mt max. | Moment Mr max. | Moment Mf max. | Min. operating pressure | Max. operating pressure | Nominal operating pressure | Min. air purge pressure | Max. air purge pressure | Closing time | Opening time | Closing/opening time with spring | Max. permissible mass per finger | Min. ambient temperature | Max. ambient temperature | Repeat accuracy | Diameter | Length | Width | Height | Fluid consumption double stroke |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PEP 10 C1 VT | 10701005 | Design 3D | standard, base jaws with bushes | 30 | 45 | 2 | 0.055 | 0.15 | 25 | 40 | 0 | 100 | 0.7 | 1 | 2 | 3 | 8 | 6 | 0 | 0 | 0.03 | 0.03 | 0 | 0.015 | -10 | 90 | 0.02 | 0 | 23 | 16.4 | 45 | 0.45 | ||
| PEP 16 C1 VT | 10701006 | Design 3D | standard, base jaws with bushes | 94 | 125 | 3 | 0.13 | 0.45 | 32 | 40 | 0 | 180 | 2 | 2.5 | 4 | 3 | 8 | 6 | 0 | 0 | 0.04 | 0.04 | 0 | 0.04 | -10 | 90 | 0.02 | 0 | 30.6 | 23.6 | 52.3 | 1.85 | ||
| PEP 20 C1 VT | 10701007 | Design 3D | standard, base jaws with bushes | 150 | 200 | 5 | 0.23 | 0.75 | 42 | 40 | 0 | 300 | 2.5 | 5 | 6.5 | 3 | 8 | 6 | 0 | 0 | 0.05 | 0.05 | 0 | 0.08 | -10 | 90 | 0.02 | 0 | 42 | 27.6 | 64.8 | 4.8 | ||
| PEP 25 C1 VT | 10701008 | Design 3D | standard, base jaws with bushes | 200 | 260 | 7 | 0.45 | 1 | 52 | 40 | 0 | 350 | 4 | 10 | 8 | 3 | 8 | 6 | 0 | 0 | 0.05 | 0.05 | 0 | 0.18 | -10 | 90 | 0.02 | 0 | 52 | 33.6 | 77.7 | 8.7 | ||
| PEP 32 C1 VT | 10701009 | Design 3D | standard, base jaws with bushes | 290 | 360 | 11 | 0.73 | 1.5 | 60 | 40 | 0 | 500 | 6 | 16 | 14 | 3 | 8 | 6 | 0 | 0 | 0.06 | 0.06 | 0 | 0.38 | -10 | 90 | 0.02 | 0 | 60 | 40 | 84 | 19 | ||
| PEP 40 C1 VT | 10701010 | Design 3D | standard, base jaws with bushes | 445 | 555 | 15 | 1.28 | 2.3 | 75 | 40 | 0 | 600 | 10 | 18 | 16 | 3 | 8 | 6 | 0 | 0 | 0.1 | 0.1 | 0 | 0.68 | -10 | 90 | 0.02 | 0 | 72 | 48 | 103 | 40.5 | ||
| PEP 56 C1 VT | 10701011 | Design 3D | standard, base jaws with bushes | 950 | 1090 | 23.5 | 2.7 | 4.8 | 100 | 40 | 0 | 800 | 15 | 20 | 20 | 3 | 8 | 6 | 0 | 0 | 0.15 | 0.15 | 0 | 1.42 | -10 | 90 | 0.03 | 0 | 98 | 64 | 127 | 130 | ||
| PEP 70 C1 VT | 10701012 | Design 3D | standard, base jaws with bushes | 1440 | 1715 | 31.5 | 5.9 | 7.3 | 125 | 40 | 0 | 1000 | 25 | 40 | 40 | 3 | 8 | 6 | 0 | 0 | 0.25 | 0.25 | 0 | 2.35 | -10 | 90 | 0.03 | 0 | 125 | 79 | 170 | 266 | ||
| PEP 10 C1 VT MC | 10701035 | Design 3D | standard, base jaws with bushes | 38.5 | 0 | 2 | 0.055 | 0.19 | 25 | MC | 40 | 8.5 | 100 | 0.7 | 1 | 2 | 3 | 8 | 6 | 0 | 0 | 0.03 | 0.03 | 0 | 0.015 | -10 | 90 | 0.02 | 0 | 23 | 16.4 | 45 | 0.45 | |
| PEP 16 C1 VT MC | 10701036 | Design 3D | standard, base jaws with bushes | 121 |
| PEP 20 C1 VT MC | 10701037 | Design 3D | standard, base jaws with bushes | 175 | 0 | 5 | 0.23 | 0.87 | 42 | MC | 40 | 25 | 300 | 2.5 | 5 | 6.5 | 3 | 8 | 6 | 0 | 0 | 0.03 | 0.06 | 0 | 0.08 | -10 | 90 | 0.02 | 0 | 42 | 27.6 | 64.8 | 4.8 | |
| PEP 25 C1 VT MC | 10701038 | Design 3D | standard, base jaws with bushes | 247 | 0 | 7 | 0.45 | 1.2 | 52 | MC | 40 | 47 | 350 | 4 | 10 | 8 | 3 | 8 | 6 | 0 | 0 | 0.03 | 0.07 | 0 | 0.18 | -10 | 90 | 0.02 | 0 | 52 | 33.6 | 77.7 | 8.7 | |
| PEP 32 C1 VT MC | 10701039 | Design 3D | standard, base jaws with bushes | 335 | 0 | 11 | 0.73 | 1.65 | 60 | MC | 40 | 45 | 500 | 6 | 16 | 14 | 3 | 8 | 6 | 0 | 0 | 0.05 | 0.1 | 0 | 0.38 | -10 | 90 | 0.02 | 0 | 60 | 40 | 84 | 19 | |
| PEP 40 C1 VT MC | 10701040 | Design 3D | standard, base jaws with bushes | 505 | 0 | 15 | 1.28 | 2.52 | 75 | MC | 40 | 60 | 600 | 10 | 18 | 16 | 3 | 8 | 6 | 0 | 0 | 0.08 | 0.14 | 0 | 0.68 | -10 | 90 | 0.02 | 0 | 72 | 48 | 103 | 40.5 | |
| PEP 56 C1 VT MC | 10701041 | Design 3D | standard, base jaws with bushes | 1085 | 0 | 23.5 | 2.7 | 5.4 | 100 | MC | 40 | 135 | 800 | 15 | 20 | 20 | 3 | 8 | 6 | 0 | 0 |
