Product Information :

Name :
HALS Hansung
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. HALS HANSUNG PRECISION
Brand :
Hansung Precision Co., Ltd.
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
HALS (Coolant Pump) ปั๊มหล่อเย็น HCP-60S HCP-100S HCP-120S HCP-180S HCP-250S HCP-400S

Product Detail :

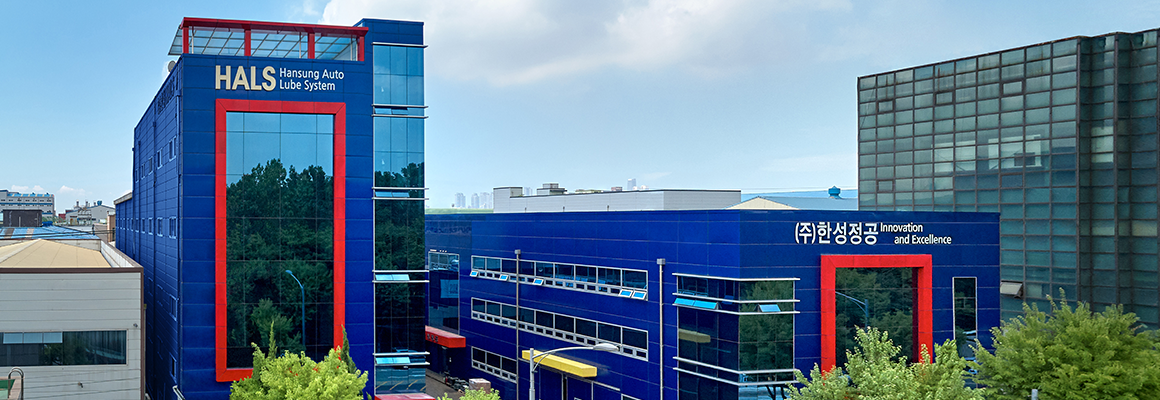

Hansung Precision Co., Ltd.

Hansung Precision Co., Ltd., which has accumulated technology and know-how for more than 30 years since its establishment in 1985, specializes in coolant pumps for machine tools, oil and grease lubrication pumps for industrial machines, including machine tools and injection molding machines.
Hansung Precision Co., Ltd., using the "HALS" brand, is the first company to produce centralized automatic lubrication pump and high pressure precision lubrication system. Our centralized oil and grease lubrication pumps, coolant pumps and rotor pumps, which have high compatibility and reliability with domestic and foreign products, function as core devices not only for machine tools but also for industrial machines.

Since Korea first exported auto lubrication pumps to Japan and Taiwan in the early 1990s, we have been exporting lubrication pumps and coolant pumps under the "HALS" brand to many countries including Japan.
In addition, our production system and high technology are recognized worldwide by ISO 9001, ISO 14001, CE and NRTL certification. As a result, we continue to grow, while maintaining our trust in domestic companies and exporting to many countries around the world.
Hansung Precision Co., Ltd. will share the future of global manufacturing industry with unremitting efforts and investments in the development of new technologies without having to settle for customers' trust and market share.



  • HMGP 303 & 303D

  • HMGP 303S & 303M

  • HMGP 205S

  • HMGP 205C

  • HMGP 6N & 6C

  • HMGP 105N series

  • HMGP 105D series

  • HALS 33

  • HMGP 6A & 6MA

  • HMV series

  • 340 series

  • 350 series

  • HMLV series

  • MIXING VALVE

  • Valve series


  • HCP S series

  • HCP F series

  • HCP F(High Pressure) series

  • HCP EMF(S) series

  • HCP EBMF series

  • HCP EHMF(S) series

  • HCP EHMF series

  • HCP EMS series

  • HCS Suction Filter series



HCP S series



Model

Structure

· A single-unit small self-priming pump

· A pipe is connected to the suction part to suck in oil.

Feature

  • A compact, lightweight single-unit pump.
  • The small, design means less installation limitations
  • Prolonged idling is prohibited due to the installed mechanical seal. (Idling for more than 30 seconds is prohibited)
  • Sufficient quantities of oil need to be supplied to the self priming compartment before use.

Pump Spec

 MOTORPUMP
OUTPUT(W)FREQUENCY(Hz)VOLTAGE(V)CURRENT(A)PHASEPOLESTOTAL HEAD(m)DIS. VOL( l /min)PIPE SIZE(PT)
HCP-60S 60 50 200
380		 0.42
0.24		 3 2 2 20 3/8"
60 200/220
380		 0.45
0.26		 25
HCP-100S 100 50 200
380		 0.51
0.3		 3 2 2 30 3/8"
60 200/220
380		 0.55
0.32		 36
HCP-120S 120 50 200
380		 0.56
0.33		 3 2 2 35 3/8"
60 200/220
380		 0.6
0.35		 42
HCP-180S 180 50 200
380		 0.93
0.53		 3 2 3 58 1/2"
60 200/220
380		 1.0
0.57		 70
HCP-250S 250 50 200
380		 1.4
0.8		 3 2 4 95 3/4"
60 200/220
380		 1.5
0.86		 130
HCP-400S 400 50 200
380		 2.4
1.4		 3 2 5 140 1"
60 200/220
380		 2.5
1.5		 200

Packing Spec

MODEL NAMEPACKING SIZE(cm)WEIGHT(kg)
PUMPPACKING
HCP-60S 18(W) x 16(L) x 26(D) 8 9
HCP-100S
HCP-120S
HCP-180S 26(W) x 21(L) x 21(D) 11 12
HCP-250S 26(W) x 22(L) x 23(D) 12 13
HCP-400S 34(W) x 22(L) x 23(D) 16 17

Performance Curve

* When using non water-soluble cutting fluid, Viscosity must be under 32cSt. Pump performance (pressure and quantity) will decrease compared to water-solube cutting fluid.

External Figure



Dimension

※ LA, LB ( ) are products for export
 ØDL1L2L3L4PE(PT)TLLALBN-ØBPAMPL1PL2
HCP-60S 95 56 55.5 88 68 3/8" 200.5 132(132) 150(130) 4-7 130 130 95 65
HCP-100S 95 15 55.5 88 67.6 3/8" 200.5 132(132) 150(150) 4-7 130 130 95 65
HCP-120S 95 15 55.5 88 67.6 3/8" 200.5 132(132) 150(150) 4-7 130 130 95 65
HCP-180S 121 15 66 81 67.6 1/2" 218.5 167(160) 170(164) 4-10 162 160 110 80
HCP-250S 121 20 71 81 67.6 3/4" 224.5 167(160) 170(170) 4-10 162 160 110 80
HCP-400S 137 14.5 83 133 67.6 1" 307 180(180) - 2-10 180 - 110 88



HCP F series



Model

Structure

· A pump that operates with the pump part submerged in the tank.

· Different pumps can be selected according to tank depths, and can be used without separate oil priming.

Feature

  • The motor and the pump have the same shaft but are separated.
  • Various selections can be made according to the depths of the compact low-set tanks
  • A structure with no additional seals such as a mechanical seal
  • Can be applied to a wide range of parts including grinding machine with mixed abrasive grain.

Pump Spec

 MOTORPUMP
OUTPUT(W)FREQUENCY(Hz)VOLTAGE(V)CURRENT(A)PHASEPOLESTOTAL HEAD(m)DIS. VOL( l /min)PIPE SIZE(PT)
HCP-60F 60 50 200
380		 0.42
0.24		 3 2 2 25 3/8"
60 200/220
380		 0.45
0.26		 32
HCP-100F 100 50 200
380		 0.51
0.3		 3 2 2 37 3/8"
60 200/220
380		 0.55
0.32		 47
HCP-180F 180 50 200
380		 0.93
0.53		 3 2 3 75 1/2"
60 200/220
380		 1.0
0.57		 90
HCP-250F 250 50 200
380		 0.93
0.53		 3 2 4 125 3/4"
60 200/220
380		 1.5
0.86		 150
HCP-400F 400 50 200
380		 2.4
1.4		 3 2 5 160 1"
60 200/220
380		 2.5
1.5		 200

Packing Spec

MODEL NAMEPACKING SIZE(cm)WEIGHT(kg)
PUMPPACKING
HCP-60F 34(W) x 20(L) x 17(D) 7 8
HCP-100F
HCP-180F 40(W) x 22(L) x 21(D) 11 12
HCP-250F 48(W) x 22(L) x 22(D) 15 16
HCP-400F 58(W) x 22(L) x 22(D) 17 18

Performance Curve

* When using non water-soluble cutting fluid, Viscosity must be under 32cSt. Pump performance (pressure and quantity) will decrease compared to water-solube cutting fluid.

External Figure



Dimension

 ØDL1L2L3L4L5L6L7L8PE(PT)TLR1R2LALBN-ØBPL1PL2MML
HCP-60F 94 8 15 155 150 20 90 93 68 3/8" 305 90 90 130
(132)		 130
(130)		 4-7 94 64 128 71
HCP-100F 94 8 15 155 150 20 90 93 68 3/8" 305 90 90 130
(132)		 130
(134)		 4-7 94 64 128 71
HCP-180F 121 10 20 175 171 20 105 93 68 1/2" 346 115 115 160
(160)		 160
(170)		 4-10 109 72.5 145 80
HCP-250F 121 10 25 250 180 20 190 93 68 3/4" 427 128 128 160
(160)		 160
(170)		 4-10 109 75 150 85
HCP-400F 137 11 30 280 232 20 200 143 68 1" 512 135 135 180
(180)		 - 2-10 110 77.5 155 100

HCP F(High Pressure) series



Model

Structure

· A submerged-type pump with the same structure as the HCP-F type.

· There are various pump forms according to the different tank depths.

Feature

  • It has the same separate motor & pump structure as the HCP-F
  • It is used when more pressure than HCP-F is required.
  • There is an anti-vortex part at the top of the pump, which allows smooth suction.
  • The pump is divided into top section suction or bottom section Suction according to the type of the applied tank.
  • HCP-419F,420F are bottom section suction products that have a wide range of suction oil levels.

Pump Spec

 MOTORPUMP
OUTPUT(W)FREQUENCY(Hz)VOLTAGE(V)CURRENT(A)PHASEPOLESTOTAL HEAD(m)DIS. VOL( l /min)PIPE SIZE(PT)
HCP-418F,428F,419F 400 50 200
380		 2.4
1.4		 3 2 12 40 1"
60 200/220
380		 2.5
1.5		 16
HCP-618F,628F 600 50 200
380		 2.79
1.61		 3 2 12 80 1"
60 200/220
380		 3.0
1.73		 16
MOTORPACKING SIZE(cm)WEIGHT(kg)
PUMPPUMP
HCP-418F 46(W) x 23(L) x 24(D) 17 18
HCP-419F 50(W) x 24(L) x 24(D) 18 19
HCP-428F 58(W) x 22(L) x 23(D) 18 19
HCP-618F 46(W) x 23(L) x 24(D) 17 18
HCP-628F 58(W) x 22(L) x 23(D) 18 19

Performance Curve

* When using non water-soluble cutting fluid, Viscosity must be under 32cSt. Pump performance (pressure and quantity) will decrease compared to water-solube cutting fluid.

External Figure



Dimension

 ØDL1L2L3L4L5L6L7L8PE(PT)TLR1R2LAN-ØBPL1PL2MML
HCP-418F/618F 137 10 27 180 234 20 122 143 143 1" 414 152 150 180 4-10.5 110 90 180 100
HCP-419F 137 10 27 210 244 20 185 139 139 1" 454 152 150 180 4-10.5 110 90 180 100
HCP-428F/628F 137 10 27 280 234 20 220 143 143 1" 514 152 150 180 4-10.5 110 90 180 100



HCP EMF(S) series



Model

Feature

  • HCP-□MF(S)

    · It can be applied when large quantities of oil are required

    · The motor part is detached to reduce the transfer of heat

    · A submerged bottom section suction pump that must be kept at least 30mm above the tank floor.

    · The pump part is detached to reduce the entry of oil into the motor.

  • HCP-□EMF(S)

    · High efficiency motor is installed in HCP-MF(S) Type

    · Excellent electricity savings and high economic return on investment through optimized efficiency

    · Increase in life-time use through slow temperature increase and use of highly energy-efficient energy materials

    · Acquired high efficiency energy equipment mark (IE3)

Pump Spec

 MOTORPUMP
OUTPUT(W)FREQUENCY(Hz)VOLTAGE(V)CURRENT(A)PHASEPOLESTOTAL HEAD(m)DIS. VOL( l /min)PIPE SIZE(PT)
HCP-1100EMF(S) 1100 50 200
380		 4.2
2.5		 3 2 6.5 200 1¼"(1½")
60 200/220
380		 4.8
2.8		 10
HCP-1800EMF 1800 50 200
380		 6.6
3.8		 3 2 20 100 1½"
60 200/220
380		 7.0
4.1		 30
HCP-2500EMF 2500 50 200
380		 8.8
5.2		 3 2 30 100 1½"
60 200/220
380		 10.0
5.6		 45
HCP-4000EMF 4000 50 200
380		 16.0
8.5		 3 2 50 100 1½"
60 200/220
380		 18.0
10.7		 70

Packing Spec

MODEL NAMEPACKING SIZE(cm)WEIGHT(kg)
PUMPPACKING
HCP-1100EMF 59(W) x 25(L) x 29(D) 28 29
HCP-1100EMFS 27 28
HCP-1800EMF 63(W) x 29(L) x 30(D) 31 32
HCP-2500EMF 35 36
HCP-4000EMF 80(W) x 27(L) x 31(D) 45 46

Performance Curve

* When using non water-soluble cutting fluid, Viscosity must be under 32cSt. Pump performance (pressure and quantity) will decrease compared to water-solube cutting fluid.

External Figure



Dimension

 ØDL1L2L3L4L5L6L7L8L9L10L11PE(PT)TLR1LAN-ØBPL1PL2MMLPK(PF)
HCP-1100EMF 169 12 40 245 310.5 186 150 220 166 67.6 20 185 1½" 1¼" 555 170 215 4-12 119 95 190 105 2"
HCP-1100EMFS 169 12 40 210 310.5 151 150 220 166 67.6 20 150 1¼" 520 170 215 4-12 119 95 190 105 2"
HCP-1800EMF 164 12 36 245 317 201 134 227 166 80 20 185 1½" 562 170 215 4-12 119 95 190 105 2"
HCP-2500EMF 194 12 36 245 343 201 134 253 166 80 20 185 1½" 588 170 215 4-12 137 100 200 115 2"
HCP-4000EMF 232 12 36 354 377 310 144 277 176 80 20 303 1½" 731 170 215 4-12 162 109 218 115 2"






  • HTOP A(VB) series

  • HTOP F series

  • HMTP-3M-MA(VB)/3M-HAVB(VD) series

  • OIL COOLER 3M-MA(VB)

  • HTP (HA/HB)(VB/VD)series

  • HMTP 3M-HA(VB/VD)series

  • HMTP 3M-HAVBF series

  • HMTP 1M-HA(VB/VD) series



HTOP A(VB) series



Model

Structure

· An internal gear bulk pump. It is small compared to external gear pumps, and can be connected to motor drive parts to operate the pump.

Feature

  • A volume pump that allows precise fluid delivery according to the rev counts
  • It has a wide flow range according to the rev counts
  • A relief valve can be added to allow easy pressure setting adjustments.

Pump Spec

 THEORY DISCHARGE AMOUNT(cm³/rev)DISCHARGE AMOUNT(l /min)MAX. PRESSURE(kg/cm²)MAX. R.P.MPACKING SIZE (cm)WEIGHT(kg)
1500rpm1800rpmPUMPPACKING
HTOP-11A 1.5 2.2 2.7 5.0 2000 10(W)x8(L)x9(D) 0.6 0.7
HTOP-12A 2.5 3.7 4.5 5.0 1800
HTOP-13A 4.5 6.7 8.1 5.0 1800 0.8 0.9
HTOP-11AVB 1.5 2.2 2.7 5.0 2000
HTOP-12AVB 2.5 3.7 4.5 5.0 1800 0.9 1
HTOP-13AVB 4.5 6.7 8.1 5.0 1800 1 1.1

External Figure

TYPEABCDN-P
HTOP-11A 12 8 12 57 2-PT 1/8"
HTOP-12A 12 8 12 62 2-PT 1/4"
HTOP-13A 14 5 14 76.5 2-PT 3/8"
TYPEABCDFN-P
HTOP-11AVB 12 8 12 72 43 2-PT 1/8"
HTOP-12AVB 12 8 12 77 48 2-PT 1/4"
HTOP-13AVB 14 5 14 91.5 63.5 2-PT 3/8"


HTOP F series



Model

Structure

· It is capable of equal suction and discharge regardless of motor rev direction

· The internal eccentric stator rotates the rotor by 180°

Feature

  • The simple structure means easy installation and repairs
  • The compact design reduces installation space limitations
  • It is used not only in machine tools and industrial machines, but also in agriculture

Pump Spec

 THEORY DISCHARGE AMOUNT(cm³/rev)DISCHARGE AMOUNT(l /min)MAX. PRESSURE(kg/cm²)MAX. R.P.MPACKING SIZE (cm)WEIGHT(kg)
1500rpm1800rpmPUMPPACKING
HTOP-2F 1.80 2.70 3.24 5.0 2000 10(W)x8(L)x9(D) 1 1.1
HTOP-3F 2.50 3.75 4.50 5.0 2000 1.1 1.2

External Figure

By having the one-sided spinning of GEROTOR spin in 180 degree in the spinning direction using a special ring, it was designed to fixed the direction of oil flow in one direction regardless of the spinning direction.

External Figure

TYPEABN-PD
HTOP-2F 32 84 2-PT 1/4" 77
HTOP-3F 35 87 2-PT 1/4" 77


HMTP 3M-MA(VB)



Model

Structure

· A pump produced by connecting a motor to the HTOP A(VB) product

· It is useable with only a power supply, and is separated into a horizontal type or a vertical type.

Feature

  • Identical assembly structure means various performances can be achieved simply by changing the pump.
  • The compact size is useful for use in limited installation spaces.
  • The standard form is the horizontal, but it can also be used in a vertical form if the installation space is limited.

Pump Spec

TYPE50Hz 4P(1500rpm)60Hz 4P(1800rpm)
DISCHARGE AMOUNT(ℓ/min)PRESSURE(kg/cm²)DISCHARGE AMOUNT(ℓ/min)PRESSURE(kg/cm²)
HMTP-11MA(VB) 2.2 5.0 2.7 5.0
HMTP-12MA(VB) 3.7 5.0 4.5 5.0
HMTP-13MA(VB) 6.7 5.0 8.1 5.0
HMTP-3M-212HA(VB/VD) 18 1.5 21.6 1.0

Motor Spec

OUTPUT(W)FREQUENCY(Hz)VOLTAGE(V)CURRENT(A)R.P.MPHASEPOLESPACKING SIZE(cm)MOTOR WEIGHT(kg)
75W 50 200 0.56 1390 3 4 34(W)x20(L)x18(D) 8
380 0.32 1390
60 200 0.51 1660
220 0.52 1690
380 0.28 1690
100W 50 200 0.65 1430 3 4 34(W)x22(L)x17(D)
380 0.4 1430
60 200 0.6 1720
220 0.6 1730
380 0.3 1730
200W 50 200 1.3 1430 3 4
380 0.9 1430
60 200 1.1 1690
220 1.1 1710
380 0.6 1710

External Figure

MA

TYPEATLP
HMTP-11MA 37 234.5 PT 1/8"
HMTP-12MA 42 239.5 PT 1/4"

MAVB

TYPEATLP
HMTP-11MAVB 52 249.5 PT 1/8"
HMTP-12MAVB 57 254.5 PT 1/4"

MA-F

TYPEABTLP
HMTP-11MA 12 37 274.5 PT 1/8"
HMTP-12MA 12 42 279.5 PT 1/4"
HMTP-13MA 14 57 294.5 PT 3/8"

MAVB-F

TYPEABTLP
HMTP-11MAVB 12 52 289.5 PT 1/8"
HMTP-12MAVB 12 57 294.5 PT 1/4"
HMTP-13MAVB 14 73 310.5 PT 3/8"

HAVB(VD)

TYPEABTLP
HMTP-HAVB(VD) 19 96 2920 PT 3/4"

HMTP 3M-HA(VB/VD)series



External Figure

MA-V

TYPEATLP
HMTP-11MA 37 234.5 PT 1/8"
HMTP-12MA 42 239.5 PT 1/4"

MAVB-V

TYPEATLP
HMTP-11MAVB 52 249.5 PT 1/8"
HMTP-12MAVB 57 254.5 PT 1/4"

MA-FV

TYPEABTLP
HMTP-11MA 12 37 274.5 PT 1/8"
HMTP-12MA 12 42 279.5 PT 1/4"
HMTP-13MA 14 57 294.5 PT 3/8"

MAVB-FV

TYPEABTLP
HMTP-11MAVB 12 52 289.5 PT 1/8"
HMTP-12MAVB 12 57 294.5 PT 1/4"
HMTP-13MAVB 14 73 310.5 PT 3/8"


HTP (HA/HB)(VB/VD)series



Model

Structure

· An internal gear bulk type pump structure that can operate the pump with a motor power supply. The connection section is identical, but it has a wife range of performances according to the shape of the internal gear.

Feature

  • It uses a double oil seal to minimize oil leaks.
  • Water-soluble cutting fluids can be used.
  • It uses a fluoride oil seal, and can be used at high temperature
  • A relief valve can be attached for easy pressure control
  • VD is an external drain relief valve.

Pump Spec

TYPE50Hz 4P(1500rpm)60Hz 4P(1800rpm)
DISCHARGE AMOUNT(ℓ/min)MAX. DISCHARGE PRESSURE(kg/cm²)DISCHARGE AMOUNT(ℓ/min)MAX. DISCHARGE PRESSURE(kg/cm²)
400W750W1500W400W750W1500W
HTP-204(HA/HB)(VB/VD) 6.3 21.5 30.0 30.0 7.5 16 30.0 30.0
HTP-206(HA/HB)(VB/VD) 9.0 10.5 25.0 25.0 10.8 7.0 23.5 25.0
HTP-208(HA/HB)(VB/VD) 12.6 7.0 23.0 25.0 15.1 4.0 17.5 25.0
HTP-210(HA/HB)(VB/VD) 15.3 4.5 15.5 25.0 18.3 2.5 11.5 25.0
HTP-212(HA/HB)(VB/VD) 18.0 3.5 13.5 20.0 21.6 - 8.5 20.0
HTP-216(HA/HB)(VB/VD) 24.3 2.0 8.5 20.0 29.1 - 5.5 19.5
HTP-220(HA/HB)(VB/VD) 29.7 - 5.5 15.5 35.6 - 3.5 14.0

Performance Curve

External Figure



Dimension

TYPEABN-P(PT)
HTP-204HA(VB/VD) 83 7 2-1/2"
HTP-206HA(VB/VD) 86 10 2-1/2"
HTP-208HA(VB/VD) 90 14 2-1/2"
HTP-210HA(VB/VD) 93 17 2-3/4"
HTP-212HA(VB/VD) 96 20 2-3/4"
HTP-216HA(VB/VD) 103 27 2-3/4"
HTP-220HA(VB/VD) 109 33 2-3/4"
TYPEABN-P(PT)
HTP-204HBVB 126.5 7 2-1/2"
HTP-206HBVB 129.5 10 2-1/2"
HTP-208HBVB 133.5 14 2-1/2"
HTP-210HBVB 136.5 17 2-3/4"
HTP-212HBVB 139.5 20 2-3/4"
HTP-216HBVB 146.5 27 2-3/4"
HTP-220HBVB 152.5 33 2-3/4"



HMTP 3M-HA(VB/VD)series



Model

Feature

· A single-unit pump produced by connecting a motor to the HTP-HAVB pump.

· It does not require a separate power source.

· It has a wide range of performances according to motor output.

Structure

  • HMTP-3M-HA(VB-VD)

    · Various applications are possible according to relief valve shape

    · A coupling connection type, and is easy to maintain.

    · The F Type has a built in suction filter, and therefore does not require additional filter attachments.

  • HMTP-3M-HA(VB-VD)-E/P

    · Install high efficiency motor to HMTP-3M-HA(VBND) Type.

    · By maximizing efficiency, high economic efficiency is obtained in terms of excellent electricity savings and return on investment.

    · Low temperature increase and use of highly conductive materials increase life-time period.

    · Acquired high efficiency energy materials mark. (IE3)

Pump Spec

TYPE50Hz 4P(1500rpm)60Hz 4P(1800rpm)
DISCHARGE AMOUNT(ℓ/min)MAX. DISCHARGE PRESSURE(kg/cm²)DISCHARGE AMOUNT(ℓ/min)MAX. DISCHARGE PRESSURE(kg/cm²)
400W750W1500W400W750W1500W
HMTP-204HA(VB/VD) 6.3 21.5 30.0 30.0 7.5 16 30.0 30.0
HMTP-206HA(VB/VD) 9.0 10.5 25.0 25.0 10.8 7.0 23.5 25.0
HMTP-208HA(VB/VD) 12.6 7.0 23.0 25.0 15.1 4.0 17.5 25.0
HMTP-210HA(VB/VD) 15.3 4.5 15.5 25.0 18.3 2.5 11.5 25.0
HMTP-212HA(VB/VD) 18.0 3.5 13.5 20.0 21.6 - 8.5 20.0
HMTP-216HA(VB/VD) 24.3 2.0 8.5 19.6 29.1 - 5.5 19.1
HMTP-220HA(VB/VD) 29.7 - 5.5 15.5 35.6 - 3.5 14.0

Motor Spec

OUTPUT(W)FREQUENCY(Hz)VOLTAGE(V)CURRENT(A)R.P.MPHASEPOLESPACKING SIZE(cm)MOTOR WEIGHT(kg)
400W 50 200 2.4 1420 3 4 42(W) x 22(L) x 21(D) 8
380 1.3 1420
60 200 2.2 1700
220 2.2 1720
380 1.2 1720
750W 50 200 3.5 1430 3 4 45(W) x 25(L) x 22(D) 13
380 1.9 1440
60 200 3.4 1710
220 3.4 1730
380 1.8 1730
1500W 50 200 6.9 1430 3 4 46(W) x 27(L) x 24(D) 18
380 3.9 1430
60 200 6.6 1720
220 6.6 1730
380 3.7 1730

External Figure

HA

HAVB

HAVD

Dimension

 OUTPUTCØDEFGLØdMNQRCDH
MOTOR400W 75.5 146 170 245.5 113 F+A 7 112 90 112 142 125 71
750W 77.5 169 209 286 139 F+A 10 132 100 125 163 135 80
1500W 85.5 196 234 319.5 153 F+A 10 156 125 140 172 140 90
TYPEABN-P(PT)
HMTP-204HA(VB/VD) 83 7 2-1/2"
HMTP-206HA(VB/VD) 86 10 2-1/2"
HMTP-208HA(VB/VD) 90 14 2-1/2"
HMTP-210HA(VB/VD) 93 17 2-3/4"
HMTP-212HA(VB/VD) 96 20 2-3/4"
HMTP-216HA(VB/VD) 103 27 2-3/4"
HMTP-220HA(VB/VD) 109 33 2-3/4"

External Figure

HA-E/P

HAVB-E/P

HAVD-E/P

Dimension

 OUTPUTCØDEFGLØdMNQRCDH
MOTOR(Efficiency)750W 86 169 206.5 292.5 136.5 F+A 10 132 100 125 163 135 80
1500W 90.5 196 236 326.5 155 F+A 10 156 125 140 172 140 90
MOTOR(Premium))750W 85.5 158 230.5 316 154 F+A 10 120 100 125 150 132 52
1500W 101.5 178 230 331.5 145 F+A 10 148 125 140 171 142 62
TYPEABN-P(PT)
HMTP-203HA(VB/VD) 81 5 2-1/2"
HMTP-204HA(VB/VD) 83 7 2-1/2"
HMTP-206HA(VB/VD) 86 10 2-1/2"
HMTP-208HA(VB/VD) 90 14 2-1/2"
HMTP-210HA(VB/VD) 93 17 2-3/4"
HMTP-212HA(VB/VD) 144 20 2-3/4"
HMTP-216HA(VB/VD) 151 27 2-3/4"
HMTP-220HA(VB/VD) 145 33 2-3/4"


HMTP 3M-HAVBF series



Model

Structure

· Suction filter is installed on the existing HTMP-3M-HAVB Pump.

· High efficiency motor can be used for 750,1500W.

Feature

  • It sucks in liquid that penetrates suction filter installed in the upper part of the pump and therefore impure materials cannot enter inside the pump.
  • It is installed directly to pump and therefore no separate wiring connection is necessary.
  • Replacement and cleaning of filter is simple.
  • Vacuum pressure machine installed on filter body is used to determine when to do filter cleaning.

Dimension

 OUTPUTCØDEFGLØdMNQRCDH
MOTOR400W 75.5 146 170 245.5 113 F+A 7 112 90 112 142 125 71
750W 77.5 169 209 286 139 F+A 10 132 100 125 163 135 80
1500W 85.5 196 234 319.5 153 F+A 10 156 125 140 172 140 90
TYPEABN-P(PT)
HMTP-204HA(VB/VD) 83 7 2-1/2"
HMTP-206HA(VB/VD) 86 10 2-1/2"
HMTP-208HA(VB/VD) 90 14 2-1/2"
HMTP-210HA(VB/VD) 93 17 2-3/4"
HMTP-212HA(VB/VD) 96 20 2-3/4"
HMTP-216HA(VB/VD) 103 27 2-3/4"
HMTP-220HA(VB/VD) 109 33 2-3/4"

Fiter Cleaning Method

  • Check cleaning period

    If the marker in the vacuum pressure machine goes above the red area (-0.006MPa), it is a filter cleaning period. Filter must be cleaned according to the method below and used. If pump operates continuously with the red marker staying in the same location, it becomes a cause for pump or motor damage and therefore period inspection is necessary.

  • Cleaning method

    1. Removing oil inside the filter
    Used oil inside the filter is removed using short spinning of the pump and air vent.

    2. Disassembling filter cap
    Use a spanner to disassemble filter cap.

    3. Filter disassembling
    Disassemble the filter fixed in the filter body.

    4. Filter cleaning
    Use pressuring air to completely remove impure substances attached to the filter mesh in the disassembled filer.

    5. Resassembling
    Reassembling occurs in reverse sequence of assembling. In addition, make sure air vent is completely locked before operating. (If it is open, air can come inside the pump and therefore noise creation and normal operation will not done).

External Figure

204~210HAVBF-(E)

212~220HAVBF-(E)

Dimension

HMTP-3M-□HAVBF

 OUTPUTCØDEFGLØdMNQRCDH
MOTOR400W 75.5 146 170 245.5 113 F+A 7 112 90 112 142 125 71
750W 77.5 169 209 286 139 F+A 10 132 100 125 163 135 80
1500W 85.5 196 234 319.5 153 F+A 10 156 125 140 172 140 90

HMTP-3M-□HAVBF-E

 OUTPUTCØDEFGLØdMNQRCDH
MOTOR750W 86 169 206.5 292.5 136.5 F+A 10 132 100 125 163 135 80
1500W 90.5 196 236 326.5 155 F+A 10 156 125 140 172 140 90
TYPEABN-P(PT)
HMTP-204HAVB 83 7 2-1/2"
HMTP-206HAVB 86 10 2-1/2"
HMTP-208HAVB 90 14 2-1/2"
HMTP-210HAVB 93 17 2-3/4"
HMTP-212HAVB 96 20 2-3/4"
HMTP-216HAVB 103 27 2-3/4"
HMTP-220HAVB 109 33 2-3/4"


HMTP 1M-HA(VB/VD) series



Model

Structure

· Integrated pump that combined motor to HTP-HA(VB/VD)

· Possible to assemble 400W, 750W motors according to motor output.

Feature

  • 100V/220V motor one-body pump.
  • Use the pump same as HMTP-3M-HA(VB/VD).
  • Use small to medium oil quantity type.

Pump Spec

TYPE50Hz 4P(1500rpm)60Hz 4P(1800rpm)
DISCHARGE AMOUNT(ℓ/min)MAX. DISCHARGE PRESSURE(kg/cm²)DISCHARGE AMOUNT(ℓ/min)MAX. DISCHARGE PRESSURE(kg/cm²)
400W750W400W750W
HTP-204HAVB 6.3 21.5 30.0 7.5 16 30.0
HTP-206HAVB 9.0 10.5 25.0 10.8 7.0 23.5
HTP-208HAVB 12.6 7.0 23.0 15.1 4.0 17.5
HTP-210HAVB 15.3 4.5 15.5 18.3 2.5 11.5
HTP-212HAVB 18.0 3.5 13.5 21.6 - 8.5
HTP-216HAVB 24.3 2.0 8.5 29.1 - 5.5
HTP-220HAVB 29.7 - 5.5 35.6 - 3.5

Motor Spec

OUTPUT(W)FREQUENCY(Hz)VOLTAGE(V)CURRENT(A)R.P.MPHASEPOLESPACKING SIZE(cm)MOTOR WEIGHT(kg)
400W 50 100 8.4 1420 1 4 45(W) x 25(L) x 22(D) 8
200 7.6 1710
60 100 4.2 1420
200 3.8 1710
750W 50 100 11.2 1450 46(W) x 27(L) x 24(D) 13
200 9.6 1740
60 100 5.7 1450
200 4.9 1740

External Figure

HA

HAVB

HAVD

Dimension

 OUTPUTEFGLMNR
MOTOR400W 176 267 96 F+A 130 100 192
750W 216 307 123 F+A 150 125 175
TYPEABN-P(PT)
HMTP-204HAVB 83 7 2-1/2"
HMTP-206HAVB 86 10 2-1/2"
HMTP-208HAVB 90 14 2-1/2"
HMTP-210HAVB 93 17 2-3/4"
HMTP-212HAVB 96 20 2-3/4"
HMTP-216HAVB 103 27 2-3/4"
HMTP-220HAVB 109 33 2-3/4"








HGP 10□MG

Cartridge Exclusive Grease

Model

Circuit Diagram

Feature

· Compact and lightweight design with built-in depressurization features for the supply of quantitative grease

· This grease pump is assembled with the metering valve and discharges the quantity of grease on time.

· Easy to replace cartridge to recharge grease, maintaining a clean environment

· A grease pump that is designed to be excellent at lubrication points, such as the LM guide and ball screw

· Designated grease (NLGI Grade 000, 00, 0, 1) using pump

Specification

MOTOR SPECIFICATION
Out Put 8W
RPM 6500
Voltage(V) DC 24V
Current(A) 0.8A
GREASE SPECIFICATION
Cartridge Vol. (ml) 700
Constency (NLGI Grade) 전용 000
General 00, 0, 1
Worked Penetration 25℃
(NLGI 000~1)		 310~475
Density (g/cm²,15℃)
(NLGI)		 0.89
PUMP SPECIFICATION
Operating Temperature -10℃ ~ +45℃
Discharging Pressure (kg/cm²) HMG:80, LMG:50
Discharging Volume (cc/min) 7
Power Consumption 24W
Interval Time More than 10 minutes
Discharging Port PT1/8″
Weight (Kg) 2.5

External Figure



HGP 16 series

Compeact Elextric Grease Pump Type

Model

Feature

HGP-16 type is a reduction motor-driven grease pump that supplements the problems of existing large pumps, and is a compact and powerful controller-equipped grease pump.

· It is compact, lightweight and affordable.

· A controller-equipped grease pump.(HGP-(□))

· It has to used with a multi-stage distributor combination.

· For use in two line systems, it is used in conjunction with change over valves.

※ If there is no discharge, remove air by opening the air vent plug's plug.
※ Grease level switch is an order specification
※ HGP-16(S) is an order specification used for external control.

HGP-□E > for external control
HGP-16 Etype has the same pump structure as the traditional HGP-O, but uses an external control method rather than an internal controller to increase the user's range of choices.

Tank Spec

TypeHGP-□HGP-□C
TANK CAPACITY 2Liter 200, 500, 800cc
WEIGHT 5kg 4.5kg
USING GREASE #000~#1
NUMBER OF OUTLET 24

Packing Spec

PACKING SIZE (cm) 25(W) x 17(L) x 37(D)
WEIGHT
(kg)		PUMP 5
PACKING 6

Pump Spec

PUMP SPEC.
MODELHGP-16HGP-16(S)HGP-16EHGP-40E
PUMP TYPE PISTON
DIS. PRESSURE(kg/cm²) 120 120 160 100
DIS. AMOUNT(cc/min) 16 16 16 40
USING PRESSURE(kg/cm²) 60
INTERVAL 1~32Hr External control
DISCHARGE TIME 10~120SEC
MOTOR SPEC.
OUTPUT 100W 25W 25W
PHASE 1ø 1ø 1ø
VOLTAGE (V) 110 220 110 220 110 220
CURRENT (A) 3 1.5 0.6 0.3 0.6 0.3

External Figure


Power W(white), B(black) - 2P, 4P, 6P
Wires G(green), R(red) - 4P
Y(yellow), G(green),
L(blue), R(red) -6P
Normal power & grease [(G,R - 4P), (Y,G - 6P)] : N . O connector


MG 10

Manual Pump

Model

Feature

MG-10, the forced oil supply manual grease pump, adopts a concentrated lubricating oil supply method to allow suitable planning of oil supply quantities, and increases productivity through reduced oil supply costs and machine stoppage time. The elimination of risks that can happen during grease injections allows safer management of oil supply.
- It allows suitable planning of oil supply quantities, and the use of a HU-R type grease spray allows multi-stage oil supply.
- It can extend the lifespan of machines and bearings.
- It can prevent the entry of contaminated grease.
- If there is no grease discharge, unscrew the air vent screw(-) and remove the air inside the body.

Pump Spec

PUMP TYPE PISTON
DIS. PRESSURE MAX. 130kg/cm²
DISCHARGE AMOUNT 1.0cc/st
TANK CAPACITY 600cc
SIZE OF OUTLET PT 1/8"
USING GREASE #000~#1
REMARK -

Packing Spec

PACKING SIZE (cm) 32(W) x 10(L) x 14(D)
WEIGHT
(kg)		PUMP 3
PACKING 4

External Figure



HM Series

Manual Pump

Model

Feature

The HM pump is a compact manual grease pump, and is used to supply smaller discharge quantities compared to automatic pumps, and is applied to systems with relatively small lubricating oil supplies. The maximum discharge pressure is divided into 100kg/cm² or 210kg/cm² depending on the quantity of discharge, and the tank is separated into a 2liter or a 4liter. Exchange of the discharge part's block allows attachments of switching sides when applying single line and two line. The simple operation method means less breakdowns, and easier repairs and maintenance.

PUMP SPEC

TYPE HM□-21 HM□-41 HM□-22 HM□-42
DISCHARGE AMOUNT (cc/st) 7 3.5
MAX. DISCHARGE PRESSURE (kg/cm²) 100 210
TANK CAPACITY (Liter) 2 4 2 4
WEIGHT (kg) 8 9 8 9

Dimension

MODEL H1 H2
MIN. MAX.
HM□-21HM□-22 350.5 526.5 324.2
HM□-41HM□-42 550.5 726.5 524.2

External Figure






Product Description







Structure

· A single-unit small self-priming pump
· A pipe is connected to the suction part to suck in oil.



Feature

1. A compact, lightweight single-unit pump.

2. The small, design means less installation limitations

3. Prolonged idling is prohibited due to the installed mechanical seal. (Idling for more than 30 seconds is prohibited)



4. Sufficient quantities of oil need to be supplied to the self priming compartment before use.





Pump Spec




MOTOR

PUMP

OUTPUT

(W)

FREQUENCY(Hz)

VOLTAGE(V)

CURRENT(A)

PHASE

POLES

TOTAL HEAD(m)

DIS. VOL

( l /min)

PIPE SIZE(PT)

HCP-60S

60

50

200

380

0.42

0.24

3

2

2

20

3/8"

60

200/220

380

0.45

0.26

25

HCP-100S

100

50

200

380

0.51

0.3

3

2

2

30

3/8"

60

200/220

380

0.55

0.32

36

HCP-120S

120

50

200

380

0.56

0.33

3

2

2

35

3/8"

60

200/220

380

0.6

0.35

42

HCP-180S

180

50

200

380

0.93

0.53

3

2

3

58

1/2"

60

200/220

380

1.0

0.57

70

HCP-250S

250

50

200

380

1.4

0.8

3

2

4

95

3/4"

60

200/220

380

1.5

0.86

130

HCP-400S

400

50

200

380

2.4

1.4

3

2

5

140

1"

60

200/220

380

2.5

1.5

200






Packing Spec

MODEL NAMEPACKING SIZE(cm)WEIGHT(kg)
PUMPPACKING
HCP-60S 18(W) x 16(L) x 26(D) 8 9
HCP-100S
HCP-120S
HCP-180S 26(W) x 21(L) x 21(D) 11 12
HCP-250S 26(W) x 22(L) x 23(D) 12 13
HCP-400S 34(W) x 22(L) x 23(D) 16 17






Performance Curve


* When using non water-soluble cutting fluid, Viscosity must be under 32cSt. Pump performance (pressure and quantity) will decrease compared to water-solube cutting fluid.











External Figure





Dimension
※ LA, LB ( ) are products for export



ØD

L1

L2

L3

L4

PE(PT)

TL

LA

LB

N-ØB

PA

M

PL1

PL2

HCP-60S

95

56

55.5

88

68

3/8"

200.5

132(132)

150(130)

4-7

130

130

95

65

HCP-100S

95

15

55.5

88

67.6

3/8"

200.5

132(132)

150(150)

4-7

130

130

95

65

HCP-120S

95

15

55.5

88

67.6

3/8"

200.5

132(132)

150(150)

4-7

130

130

95

65

HCP-180S

121

15

66

81

67.6

1/2"

218.5

167(160)

170(164)

4-10

162

160

110

80

HCP-250S

121

20

71

81

67.6

3/4"

224.5

167(160)

170(170)

4-10

162

160

110
<p id="

Other Product In Group "HALS HANSUNG PRECISION (7)"

Grease Pump
HANSUNG Rotor Pump
Coolant Pump
HALS Lube Pump
HALS ปั๊มหล่อลื่น ปั๊มจารบี ปั๊มคูลแลนท์
HALS COOLANT PUMP ปั๊มหล่อเย็น
HALS
View All
