Product Information :

Name :
HALS COOLANT PUMP ปั๊มหล่อเย็น
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. HALS HANSUNG PRECISION
Brand :
HALS Hansung Precision ปั๊มหล่อเย็น
Model :
HALS COOLANT PUMP ROTOR PUMP OIL PUMP GREASE PUMP
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
HALS COOLANT PUMP ปั๊มหล่อเย็น ROTOR PUMP OIL PUMP GREASE PUMP HCP-60S ปั๊มหล่อเย็น ปั๊มหล่อเย็น (Coolant Pump) HALS COOLANT PUMP ปั๊มหล่อเย็น HALS COOLANT PUMP ปั๊มหล่อเย็น HCP-100S HALS COOLANT PUMP ปั๊มหล่อเย็น HCP-120S HCP-180S HCP-250S HCP-400S HCP-60F HCP-100F HCP-180F HCP-250F HCP-258F HCP-400F HCP-180F-18, 25 HCP-250F-18, 25 HCP-250FL-25 HCP-418F, 428F 419F, 420F HCP-618F, 628F, 620F HCP-400MF HCP-900MF(S) HCP-1500MF HCP-2200MF HCP-3000MF HCP-3700MF HCP-1500BMF HCP-2200BMF 3700HMF130A 3700HMF130B 3700HMF130C 3700HMF130D 3700HMF200A 3700HMF200B 3700HMF200C 3700HMF200D HCP-400SMF HCP-900SMF HCP-900SMFS HCP-1500SMF HCP-2200SMF HCP-3000SMF HCP-3700SMF HCP-900SHMF HCP-900SHMFS HCP-1500SHMF HCP-1500SHMFS HCP-2200SHMF HCP-2200SHMFS HCP-3700SHMF HCP-3700SHMFS HCP-750HM20 HCP-900SHM30 HCP-900SHM40 HCP-550SHHM20 HCP-750SHHM30 HCP-900SHHM40 HCP-750MSF HCP-900MSF HCP-750HMSF HCP-900HMSF HSC-60F HSC-100F HSC-180F HSC-250F HSC-258F HSC-400F HSC-418F HSC-428F HSC-900MF HSC-900MFS HTOP-11A HTOP-12A HTOP-13A HTOP-11AVB HTOP-12AVB HTOP-13AVB HTOP-2F HTOP-3F HTP-203HA(VB/VD) HTP-204HA(VB/VD) HTP-206HA(VB/VD) HTP-208HA(VB/VD) HTP-210HA(VB/VD) HTP-212HA(VB/VD) HTP-216HA(VB/VD) HTP-220HA(VB/VD) HMTP-203HA(VB/VD) HMTP-204HA(VB/VD) HMTP-206HA(VB/VD) HMTP-208HA(VB/VD) HMTP-210HA(VB/VD) HMTP-212HA(VB/VD) HMTP-216HA(VB/VD) HMTP-220HA(VB/VD) HMTP-11MA(VB) HMTP-12MA(VB) HMTP-13MA(VB) HMGP-303S HMGP-303M HM□-21 HM□-22 HM□-41 HM□-42 HEP-1□ HEP-2□ HEP-181 HEP-182 HEP-183 HEP-15 HGP-16(S) HGP-16E HGP-40E HGP-60E HGP-720 HGP-950 HGP-1200

Product Detail :

HALS COOLANT PUMP ปั๊มหล่อเย็น

HALS COOLANT PUMP ปั๊มหล่อเย็น ROTOR PUMP OIL PUMP GREASE PUMP HCP-60S ปั๊มหล่อเย็น ปั๊มหล่อเย็น (Coolant Pump) HALS COOLANT PUMP ปั๊มหล่อเย็น HALS COOLANT PUMP ปั๊มหล่อเย็น
HCP-100S HALS COOLANT PUMP ปั๊มหล่อเย็น
HCP-120S
HCP-180S
HCP-250S
HCP-400S
HCP-60F
HCP-100F
HCP-180F
HCP-250F
HCP-258F
HCP-400F
HCP-180F-18, 25
HCP-250F-18, 25
HCP-250FL-25
HCP-418F, 428F
419F, 420F
HCP-618F, 628F,
620F
HCP-400MF
HCP-900MF(S)
HCP-1500MF
HCP-2200MF
HCP-3000MF
HCP-3700MF
HCP-1500BMF
HCP-2200BMF
3700HMF130A
3700HMF130B
3700HMF130C
3700HMF130D
3700HMF200A
3700HMF200B
3700HMF200C
3700HMF200D
HCP-400SMF
HCP-900SMF
HCP-900SMFS
HCP-1500SMF
HCP-2200SMF
HCP-3000SMF
HCP-3700SMF
HCP-900SHMF
HCP-900SHMFS
HCP-1500SHMF
HCP-1500SHMFS
HCP-2200SHMF
HCP-2200SHMFS
HCP-3700SHMF
HCP-3700SHMFS
HCP-750HM20
HCP-900SHM30
HCP-900SHM40
HCP-550SHHM20
HCP-750SHHM30
HCP-900SHHM40
HCP-750MSF
HCP-900MSF
HCP-750HMSF
HCP-900HMSF
HSC-60F
HSC-100F
HSC-180F
HSC-250F
HSC-258F
HSC-400F
HSC-418F
HSC-428F
HSC-900MF
HSC-900MFS
HTOP-11A
HTOP-12A
HTOP-13A
HTOP-11AVB
HTOP-12AVB
HTOP-13AVB
HTOP-2F
HTOP-3F
HTP-203HA(VB/VD)
HTP-204HA(VB/VD)
HTP-206HA(VB/VD)
HTP-208HA(VB/VD)
HTP-210HA(VB/VD)
HTP-212HA(VB/VD)
HTP-216HA(VB/VD)
HTP-220HA(VB/VD)
HMTP-203HA(VB/VD)
HMTP-204HA(VB/VD)
HMTP-206HA(VB/VD)
HMTP-208HA(VB/VD)
HMTP-210HA(VB/VD)
HMTP-212HA(VB/VD)
HMTP-216HA(VB/VD)
HMTP-220HA(VB/VD)
HMTP-11MA(VB)
HMTP-12MA(VB)
HMTP-13MA(VB)
HMGP-303S HMGP-303M
HM□-21 HM□-22
HM□-41 HM□-42
HEP-1□ HEP-2□
HEP-181 HEP-182 HEP-183 HEP-15
HGP-16(S) HGP-16E HGP-40E HGP-60E
HGP-720 HGP-950 HGP-1200



MOTOR PUMP
Output
(W)		 Frequency
(Hz)		 Voltage
(V)		 Current
(A)		 Phase Poles Total Head
(m)		 Dis. Vol
( l /min)		 Pipe Size
(PT)		 Weight
(kg)
HCP-60S 60 50 200
380		 0.42
0.24		 3 2 2 20 3/8 6.9
60 200/220
380		 0.45
0.26		 25
HCP-100S 100 50 200
380		 0.51
0.3		 3 2 2 30 3/8 7.1
60 200/220
380		 0.55
0.32		 36
HCP-120S 120 50 200
380		 0.56
0.33		 3 2 2 35 3/8 9.1
60 200/220
380		 0.6
0.35		 42
HCP-180S 180 50 200
380		 0.93
0.53		 3 2 3 58 1/2 11.1
60 200/220
380		 1.0
0.57		 70
HCP-250S 250 50 200
380		 1.4
0.8		 3 2 4 95 3/4 11.3
60 200/220
380		 1.5
0.86		 130
HCP-400S 400 50 200
380		 2.4
1.4		 3 2 5 140 1 15
60 200/220
380		 2.5
1.5		 200



ØD L1 L2 L3 L4 PE(PT) TL LA LB N-ØB PA M PL1 PL2
HCP-60S 94 15 55.5 92.5 67.6 2-⅜ 200.5 132(132) 150(130) 4-7 130 130 93.5 65
HCP-100S 94 15 55.5 92.5 67.6 2-⅜ 200.5 132(132) 150(150) 4-7 130 130 93.5 65
HCP-120S 94 15 55.5 92.5 67.6 2-⅜ 200.5 132(132) 150(150) 4-7 130 130 93.5 65
HCP-180S 121 15 66 93 67.6 2-½ 218.5 167(160) 170(164) 4-10 162 160 108.5 80
HCP-250S 121 20 71 93 67.6 2-¾ 224.5 167(160) 170(170) 4-10 162 160 108.5 80
HCP-400S 137 14.5 83 143 67.6 2-1 301 180(180) - 2-10 180 - 110 88



MOTOR PUMP
Output
(W)		 Frequency
(Hz)		 Voltage
(V)		 Current
(A)		 Phase Poles Total Head
(m)		 Dis. Vol
( l /min)		 Pipe Size
(PT)		 Weight
(kg)
HCP-60F 60 50 200
380		 0.42
0.24		 3 2 2 25 3/8 7.0
60 200/220
380		 0.45
0.26		 32
HCP-100F 100 50 200
380		 0.51
0.3		 3 2 2 37 3/8 7.6
60 200/220
380		 0.55
0.32		 47
HCP-180F 180 50 200
380		 0.93
0.53		 3 2 3 75 1/2 11.2
60 200/220
380		 1.0
0.57		 90
HCP-250F 250 50 200
380		 1.4
0.8		 3 2 4 125 3/4 14.2
60 200/220
380		 1.5
0.86		 150
HCP-258F 250 50 200
380		 1.4
0.8		 3 2 4 110 3/4 12
60 200/220
380		 1.5
0.86		 145
HCP-400F 400 50 200
380		 2.4
1.4		 3 2 5 160 1 17.5
60 200/220
380		 2.5
1.5		 200



ØD L1 L2 L3 L4 L5 L6 L7 L8 PE(PT) TL R1 R2 LA LB N-ØB PL1 PL2 M ML
HCP-60F 94 8 15 155 150 20 90 92.5 67.6 ⅜ 305 90 90 130
(132)		 130
(130)		 4-7 94 64 128 71
HCP-100F 94 8 15 155 150 20 90 92.5 67.6 ⅜ 305 90 90 130
(132)		 130
(134)		 4-7 94 64 128 71
HCP-180F 121 10 20 175 171 20 105 93 67.6 ½ 346 115 115 160
(160)		 160
(134)		 4-10 108.5 72.5 145 80
HCP-250F 121 10 25 247 180 20 190 93 67.6 ¾ 427 128 128 160
(160)		 160
(170)		 4-10 108.5 75 150 85
HCP-258F 121 11 27 180 185 20 120 93 67.6 ¾ 365 128 128 160
(160)		 170
(170)		 4-10 108.5 79 158 90
HCP-400F 137 11 30 280 236 20 200 143 67.6 1 516 135 135 180
(180)		 - 2-10 110 77.5 155 100





MOTOR PUMP
Output
(W)		 Frequency
(Hz)		 Voltage
(V)		 Current
(A)		 Phase Poles Total Head
(m)		 Dis. Vol
( l /min)		 Pipe Size
(PT)		 Weight
(kg)
HCP-400SMF 400 50 200
380		 2.4
1.4		 3 2 5 150 1¼(1½) 24
60 200/220
380		 2.5
1.5		 200
HCP-900SMF(S) 900 50 200
380		 5.2
3.1		 3 2 6.5 200 1¼(1½) 25
60 200/220
380		 6.0/5.8
3.4		 10
HCP-1500SMF 1500 50 200
380		 7.5
4.1		 3 2 20 100 1½ 35
60 200/220
380		 8.5/8.0
4.6		 30
HCP-2200SMF 2200 50 200
380		 9.0
5.5		 3 2 30 100 1½ 38
60 200/220
380		 12.0/11.0
6.4		 45
HCP-3000SMF 3000 50 200
380		 13.0
7.1		 3 2 40 100 1½ 39
60 200/220
380		 15.0/14.0
8.0		 60
HCP-3700SMF 3700 50 200
380		 16.0
8.5		 3 2 50 100 1½ 40
60 200/220
380		 18.0/17.0
10.7		 70
HCP-900SHMF(S) 900 50 200
380		 5.2
3.1		 3 2 30 20 3/4 25
60 200/220
380		 6.0/5.8
3.4		 45
HCP-1500SHMF(S) 1500 50 200
380		 7.5
4.1		 3 2 50 20 3/4 27
60 200/220
380		 8.5/8.0
4.6		 70
HCP-2200SHMF(S) 2200 50 200
380		 9.0
5.5		 3 2 70 20 3/4 30
60 200/220
380		 12.0/11.0
6.4		 100
HCP-3700SHMF(S) 3700 50 200
380		 16.0
8.5		 3 2 90 20 3/4 37
60 200/220
380		 18.0/17.0
10.7		 130


ØD L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 PE
(PT)		 TL R1 LA N-ØB PL1 PL2 M ML
HCP-400SMF 169 12 40 250 298 165 176 207 67.6 20 190 1½,1¼ 548 170 215 4-12 119 95 190 105
HCP-900SMF 169 12 40 250 298 165 176 207 67.6 20 190 1½,1¼ 548 170 215 4-12 119 95 190 105
HCP-900SMFS 169 12 40 209 298 124 176 207 67.6 20 190 1¼ 507 170 215 4-12 119 95 190 105
HCP-1500SMF 169 12 40 244 321 159 176 230 67.6 20 190 1½ 565 170 215 4-12 119 95 190 105
HCP-2200SMF 169 12 40 244 348 159 176 257 67.6 20 190 1½ 592 170 215 4-12 119 95 190 105
HCP-3000SMF 187 12 36 244 326 200 134 248 67.6 20 190 1½ 570 170 215 4-12 125.5 109 218 115
HCP-3700SMF 187 12 36 354 338 310 134 248 67.6 20 303 1½ 692 170 215 4-12 125.5 109 218 115
HCP-900SHMF 169 13 25 180 260












Type Size(mm) Pipe Size
(PT)
A B C D E F G H I J K L M P R S T U V W X Y
DV-31, 32, 33, 34 29 8 22.5 44 73 102 131 36.5(10) 11 27 38 42 11 103 64 41(39) 24 - 29 58 3/8 1/4
DV-41, 42, 43, 44 31 9.5 25 50 81 112 143 10 10.5 28.5 40 54 11 122 76 48 30 61 92 123 3/8 1/4
DV-51, 52, 53, 54 37 9.5 28 53 90 127 164 10 14 34 45 57 13 137 83 53 33 70 107 144 3/8 1/4
DV-61, 62, 63, 64 46 10 33 62 108 154 200 10 20 45 57 57 16 147 89 56 42 88 134 180 3/8 1/4
※ The DV-32 type has 1 mounting hole. ( ) Dimension is the DV-31 dimesion.



Type Size(mm) Pipe Size
(PT)
A B C D E F G H I J K L M N O P Q R S T U V W Z X Y
DW-22, 24, 26, 28 17 18 18 36 53 70 87 6 21 32.5 40 32 11 33 18 83 8 54 27 24 41 58 75 Ø7 3/8 1/8
DW-32, 34, 36, 38 32 18 24 44 76 108 140 7 27 44 54 57 11 48.5 21 118 12 79 27 30 62 194 126 Ø8.5 3/8 1/4
DW-42, 44, 46, 48 32 18 24 44 76 108 140 7 27 44 54 57 11 48.5 21 125 12 79 27 30 62 194 126 Ø8.5 3/8 1/4
DW-52, 54, 56, 58 32 18 24 44 76 108 140 7 27 44 54 57 11 48.5 21 133 12 79 27 30 62 194 126 Ø8.5 3/8 1/4
※DW-2□ type does not have a discharge outlet.


TYPE DV-3□ DV-4□ DV-5□ DV-6□
POINT 1, 2, 3, 4
MAX. Discharge Pressure Mpa(kg/㎠) 34(350)
MIN. Discharge Pressure Mpa(kg/㎠) 1.8(18) 1.8(18) 1.5(15) 1.2(12)
MAX. Discharge Volume (cc/st.) 1.2 2.5 5 14
MIN. Discharge Volume (cc/st.) 0.12 0.28 0.38 0.86
Quantity Control (cc/rev.) 0.06 0.1 0.15 0.68
Assembly Bolt Size M8x60L M8x60L M8x65L M8x70L
Using Temp. Standard:-20~100℃ High:-40~200℃




TYPE DW-2□ DW-3□ DW-4□ DW-5□
Point 2, 4, 6, 8, 10
MAX. Discharge Pressure Mpa(kg/㎠) 34(350)
MIN. Discharge Pressure Mpa(kg/㎠) 2.0(2.0) 1.8(18) 1.8(18) 1.8(18)
MAX. Discharge Volume (cc/st.) 6 1.2 2.5 5
MIN. Discharge Volume (cc/st.) 0.12 0.28 0.38 0.86
Quantity Control (cc/rev.) 0.04 0.06 0.1 0.15
Assembly Bolt Size M8x60L M8x75L
Using Temp. Standard:-20~100℃ High:-40~200℃
※ For DW type, the 10 point distributor is an order specification.





MODEL HU-R HU-R
Number of Outlet 4, 6, 8 10, 12
Discharge Amount 0.3cc/stroke 0.3cc/stroke
DIS. Pressure MAX.150kg/㎠ MAX.150kg/㎠
Material Al Zn




MODEL HCV-□
Flow Amount Max. 14Liter/hr
Change Over Pressure Min. 140~Max. 350kg/㎠
Setting Pressure 170kg/㎠
Pipe Size PT 3/8″
Using Temp. -20~80℃
Limit Switch Option
S/W Working Voltage 125VAC(5A), 250VAC(3A)

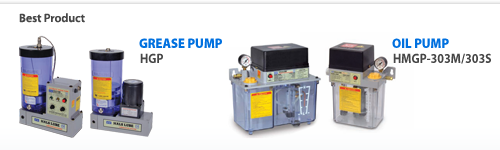

MODEL HGP-720 HGP-950 HGP-1200
Pump Type PISTON
Operating Process AIR DRIVE
Discharge Amount(cc/st) 0.4 0.53 0.67
Discharge Pressure((kg/㎠) MAX. 200 MAX. 112.5 MAX. 72
AIR Pressure 7 ~ 8kg/㎠






MODEL HGP-16(S) HGP-16E HGP-40E HGP-60E
Pump Type PISTON
DIS. Pressure(kg/㎠) 120 160 100 100
DIS. Amount(cc/min) 16 16 40 60
Using Pressure(kg/㎠) 60
Interval 1~32Hr OUTSIDE CONTROL
Discharge Time 10~120SEC OUTSIDE CONTROL



  HGP-□ HGP-□C
Tank Capacity 2Liter 200, 500, 800cc
Weight 5kg 4.5kg
Using Grease #000~#1
Number of outlet 24



  HGP-16(S) HGP-16E HGP-40E HGP-60E
Output 100W 25W 25W 40W
Phase 1Ø 1Ø 1Ø 1Ø
Voltage 110 220 110 220 110 220 110 220
Frequency 3 15 0.6 0.3 0.6 0.3 0.9 0.45



Pump Type PISTON Size Of Outlet PT 1/8″
DIS. Pressure MAX. 130kg/cm² Weight 2kg
Discharge Amount 1.0cc/st Using Grease #000~#1
Tank Capacity 600cc Remark -






MODEL HEPD
Maximum Operating Pressure 350kg/㎠
Outlet Volume 8ℓ, 14ℓ, 24ℓ / hr
Ratio 1:100
Operating Temperature -20℃ up to 70℃
Main Line Connection PT 3/4″
Reservoir 40ℓ, 100ℓ
Motor AC 220V, 380V, 440V, 4P 3Ø 60Hz




MODEL HEP-15
Number Of Outlets 15
Threaded Connection PT 1/4 FEMALE
Maximum Operating Pressure 350kg/㎠
Suitable Lubricants NLGI 2
Discharge Volume(/PORT) 1, 2, 3, 4 cc/min
MAX. Grease Output 189 cc/hr
Ratio 1:100
KM-7 Element Ø7
Sensor Type(Option) LOW-LEVEL SENSOR
Operating Temperature -20℃ up to 70℃
Main Line Connection PT 1/4″
Reservoir 10ℓ, 30ℓ
Motor AC 220V, 380V, 440V, 4P 3Ø 50Hz, 60Hz



TYPE HEP-181 HEP-182 HEP-183
Discharge Amount (cc/min) 40 80 160
MAX. Discharge Pressure(kg/㎠) 350 250 130
Motor Output 0.2kW
Phase 3Ø
Frequency 50/60 Hz
Voltage AC220, 380, 440V
Weight(kg) 45





TYPE HEP-1□ HEP-2□
Discharge Amount (cc/min) 25 50
MAX. Discharge Pressure (kg/㎠) 250 120
Tank Capacity (Liter) 2, 4
Motor Spec. 3Ø(220, 380, 440V),
1Ø(110, 220V)
Weight(kg) 22 18







MODEL H1 H2
MIN. MAX.
HM□-21 HM□-22 350.5 526.5 324.2
HM□-41 HM□-42 550.5 726.5 524.2


TYPE HM□-21 HM□-41 HM□-22 HM□-42
Discharge Amount (cc/st) 7 3.5
MAX. Discharge Pressure (kg/㎠) 100 210
Tank Capacity(Liter) 2 4 2 4
Weight(kg) 8 9 8 9








  HMGP-6A HMGP-6MA
DISCHARGE PRESSURE 10kg/cm² 20kg/cm²
DISCHARGE AMOUNT 0~6cc/st 6cc/st
USING OIL 32~800cSt
FILTER 80Mesh
TANK CAPACITY 2Liter





PUMP SPEC.
PUMP TYPE PISTON
DISCHARGE PRESSURE 7kg/cm²

PUMP SPEC. MOTOR SPEC.
PUMP TYPE GEAR PUMP OUTPUT 25W
DISCHARGE PRESSURE 5~10kg/cm² PHASE 1Ø
INTERVAL TIME CONSTANT
DISCHARGE AMOUNT 100cc/min VOLTAGE 110V 200 / 220V
USING OIL 32~220(cSt) CURRENT 0.46A 0.21A
FILTER 80 Mesh
TANK CAPACITY 5Liter(12, 20Liter) FREQUENCY 50/60Hz
WEIGHT 5kg
OIL WARNING Output at point of contact






PUMP SPEC.
  HMGP-105D HMGP-105W HMGP-303D
PUMP TYPE GEAR PUMP
DISCHARGE PRESSURE 8kg/cm² 17kg/cm²
INTERVAL TIME 3~30/
30~120min		 OUTSIDE
CONTROL		 3~35kg/cm²
USING OIL 32~800(cSt) 32~1300(cSt)
FILTER 80 Mesh
TANK CAPACITY 2Liter
WEIGHT 2.5kg
FLOAT S/W Contact type : A contact (NO)
ON at low level
DISCHARGE AMOUNT 3~30/
4~80 cc		 OUTSIDE
CONTROL		 150cc/min
MOTOR SPEC.
OUTPUT 36W 57W
PHASE 1Ø 1Ø
VOLTAGE 110V 200V/220V 110V 200V/
220V
CURRENT 0.85A 0.44A 1.54A 0.77A
FREQUENCY 50/60Hz 50/60Hz







PUMP SPEC. MOTOR SPEC.
  HMGP-105N HMGP-105M HMGP-103 HMGP-105C OUTPUT 36W
PUMP TYPE GEAR PUMP
DISCHARGE PRESSURE 8kg/cm² PHASE 1Ø
INTERVAL TIME 3~30/
30~120min		 30~120min 3~30/
30~120min		 External Control
USING OIL 32~800(cSt) VOLTAGE 110V 200 / 220V
FILTER 80 Mesh CURRENT 0.85A 0.44A
TANK CAPACITY 2Liter FREQUENCY 50/60Hz
WEIGHT 2.5kg
FLOAT S/W - Contact type : A Contact (NO)
- ON at low level
DISCHARGE AMOUNT 3~30/
4~80 cc		 4~45 cc 3~30/
4~80 cc		 100cc/min
OIL WARNING Order specification BUZZER Output at point of contact BUZZER





PUMP SPEC. MOTOR SPEC.
PUMP TYPE GEAR PUMP OUTPUT 36W
DISCHARGE PRESSURE 8kg/cm² PHASE 1Ø
PRESSURE GAUGE 0~35kg/cm² VOLTAGE 110V 200 / 220V
USING OIL 32~800(cSt) CURRENT 0.85A 0.44A
FILTER 80 Mesh FREQUENCY 50/60Hz
TANK CAPACITY 4Liter(10, 12, 20, 30, 55Liter)
WEIGHT 3.5kg
DISCHARGE AMOUNT 4~113cc
INTERVAL 1~120min/1~60min
FLOAT S/W Contact type : A contact (NO)
ON at low level
OIL RECOVERY Attachable
OIL WARNING BUZZER / LAMP





PUMP SPEC. MOTOR SPEC.
PUMP TYPE GEAR PUMP OUTPUT 60W
DISCHARGE PRESSURE 15~30kg/cm² PHASE 1Ø
PRESSURE GAUGE 0~35kg/cm² VOLTAGE 110V 200 / 220V
USING OIL 32~1300(cSt) CURRENT 1.20A 0.6A
FILTER 80 Mesh FREQUENCY 50/60Hz
TANK CAPACITY 5Liter(12, 20, 30, 55Liter)
WEIGHT 5kg
DISCHARGE AMOUNT 300cc/min
FLOAT S/W Contact type : A contact (NO)
ON at low level
PRESSURE S/W Contact type : A contact (NO))
Operation pressure : 12±1 bar ON
OILSUPPLY CONTROL DEVICE External control





PUMP SPEC.
  HMGP-303S HMGP-303M
PUMP TYPE GEAR PUMP
DISCHARGE PRESSURE 17kg/cm²
PRESSURE GAUGE 0~35kg/cm²
USING OIL 32~1300(cSt)
FILTER 80 Mesh
TANK CAPACITY 4Liter
(10, 12, 20, 30, 55Liter)		 2Liter
(6, 7Liter)
WEIGHT 4kg 2kg
DISCHARGE AMOUNT 150cc/min
FLOAT S/W Contact type : A contact (NO)
ON at low level
PRESSURE S/W Contact type : A contact (NO)
Operation pressure : 12±1 bar ON
OIL SUPPLY CONTROL DEVICE External control
MOTOR SPEC.
OUTPUT 57W
PHASE 1Ø
VOLTAGE 110V 200 / 220V
CURRENT 1.54A 0.77A
FREQUENCY 50/60Hz





PUMP SPEC. MOTOR SPEC.
PUMP TYPE GEAR PUMP OUTPUT 57W
DISCHARGE PRESSURE 17kg/cm² PHASE 1Ø
PRESSURE GAUGE 0~35kg/cm² VOLTAGE 110V 200 / 220V
USING OIL 32~1300(cSt) CURRENT 1.54A 0.77A
FILTER 80 Mesh FREQUENCY 50/60Hz
TANK CAPACITY 4Liter(10, 12, 20, 30, 55Liter)
WEIGHT 4kg
DISCHARGE AMOUNT 150cc/min
FLOAT S/W Contact type : A contact (NO)
ON at low level
PRESSURE S/W None
OIL SUPPLY CONTROL DEVICE Built-in



TYPE 50Hz 4P(1500rpm) 60Hz 4P(1800rpm)
Discharge Amount(ℓ/min) Motor Max. Pressure
(kg/cm²)		 Discharge Amount(ℓ/min) Motor Max. Pressure
(kg/cm²)
400W 750W 1500W 400W 750W 1500W
HMTP-203HA(VB/VD) 4.5 30.0 30.0 30.0 5.4 26.0 30.0 30.0
HMTP-204HA(VB/VD) 6.3 21.5 30.0 30.0 7.5 16.0 30.0 30.0
HMTP-206HA(VB/VD) 9.0 10.5 25.0 25.0 10.8 7.0 23.5 25.0
HMTP-208HA(VB/VD) 12.6 7.0 23.0 25.0 15.1 4.0 17.5 25.0
HMTP-210HA(VB/VD) 15.3 4.5 15.5 25.0 18.3 2.5 11.5 25.0
HMTP-212HA(VB/VD) 18.0 3.5 13.5 20.0 21.6 - 8.5 20.0
HMTP-216HA(VB/VD) 24.3 2.0 8.5 20.0 29.1 - 5.5 19.5
HMTP-220HA(VB/VD) 29.7 - 5.5 15.5 35.6 - 3.5 14.0



Output
(W)		 Frequency
(Hz)		 Voltage
(V)		 Current
(A)		 R.P.M Phase Poles
400W 50 200 2.4 1420 3 4
380 1.3 1420
60 200 2.2 1700
220 2.2 1720
380 1.2 1720
750W 50 200 3.5 1430 3 4
380 1.9 1440
60 200 3.4 1710
220 3.4 1730
380 1.8 1730
1500W 50 200 6.9 1430 3 4
380 3.4 1430
60 200 6.6 1720
220 6.6 1730
380 3.2 1730



  Output C D E F G L d M N Q R CD H
Motor 400W 75.5 146 170 245.5 113 F+A 7 114 90 112 144 125 71
750W 77.5 169 209 286 139 F+A 10 135 100 123 136 135 80
1500W 85.5 194 234 319.5 153 F+A 10 156 125 140 172 140 90



TYPE A B N-P TYPE A B N-P
HMTP-203HA(VB/VD) 81 5 2-1/2 HMTP-210HA(VB/VD) 93 17 2-3/4
HMTP-204HA(VB/VD) 83 7 2-1/2 HMTP-212HA(VB/VD) 96 20 2-3/4
HMTP-206HA(VB/VD) 86 10 2-1/2 HMTP-216HA(VB/VD) 103 27 2-3/4
HMTP-208HA(VB/VD) 90 14 2-1/2 HMTP-220HA(VB/VD) 109 33 2-3/4



TYPE 1500rpm(50Hz) 1800rpm(60Hz)
Discharge Amount(ℓ/min) Pressure(kg/㎠) Discharge Amount(ℓ/min) Pressure(kg/㎠)
HMTP-11MA(VB) 2.2 5 2.7 5
HMTP-12MA(VB) 3.7 5 4.5 5
HMTP-13MA(VB) 6.7 5 8.1 5


Output
(W)		 Frequency
(Hz)		 Voltage
(V)		 Current
(A)		 R.P.M Phase Poles
75W 50 200 0.56 1390 3 4
380 0.32 1390
60 200 0.51 1660
220 0.52 1690
380 0.28 1690
100W 50 200 0.65 1430 3 4
380 0.4 1430
60 200 0.6 1720
220 0.6 1730
380 0.3 1730
200W 50 200 1.3 1430 3 4
380 0.9 1430
60 200 1.1 1690
220 1.1 1710
380 0.6 1710





TYPE 50Hz 4P(1500rpm) 60Hz 4P(1800rpm)
Discharge Amount(ℓ/min) Motor Max. Pressure
(kg/cm²)		 Discharge Amount(ℓ/min) Motor Max. Pressure
(kg/cm²)
400W 750W 1500W 400W 750W 1500W
HTP-203HA(VB/VD) 4.5 30.0 30.0 30.0 5.4 26.0 30.0 30.0
HTP-204HA(VB/VD) 6.3 21.5 30.0 30.0 7.5 16.0 30.0 30.0
HTP-206HA(VB/VD) 9.0 10.5 25.0 25.0 10.8 7.0 23.5 25.0
HTP-208HA(VB/VD) 12.6 7.0 23.0 25.0 15.1 4.0 17.5 25.0
HTP-210HA(VB/VD) 15.3 4.5 15.5 25.0 18.3 2.5 11.5 25.0
HTP-212HA(VB/VD) 18.0 3.5 13.5 20.0 21.6 - 8.5 20.0
HTP-216HA(VB/VD) 24.3 2.0 8.5 20.0 29.1 -

</tbody



Other Product In Group "HALS HANSUNG PRECISION (7)"

Grease Pump
HANSUNG Rotor Pump
Coolant Pump
HALS Lube Pump
HALS ปั๊มหล่อลื่น ปั๊มจารบี ปั๊มคูลแลนท์
HALS Hansung
HALS
View All
