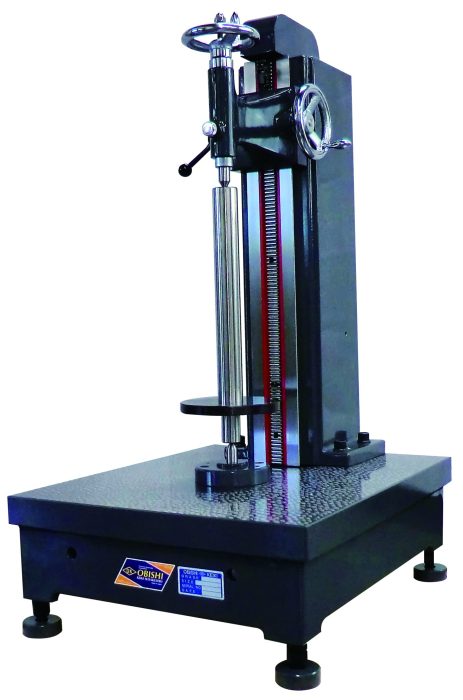

- Surface Plate flatness is JIS Grade 1.
- Surface Plate is bag type, therefore long term accuracy can be manitained.
- The Stock moves up/down by gear.
- Due to balance weight within the column, it moves with minimum force.
*According to your requirement, we can manufacture head spin type.
*Test bar is not included.
| Code No. |
Model |
Measurement
(L×Wmm) |
Center Distance
(mm) |
Center Height
(mm) |
Use Center |
Center Axis Perpendicularity (μm) |
Mass
(kg) |
|---|
| SVP101 |
VP-1 |
600×500 |
400 |
150 |
Carbide MT-2 |
5 |
230 |
|---|
| SVP102 |
VP-2 |
900×600 |
700 |
200 |
Carbide MT-3 |
8 |
440 |
|---|
| SVP103 |
VP-3 |
1000×750 |
1000 |
240 |
12 |
550 |
|---|
| SVP104 |
VP-1L |
700×600 |
370 |
200 |
Carbide MT-2 |
5 |
250 |
|---|
