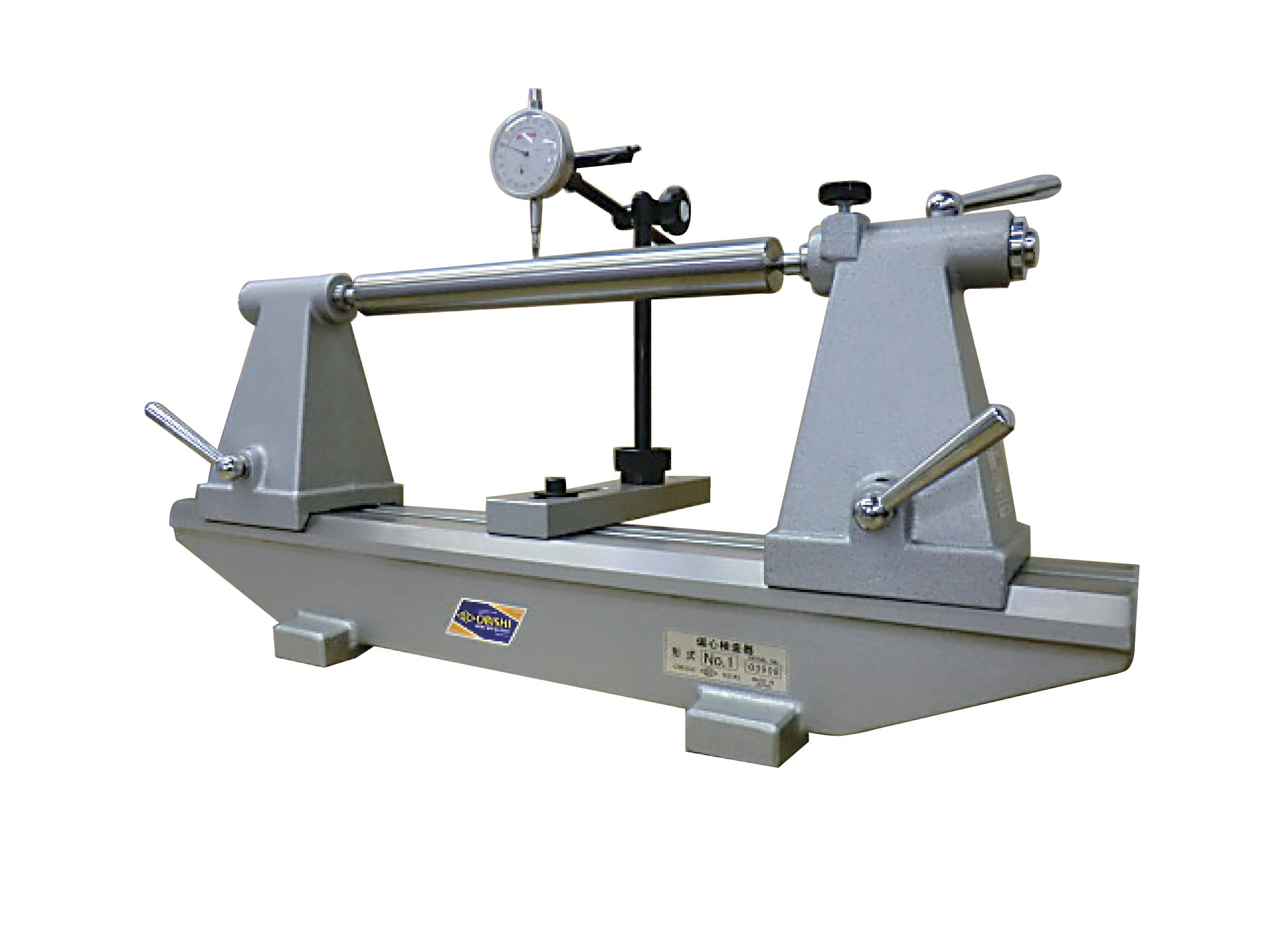

Bench Centers (Standard-Type)

[ Stock No：311 ]

Used for eccentricity and deflection Measurement of shafts, etc.
Parallelism between table upper surface and center is assured.
Center entry/exit is performed by one touch lever.

*According to your requirement, we can manufacture variations with carbide center or brolly center.
*Dial gauge and test bar are not included.

Code No.	Model	Full Lenght (Lmm)	Center Distance (mm)	Center Height (mm)	Use Center	Height Parallelism (μm)	Mass (kg)
SA101	No.-1	650	390	150	MT-1	6	33
SA102	No.-2	1220	820	240	MT-2	8	87
SA103	No.-3	1645	1190	300	MT-3	10	135
SAL101	No.1-890L	890	630	150	MT-1	8	37
SAH101	No.1-300H	650	400	300	MT-1	10	39

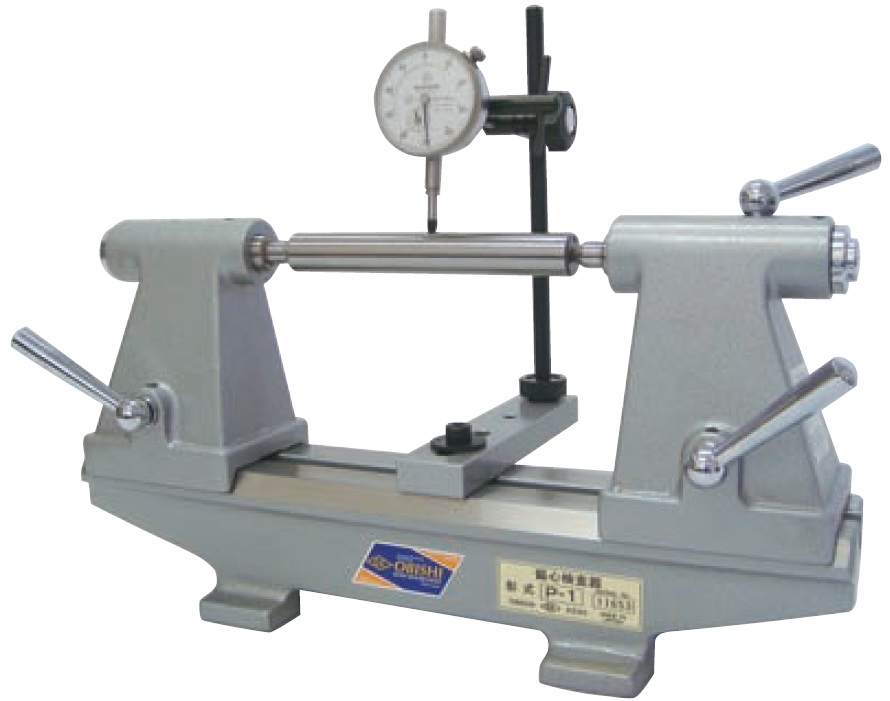

Bench Centers (P-Type)

[ Stock No：312 ]

Small sized type of standard model tester.
Used for eccentricity and deflection Measurement of shafts, etc.
Parallelism between table upper surface and center is assured.
Center entry/exit is performed by one touch lever.

*According to your requirement, we can manufacture variations with carbide center or brolly center.
*Dial gauge and test bar are not included.

Code No.	Model	Full Lenght (Lmm)	Center Distance (mm)	Center Height (mm)	Use Center	Height Parallelism (μm)	Mass (kg)
SAP101	P-1	410	150	110	MT-1	5	14.0
SAP102	P-2	470	210				15.5
SAP103	P-3	560	300				17.0

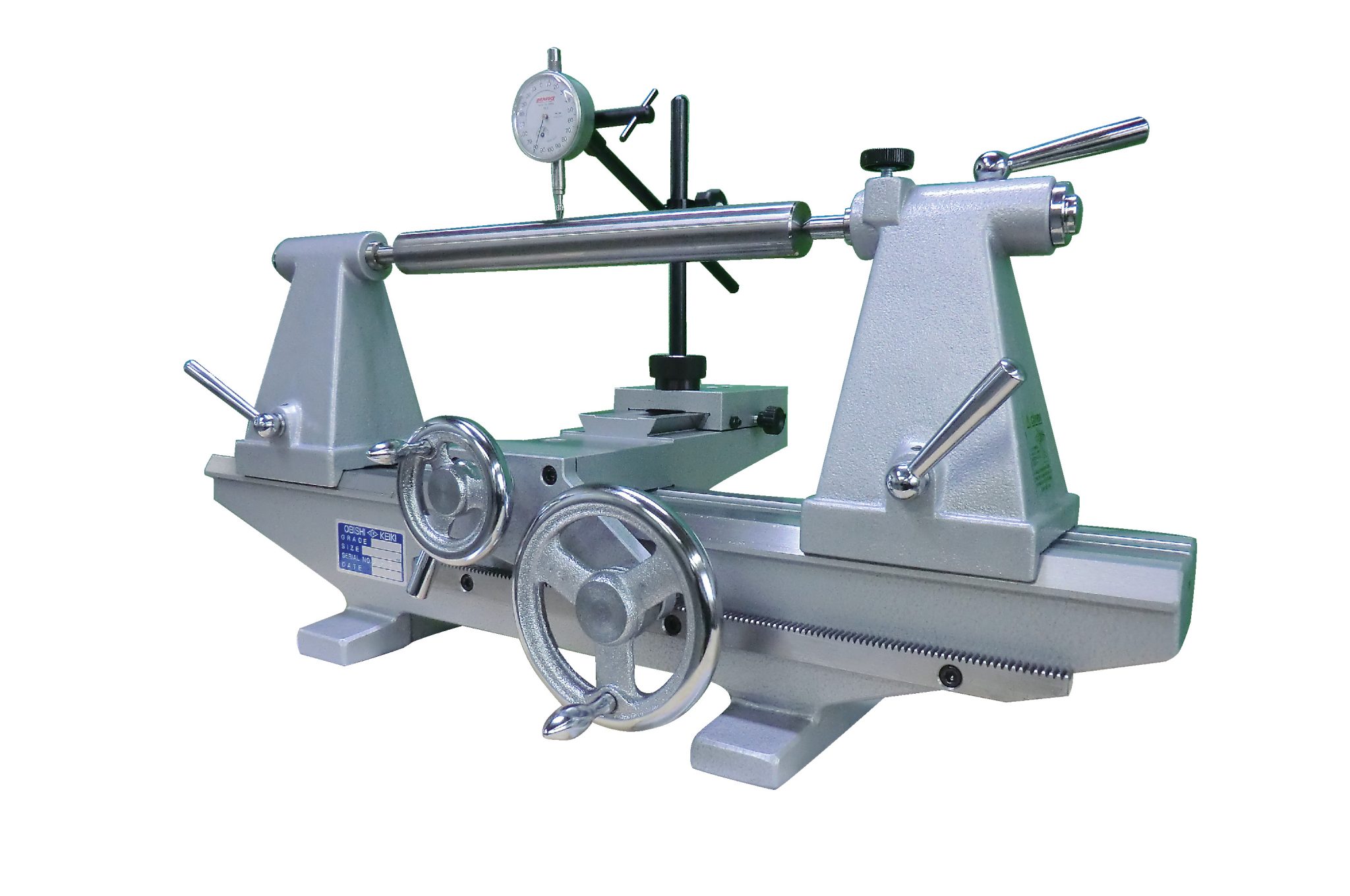

Rack Slide Type Bench Centers (ML-Type)

[ Stock No：102 ]

Dial Gauge Stand can be moved left or right using a rack attched handle.
Dial Gauge Stand can be moved forward and backward using the handle.
Parallelism between table upper surface and center is assured.
Center entry/exit is performed by one touch lever.

*Dial gauge and test bar are not included.

Code No.	Model	Full Lenght (Lmm)	Center Distance (mm)	Range (mm)	Use Center	Height Parallelism (μm)	Mass (kg)
SML101	ML-1	680	400	220	Carbide MT-1	6	43
SML102	ML-2	1220	800	360	Carbide MT-2	8	90
SML103	ML-3	1645	1180	480	Carbide MT-3	10	145
SML100	ML-P	560	300	160	MT-1	5	22

Bench Centers (CV-Type)

[ Stock No：313 ]

Tester with V Block (V Width 16mm) attached to stock.
Can be used for measurement of shafts, etc with center hole, or without hole
On the dial gauge stand, a lever type dial gauge is installed.
Center entry/exit can be performed by a one touch lever.

*Dial gauge and test bar are not included.

Code No.	Model	Full Lenght (Lmm)	Center Distance (mm)	Effective Center Height (mm)	Use Center	Height Parallelism (μm)	Mass (kg)
SCV101	CV-1	530	300	75	MT-1	5

Vertical/Horizontal Combination Bench Centers (SP-Type)

[ Stock No：309 ]

Light weight and logical design
The stock moves by rack gear
When used vertically, a squareness adjustment method is employed.
Center entry/exit can be performed by a one touch lever.

*Dial gauge and test bar are not included.

Code No.	Model	Full Lenght (Lmm)	Center Distance (mm)	Center Height (mm)	Use Center	Height Parallelism (μm)	Mass (kg)
SP101	SP-1	565	270	110	MT-1	8	23
SP102	SP-2	785	500	150	MT-1	10	43

Universal Bench Center (MV Type)

[ Stock No：401 ]

Multi purpose type for deflection measurement.
It is compact with high accuracy.
Accuracy between center Axis and lower surface, side surface, and edge surfaces is assured.
Sine bar method that can also measure taper shape.
Center is common for both male and female.
Center is straight center, and the center reception part is V groove type.
The Center can be detached, making it possible for measurement of work pieces with no center hole.

*V Block for stability used during Angle Measurement is supplied.
*Test bar is not included.

Code No.	Model	Full Lenght (Lmm)	Center Distance (mm)	Center Height (mm)	Roller Center Distance (mm)	Height Parallelism (μm)	Mass (kg)
SMV101	MV-1	300	140	70	200±0.003	3

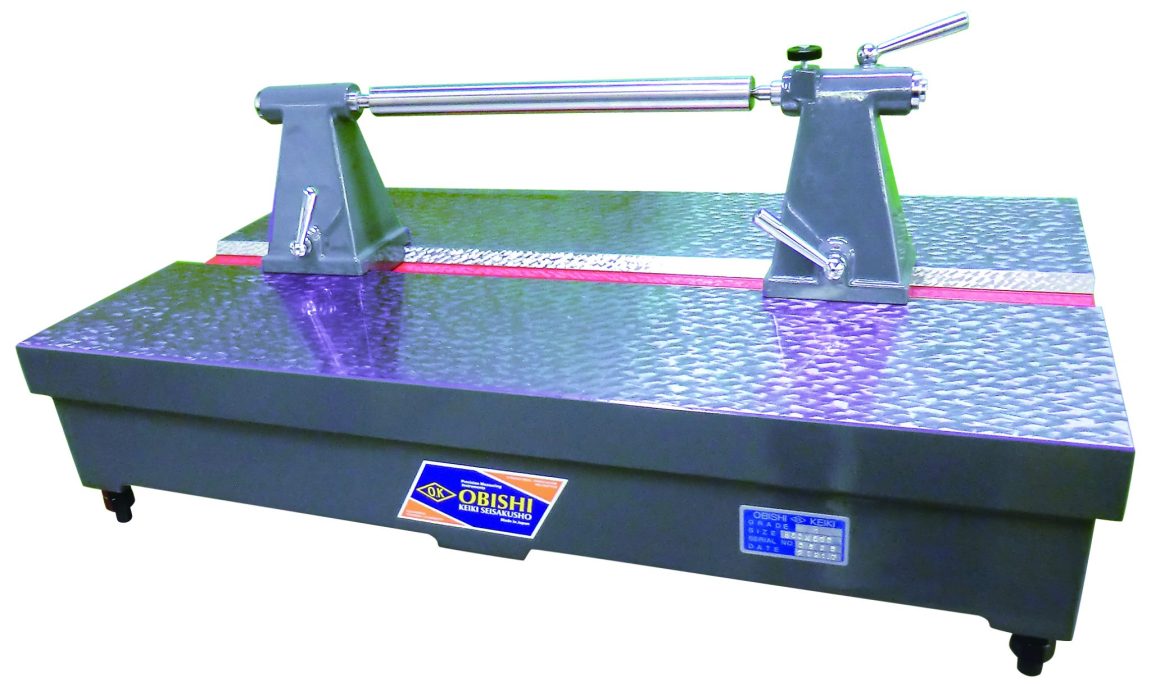

Cast Iron Surface Plate with Center

[ Stock No：307 ]

Surface Plate Flatness is JIS Grade 1.
Stock movement part uses V Groove mechanism with T slot.
V Groove is located in the center of the surface plate width.
The stock can be detached making it possible to use as a Surface Plate for inspection

*According to your requirement, we can manufacture products with the V Groove located near the edge.
*We can also manufacture special mount (Square pipe material).
*Test bar is not included.

Code No.	Measurement (L×Wmm)	Center Distance (mm)	Effective Center Height (mm)	Use Center	Height Parallelism (μm)	Mass (kg)
SE101	850×500	575	150	MT-1	6	215
SE102	1000×500	600	240	MT-2	8	270
SE103	1000×750	600	240	MT-2	8	390
SE104	1500×500	1000	300	MT-3	10	500
SE105	1500×1000	1000	300	MT-3	10	960

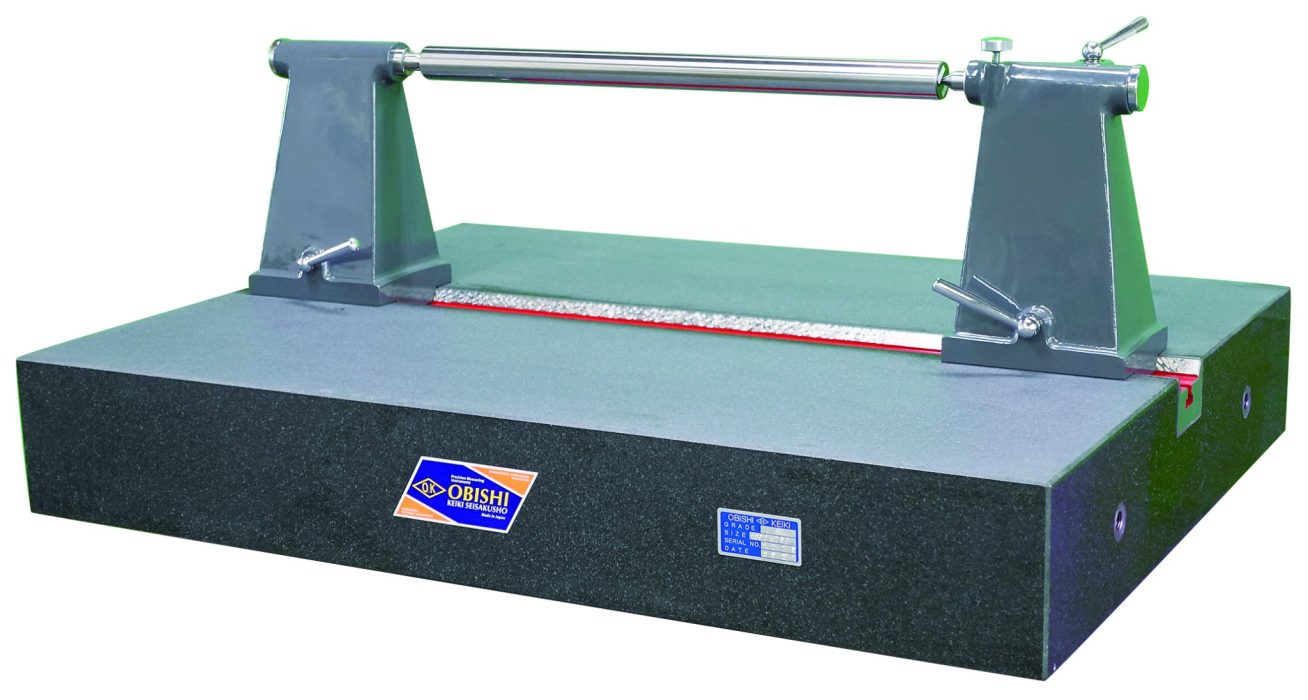

Granite Surface Plate with Center

[ Stock No：339 ]

Surface Plate is Granite, and Flatness is JIS Grade 1.
Stock movement part uses V Groove mechanism with T slot. Cast iron material is embedded.
V Groove is located in the center of the surface plate width
The stock can be detached making it possible to use as a Surface Plate for inspection

*According to your requirement, we can manufacture products with the V Groove located near the edge
*We can also manufacture special mount (Square pipe material)
*According to your requirement, we can also manufacture special measurement products.
*Test bar is not included.

Code No.	Measurement (L×Wmm)	Center Distance (mm)	Center Height (mm)	Use Center	Height Parallelism (μm)	Mass (kg)
SG101	1000×750	600	240	MT-2	5	365
SG102	1500×1000	1000	300	MT-3	8	960
SG103	2000×1000	14500	300	MT-3	12	1570

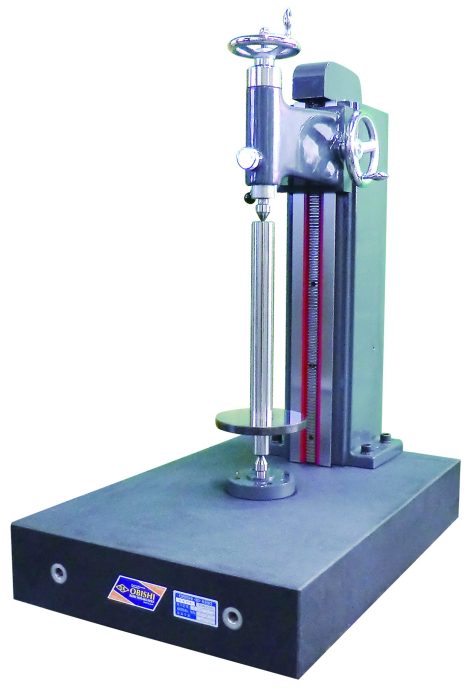

Granite Vertical-TypeBench Centers (VPG-Type)

[ Stock No：721 ]

Surface Plate is Granite and Flatness is JISGrade 1
The Stock moves up/down by gear
Due to balance weight within the column, it moves with minimum force

*According to your requirement, we can manufacture head spin type
*Test bar is not included.

Code No.	Model	Measurement (L×Wmm)	Center Distance (mm)	Center Height (mm)	Use Center	Center Axis Perpendicularity (μm)	Mass (kg)
SVP201	VPG-1	600×500	400	150	Carbide MT-2	5	195
SVP202	VPG-2	900×600	700	200	Carbide MT-3	8	400
SVP203	VPG-3	1000×750	1000	240	Carbide MT-3	12	510
SVP204	VPG-1L	750×500	370	200	Carbide MT-2	5	300

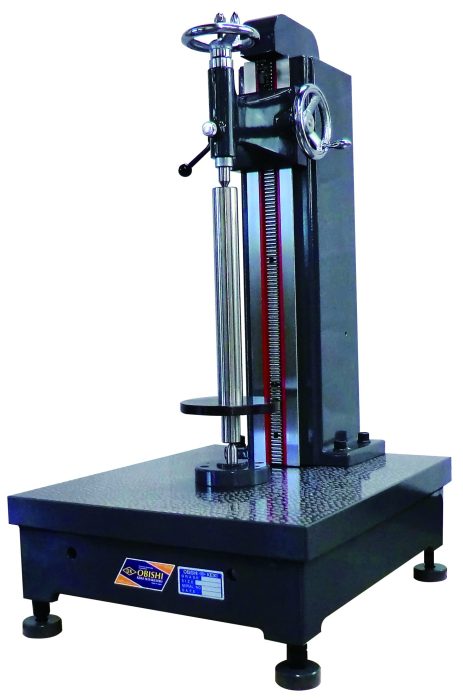

Vertical-TypeBench Centers (VP-Type)

[ Stock No：720 ]

Surface Plate flatness is JIS Grade 1.
Surface Plate is bag type, therefore long term accuracy can be manitained.
The Stock moves up/down by gear.
Due to balance weight within the column, it moves with minimum force.

*According to your requirement, we can manufacture head spin type.
*Test bar is not included.

Code No.	Model	Measurement (L×Wmm)	Center Distance (mm)	Center Height (mm)	Use Center	Center Axis Perpendicularity (μm)	Mass (kg)
SVP101	VP-1	600×500	400	150	Carbide MT-2	5	230
SVP102	VP-2	900×600	700	200	Carbide MT-3	8	440
SVP103	VP-3	1000×750	1000	240	Carbide MT-3	12	550
SVP104	VP-1L	700×600	370	200	Carbide MT-2	5	250

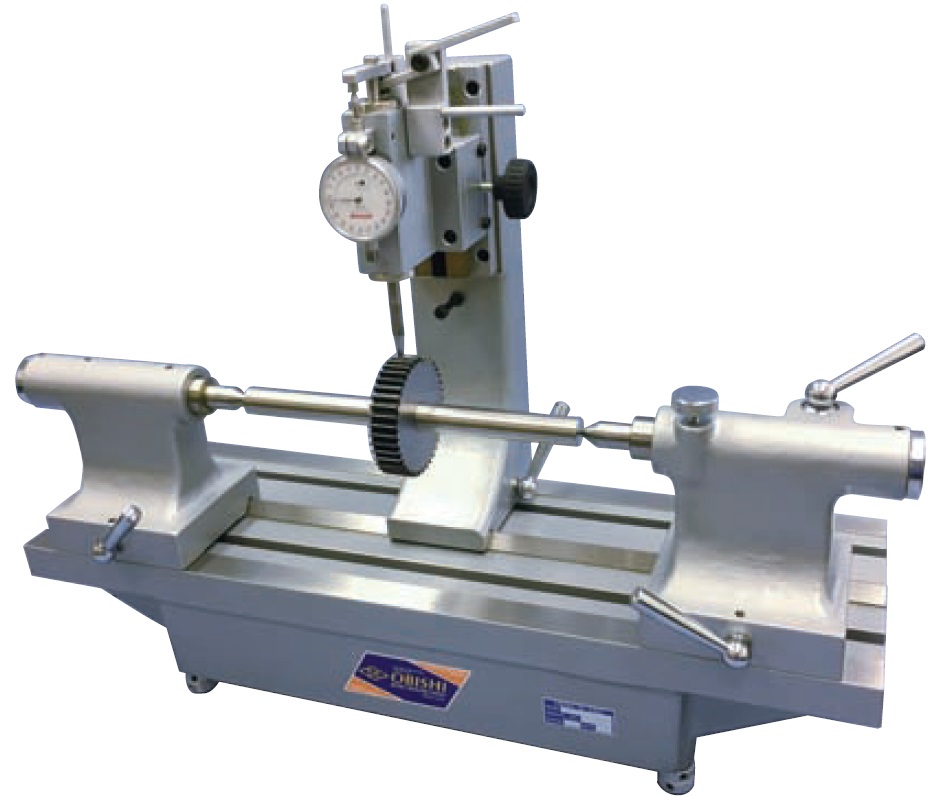

Deflection Tester for Gear (SR-Type)

[ Stock No：304 ]

For gear circle pitch deflection measurement
Dial Gauge gripping chuck moves up/down due to rack gear.
The probe easily moves up/down using the lever.
7 probes are supplied by default. (Module 1 to 4, 0.5 interval)

*Dial gauge and test bar are not included.
*We can manufacture special measurement probles according to your requirement.

Code No.	Model	Full Lenght (Lmm)	Center Distance (mm)	Effective Center Height (mm)	Use Center	Parallelism (μm)	Mass (kg)
SR101	SR-1	640	300	200	Carbide MT-2	4	72

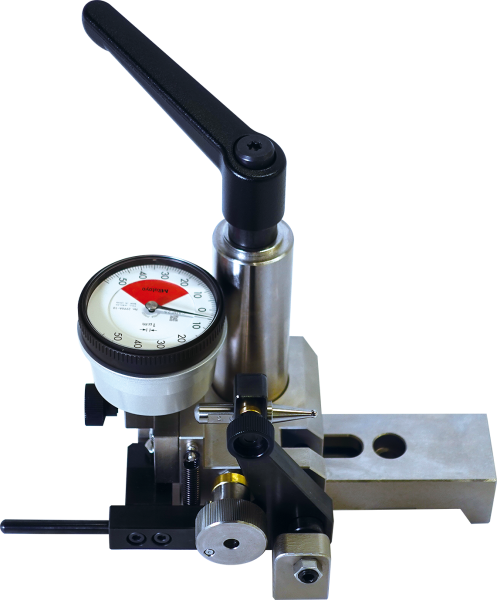

Attachment for Gear Deflection Measurement (SHH Type)

[ Stock No：101 ]

For gear circle pitch deflection (Deflection) Measurement.
Install and use with Standard Model tester, Rack Slide Type tester, etc.
7 probes are supplied by default. (Every 0.5 from Module 1 to 4)

*Dial Gauge and Deflection Tester are not supplied.
*We can manufacture special measurement probles according to your requirement.

Code No.	Model	Applicable Deflection Tester	MAX Gear Diameter (mm)	Probe (7 pcs) (Module)	Mass (kg)
SHH100	SHH-0	P-1,2,3 Type	130	1.0 – 4.0 (0.5 increment)	4
SHH101	SHH-1	NO.-1 Type	220		5
SHH102	SHH-2	No.-2 Type	380		10

Attachment for V Support with Rollers (SAR Type)

Attachment used for measurement when adopting external diameter standard.
Roller creates a V shape, making it difficult to dent the work piece contact surface.
Work rotation is easy even for heavy work pieces and so high accuracy measurement can be performed.
Supported work size φ40~φ100

*Dial Gauge, test bar and deflection tester are not provided. These have to arranged separately.

Code No.	Model	Applicable Bench Center		Roller Interval Parallelism	Roller Deflection	Mass (kg)
SAR101	SAR-1	No.1 ML-1		0.01	0.003	4
SAR102	SAR-2	No.2 ML-2		0.01	0.003	7

Attachment for V Support with Height Adjustment (SAV-Type)

Attachment used for measurement when adopting external diameter standard
In order for the support part to support various external diameters, the height of the V Support is adjustable on one side
V Support width is designed to be narrow. It can also support both flangged type of work pieces.
Supported work size φ8 ~ φ50
Standard height adjustment range for the adjustable side is ±10

*Dial Gauge, test bar and deflection tester are not provided. These have to arranged separately.

Code No.	Model	Applicable Bench Center		Mass (kg)
SAV101	SAV-1	No.1 ML-1		4
SAV102	SAV-2	No.2 ML-2		7.5

Arm for Lever Type Dial Gauge (with Micromotion adjustment)　

For deflection testers, a stand that can utilize installation type dial gauge is supplied by default.
By exchanging the arm, it becomes possible to install a lever type dial gauge. Because it comes with a micromotion adjustment knob, dial gauge setting is easy.

*System installation hole is φ6mm (Dial Gauge is not included.)

Code No.	Applicable Bench Center Model
SS101	No.1, ML-1
SS102	No.2, ML-2
SS103	No.3, ML-3
SS104	P-1, P-2, P-3
