Hydraulic clamp cylinders
Hydraulic clamp cylinders are specially designed to hold a work piece during milling and drilling work.

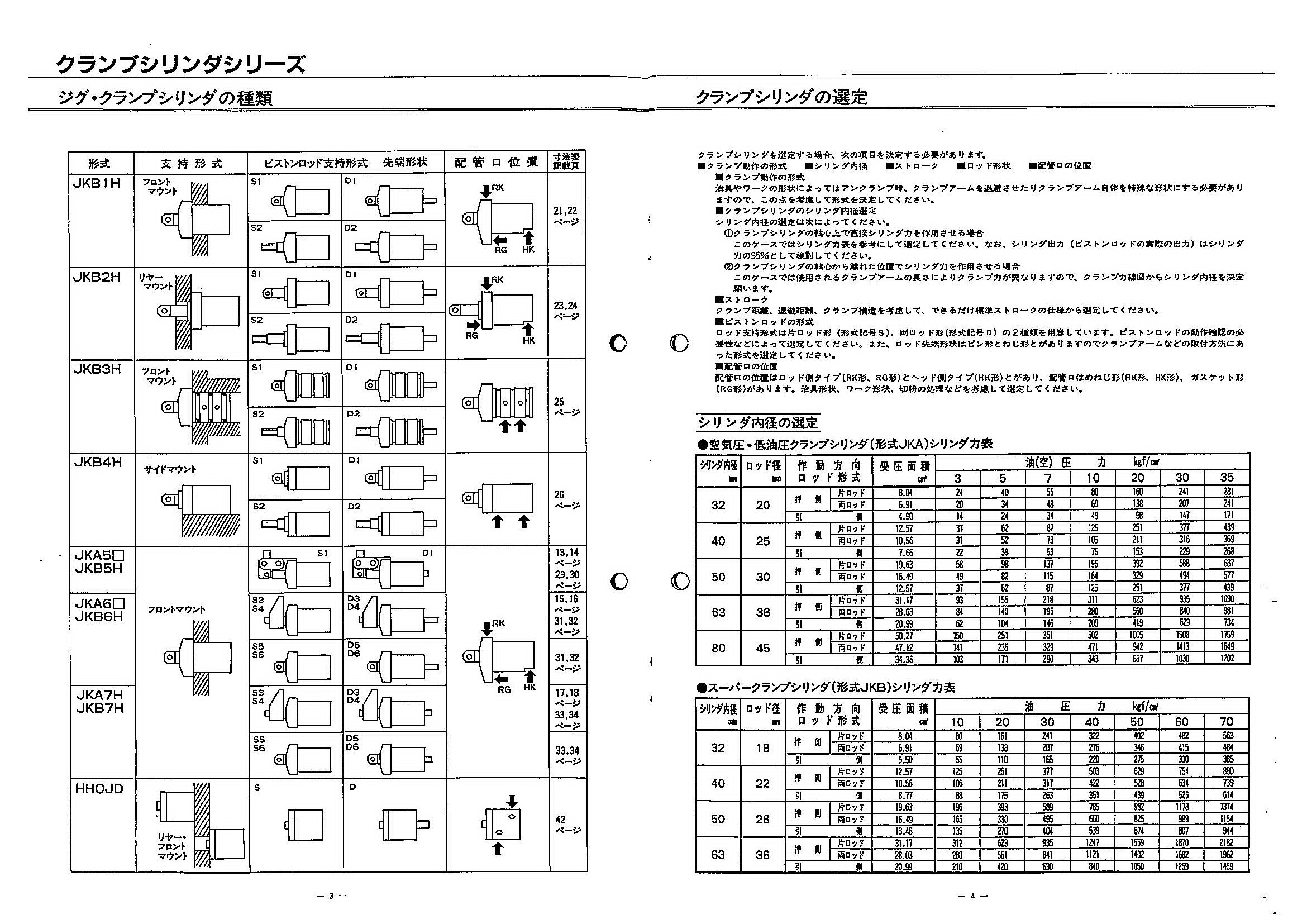

Product List
-
Compact Frog Clamp Cylinders
JLF5H Series (7MPa)
- The clamp arm can be moved to a position lower than the clamp face, facilitating the smooth transport of work pieces between processes without worrying about interference from the clamp arm.
- Offers a very compact work trajectory.
Can clamp in tighter spaces not typically possible with a conventional swing or swivel type. - It is possible to select a powerful scraper for preventing grinding swarf or high-pressure coolant from infiltrating.
-
High-Speed Compact Clamp Cylinders
JF6H Series (7MPa)
- Features a compact design that takes up less space and minimizes the outer angle dimensions of the flange. Offers installation compatibility with the conventional JL6H compact clamp cylinder. (However, total length varies; please check the catalogue dimensions.)
- A rotating mechanism uses a newly developed off-set roller configuration (patent pending). This structure can handle higher loads than the steel ball configuration.
- Can perform high-speed swing operations. Reduced time between clamping and unclamping improves productivity.
The quickest 90° swing time (cylinder inner diameters of φ35, φ42, φ53) is 0.2 seconds or (cylinder inner diameter of φ65) 0.3 seconds. - It is equipped with a powerful scraper as a standard to prevent grinding swarf or high-pressure coolant from infiltrating.
-
Compact Clamp Cylinders
JL Series (7MPa)
- This new version of clamp cylinders that is more compact and takes up less space. Designs minimize the outer angle dimensions of the flange.
- It is possible to select a powerful scraper to prevent grinding swarf or high-pressure coolant from infiltrating.
- A wide variation of designs offers simplified jig designs and higher speed operations.
-
Hydraulic Clamp Cylinders with Sensor
JS Series (7MPa)
- Uses an imbedded sensor switch, making it easier to confirm clamping and unclamping.
- The sensor switch has a tough water-proof structure because a measure is provided measure to protect against cutting fluid.
- It is possible to select a powerful scraper to prevent grinding swarf or high pressure coolant from infiltrating.
Contact us
仕様
| 形式 | JLF5H | ||||
|---|---|---|---|---|---|
| シリンダ内径 | mm | 28 | 34 | 42 | 52 |
| 使用流体 | 一般鉱物性作動油 | ||||
| 使用圧力範囲 | MPa | 1.0～7.0 | |||
| 耐圧力 | MPa | 10.5 | |||
| 使用ピストン速度範囲 | mm/s | 8～100 | |||
| 周囲温度範囲 | ℃ | －5～80 | |||
| シリンダ受圧面積 cm2 | クランプ側 | 6.2(5.4) | 9.1(7.5) | 13.9(11.8) | 21.2(18.1) |
| シリンダ容量 cm3 注1 |
クランプ側 | 20.9(18.3) | 34.5(28.7) | 61.0(52.1) | 106.2(90.5) |
| アンクランプ側 | 15.7 | 28.7 | 52.1 | 90.5 | |
| 2D-CADデータ (DXF) | ダウンロード |
||||
| 3D-CADデータ | ダウンロード | ||||

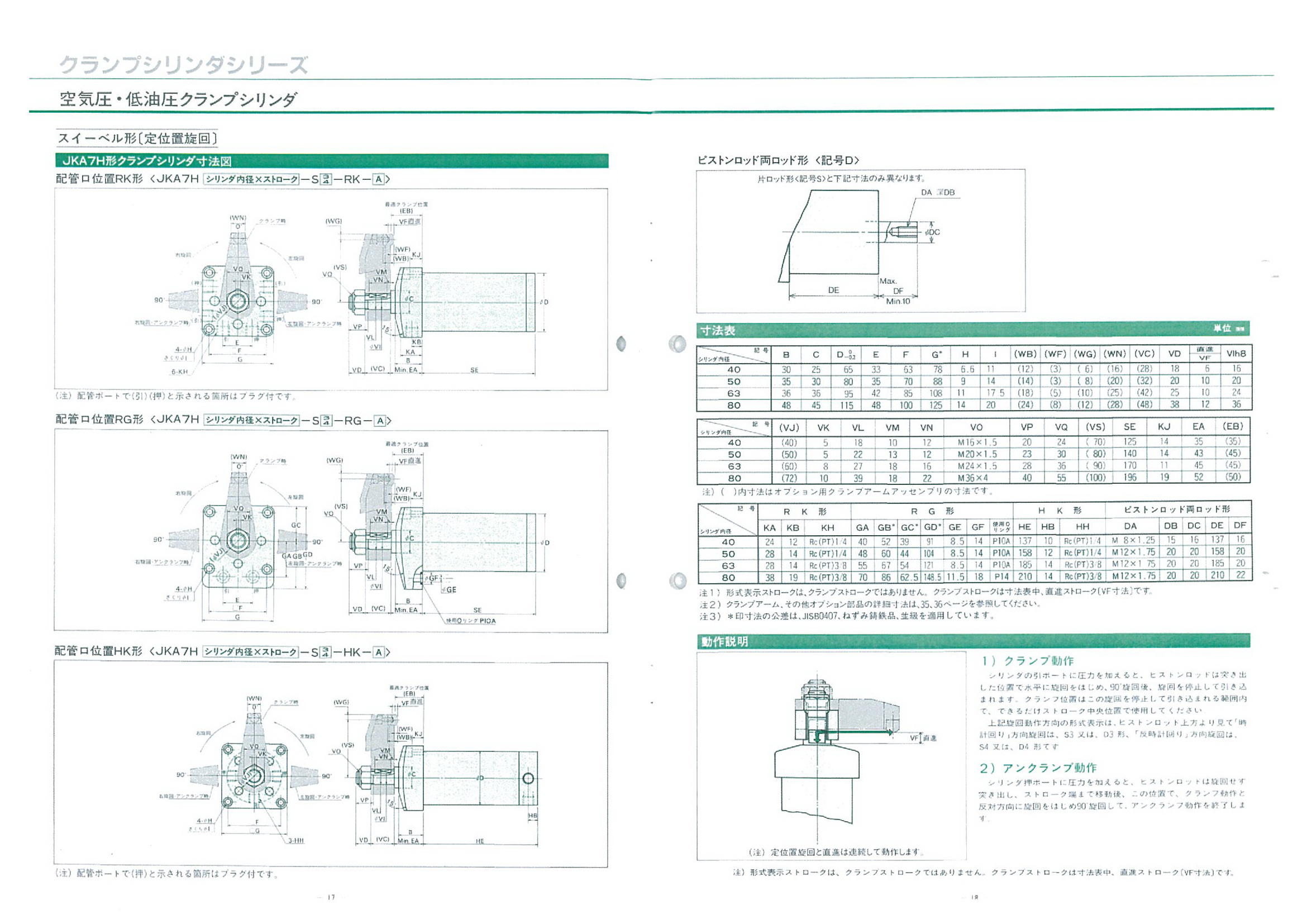

Pneumatic clamp cylinders
Pneumatic clamp cylinders are specially designed to hold a work piece during milling and drilling work.
Product List
-
Pneumatic Clamp Cylinder with Sensor
JA Series (0.8MPa)
- The pneumatic version of the JS Series of hydraulic clamp cylinders with sensor.
- Available in a swing type (JAS) or a swivel type (JAM).
