Product Information :

Name :

Roundness Measuring Machine

Category :

เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล

Sub - Category :

HOLD WELL

Brand :

HOLD WELL

Model :

Roundness Measuring Machine

Product Type :

สินค้า, ผลิตภัณฑ์

Short Description :

Roundness Measuring Machine Roundness Measuring Machine (Chuck Type) Roundness Measuring Machine (Fixed Speed - Chuck Type) Roundness Measuring Machine (Fixed Speed - Thimble Type) Roundness Measuring Machine (Thimble Type) Roundness Measuring Machine (Variable Speed - Chuck Type) Roundness Measuring Machine (Variable Speed - Thimble Type)

Product Detail :

Roundness Measuring Machine

Roundness Measuring Machine (Chuck Type)

Roundness Measuring Machine (Fixed Speed - Chuck Type)

Roundness Measuring Machine (Fixed Speed - Thimble Type)

Roundness Measuring Machine (Thimble Type)

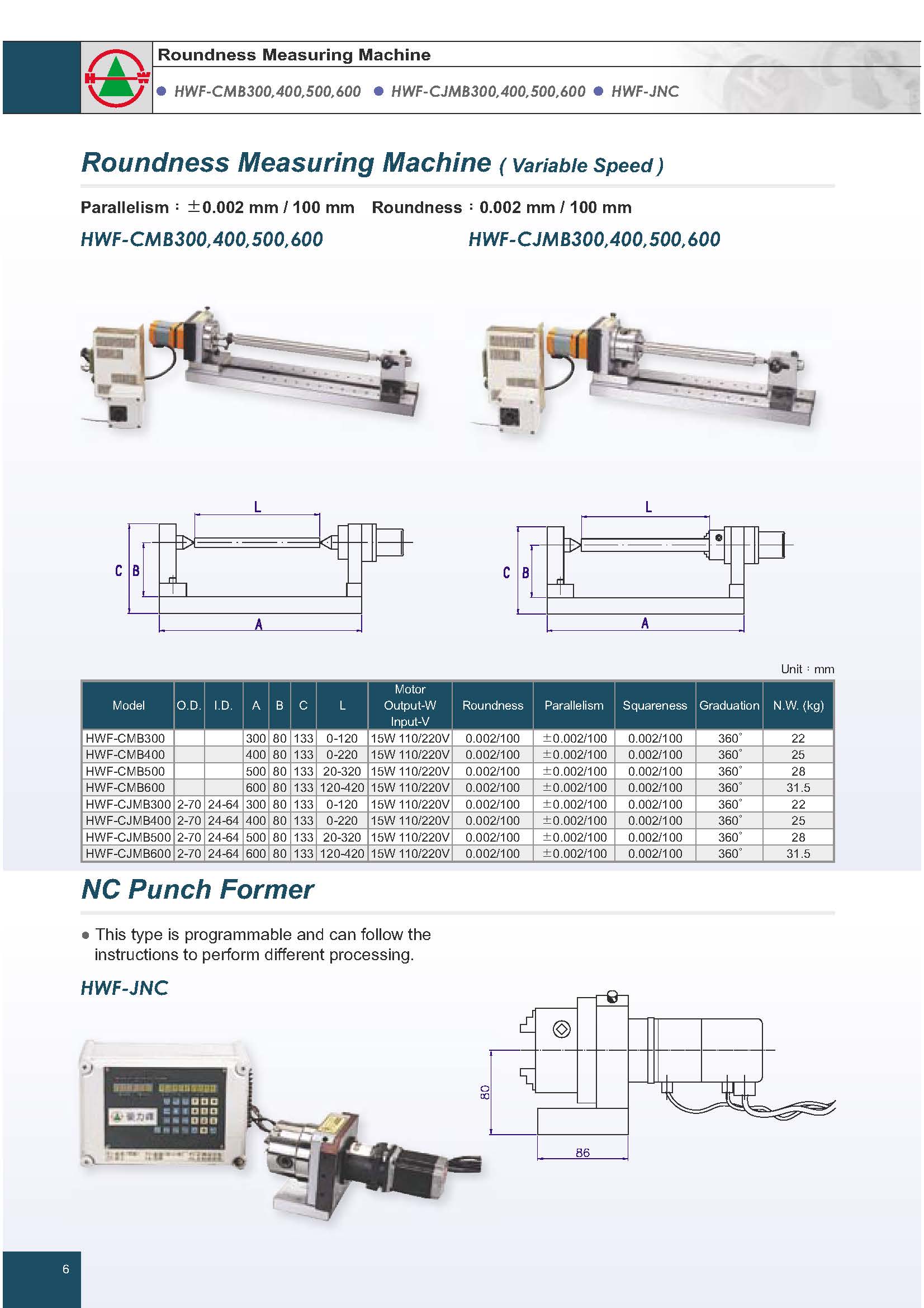

Roundness Measuring Machine (Variable Speed - Chuck Type)

Roundness Measuring Machine (Variable Speed - Thimble Type)

Roundness Measuring Machine (Chuck Type)

Summary
Specification

Roundness Measuring Machine (Fixed Speed - Chuck Type)

Unit：mm

Roundness Measuring Machine (Fixed Speed - Thimble Type)

Unit：mm

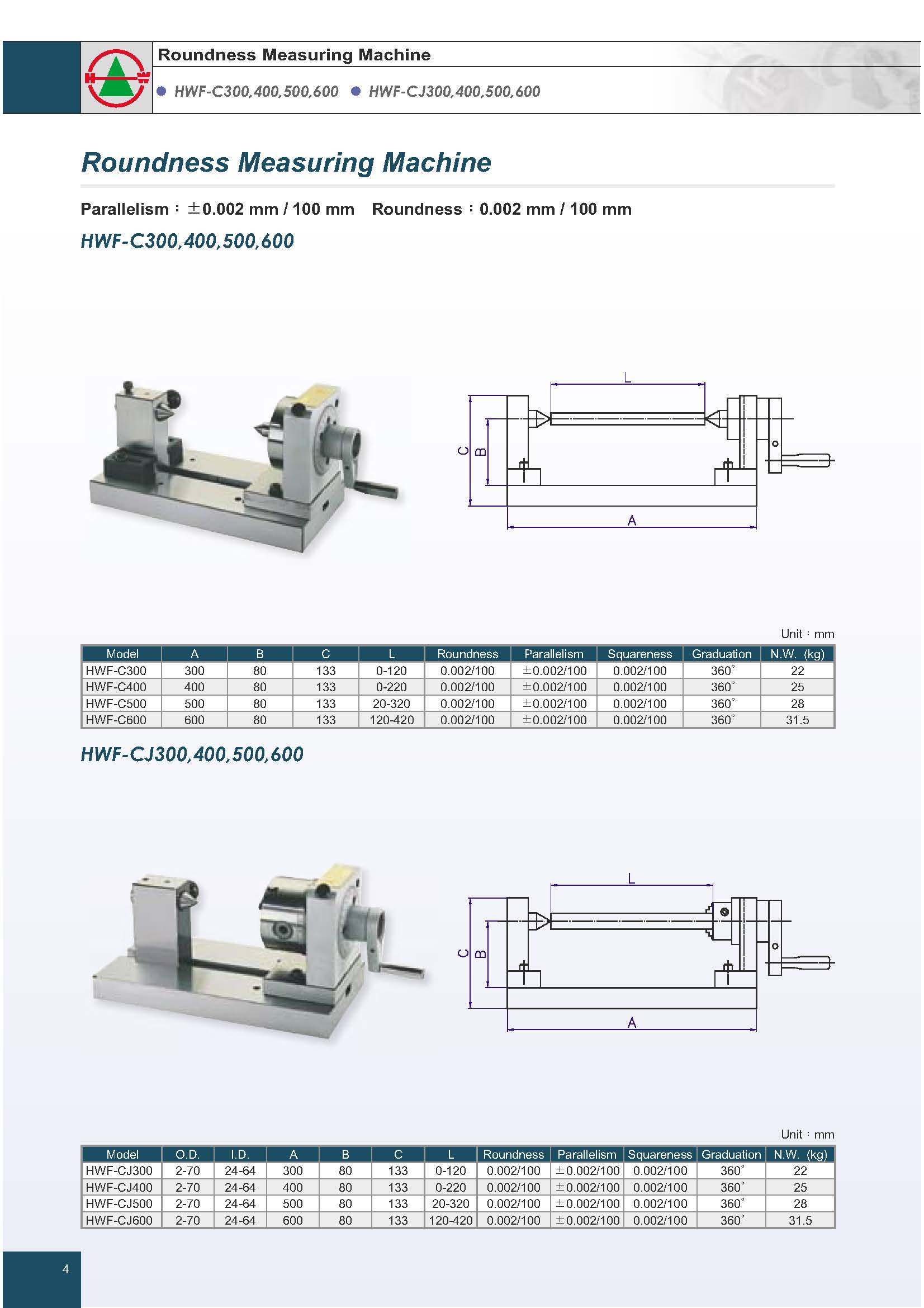

Roundness Measuring Machine (Thimble Type)

Model	A	B	C	L	Roundness	Parallelism	Squareness	Graduation	N.W. (kg)
HWF-C300	300	80	133	0-120	0.002	±0.002/100	0.002/100	360∘	22
HWF-C400	400	80	133	0-220	0.002	±0.002/100	0.002/100	360∘	25
HWF-C500	500	80	133	20-320	0.002	±0.002/100	0.002/100	360∘	28
HWF-C600	600	80	133	120-420	0.002	±0.002/100	0.002/100	360∘	31.5
