Product Information :

Name :
Pneumatic/hydraulic frond-end chucks - Control units
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. SMW AUTOBLOK
Brand :
SMW AUTOBLOK
Model :
BB-N/BB-N-ES/BB-SC/BB-N-EXL2G/BB-AZ2G
Product Type :
  1. เครื่องมือ, เครื่องจักรและอุปกรณ์
Short Description :
chuck สำหรับจับการท่อน้ำมันขนาดใหญ่ SMW-AUTOBLOK model : BB-N/BB-N-ES/BB-SC/BB-N-EXL2G/BB-AZ2G SP125-26/SP160-38/SP240-78/SP280-92/SP350-115/SP350-115 BB-N400-140/BB-N470-191/BB-N500-205/BB-N600-275/BB-N630-310/BB-N800-410 BB-N ES400-140/BB-N ES400-190/BB-N ES500-205/BB-N ES500-230/BB-N ES500-230/BB-N ES600-275/BB-N ES630-325 BB-SC600-275/BB-SC850-395/BB-SC1020-565

Product Detail :

Pneumatic/hydraulic frond-end chucks - Control units



SP + SP-ES + SP-L



Front-end pneumatic power chucks

Extra large through hole Ø 26 - 115 mm

  • 3 jaws
  • SP-ES: chuck with rapid and clamping stroke
  • SP-L: chuck with long jaw stroke


Technical Data




Big Bore



Front-end pneumatic power chucks

Extra large through hole Ø 140-410 mm

  • standard jaw stroke
  • 3 jaws


Technical Data




Big Bore ES



Front-end pneumatic power chucks

Extra large through hole Ø 140-560 mm

  • extended jaw stroke
  • 3 jaws


Technical Data

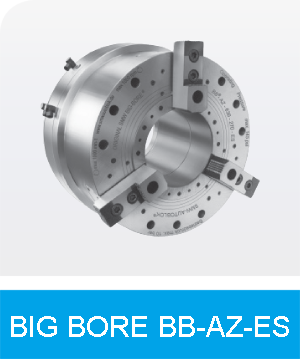

Big Bore BB-AZ-ES



Front-end pneumatic power chucks

Extra large through hole Ø220-370 mm

  • self centering or compensating clamping
  • extended jaw stroke
  • 3 jaws


Technical Data




Big Bore BB-FZA



Front-end sequence chucks

  • 6 jaws
  • 3 integrated centering jaws
  • 3 compensating jaws


Technical Data




Big Bore BB-SC



Front-end spring clamp power chucks, air opening

Extra large through hole Ø275-565 mm
  • Rapid and clamping stroke
  • 3 jaws
  • proofline - fully sealed - low maintenance


Technical Data




CC



Stationary centering and dampening chuck Ø 240+350 mm

  • integrated dampener
  • 3 jaws


Technical Data




AC-BB



Electronic safety control unit for pneumatic chucks

  • 1/2" or 3/4" design
  • basic version


Technical Data




AC-XN



Electronic safety control unit for pneumatic chucks

  • 1/2" design
  • modular extensible


Technica Data




SF-RAZ



2 position hydraulic ring indexing chuck

  • 6 jaws (3 self centering and 3 compensating jaws)
  • large evacuation window for easy chip flow
  • fully automatic and controlled indexing


Technical Data




HYND-S



Power chucks with built-in hdraulic cylinder Ø 180-315 mm

  • hydraulic oil supplied through the machine
  • 3 or 4 jaws


Technical Data




HYDL-S

HYDLL-S

Power chucks with built-in hydraulic cylinder Ø 400-800 mm

  • hydraulic oil supplied through the machine spindle wall
  • 3 jaws
  • HYDL-S: long stroke; HYDLL-S: extra long stroke


Technical Data
