E-Catalog > SMW AUTOBLOK > SMW-AUTOBLOK Closed center cylinders - Open center cylinders - Double piston cylinders

PAGE VIEW : 8,844

Product Information :

Name :
SMW-AUTOBLOK Closed center cylinders - Open center cylinders - Double piston cylinders
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. SMW AUTOBLOK
Brand :
SMW-AUTOBLOK
Model :
SMW-AUTOBLOK SIN-S/VNK/VSG/SIN-HL/SIN-L/DCN/DCU/DCR/ZHVD-SZ/DCE/CSN
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
SMW-AUTOBLOK Closed center hydraulic cylinder model : SIN-50/SIN-S70/SIN-S85/SIN-S100/SIN-S125/SIN-S150/SIN-S175/SIN-S200/SIN-S250 Open center Hydraulic Cylinder model: VNK70-37/VNK102-46/VNK130-52/VNK130-52/VNK150-67/VNK170-77/VNK200-86/VNK225-95/VNK250-100/VNK320-127

Product Detail :

Closed center cylinders - Open center cylinders - Double piston cylinders



SIN-S



Closed center rotating hydraulic cylinders

  • up to 70 bar
  • central bore for air coolant
  • stroke control via proximity or LPS


Technical Data

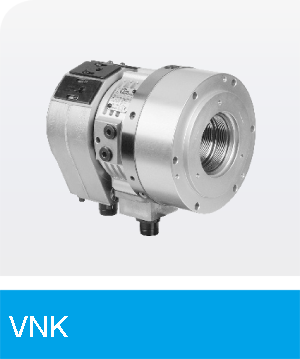

VNK



Open center rotating hydraulic cylinders

  • up to 45 bar
  • through hole Ø 37,5 - 127,5 mm
  • extra short design
  • stroke control via proximity switch or LPS


Technical Data




VSG



Open center rotating hydraulic cylinders

  • up to 30 bar
  • extra large through hole Ø 165 - 204 mm
  • stroke control via proximity switch or LPS


Technical Data




SIN-HL



Closed center rotating hydraulic cylinders

  • up to 70 bar
  • high-low gripping force clamping
  • central bore for air, coolant or oil
  • stroke control via proximity switch or LPS


Technical Data




SIN-L



Closed center rotating hydraulic cylinders

  • up to 70 bar
  • long stroke
  • central bore for air, coolant or oil
  • stroke control via proximity switch or LPS


Technical Data




DCN/ DCU/ DCR



Double piston rotating hydraulic cylinders

  • modular system for different piston strokes
  • long stroke
  • central bore for air, coolant or oil
  • stroke control via proximity switch or LPS


Technical Data




ZHVD-SZ



Double piston rotating hydraulic cylinders

  • up to 80 bar
  • central bore for air, coolant or oil
  • stroke control via proximity switch or LPS


Technical Data




DCE



Double piston rotating hydraulic cylinders

  • up to 70 bar
  • central bore for air, coolant or oil
  • stroke control via proximity switch or LPS


Technical Data




CSN



Closed center rotating pneumatic cylinders

  • up to 7 bar
  • stroke control
  • optional safety valve


Technical Data




LPS

(XS/ X/ NT)

Linear positioning system - cylinder stroke

  • analog or digital output signal
  • monitoring of the entire cylinder stroke
  • measuring range XS: 16mm, X: 50mm, NT: 100mm


Technical Data




RU Rotary Union

1-10/ 1-16/ 2-22

Rotary union for media supply for rotating cylinders

  • universal for air, oil or coolant
  • RU-1: 1 medium
  • RU-2: 2 medien


Technical Data
