Product Information :
Name :
Compatible List : OMRON D5F Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- Metrol Touch Sensors Thailand Distributors
Brand :
METROL Product Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
OMRON Product No. METROL Product No.
D5A-B H4A-08-02A
D5F-2B10 H4A-53-01S
D5F-2B30 H4A-53-01S
D5F-2B34C-Y H4A-53-01S
D5F-3C10 H4A-53-02
D5F-3C30 H4A-53-02
Product Detail :
OMRON D5F (MAZAK Tool Eye)
OMRON Tool Setters D5F series and METROL Tool Setters H4A series are different products.
Yet, you can order the compatible products which can be replaced.
METROL supplies Tool Setters to the MAZAK Corporation in the same manner as OMRON.
| OMRON Product No. | METROL Product No. |
|---|---|
| D5A-B | H4A-08-02A |
| D5F-2B10 | H4A-53-01S |
| D5F-2B30 | H4A-53-01S |
| D5F-2B34C-Y | H4A-53-01S |
| D5F-3C10 | H4A-53-02 |
| D5F-3C30 | H4A-53-02 |
[Replacement of the Tool Setter]
- Remove the four bolts.

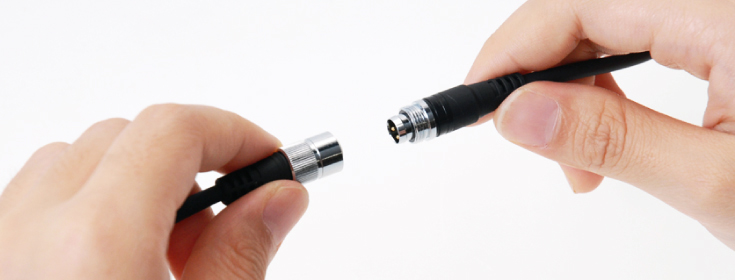

- Pull the joint section away by slightly rotating it.
- Remove the four bolts and then the Tool Setter.
