Product Information :
Name :
STAR Collet: SJ8R, SJ15, JNC12, SE16, SE20 JNC20 Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- MMT Collet Chuck
Brand :
MMT Product Type :
- สินค้า, ผลิตภัณฑ์
Short Description :

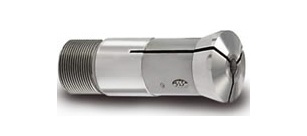

จำหน่ายสินค้าสำหรับเครื่อง STAR Collet: SJ8R, SJ15, JNC12, SE16, SE20 JNC20
Product Detail :
| STAR | JNC8 | 6508 | 3508 | ø 12.0 | 51 | ø 20.0 | ||||
| SW7,SW10,JNC10,RNC10,SNC10 | 6910 | 3910 | ø 15.0 | 64 | ø 21.0 | F15/580 | 120E | TF15 | 40.003 | |
| SE12，S13，VNC12，SJ15 | 6512 | 3512 | ø 18.0 | 64 | ø 25.0 | |||||
| SB16 | 6616 | 3616 | ø 20.0 | 67 | ø 26.0 | |||||
| RNC16，SE16，SR16，SH16 | 6516 | 3516 | ø 20.0 | 67 | ø 28.0 | F20/87 | 138E | TF20 | 40.004 | |
| JNC16, VNC20 | 6520 | 3520 | ø 24.0 | 65.5 | ø 32.0 | |||||
| KNC16/20,SR20,VNC20 | 6720 | 3720 | ø 25.0 | 77 | ø 35.0 | |||||
| JNC16, ZNC16，VNC20 | 6216 | 3216 | ø 26.0 | 67 | ø 36.0 | |||||
| KJR25,SCN25 | 6725 | 3725 | ø 30.0 | 80 | ø 42.0 | F30/63 | 157E | TF30 | 40.006 | |
| JNC32/25，VNC32,MR32 | 6232 | 3232 | ø 37.0 | 92 | ø 47.0 | |||||
| STM38 | 1242 | 2242 | ø 48.0 | 94 | ø 60.0 | F48/81 | 173E | TF48 | 231.009 |
| STAR | TD-7 | 5907 | ø 11.0 | 52 | ø 14.5 | M10X0.75 | 3134E | 3.001 | TD-7 |
| JNC-10,RNC-10,SNC-10 | 5910 | ø 16.0 | 59 | ø 20.5 | M14X1.0 | 3260E | 8.001 | TD10 | |
| SE12，VNC12，SJ15,SNC15 | 5512 | ø 21.0 | 58 | ø 24.0 | M18X1.0 | 3438E | 450.001 | SNC15 | |
| SB16，SR16 | 5616 | ø 22.0 | 70.5 | ø 26.0 | M20X1.0 | 487.001 | P1653D | ||
| RNC16,SE16,SA16,VNC16,KNC16 | 5516 | ø 22.0 | 68 | ø 29.0 | M22X1.0 | ||||
| SA-16，SR-16 | 5916 | ø 22.0 | 68 | ø 29.0 | M22X1.0 | 3455E | 39.001 | TD20R | |
| SR20,KNC16，VNC20 | 5920 | ø 28 | 82 | ø 34.0 | M25X1.0 | 3602E | 22.001 | TD25S | |
| JNC16，L16/20，ZNC16，VNC20 | 5216 | ø 30.0 | 59 | ø 35.0 | M30X1.0 | 510.001 | |||
| SCN-25,KJR-25 | 5725 | ø 34.0 | 87.5 | ø 41.0 | M34X1.0 | 3733E | 451.001 | CD25 | |
| JNC32/25,VNC32/25,MR32,SR32 | 5532 | ø 42.0 | 82 | ø 49.0 | M40X1.0 | 3827E | 28.001 | TD32S | |
| STM-38 | 5538 | ø 48.0 | 82 | ø 59.0 | M46X1.0 | 464.001 |
STAR: SJ8R, SJ15, JNC12, SE16, SE20
|
Machine
|
Type
|
d
|
L
|
D
|
|
COLLET
|
JNC8
|
12
|
51
|
20
|
|
CHUCK
|
SW7, SW10, JNC10, RNC10, SNC10
|
15
|
64
|
21
|
|
STAR
|
SE12, S13, VNC12, SJ15
|
18
|
64
|
25
|
|
SB16
|
20
|
67
|
26
|
|
|
RNC16, SE16, SR16, SH16
|
20
|
67
|
28
|
|
|
JNC16, VNC20
|
24
|
65.5
|
32
|
|
|
KNC16/20, SR20, VNC20
|
25
|
77
|
35
|
|
|
JNC16, VNC20, ZNC16
|
26
|
67
|
36
|
|
|
KJR25, SCN25
|
30
|
80
|
42
|
|
|
JNC32/25, VNC32, MR32
|
37
|
92
|
47
|
|
|
STM38
|
48
|
94
|
60
|
|
Machine
|
Type
|
d
|
L
|
D
|
|
TD-7
|
11
|
52
|
14.5
|
|
|
GUIDE BUSH
|
JNC-10, RNC-10, SNC-10
|
16
|
59
|
20.5
|
|
STAR
|
SE12, VNC12, SJ15, SNC15
|
21
|
58
|
24
|
|
SB16, SR16
|
22
|
70.5
|
26
|
|
|
RNC16, SE16, SA16, VNC16, KNC16
|
22
|
68
|
29
|
|
|
SA-16, SR-16
|
22
|
68
|
29
|
|
|
SR20, KNC16, VNC20
|
28
|
82
|
34
|
|
|
JNC16, L16/20, ZNC16, VNC20
|
30
|
59
|
35
|
|
|
SCN-25, KJR-25
|
34
|
87.5
|
41
|
|
|
JNC32/25, VNC32/25, MR32, SR32
|
42
|
82
|
49
|
|
|
STM-38
|
48
|
82
|
59
|
