Product Detail :

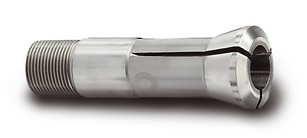

Pull-Type Collets

		Steel	Carbide
Machines	Type	Item No	Item No	d	L	D	Thread M
EGURO	#6	1015	2015	ø 19.0	76	ø 26.0	18.5X1.2
	#8	1020	2020	ø 25.0	102	ø 33.0	24X1.5
	#10	1024	2024	ø 32.0	118	ø 42.0	32X1.5
YUNGHO	YB-25	1025	2025	ø 32.0	104	ø 39.0	31.5X20f"
	YB-32	1032	2032	ø 39.0	119	ø 49.0	38X18f"
	YB-42	1042	2042	ø 52.0	137	ø 64.0	50X16f"
FUJI	#0825	1112	2112	ø 16.0	72	ø 24.0	15X0.85
	#1820	1120	2120	ø 28.0	100	ø 36.0	25X1.5
	#1825	1125	2125	ø 35.0	124	ø 49.0	33X1.5
	#1832	1132	2132	ø 43.0	137	ø 57.5	40X1.75
DAIWA	#10	1410	2410	ø 15.0	60	ø 21.0	15X1.0
	#102	1412	2412	ø 17.0	69	ø 24.0	17X1.0
	#15	1415	2415	ø 22.0	85	ø 28.0	21X1.0
KITAMURA	XKNC-15FA	1515	2515	ø 19.05	76	ø 26.0	18.5X1.25
KITAMURA	XKNC-20FA	1520	2520	ø 26.0	92	ø 34.0	25X1.25
HARDINGE	5C	1705	2705	ø 31.75	88	ø 37.3	31.3X20f"
	16C	1716	2716	ø 48.0	114.5	ø 57.4	47.5X1.75
	20C	1720	2720	ø 60.4	163	ø 73.2	60X1.5
RIKEN	PULL-25	1826	2826	ø 36.0	88	ø 44.0	32X1.5
	PULL-40	1840	2840	ø 55.0	110	ø 66.0	50X1.5
	PULL-60	1860	2860	ø 83.0	132	ø 97.0	78X2.0
CITIZEN	BL20/25	1820	2820	ø 33.0	100	ø 41.0	32X1.5
TSUGAMI	BM-16	1616	2616	ø 30.0	75	ø 38.0	25X1.5
STAR	SC-20	1920	2920	ø 30.0	79	ø 38.0	26X1.5
KATAMAZ	850	8024	2024	ø 37.0	101	ø 46.5	32X1.5
WACHIGAL	WPL-17	1517	2517	ø 23.0	97	ø 32.0	22X1.5
Wang Tzyy	#20	1320	2320	ø 28.0	82	ø 38.0	24X20f"
SENDAY	SD-25	1525	2525	ø 34.0	84	ø 41.5	29X20f"
	SD-32	1532	2532	ø 42.0	95	ø 49.0	38X20f"
	SD-34	1534	2534	ø 42.0	95.5	ø 51.0	36X1.5
	SD-45	1545	2545	ø 56.0	120	ø 68.0	51X20f"
	SD-52	1552	2552	ø 61.0	120	ø 68.0	56X20f"
SCHAUBLIN	W-20 80/00004	1620	2620	ø 20.0	73	ø 26.3	S 19.7X1.666
	W-25 80/00005	1625	2625	ø 25.0	97.6	ø 33.7	S 24.7X15f"
	HW-25 80/02010	1626	2626	ø 25.0	97.6	ø 33.7	S 24.7X15f"
	HB-32 72/02010	1632	2632	ø 32.0	106	ø 40.0	S 29.7X15f"
	L-20 77/00122	1613	2623	ø 20.0	122	ø 28.0	S 19.7X2.0
	B6 72/00128	1606	2606	ø 6.0	31.3	ø 10.5	5X36f"
	B46 72/02007	1246	2246	ø 46.0	120	ø 60.3	40X1.5L
NANN	359E (K23)	1923	2923	ø 23.0	94	ø 32.0	Tr23X1.5
	386E (K32)	1932	2932	ø 32.0	114	ø 45.0	Tr32X1.5
	389E (K45)	1945	2945	ø 45.0	145	ø 60.0	Tr45x2.0
	9049E	1246	2246	ø 46.0	120	ø 60.3	40X1.5L
	9070E	1940	2940	ø 53.0	136	ø 69.3	47X1.5L
	3640E(2)	1626	2626	ø 25.0	97.6	ø 33.7	S 24.7X15f"
	3714E	1632	2632	ø 32.0	106	ø 40.0	S 29.7X15f"
	3718E	1718	2718	ø 32.0	124	ø 45.0	Tr32X1.5
Davenport	Burring	1921	2921	ø 1.060"	4.375"	ø 1.190"	1.048"X16LH
Davenport	Serro B	1925	2925	ø 1.218"	4.38"	ø 1.5"	1.143"X16RH
