Product Information :
Name :
SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- SUGIYAMA ELECTRIC
Brand :
SUGIYAMA ELECTRIC Model :
SUGIYAMA US-1 US-2 US-3 US-4 US-5 US-7S US-7LProduct Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L SUGIYAMA US-1 US-2 US-3 US-4 US-5 US-7S US-7L Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L
Sugiyama ผลิตอุปกรณ์ตรวจจับความผิดปกติในการทำงานของเครื่องตรวจจับโลหะอัตโนมัติทำงานโดยอัตโนมัติ จำหน่าย นำเข้า ตัวแทน ตัวแทนจำหน่าย ขาย สินค้า SUGIYAMA ELECTRICSYSTEM Product Detail :
SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L
จำหน่าย นำเข้า ตัวแทน ตัวแทนจำหน่าย ขาย สินค้า SUGIYAMA ELECTRICSYSTEM
Sugiyama ผลิตอุปกรณ์ตรวจจับความผิดปกติในการทำงานของเครื่องตรวจจับโลหะอัตโนมัติทำงานโดยอัตโนมัติ
SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L SUGIYAMA US-1 US-2 US-3 US-4 US-5 US-7S US-7L
US Series/USD Series/USE Series ~Spring sensor~
| USE Series Order codes | USD Series USE Series |
US series Leaflet USD series Leaflet USE series Leaflet |
Description
The spring sensor is contact type sensor.
When a conductive workpiece contacts the sensor rod, the sensor circuit closes and an electric signal flows.
Therefore, this sensor can detect touch of only conductive workpiece.
The cable for spring type contact sensor of US-1 and USD-1 is 6 kinds of color. Blue, Red, White, Yellow, Pink and Orange are prepared.
(US-2 - US-7 and USD-2 - USD-7 are nothing but Red cable and White cable. )
US series and USD series are the same in form except connector.
USE-1 and USE-2 are possible to specify the spring diameter, the cable length, connector and others of US-1, US-2, USD-1 and USD-2 by your choice.
USE-E series is extension cable for RCA pin-plug.USE-DE series is extension cable for DIN-plug.
When a conductive workpiece contacts the sensor rod, the sensor circuit closes and an electric signal flows.
Therefore, this sensor can detect touch of only conductive workpiece.
The cable for spring type contact sensor of US-1 and USD-1 is 6 kinds of color. Blue, Red, White, Yellow, Pink and Orange are prepared.
(US-2 - US-7 and USD-2 - USD-7 are nothing but Red cable and White cable. )
US series and USD series are the same in form except connector.
USE-1 and USE-2 are possible to specify the spring diameter, the cable length, connector and others of US-1, US-2, USD-1 and USD-2 by your choice.
USE-E series is extension cable for RCA pin-plug.USE-DE series is extension cable for DIN-plug.
US Series Photograph and Dimensions

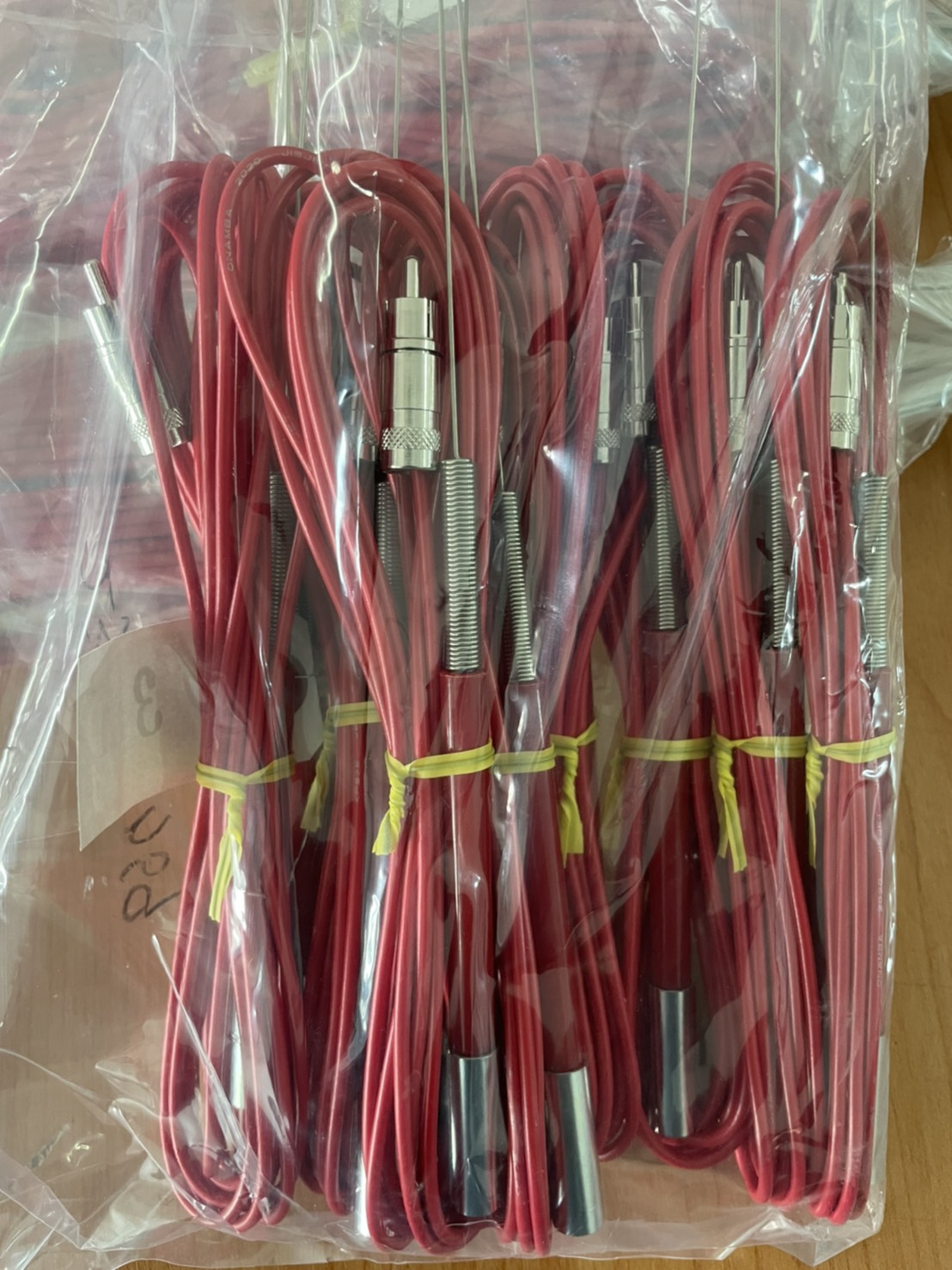

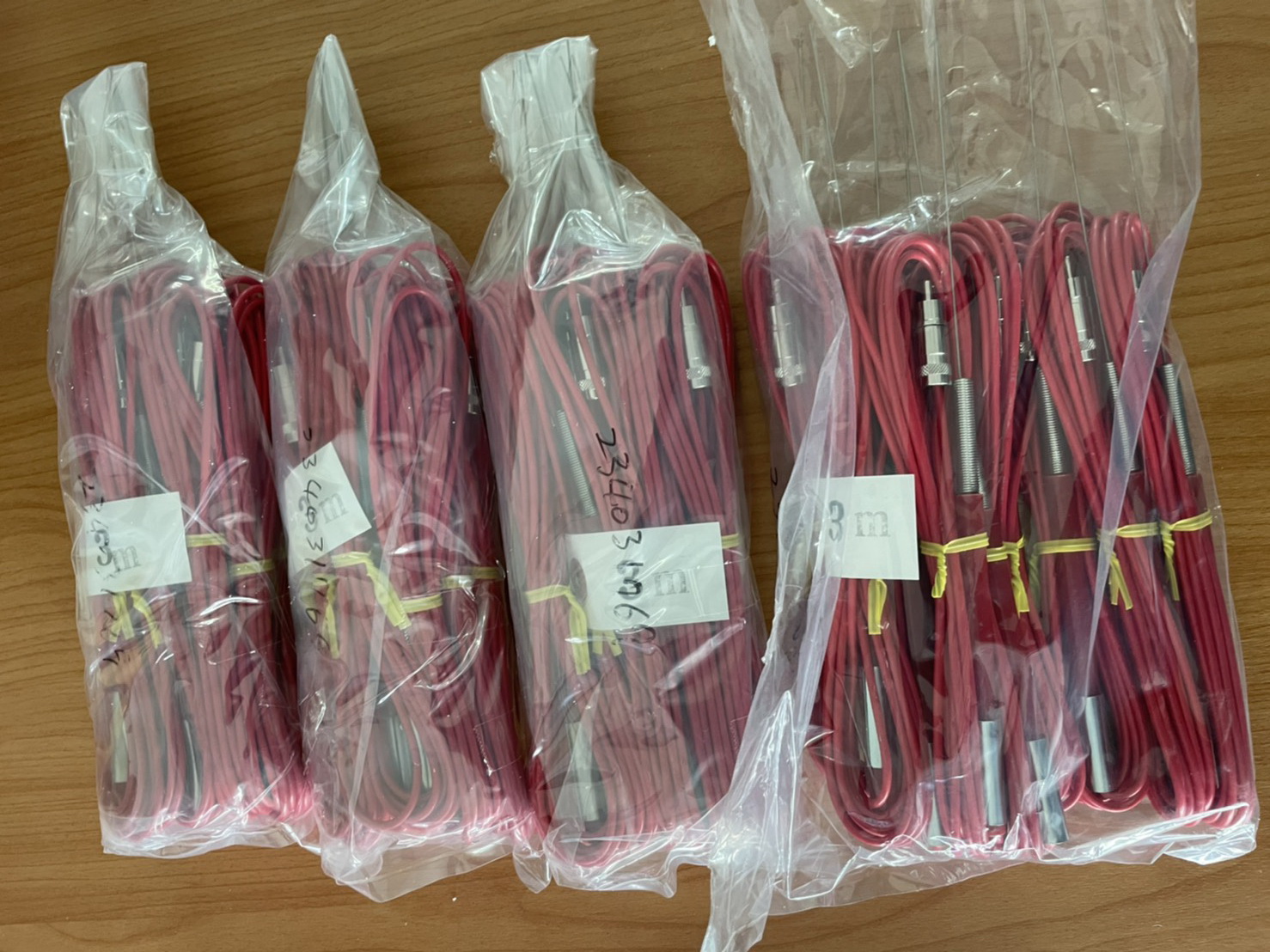

US series is spring type contact sensor with pin-plug.
It gets connected to PS-662, PS-661, PS-104 or PS-101.
It is necessary Pin-DIN conversion cable of which connector, cable color and cable length are fixed or USE-DE when connect to PS682.
Pin-DIN conversion cable is an included items when purchase PS682.
(Note, however, that only if 「01」 is selected at the order code of accessory of sensor.)
It gets connected to PS-662, PS-661, PS-104 or PS-101.
It is necessary Pin-DIN conversion cable of which connector, cable color and cable length are fixed or USE-DE when connect to PS682.
Pin-DIN conversion cable is an included items when purchase PS682.
(Note, however, that only if 「01」 is selected at the order code of accessory of sensor.)
| US-1 | |
 |
 Click to enlarge image. US-1  |
| US-2 | |
 |
 Click to enlarge image. US-2 |
| US-3 | |
 |
 Click to enlarge image. US-3 |
| US-4 | |
 |
 Click to enlarge image. US-4 |
| US-5 | |
 |
 Click to enlarge image. US-5 |
| US-7S | |
 |
 Click to enlarge image. US-7S |
| US-7L | |
 |
 Click to enlarge image. US-7L |
USD Series Photograph and Dimensions

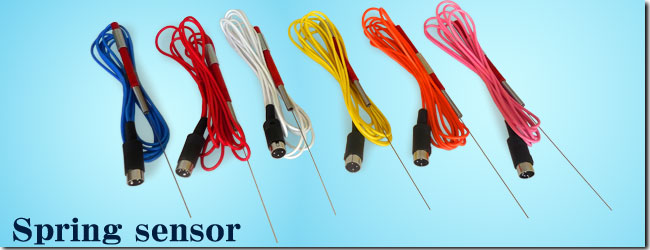

USD series is spring type contact sensor with DIN-plug.
It gets connected to PS-682. It is necessary USE-E when connect to PS-662, PS-661, PS-104 or PS-101.
It gets connected to PS-682. It is necessary USE-E when connect to PS-662, PS-661, PS-104 or PS-101.
| USD-1 | |
 |
 Click to enlarge image. USD-1 |
| USD-2 | |
 |
 Click to enlarge image. USD-2 |
| USD-3 | |
 |
 Click to enlarge image. USD-3 |
| USD-4 | |
 |
 Click to enlarge image. USD-4 |
| USD-5 | |
 |
 Click to enlarge image. USD-5 |
| US-7S | |
|
Click to enlarge image. US-7S |
| USD-7L | |
 |
 Click to enlarge image. USD-7L |
USE Series
USE series is enlargement spec of spring type contact sensor such as US-1(USD-1), US-2(USD-2).
USE-E and USE-DE make the cable of US series, USD series and USE series extend.
USE-E and USE-DE make the cable of US series, USD series and USE series extend.
| USE-1 *Production on orders | |
 |
 Click to enlarge image. USE-1 Order codes |
| USE-2*Production on orders | |
 |
 Click to enlarge image. USE-2 Order codes |
| USE-E *Production on orders | |
 |
 Click to enlarge image. USE-E Order codes |
| USE-DE*Production on orders | |
 |
 |
Sugiyama ผลิตอุปกรณ์ตรวจจับความผิดปกติในการทำงานของเครื่องตรวจจับโลหะอัตโนมัติทำงานโดยอัตโนมัติ SUGIYAMA US-1 US-2 US-3 US-4 US-5 US-7S US-7L SUGIYAMA US-1 US-2 US-3 US-4 US-5 US-7S US-7L
SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L SUGIYAMA US-1 US-2 US-3 US-4 US-5 US-7S US-7L Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L
Sugiyama ผลิตอุปกรณ์ตรวจจับความผิดปกติในการทำงานของเครื่องตรวจจับโลหะอัตโนมัติทำงานโดยอัตโนมัติ จำหน่าย นำเข้า ตัวแทน ตัวแทนจำหน่าย ขาย สินค้า SUGIYAMA ELECTRICSYSTEM
SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L SUGIYAMA US-1 US-2 US-3 US-4 US-5 US-7S US-7L Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L
Sugiyama ผลิตอุปกรณ์ตรวจจับความผิดปกติในการทำงานของเครื่องตรวจจับโลหะอัตโนมัติทำงานโดยอัตโนมัติ จำหน่าย นำเข้า ตัวแทน ตัวแทนจำหน่าย ขาย สินค้า SUGIYAMA ELECTRICSYSTEM
SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L
SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L SUGIYAMA US-1 US-2 US-3 US-4 US-5 US-7S US-7L Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L
Sugiyama ผลิตอุปกรณ์ตรวจจับความผิดปกติในการทำงานของเครื่องตรวจจับโลหะอัตโนมัติทำงานโดยอัตโนมัติ จำหน่าย นำเข้า ตัวแทน ตัวแทนจำหน่าย ขาย สินค้า SUGIYAMA ELECTRICSYSTEM
SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L SUGIYAMA US-1 US-2 US-3 US-4 US-5 US-7S US-7L Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L
Sugiyama ผลิตอุปกรณ์ตรวจจับความผิดปกติในการทำงานของเครื่องตรวจจับโลหะอัตโนมัติทำงานโดยอัตโนมัติ จำหน่าย นำเข้า ตัวแทน ตัวแทนจำหน่าย ขาย สินค้า SUGIYAMA ELECTRICSYSTEM
SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L SUGIYAMA US-1 US-2 US-3 US-4 US-5 US-7S US-7L Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L
Sugiyama ผลิตอุปกรณ์ตรวจจับความผิดปกติในการทำงานของเครื่องตรวจจับโลหะอัตโนมัติทำงานโดยอัตโนมัติ จำหน่าย นำเข้า ตัวแทน ตัวแทนจำหน่าย ขาย สินค้า SUGIYAMA ELECTRICSYSTEM
SUGIYAMA Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L SUGIYAMA US-1 US-2 US-3 US-4 US-5 US-7S US-7L Spring sensor US-1 US-2 US-3 US-4 US-5 US-7S US-7L
Sugiyama ผลิตอุปกรณ์ตรวจจับความผิดปกติในการทำงานของเครื่องตรวจจับโลหะอัตโนมัติทำงานโดยอัตโนมัติ จำหน่าย นำเข้า ตัวแทน ตัวแทนจำหน่าย ขาย สินค้า SUGIYAMA ELECTRICSYSTEM
Slug detector
 |
 PS-482/484/488 |
PS-474 |
PS-464/462 |
Proximity Sensor head
 |
Sensor head |
PS-4013 |
PS-4014 |
| PS-4018 |
PS-4020 |
PS-4024 |
|
| PS-4025 |
PS-4026 |
PS-4027 |
|
| PS-4028 |
PS-4029 |
PS-4031 |
|
| PS-4032 |
PS-4033 |
PS-4034 |
Malfunction detector
 |
PS-682 |
PS-661/662 |
|
| PS-101T |
PS-104F |
Light sensor
 |
OS series |
LS series |
LS-32 |
| LS-52 |
LS-82 |
LS-102 |
|
| LS-122 |
LS-152 |
LS-202 |
Ring proximity sensor
 |
Loop sensor |
LS-50 |
LS-85 |
| LS-90W |
LS-120 |
LS-150 |
|
Contact sensor
 |
Spring sensor |
US-1 |
US-2 |
| US-3 |
US-4 |
US-5 |
|
| US-7S |
US-7L |
||
| USD-1 |
USD-2 |
USD-3 |
|
| USD-4 |
USD-5 |
USD-7L |
|
| USE Series |
USE-1 |
USE-2 |
|
| USE-E |
USE-DE |
Vibration sensor
 |
AS-11 |
|
Digital cam
 |
PS-711 |
PS-731 |
|
Mist spray system
 |
PS-228/226 |
PS-255 |
PS-218 |
| PS-225 |
PS-217/216 |
||
Box changer
 |
Box changer |
CS-860-2H |
| CS-860-2SSH |
CS-860-2SHA |
|
Transfer detector
 |
PS-581 |
PS-524 |
|
Counter
 |
PS-381 |
PS-333 |
PS-330 |
| PS-321 |
Description
The Slug Detectors PS-482/484/488 are designed for detecting slugs, double piles driving, and so on, during automatic press working and for outputting stop signal to the press in case of abnormalities.
It reads a signal from Eddy current proximity sensor installed on the mold for the press and calculate the displacement by a microcomputer. If the displacement exceeds the limit, it outputs the stop signal to the press.
Since Ethernet is supported, the PS-482/484/488 can be connected to personal computer (PC) and PLC.
It reads a signal from Eddy current proximity sensor installed on the mold for the press and calculate the displacement by a microcomputer. If the displacement exceeds the limit, it outputs the stop signal to the press.
Since Ethernet is supported, the PS-482/484/488 can be connected to personal computer (PC) and PLC.
Features
The PS-482/484/488 have the following additional features together with those of our PS-462/464.
Added functions helpful for detection
|
|
Functions helpful for production control
|
|
Ethernet supported
|
Dimensions
PS-482/484/488
PS-482/484/488
Back view
Specification
| Item | ||
| Detect | Channels | 2CH (PS-482) / 4CH (PS-484) / 8CH (PS-488) |
| Resolution | 1μm or 0.1μm | |
| Max. limit value | 200μm or 20.0μm | |
| Detect mode | Internal timing, External timing | |
| Max. SPM | 4000SPM | |
| Sensor | Sensor Installation distance (at B.D.C.) |
0.7 to 1.5 mm |
| Length of sensor cable | 1 to 10m (Standard 3m) | |
| Temperature | 0 to 55°C | |
| Input/Output | Power source voltage | 100 to 240 VAC ±10%,50/60Hz (Max. 40VA) |
| Relay output | EMG Stop, TDC Stop, READY,ALARM (Max. 250VAC / 30VDC 3.0A) |
|
| External input | ON/OFF, RESET, LOCK, TIMING (T1, T2, T3) | |
| Open collector output |
AUX (5 to 24 VDC 100mA) | |
| Ethernet | Physical layer | 10BASE-T/100BASE-TX |
| Protocol | IPv4 UDP、DHCP、HTTP、Telnet、FTP |
|
| Others | Dimensions of the body | 200(W)× 98.5(H)×190(D) excluding projections |
| Weight | 3.0 kgW (inc. mounting bracket) | |
| Temperature | 0 to 55°C (must not be sudden change while using it) | |
| Humidity | 35 to 85%RH (no dew condensation allowed) | |
Sensor heads
Only the mechanical dimentions are different,the electric characteristic are all the same.
| Click on image for more infomation. | ||||||
| PS-4013 | PS-4014 | PS-4018 | PS-4020 | PS-4024 | PS-4025 | PS-4026 |
 |
 |
 |
 |
 |
 |
 |
| PS-4027 | PS-4028 | PS-4029 | PS-4031 | PS-4032 | PS-4033 | PS-4034 |
 |
 |
 |
 |
 |
 |
 |
Sensor Cable Series of 243297
The colors of the sensor cable are blue, red, yellow, and white.
blue red white yellow Sensor Cable Series of 243297 Order codes
Description
High-resolution slug detector called AMSTAD(PS-474) can show not only bar graphs but also waveform graphs and plot graphs because we added liquid crystal display to the slug detector with the resolution of 0.1μm developed by the experience of many years.
Therefore, it is easy to adjust detection timing which was difficult to adjust up until now by checking waveform and to check a variation of displacement in the graph.
In addition, it is not only showing graphs but also recording a waveform data for 8 strokes immediately before the press stops and recording a displacement data constantly.
Therefore, it is easy to adjust detection timing which was difficult to adjust up until now by checking waveform and to check a variation of displacement in the graph.
In addition, it is not only showing graphs but also recording a waveform data for 8 strokes immediately before the press stops and recording a displacement data constantly.
Features
High-sensitivity sensor with the resolution of 0.1μm
|
|
Visualization by a liquid crystal panel
|
|
Easy to adjust a detection timing
|
|
Data storage on a USB flash drive
|
|
Feature-rich settings
|
Dimensions
PS-474
PS-474
Specification
| Detection | |
| Number of channels | 4CH |
| Resolution | 1μm or 0.1μm |
| Max. limit value | 200μm or 20.0μm |
| Sensing distance of sensor head | 0.7 - 1.5nm |
| Ambient temperature of sensor head | 0 - 55°C |
| Type of timing | Internal timing , External timing |
| Length of sensor cable | Standard 3m |
| Max. SPM | 4000SPM |
| Record / Storage | |
| Number of record strokes (Approx.) | 60 million data |
| USB flash drive | Formatted USB flash drive with FAT32 in USB2.0 or less |
| External output | |
| Relay output | Max. 250VAC / 30VDC 3.0A |
| External input | |
| External Timing /Operation Lock / Reset / Monitor |
Connect non-voltage contact or semiconductor switch. Internal voltage (12 VDC) type |
| Power supply / Others | |
| Power source voltage | AC100V-240V ±10％ 50/60Hz |
| Power consumption | peak：60W or less active：20W or less |
| Weight | 3.0kg(Only the main body) |
| Size of the body (WHD) | 200×200×190mm (excluding projections) |
| Ambient temperature | 0 - 55°C (must not be sudden change while using it) |
| Ambient humidity | 35 - 85%RH (no dew condensation allowed) |
| Ambient environmental | No corrosive gas or dust allowed |
| Attachments | Instruction manual 1 Proximity Sensor head 4 The sensor cable 4 Standard bracket 1 Output cable (Standard: 5 m) |
Sensor heads
Only the mechanical dimentions are different,the electric characteristic are all the same.
| Click on image for more infomation. | ||||||
| PS-4013 | PS-4014 | PS-4018 | PS-4020 | PS-4024 | PS-4025 | PS-4026 |
|
|
|
|
|
|
|
| PS-4027 | PS-4028 | PS-4029 | PS-4031 | PS-4032 | PS-4033 | PS-4034 |
|
|
|
|
|
|
|
Sensor Cable Series of 243297
The colors of the sensor cable are blue, red, yellow, and white.
blue red white yellow Sensor Cable Series of 243297 Order codes
Description
In order to accept various dies, we get a lot of sensor heads lined up.
All electric property is the same but outside dimension of them are different.
All electric property is the same but outside dimension of them are different.
| PS-4013 |  Click to enlarge image. PS-4013 |
 |
| PS-4014 |  Click to enlarge image. PS-4014 |
 |
| PS-4018 |  Click to enlarge image. PS-4018 |
 |
| PS-4020 |  Click to enlarge image. PS-4020 |
 |
| PS-4024 |  Click to enlarge image. PS-4024 |
 |
| PS-4025 |  Click to enlarge image. PS-4025 |
 |
| PS-4026 |  Click to enlarge image. PS-4026 |
 |
| PS-4027 |  Click to enlarge image. PS-4027 |
 |
| PS-4028 |  Click to enlarge image. PS-4028 |
 |
| PS-4029 |  Click to enlarge image. PS-4029 |
 |
| PS-4031 |  Click to enlarge image. PS-4031 |
 |
| PS-4032 |  Click to enlarge image. PS-4032 |
 |
| PS-4033 |  Click to enlarge image. PS-4033 |
 |
| PS-4034 |  Click to enlarge image. PS-4034 |
 |
Description
The Malfunction Detector “PS-682” detects the status of automatic pressing, such as material shortage, material feeding, discharge of processed goods, and outputs a stop signal to the press in case of trouble.
Several functions using timing signal, such as counting, calculation of work rate, error recording, will assist you in production control.
PS-682 supports Ethernet to connect with a personal computer or PLC.
It employs DIN connector and remotely operable light sensor can be used. Since a voltage of 12V or 24V is outputted, a 24 V sensor can be used as well as conventional light sensor.
Several functions using timing signal, such as counting, calculation of work rate, error recording, will assist you in production control.
PS-682 supports Ethernet to connect with a personal computer or PLC.
It employs DIN connector and remotely operable light sensor can be used. Since a voltage of 12V or 24V is outputted, a 24 V sensor can be used as well as conventional light sensor.
Features
While the features of our “PS-661/662” remain as they are, the following features are added.
Improvement of operability by LCD
|
