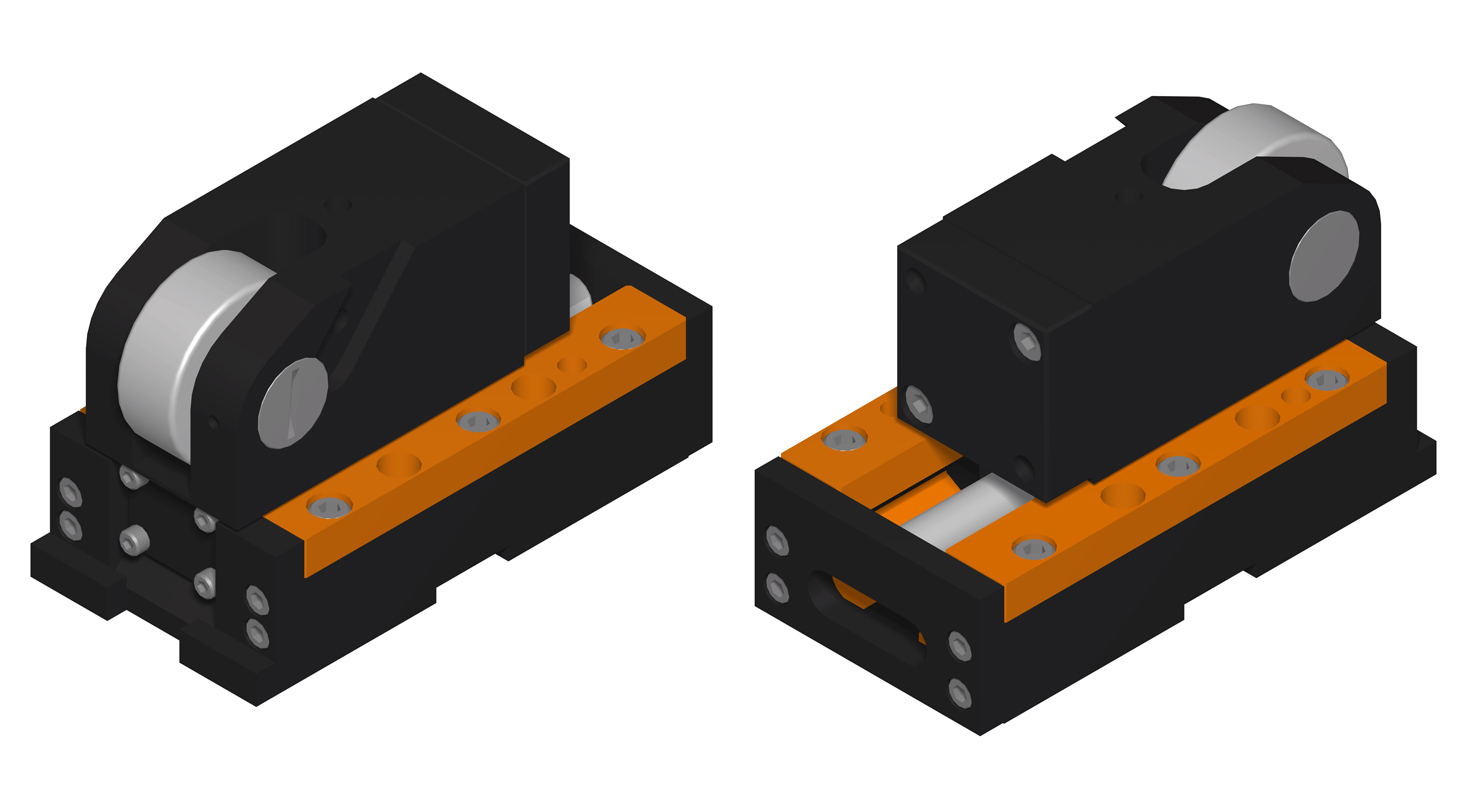

ROLLER CAMS

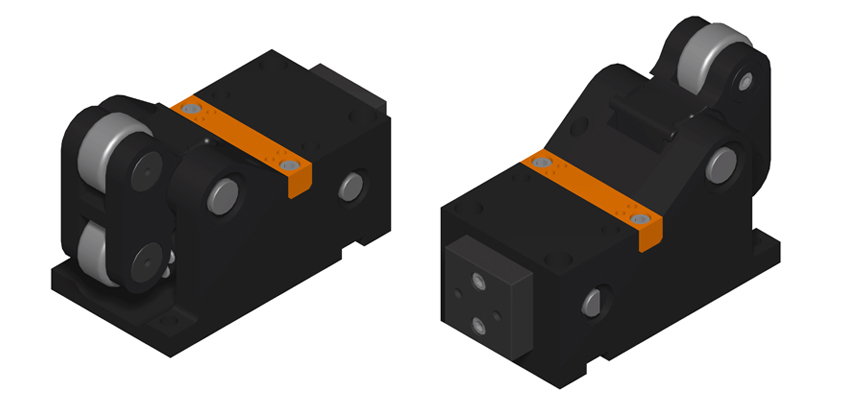

PUNCHING UNITS
| Serie | Model | Max. Punching Force (daN) | Max. Punching Stroke (mm) | Return force (daN) | 3D | |
|---|---|---|---|---|---|---|
| CRCN |
CRCN-03000-50
|
3000 | 50 | 300 |  |
 |
|
CRCN-03000-80
|
3000 | 80 | 350 |  |
|
|
|
CRCN-05000-50
|
5000 | 50 | 300 | |
|
|
|
CRCN-05000-80
|
5000 | 80 | 350 | |
|
|
|
CRCN-05000-100
|
5000 | 100 | 350 | |
|
|
|
CRCN-15000-50
|
15000 | 50 | 570 | |
|
|
|
CRCN-15000-80
|
15000 | 80 | 500 | |
|
|
|
CRCN-15000-100
|
15000 | 100 | 500 | |
|
| Serie | Model | Max. Punching Force (daN) | Max. Punching Stroke (mm) | Return force (daN) | 3D | |
|---|---|---|---|---|---|---|
| CRCS |
CRCS-03000-50
|
3000 | 50 | 300 | |
|
|
CRCS-03000-80
|
3000 | 80 | 300 | |
|
|
|
CRCS-03000-100
|
3000 | 100 | 300 | |
|
|
|
CRCS-05000-50
|
5000 | 50 | 300 | |
|
|
|
CRCS-05000-80
|
5000 | 80 | 300 | |
|
|
|
CRCS-05000-100
|
5000 | 100 | 300 | |
|
|
|
CRCS-15000-50
|
15000 | 50 | 500 | |
|
|
|
CRCS-15000-80
|
15000 | 80 | 500 | |
|
|
|
CRCS-15000-100
|
15000 | 100 | 500 | |
|
|
|
CRCS-20000-50
|
20000 | 50 | 750 | |
|
|
|
CRCS-20000-80
|
20000 | 80 | 750 | |
|
|
|
CRCS-20000-100
|
20000 | 100 | 750 | |
|
| Serie | Model | Max. Punching Force (daN) | Max. Punching Stroke (mm) | Return force (daN) | 3D | |
|---|---|---|---|---|---|---|
| CRCE |
CRCE-02000-22
|
2000 | 22 | 200 | |
|
|
CRCE-02000-35
|
2000 | 35 | 200 | |
|
|
|
CRCE-03000-50
|
3000 | 50 | 300 | |
|
|
|
CRCE-03000-80
|
3000 | 80 | 350 | |
|
|
|
CRCE-03000-100
|
3000 | 100 | 350 | |
|
|
|
CRCE-05000-50
|
5000 | 50 | 300 | |
|
|
|
CRCE-05000-80
|
5000 | 80 | 350 | |
|
|
|
CRCE-05000-100
|
5000 | 100 | 350 | |
|
|
|
CRCE-15000-50
|
15000 | 50 | 570 | |
|
|
|
CRCE-15000-80
|
15000 | 80 | 500 | |
|
|
|
CRCE-15000-100
|
15000 | 100 | 500 | |
|
|
|
CRCE-20000-50
|
20000 | 50 | 750 | |
|
|
|
CRCE-20000-80
|
20000 | 80 | 750 | |
|
|
|
CRCE-20000-100
|
20000 | 100 | 750 | |
|
< <
| Serie | Model | Punching unit (daN) | Stroke (mm) | Return force (daN) | 3D | |
|---|---|---|---|---|---|---|
| CPUN |
CPUN-00750-10
|
750 | 10 | 40 | |
|
|
CPUN-01500-12
|
1500 | 12 | 90 | |
|
|
|
CPUN-03500-20
|
3500 | 20 | 200 | |
|
|
|
CPUN-05000-25
|
5000 | 25 | 200 | |
|
|
|
CPUN-05000-25-45
|
5000 | 25 | 200 | |
|
|
|
CPUN-07000-38
|
7000 | 38 | 300 | |
|
|
|
CPUN-07000-38-45
|
7000 | 38 | 300 | |
|
|
|
CPUN-10000-50
|
10000 | 50 | 300 | |
|
|
|
CPUN-10000-50-45
|
10000 | 50 | 300 | |
|
|
|
CPUN-20000-50
|
20000 | 50 | 600 | |
|
<
| Serie | Model | Punching unit (daN) | Stroke (mm) | Return force (daN) | 3D | |
|---|---|---|---|---|---|---|
| CPUS |
CPUS-01500-15
|
1500 | 15 | 100 | |
|
|
CPUS-01500-15-45
|
1500 | 15 | 100 | |
|
|
|
CPUS-03000-20
|
3000 | 20 | 200 | |
|
|
|
CPUS-03000-20-45
|
3000 | 20 | 200 | |
|
|
|
CPUS-05000-30
|
5000 | 30 | 200 | |
|
|
|
CPUS-05000-30-45
|
5000 | 30 | 200 | |
|
|
|
CPUS-07000-40
|
7000 | 40 | 300 | |
|
|
|
CPUS-07000-40-45
|
7000 | 40 | 300 | |
|
|
|
CPUS-10000-50
|
10000 | 50 | 500 | |
|
|
|
CPUS-10000-50-45
|
10000 | 50 | 500 | |
|
Refills / Pusser support
