AUTOGRIP CHUCK

INTEGRATED STATIONARY CHUCKS(SP?SD?SU?SE)

SP

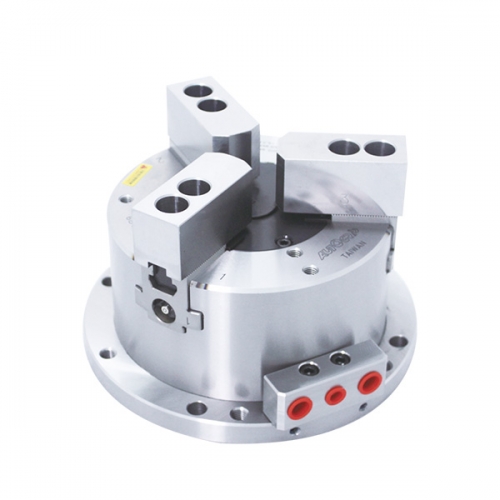

Stationary Chuck
Stationary Chuck
Stationary Chuck
Non-Thru-Hole | 3-JAW
  • Build-in hydraulic cylinder; it can also work with lock valve and be driven by air pressure.
  • With small thru-hole and suits for long bar workpiece processing.
  • Easy to install. Installing the tubes and then operating.
  • Thin and compact design. Use standard soft jaws or standard hard jaws.
  • Can work together with multi-plate.

Add to inquiry
Catalog Download

ModelJaw stroke
(Dia.) (mm)		Chucking Dia.
Max.
(mm)		Chucking Dia.
Min.
(mm)		Max. clamping force
Pneumatic
kN(kgf)		Max. clamping force
Hydraulic
kN(kgf)		Max. pressure
Pneumatic
MPa (kgf/cm2)		Max. pressure
Hydraulic
MPa (kgf/cm2)		Min. pressure
kgf/cm2		Air consumption
lit(at 6.0 kgf/cm2)		Weight (kg)
SP-304 5.1 110 10 7.5 (765) 22.0 (2243) 0.6 (6) 1.3 (13) 2 0.5 7
SP-306 5.5 168 30 21.0 (2141) 52.0 (5303) 0.6 (6) 1.3 (13) 2 1.4 16.5
SP-308 6.8 210 42 33.0 (3365) 74.0 (7546) 0.6 (6) 1.3 (13) 2 2.5 28.7
SP-310 7 254 52 48.0 (4895) 107.0 (10911) 0.6 (6) 1.3 (13) 2 4.2 42
SP-312 9.3 304 60 61.3 (6246) 132.8 (13532) 0.6 (6) 1.3 (13) 2 6.4 52.8
SP-316 14.5 400 30 96(9789) - 0.7(7) - 2 10.6 147.8
SP-320 16 500 45 104(10605) - 0.7(7) - 2 15 232.7
SP-324 16 600 140 153(15602) -



SD

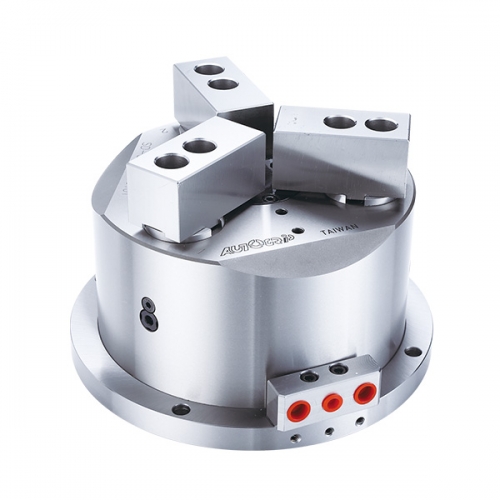

Stationary Pull Down Chuck
Stationary Pull Down Chuck
Stationary Pull Down Chuck
Pull Down | 3-JAW
  • Build-in hydraulic cylinder; it can also work with lock valve and be driven by air pressure.
  • Radial clamp and axial pull down at the same time, keep the workpiece attaching close to the base surface of the chuck.
  • Almost no workpiece uplifting displacement.
  • The body with heat treatment and the organization of cylinder pull-down, and fine boring, which guarantee to the high clamping precision and durableness, it’s suitable for heavy duty machining.
  • Can work together with multi-plate.
  • Air-tight pressure detect function is optional.

Add to inquiry
Catalog Download
ModelJaw stroke
(Dia.) (mm)		Chucking Dia.
Max.(mm)		Chucking Dia.
Min.(mm)		Max. clamping force
Pneumatic
kN(kgf)		Max. clamping force
Hydraulic
kN(kgf)		Max. pressure
Pneumatic
MPa (kgf/cm2)		Max. pressure
Hydraulic
MPa (kgf/cm2)		Min. pressure
kgf/cm2		Air consumption
lit(at 6.0 kgf/cm2)		Weight (kg)
SD-304 5 110 18 5.0 (510) 10.9 (1112) 0.6 (6) 1.3 (13) 2 0.26 8.1
SD-306 7.2 165 35 11.5 (1173) 25.0 (2550) 0.6 (6) 1.3 (13) 2 0.58 20.6
SD-308 7.2 210 28 21.7 (2213) 47.0 (4793) 0.6 (6) 1.3 (13) 2 1.02 34.1
SD-310 10.8 254 40 36.0(3680) 60.0(6118) 0.6


SU

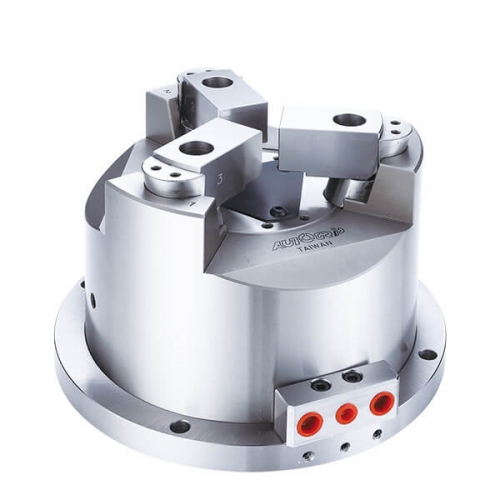

SU 3 Jaw Chuck for Milling and Drilling Machine
SU 3 Jaw Chuck for Milling and Drilling Machine
Stationary Pull Lock Chuck
Pull Lock | 3 Jaw Drilling and Milling Machine Chuck
  • Build-in hydraulic cylinder; it can also work with a lock valve and be driven by air pressure.
  • Radial clamp and axial pull down at the same time, keep the workpiece attaching close to the base surface of the chuck.
  • Almost no workpiece uplifting displacement.
  • 3 jaw drill chuck which the body with heat treatment and the organization of cylinder pull-down, and fine boring, which guarantee the high clamping precision and durableness, it’s suitable for heavy duty machining.
  • 3 jaw chucks are suitable for drilling, milling, and other machines.
  • Can work together with multi-plate.
  • The airtight pressure detection function is optional.

Add to inquiry
Catalog Download
ModelJaw stroke
(Dia.) (mm)		Chucking Dia.
Max.(mm)		Chucking Dia.
Min.(mm)		Max. clamping force
Pneumatic
kN(kgf)		Max. clamping force
Hydraulic
kN(kgf)		Max. pressure
Pneumatic
MPa (kgf/cm2)		Max. pressure
Hydraulic
MPa (kgf/cm2)		Min. pressure
kgf/cm2		Air consumption
lit(at 6.0 kgf/cm2)		Weight (kg)
SU-303 2 42 4 5.2(530) 12.8(1305) 0.6(6) 1.3(13) 2 0.16 5.7
SU-304 3 60 5 6.7(683) 16.0(1632) 0.6(6) 1.3(13) 2 0.26 7.4
SU-306 5 105 31 18.5(1886) 40.0(4079) 0.6(6) 1.3(13) 2 0.58 18
SU-308 5 132 32 37.0(3773) 80.0(8158) 0.6(6) 1.3(13) 2 1.02 31.5
SU-310 5 163 44 46.2(4710) 100.0(10100) 0.6(6) 1.3(13) 2 2.11 53





Related Accessories
SU 3 Jaw Chuck for Milling and Drilling Machine
SU
Thru-Hole Stationary 2/3-Jaw Power Chuck
VH
Non-Thru-Hole Stationary 2/3-Jaw Power Chuck
VP
MP4 Stationary Chuck Base Plate with Non-Thru-Hole and Thru-Hole
MP4
Stationary Pull Down Chuck
SD





SE

Stationary Expansible Pull Lock Chuck
Stationary Expansible Pull Lock Chuck
Stationary Expansible Pull Lock Chuck
Expansible Pull Lock | 3-JAW
  • Build-in hydraulic cylinder; it can also work with lock valve and be driven by air pressure.
  • For internal grapping
  • With high precision and stability.
  • Suitable for the precision large length size process.
  • Suitable for end process.
  • Can work together with multi-plate.
  • Air-tight pressure detect function is optional.

Add to inquiry
Catalog Download
ModelJaw stroke
(Dia.) (mm)		Chucking Dia.
Max.(mm)		Chucking Dia.
Min.(mm)		Max. clamping force
Pneumatic
kN(kgf)		Max. clamping force
Hydraulic
kN(kgf)		Max. pressure
Pneumatic
MPa (kgf/cm2)		Max. pressure
Hydraulic
MPa (kgf/cm2)		Min. pressure
kgf/cm2		Air consumption
lit(at 6.0 kgf/cm2)		Weight (kg)
SE-305 3 83 29 14.3 (1459) 41.0 (4181) 0.7 (7) 1.3 (13) 2 0.46 14.6
SE-306 5 110 44 20.0 (2040) 57.0 (5812) 0.7 (7) 1.3 (13) 2 0.58 20
SE-308 5 150 50 32.0 (3263) 78.0 (7954) 0.7


SCB

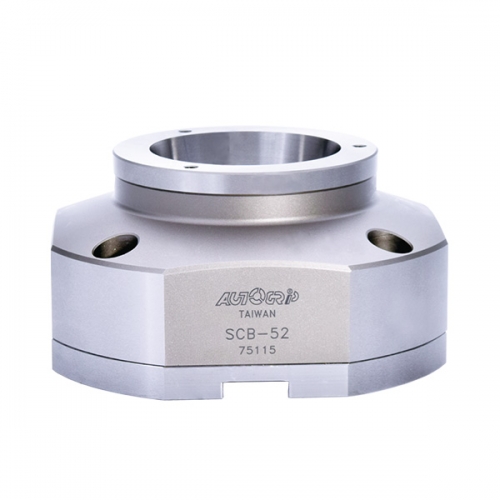

Stationary Draw Collet Chuck
Stationary Draw Collet Chuck
Stationary Draw Collet Chuck
Pull Down Collet | Rubber collet
  • Build-in cylinder, ideal for drilling machines, milling machines and machining centers.
  • Work with Autogrip’s rubber collet(RG series), quick change and saving runtime.
  1. Two modes for the media supply: side-supply mode or baseplate-supply mode.

Add to inquiry
Catalog Download
ModelJaw stroke(Dia.)
(mm)		Max. Chucking
Capacity (mm)
Round		Max. Chucking
Capacity (mm)
Hexagom		Max. Chucking
Capacity (mm)
Square		Max. clamping force
kN(kgf)		Weight
(kg)		Matching Stell ColletMax. pressure
MPa (kgf/cm2)
SCB-52
 ±0.5 4~52 7~45 7~36 80(8150) 8.6 RG-52 4.0(40)
SCB-65
 ±0.5 4~65 8~56 8~46 105(10700)




Power Chucks

Established in 1989, Autogrip Machinery Co., Ltd. is a specialist power chucks manufacturer in Taiwan. Our product lines include power chucks, special purpose power chucks, collet chucks, stationary chucks, synchronous clamps, facing heads, rotary cylinders, rotary valve/rotary joint and parts/accessories.

For power chucks, there are thru-hole, non-thru-hole, large-thru-hole, long jaw stroke, for vertical lathe power chucks, etc. in the category. The jaw chuck number is from 1 jaw chuck, 2 jaw chuck, 3 jaw chuck to 4 jaw chuck, some series provide 6 jaw power chucks type (customized and made to order). For the V series, the maximum diameter can be up to 2,000mm (79”). Please find more details on the product description pages. With Great rigidity and infallible precision, our products work together with our customers to increase efficiency and productivity – always a high performance, cost-effective, and great stability. Our R&D department keeps improving to meet and satisfy the highest demand of our worldwide customers. Autogrip is always your best partner in the work holding solutions. We also provide customized solutions, if you need customized lathe power chucks products, please feel free to contact AUTOGRIP.

More Chucks

Power Chucks, Air Chucks, Collet Chucks, Stationary Chucks, Synchronous Clamps, Facing Heads, Rotary Cylinders, Rotary Valves and Joints…


Choose Your Chuck



RAP

RAP Pneumatic Lathe Chuck with 3-JAW
RAP Pneumatic Lathe Chuck with 3-JAW
Pneumatic Power Chuck
Pneumatic Power Chuck | 3-JAW
  • pneumatic chuck for the lathe.
  • Rotary chuck with built-in apneumatic cylinder, compact design, suitable for light machining. compatible to standard soft jaw/hard jaw.
  • Can be installed on a rotary table for indexing machining.
  • Sealed against dust and cutting chips.
  • Matching surfaces of all parts hardened, ground, and lubricated directly.
  • Note: To overcome friction force between distubritor ring and chuck body, the rotating torque of the rotary table must be higher than the requirement shown in the table.

Add to inquiry
Catalog Download
ModelJaw stroke
(Dia.)(mm)		Chucking Dia.
Max.(mm)		Chucking Dia.
Min.(mm)		Max. clamping force
(Pneumatic at 6.0kgf/cm2)
kN (kgf)		Max. pressure
(kgf/cm2)		Max. speed
(r.p.m.)		Max Rotation
Reslstance Torque
(Nm)		Air Consumption
(at 6.0 kgf/cm2)
lit (kgf/cm2)		Weight
(kg)
RAP-306 5.5 170 25 21(2141.4) 7 72 40 3.1 16.2
RAP-308 6.8 215 37 34.2(3487.4) 7 60 60 3.1 30.6
RAP-310 7 254 53 48(4894.7) 7 53











3MF

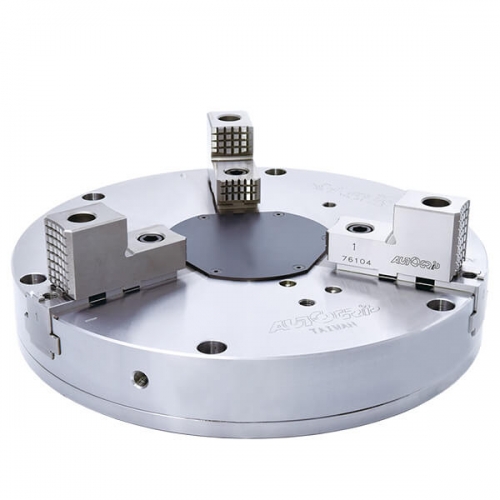

3MF 3 Jaw Self Centering Chuck and Scroll Chuck
