เครื่องมือวัดแรงดึง HSK Taper Drawbar Force Gauges Steep Taper (ISO) Kennametal (KM Taper) Capto PS

ForceCheck HSK Taper Drawbar Force Gauges

HSK Taper Complete Sets



HSK Taper Complete Sets

Wired complete sets include force sensing bar, display readout unit, connecting cable for wired unit, special carrying case, and certificate.

 Details  PDF (462.130)

HSK-A/C/E Taper HSK-B/D/F Taper     Order Number
HSK-A/C/E 25                461.310.125.000

HSK-A/C/E 32                461.310.132.000

HSK-A/C/E 40    HSK-B/D/F 50            461.310.140.000

HSK-A/C/E 50    HSK-B/D/F 63            461.310.150.000

HSK-A/C/E 63    HSK-B/D/F 80            461.310.163.000

HSK-A/C/E 80    HSK-B/D/F 100            461.310.180.000

HSK-A/C/E 100    HSK-B/D/F 125            461.310.190.000

HSK-A/C/E 125                461.310.192.000

HSK-A/C/E 160                461.310.196.000

HSK Taper Wired Force Measuring Bars icon

HSK Taper Wired Force Measuring Bars



 Details  PDF (462.120)

HSK-A/C/E Taper HSK-B/D/F Taper     Order Number
HSK-A/C/E 25                461.200.125.000

HSK-A/C/E 32                461.200.132.000

HSK-A/C/E 40    HSK-B/D/F 50            461.200.140.000

HSK-A/C/E 50    HSK-B/D/F 63            461.200.150.000

HSK-A/C/E 63    HSK-B/D/F 80            461.200.163.000

HSK-A/C/E 80    HSK-B/D/F 100            461.200.180.000

HSK-A/C/E 100    HSK-B/D/F 125            461.200.190.000

HSK-A/C/E 125                461.200.192.000

HSK-A/C/E 160                461.200.196.000

HSK Taper Wireless Force Measuring Bars icon

HSK Taper Wireless Force Measuring Bars

Wireless measuring adapters have the option of coming with or without the tool change groove. Wireless adapters can be retrofitted for quick inspection or designed for integrated use; ask us more for details.

 Details  PDF (462.125)

HSK-A/C/E Taper HSK-B/D/F TaperGroove    Order Number
HSK-A/C/E 25      Yes          461.205.125.000

HSK-A/C/E 32    HSK-B/D/F 40  Yes          461.205.132.000

HSK-A/C/E 40    HSK-B/D/F 50  Yes          461.205.140.000

HSK-A/C/E 50    HSK-B/D/F 63  Yes          461.205.150.000

HSK-A/C/E 63    HSK-B/D/F 80  Yes          461.205.163.000

HSK-A/C/E 80    HSK-B/D/F 100  Yes          461.205.180.000

HSK-A/C/E 100    HSK-B/D/F 125  Yes          461.205.190.000

HSK-A/C/E 125      Yes          461.205.192.000

HSK-A/C/E 160      Yes          461.205.196.000

HSK-A/C/E 25      No          461.206.125.000

HSK-A/C/E 32    HSK-B/D/F 40  No          461.206.132.000

HSK-A/C/E 40    HSK-B/D/F 50  No          461.206.140.000

HSK-A/C/E 50    HSK-B/D/F 63  No          461.206.150.000

HSK-A/C/E 63    HSK-B/D/F 80  No          461.206.163.000

HSK-A/C/E 80    HSK-B/D/F 100  No          461.206.180.000

HSK-A/C/E 100    HSK-B/D/F 125  No          461.206.190.000

HSK-A/C/E 125      No          461.206.192.000

HSK-A/C/E 160      No          461.206.196.000

Displays icon

Displays

The display is universal and can be used on multiple ForceCheck adapters.

 Details  PDF (461.100)

        Order Number
ForceCheck Wired Display                461.100.000.000

ForceCheck Wireless Display                461.110.000.000

Base Sets icon

Base Sets

Sets include display readout unit, connecting cable for wired unit, and carrying case. Measuring bars, adapters, and other accessories are ordered separately.

 Details  PDF (461.300)

        Order Number
ForceCheck Base Set                461.310.000.000

ForceCheck Wireless Base Set                461.320.000.000

ForceCheck Drawbar Force Carrying Cases icon

ForceCheck Drawbar Force Carrying Cases

Depending on what gauges you need to keep together, TAC Rockford offers various carrying case configurations.

 Details  PDF (461.400)

        Order Number
ForceCheck HSK100 2 Measuring Bar Carrying Case                461.415.190.000

ForceCheck 1 Measuring Bar Carrying Case                461.419.000.000

ForceCheck 2 Measuring Bar Carrying Case                461.420.000.000

ForceCheck 3 Measuring Bar Carrying Case                461.421.000.000


ForceCheck Machine-Integrated Drawbar Force Gauges



ForceCheck Machine-Integrated Drawbar Force Gauges

The machine-integrated drawbar force gauge automates drawbar force measurement. With a wireless force sensor stored in the tool changer, a machine can periodically automatically check the drawbar without stopping production. Drawbar force is returned to the machine control via a wireless receiver, automatically alerting the operator if insufficient force is detected.



Applications• Intended to be stored inside automatic tool changers.
• Allows for inaccessible or difficult to reach milling spindles to be tested.
• Automatic periodic drawbar force checking and reporting.

CustomizationMachine integrated drawbar force gauges are made to customer specifications, and can be fitted for any tool holder taper, size, and flange diameter. Sensors can be set to automatically trigger force readings upon insertion into spindle, and report measurements wirelessly to a console or receiver, all while using low-power consumption.

ForceCheck Kennametal (KM Taper) Drawbar Force Gauges

ForceCheck Kennametal (KM Taper) Drawbar Force Gauges

For measuring drawbar retention force on Kennametal (KM) spindles

Measuring bars, complete sets, and base units for measuring drawbar force on a Kennametal KM spindle.

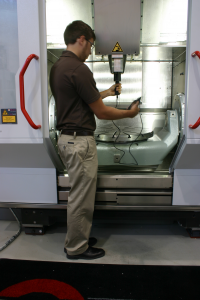

ForceCheck in use (Click image to enlarge)

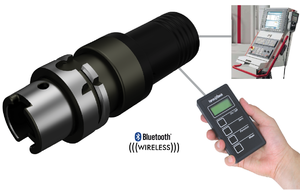

ForceCheck Kennametal (KM Taper) Drawbar Force Gauges (Click image to enlarge)
ForceCheck Kennametal (KM Taper) Drawbar Force Gauges (Click image to enlarge)

Kennametal (KM Taper) Complete Sets icon

Kennametal (KM Taper) Complete Sets



 Details  PDF (462.K30)

KM Taper       Order Number
KM 63                461.310.K63.000

KM 100                461.310.K90.000

Kennametal (KM Taper) Wired Force Measuring Bars icon

Kennametal (KM Taper) Wired Force Measuring Bars



 Details  PDF (462.K20)

KM Taper       Order Number
KM 40                461.200.K40.000

KM 63                461.200.K63.000

KM 80                461.200.K80.000

KM 100                461.200.K90.000

Kennametal (KM Taper) Wireless Force Measuring Bars icon

Kennametal (KM Taper) Wireless Force Measuring Bars

Wireless measuring adapters have the option of coming with or without the tool change groove. Wireless adapters can be retrofitted for quick inspection or designed for integrated use; ask us more for details.

 Details  PDF (462.K25)

KM Taper Tool Change Groove     Order Number
KM 40    Yes            461.205.K40.000

KM 50    Yes            461.205.K50.000

KM 63    Yes            461.205.K63.000

KM 80    Yes            461.205.K80.000

KM 100    Yes            461.205.K90.000

KM 40    No            461.206.K40.000

KM 50    No            461.206.K50.000

KM 63    No            461.206.K63.000

KM 80    No            461.206.K80.000

KM 100    No            461.206.K90.000

Displays icon

Displays

The display is universal and can be used on multiple ForceCheck adapters.

 Details  PDF (461.100)

        Order Number
ForceCheck Wired Display                461.100.000.000

ForceCheck Wireless Display                461.110.000.000

Base Sets icon

Base Sets

Sets include display readout unit, connecting cable for wired unit, and carrying case. Measuring bars, adapters, and other accessories are ordered separately.

 Details  PDF (461.300)

        Order Number
ForceCheck Base Set                461.310.000.000

ForceCheck Wireless Base Set                461.320.000.000

ForceCheck Drawbar Force Carrying Cases icon

ForceCheck Drawbar Force Carrying Cases

Depending on what gauges you need to keep together, TAC Rockford offers various carrying case configurations.

 Details  PDF (461.400)

        Order Number
ForceCheck HSK100 2 Measuring Bar Carrying Case                461.415.190.000

ForceCheck 1 Measuring Bar Carrying Case                461.419.000.000

ForceCheck 2 Measuring Bar Carrying Case                461.420.000.000

ForceCheck 3 Measuring Bar Carrying Case                461.421.000.000


ForceCheck Steep Taper (ISO) Drawbar Force Gauges

.

ForceCheck Steep Taper (ISO) Drawbar Force Gauges

For measuring drawbar retention force on steep taper (SK-ISO) spindles

Measuring bars, complete sets, and base units for measuring drawbar force on a Steep Taper (SK) ISO standard spindle.

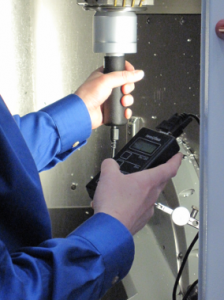

ForceCheck Steep Taper (ISO) Drawbar Force Gauges (Click image to enlarge)
ForceCheck Steep Taper (ISO) Drawbar Force Gauges (Click image to enlarge)

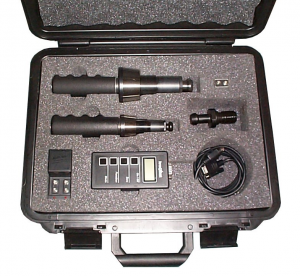

Display and adapter set (Click image to enlarge)
ForceCheck Steep Taper (ISO) Drawbar Force Gauges (Click image to enlarge)

Steep Taper (ISO) Complete Sets icon

Steep Taper (ISO) Complete Sets



 Details  PDF (462.A30)

ISO Taper       Order Number
Steep Taper (ISO) 10                461.310.A10.000

Steep Taper (ISO) 20                461.310.A20.000

Steep Taper (ISO) 25                461.310.A25.000

Steep Taper (ISO) Wired Force Measuring Bars icon

Steep Taper (ISO) Wired Force Measuring Bars



 Details  PDF (462.A20)

ISO Taper       Order Number
Steep Taper (ISO) 10                461.200.A10.000

Steep Taper (ISO) 15                461.200.A15.000

Steep Taper (ISO) 20                461.200.A20.000

Steep Taper (ISO) 25                461.200.A25.000

Displays icon

Displays

The display is universal and can be used on multiple ForceCheck adapters.

 Details  PDF (461.100)

        Order Number
ForceCheck Wired Display                461.100.000.000

ForceCheck Wireless Display                461.110.000.000

Base Sets icon

Base Sets

Sets include display readout unit, connecting cable for wired unit, and carrying case. Measuring bars, adapters, and other accessories are ordered separately.

 Details  PDF (461.300)

        Order Number
ForceCheck Base Set                461.310.000.000

ForceCheck Wireless Base Set                461.320.000.000

ForceCheck Drawbar Force Carrying Cases icon

ForceCheck Drawbar Force Carrying Cases

Depending on what gauges you need to keep together, TAC Rockford offers various carrying case configurations.

 Details  PDF (461.400)

        Order Number
ForceCheck HSK100 2 Measuring Bar Carrying Case                461.415.190.000

ForceCheck 1 Measuring Bar Carrying Case                461.419.000.000

ForceCheck 2 Measuring Bar Carrying Case                461.420.000.000

ForceCheck 3 Measuring Bar Carrying Case                461.421.000.000





ForceCheck Capto PSK (PSC) Drawbar Force Gauges

For measuring drawbar retention force on Coromant Capto PSK/PSC (Polygonal Shank Taper) spindles

Measuring bars, complete sets, and base units for measuring drawbar force on Coromant Capto spindles (Polygonal Shank Taper • PSK).

ForceCheck Capto PSK (PSC) Drawbar Force Gauges (Click image to enlarge)
ForceCheck Capto PSK (PSC) Drawbar Force Gauges (Click image to enlarge)
ForceCheck Capto PSK (PSC) Drawbar Force Gauges (Click image to enlarge)
ForceCheck Capto PSK (PSC) Drawbar Force Gauges (Click image to enlarge)
ForceCheck Capto PSK (PSC) Drawbar Force Gauges (Click image to enlarge)

Capto PSK (PSC) Complete Sets icon

Capto PSK (PSC) Complete Sets



 Details  PDF (462.C30)

PSK (PSC) Taper       Order Number
Capto C3                461.310.C03.000

Capto C4                461.310.C04.000

Capto C5                461.310.C05.000

Capto C6                461.310.C06.000

Capto C8                461.310.C08.000

Capto C10                461.310.C10.000

Capto PSK (PSC) Wired Force Measuring Bars icon

Capto PSK (PSC) Wired Force Measuring Bars



 Details  PDF (462.C20)

PSK (PSC) Taper       Order Number
Capto C3                461.200.C03.000

Capto C4                461.200.C04.000

Capto C5                461.200.C05.000

Capto C6                461.200.C06.000

Capto C8                461.200.C08.000

Capto C8X                461.200.C8X.000

Capto PSK (PSC) Wireless Force Measuring Bars icon

Capto PSK (PSC) Wireless Force Measuring Bars

Wireless measuring adapters have the option of coming with or without the tool change groove. Wireless adapters can be retrofitted for quick inspection or designed for integrated use; ask us more for details.

 Details  PDF (462.C25)

PSK (PSC) Taper Tool Change Groove     Order Number
Capto C3    Yes            461.205.C03.000

Capto C4    Yes            461.205.C04.000

Capto C5    Yes            461.205.C05.000

Capto C6    Yes            461.205.C06.000

Capto C8    Yes            461.205.C08.000

Capto C8X    Yes            461.205.C8X.000

Capto C3    No            461.206.C03.000

Capto C4    No            461.206.C04.000

Capto C5    No            461.206.C05.000

Capto C6    No            461.206.C06.000

Capto C8    No            461.206.C08.000

Capto C8X    No            461.206.C8X.000
