Product Information :

Name :
JIG & Fixture Gage Checking Fixture(JIG CF)
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. KOGA GAGE
Brand :
KOGA GAGE
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
JIG & Fixture Gage JIG & Fixture Gage Checking Fixture(JIG CF)

Product Detail :

Home > PRODUCT > Jig / Fixture gage






Hole Location Testing Gage..


CYL/HEAD CHECK GAGE..


CRANK SHAFT Comprehensive Testing Tool..


HOLE POSITION GAGE..


Comprehensive Testing Tool..


CHECK FIXTURE GAGE..

Home > PRODUCT > Jig / Fixture gage





  Hole Location Testing Gage

Hole position testing gage for automotive part such as MANIFOLD






  CRANK SHAFT Comprehensive Testing Tool


Measure position of CRANK SHAT P/N of vehicle.

Used for measuring position of THRUST side, STROKE.






  Comprehensive Testing Tool

POSITION GAGE testing the position of HOLE of Cylinder BLOCK.

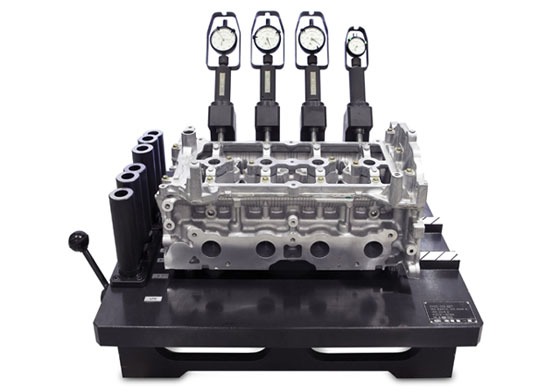

  CYL/HEAD CHECK GAGE

 Used for measuring HOLE depth, position of CYL/HEAD of vehicle.
