Short Description:

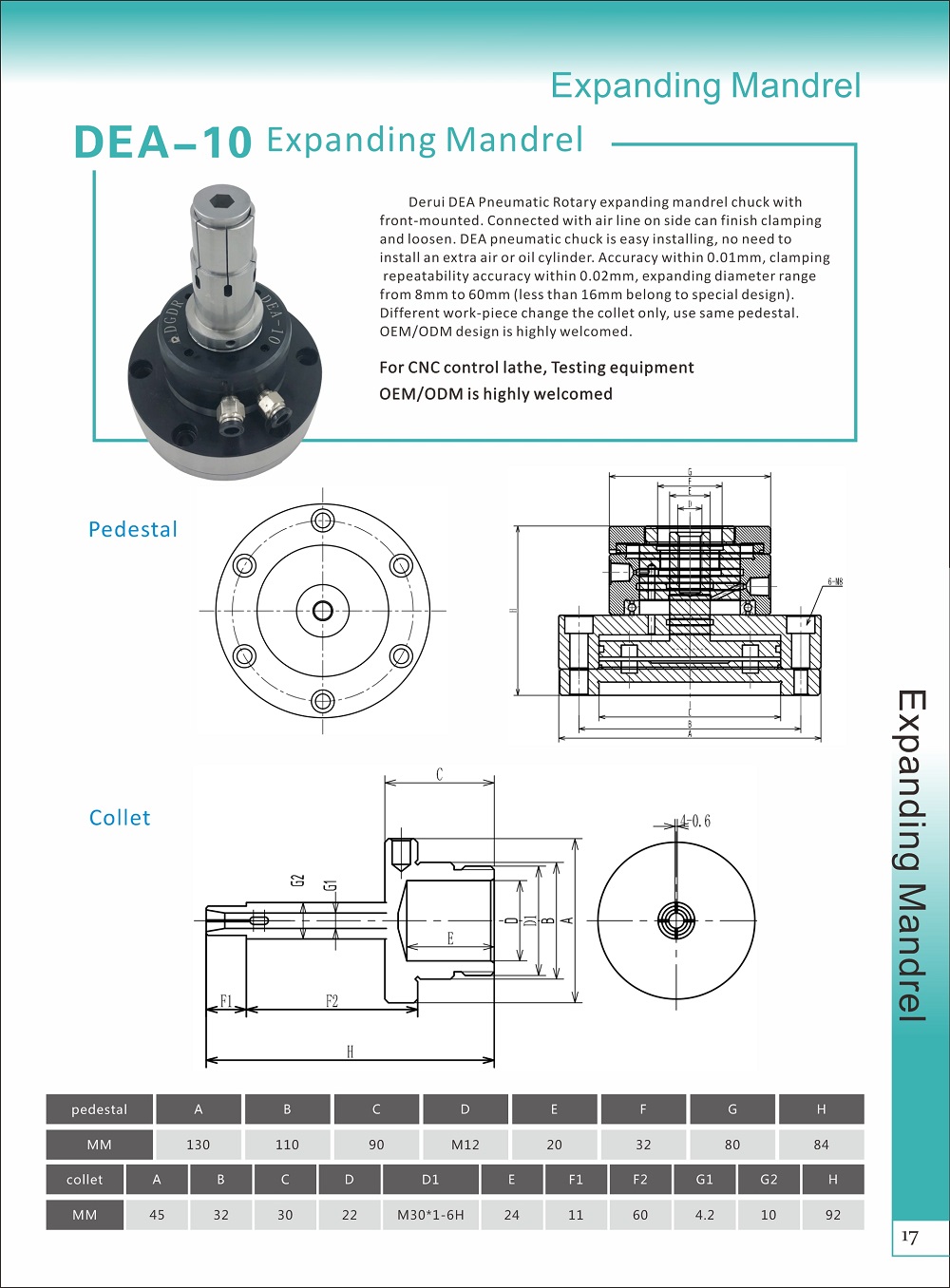

OEM/ODM design expanding mandrel chuck for CNC control lathe for testing equipment Derui DEG Pneumatic Rotary expanding mandrel chuck with front-mounted. Connected with air line on side can finish clamping and loosen. DEA pneumatic chuck is easy installing, no need to install an extra air or oil cylinder. Accuracy within 0.01mm, clamping repeatability accuracy within 0.02mm, expanding diameter range from 8mm to 60mm (less than 16mm belong to special design). Different work-piece change the co...

• Product Name:pneumatic Expanding mandrel chuck
• Type:pneumatic chuck
• Material:steel
• Item:DEA-10
• repeatability accuracy:within 0.02MM
• min expanding size:8mm
• max expanding size:60mm
• ODM/OEM design:Yes
• chuck G.W:8kgs
• packing size:30*30*30cm
• usage:CNC control lathe, testing equipmen
